PXBMS-3647SP
Brushless Lawn Mower
Safety Key & Cable Clips
Top Handle
Lower Handle
Handle Assembly Fasteners &
Spanner
STANDARD EQUIPMENT
WARRANTY
0523
SELF-PROPELLED
LAWN MOWER
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 2 x 18V
Cutting Diameter: 460mm (18”)
Cutting Heights: 25 - 80mm, 9 position
No Load Speed: 2,900/min
Grass Catcher: 50 litres
Noise Rating: 96dB
Tool Weight: 23kg
ozito.com.au
BRUSHLESS
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING
YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benets provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer service helpline
above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example: wheels, blade,
cord clips, bearings etc.
OZITO. 25 Fox Drive, Dandenong South, Victoria 3175, Australia
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.
11. Safety Key
12. Cable Clip x 3
13. Nut x 4
14. Upper Handle Knob x 2
15. Round Head Bolt-Short x 2
16. Round Head Bolt-Long x 2
17. Spanner
18. CSK Bolt x 2
1. Wheel Drive Lever
2. Top Handle
3. Safety Switch
4. Start/Stop Motor Lever
5. Grass Catcher
6. Lower Handle
7. Catcher Flap
8. Battery Cover
9. Cutting Height Adjustment Lever
10. Cutting Deck
BRUSHLESS LAWN MOWER
KNOW YOUR PRODUCT
192 3
15
4
12
567 8
11
1. ASSEMBLY
SETUP & PREPARATION
1. Place the lower handle over the
outside of the mower handle
brackets aligning the upper holes
in the handle and each bracket.
Fit the CSK bolt through mounting
brackets then through hole in each
side of lower handle.
Fitting the Lower Handle
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
BATTERIES ARE DISCONNECTED BEFORE PERFORMING
ANY OF THE FOLLOWING TASKS.
ACCESSORIES
2. There are three holes
remaining in each bracket,
select the appropriate hole for
the height of the user.
BATTERY & CHARGER
This tool is compatible with all batteries and chargers from
the Ozito PXC Range.
Fitting the Upper Handle
1. Place the upper handle
over the lower handle.
Fit long round head bolts
through the lower handle
and then through the
upper handle.
3. Fit the short round head bolt
through the brackets and then
through the lower handle.
Secure each bolt with the 4
nuts and spanner provided.
2. Secure knobs over
the protruding ends
of the bolts.
13 14 16 17 18
10

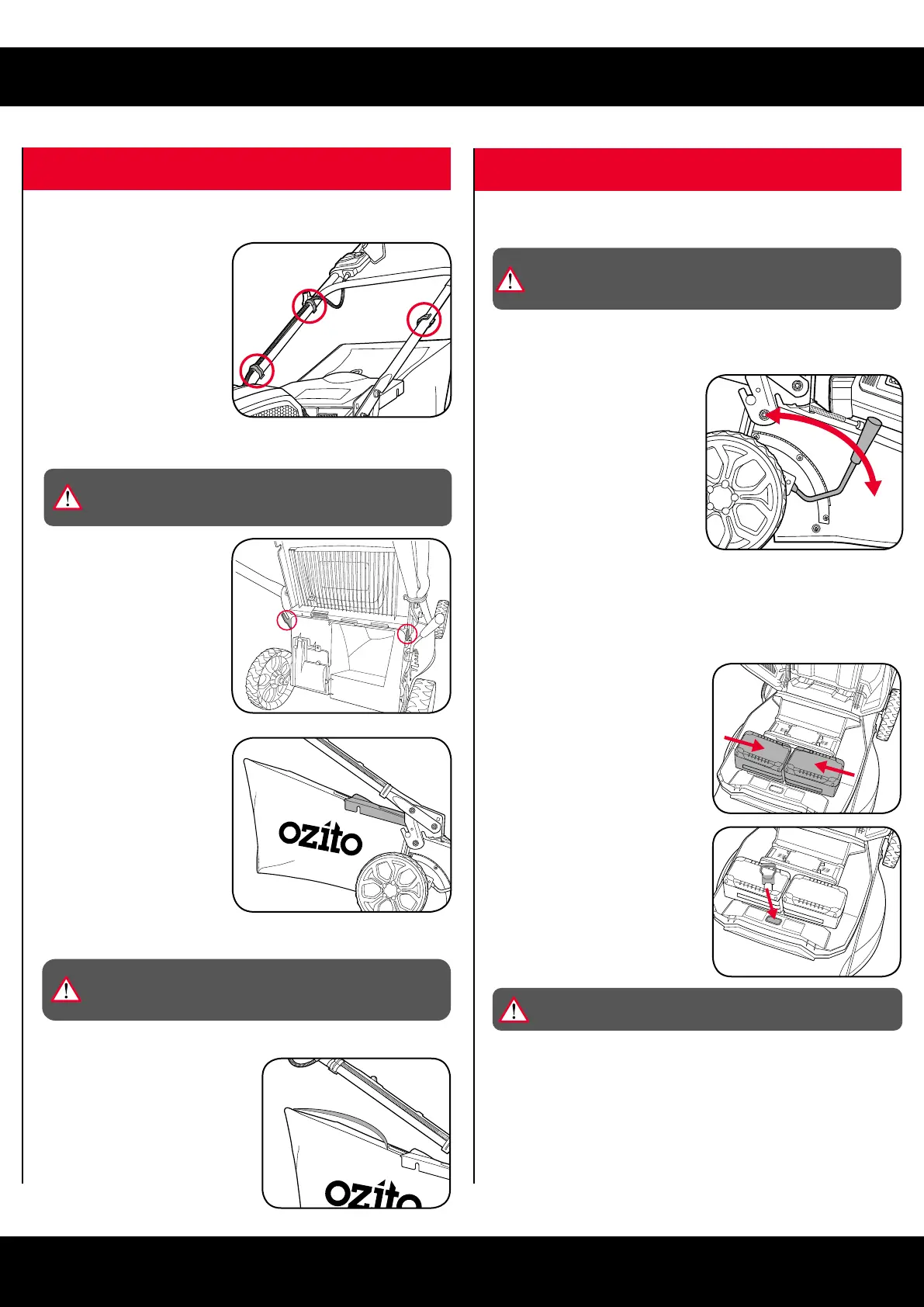

2. PREPARATION
1. Carefully lift open the battery
cover from the front and slide
two batteries of the same
capacity and same charge
state into the front mounts,
aligning the ribs so that they
click into place.
2. Insert the safety key.
(If the mower is not going to be
used immediately, do not insert
the safety key.)
1. Lift up the grass catcher ap
with one hand and guide the
catcher with your other hand
over the two hooks on the
mower housing.
3. To remove, raise the grass catcher ap and lift the grass catcher out. 3. Carefully close the battery
cover.
2. Lower the grass catcher and
allow it to sit in place. Lower
the grass catcher ap.
Inserting the Batteries & Safety Key
Adjusting the Cutting Height
Securing the Cord
WARNING! ONLY FIT AND REMOVE THE GRASS
CATCHER WHEN THE MOWER IS SWITCHED OFF AND
THE MOTOR HAS COME TO A STOP.
Note: The grass catcher
ap is held against the grass
catcher by a spring.
The cutting height adjustment lever provides 9 cutting heights from
25mm - 80mm.
1. Pull lever outwards away from
the mower body.
2. Adjust until the required
cutting height is selected.
3. Release lever and check
that it is securely seated in
the required cutting height
position.
Only use 2 batteries with the same capacity. For best performance
use 3.0Ah batteries and above. Always use 2 batteries with the same
charge state with the mower.
WARNING! WHEN FITTING THE GRASS CATCHER AFTER
EMPTYING, ALWAYS ENSURE THERE IS NO BUILD UP
OF GRASS IN THE GRASS CHUTE.
Grass Catcher Indicator
The grass catcher is tted with an
indicator at the rear of the catcher
to help identify when to empty.
When in operation the indicator
oats up when the catcher is
empty. If the indicator drops down
then the grass catcher is full and
needs emptying.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
BATTERIES ARE DISCONNECTED BEFORE PERFORMING
ANY OF THE FOLLOWING TASKS.
Fitting and Removing the Grass Catcher
Ensure the cord follows the
inside of the handles smoothly
from the switch to the body of
the mower.
1. Place the supplied cord
clips over the cord. Push
the cord clip onto the
handle to secure in place.
WARNING! ALWAYS ENSURE THE SAFETY KEY AND ALL
BATTERIES ARE REMOVED WHEN NOT IN USE.
