Strona 1/4

Kendall mk2 Collection

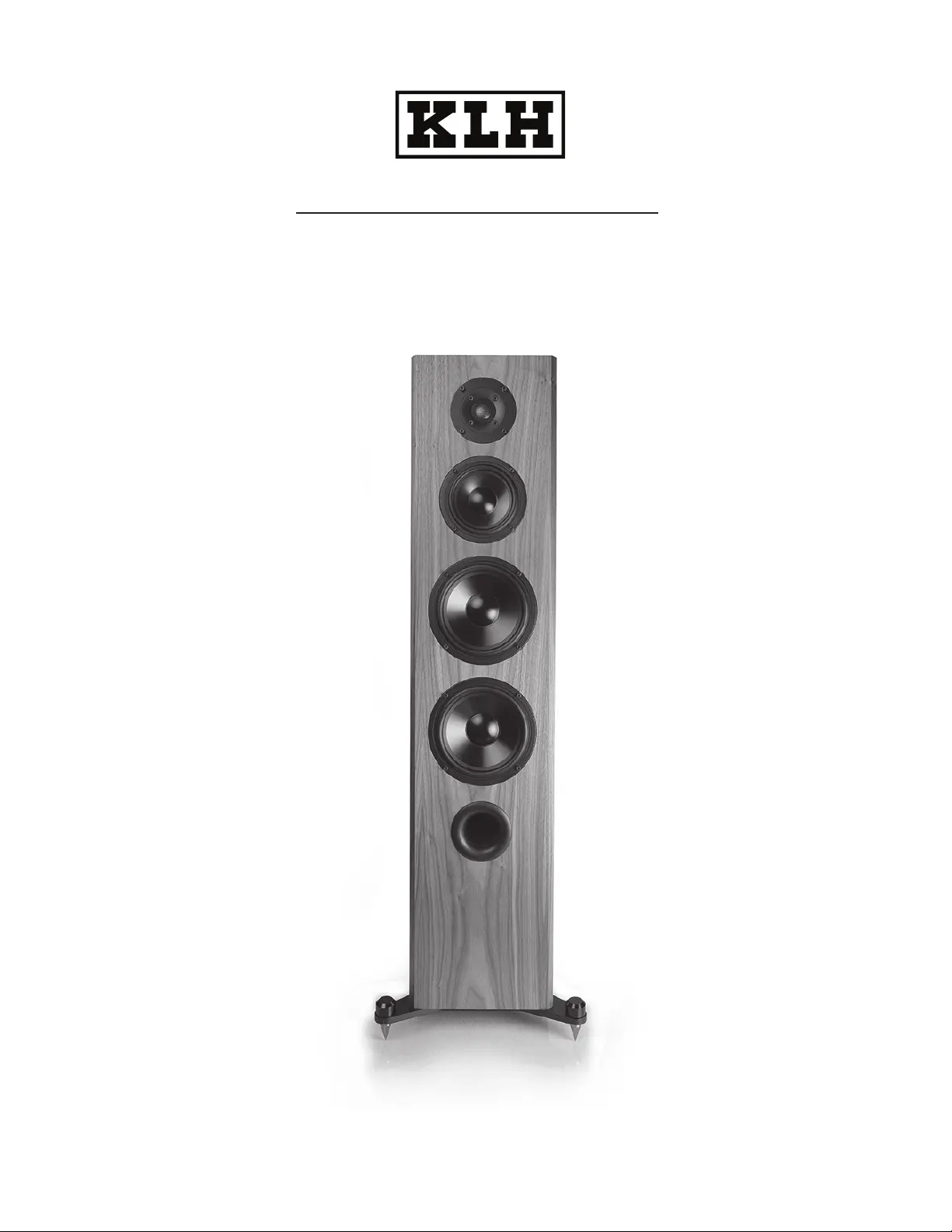

Kendall 2F Floorstanding Loudspeaker

Co nte nts: 1 Fl o o rsta nd i ng Lo ud sp e a k er To t a l Wei g h t: lb s. ( kg )

S tore Vertically

DO NOT S TACK

Design ed a n d Eng ineered in No b lesville, IN USA.

Ma nufa ctured in Ca n a d a .

klha ud io .co m

Ke ndal l m k2 Colle ction

Kendall 2F Floorstanding Loudspeaker

Th ree-wa y Hig h -P erfo rma n ce Speaker

250 Watts P o wer H a nd ling

Ke ndall mk2 Colle cti on

Kendall 2F Floorstanding Loudspeaker

Con ten ts: 1 Flo o rsta nd ing L o u d sp e a k er To ta l Weig ht: lb s. ( k g )

S tore Ve rtically

DO NOT S TA CK

Designed a n d Eng ineered in No b lesville, IN USA.

Ma nufa ctured in Ca na d a .

klha ud io .co m

Ke ndal l m k2 Colle ction

Kendall 2F Floorstanding Loudspeaker

Th ree-wa y Hig h -P erfo rma n ce Speaker

250 Watts P o wer H a nd ling

Ke ndall mk2 Colle cti on

Kendall 2F Floorstanding Loudspeaker

Con ten ts: 1 Flo o rsta nd ing L o u d sp e a k er To ta l Weig ht: lb s. ( k g )

S tore Ve rtically

DO NOT S TA CK

Designed a n d Eng ineered in No b lesville, IN USA.

Ma nufa ctured in Ca na d a .

klha ud io .co m

WELCOME!

Thank you for purchasing one of the best sounding loud-

speakers ever produced. At KLH, we have been making

high-quality components since 1957, and we take pride in

making your music and movies the best experience possi-

ble.

FOR YOUR SAFETY

Important Safety Instructions!

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN with dry cotton cloth. Do not use microﬁber.

7. DO NOT block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other heat producing appliances

9. USE ONLY attachments/accessories speciﬁed by

the manufacturer.

10. DO NOT expose to excess moisture or liquids, and do not

place containers with liquids on top of speakers.

The exclamation point, within an equilateral trian-

gle, is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

product.

The lightning ﬂash with arrowhead symbol within

an equilateral triangle is intended to alert the user

to the presence of uninsulated “dangerous volt-

age” within the product’s enclosure that may be of

sufﬁcient magnitude to constitute a risk of electrical

shock to persons.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union

EMCDirective 2004/108/EC; European Union Restriction of

Hazardous Substances Recast (RoHS2) Directive 2011/65/

drivers.dEC; European Union WEEE Directive 2002/96/EC.

KLH and the KLH logo are registered trademarks of Kelley

Global Brands Inc., registered in the U.S. and other countries.

WEEE NOTICE

Note: This mark applies only to countries within the

European Union (EU) and Norway.

This appliance is labeled in accordance with

European Directive 2002/96/EC concerning

waste electrical and electronic equipment

(WEEE). This label indicates that this product

should not be disposed of with household

waste. It should be deposited at an appropriate facili-

ty to enable recovery and recycling.

CONTENTS:

The spike feet assemblies contain two matching powder

coated arms with two spikes and spike installation knobs

each. There are also eight installation screws with Allen

wrench.

UNPACKING

Place the package on the ﬂoor with the box ﬂaps up. Cut

the tape with a utility knife to open the package. Fold

the carton ﬂaps back and carefully slide the speaker and

packaging from the box, or turn the box over with ﬂaps

open and remove the box. Stand the speaker and packing

upright, making sure the loudspeaker rubber feet are on

the bottom, and remove the packing material.

SPIKE AND RUBBER FEET

The Kendall 2F ﬂoorstanding speakers are equipped with

rubber feet, and can be removed to install spiked feet

assemblies. Spiked and rubber feet are to be used for bass

decoupling (reducing bass transmission). To install metal

spiked feet, you may place speaker on the ﬂoor on either

side. DO NOT place speaker front on ﬂoor to avoid possi-

ble damage to drivers. To intall spiked feet assembly, ﬁrst

remove rubber feet, and follow instructions below:

ROOM POSITION

Placement of your ﬂoorstanding loudspeakers is a personal

preference, but it is recommended that speakers be placed

at least 6 feet apart whether they are being used for a

stereo application, or as the main left and right channels for

a home theater. For best imaging and separation, listening

distance from the speakers should be about 1.25 times the

distance the speakers are apart from each other.

Example: If the distance between each speaker and the

listening position is 10 feet, then the speakers should be 8 feet

apart from one another. Be sure that loudspeakers are placed

at least 12 inches away from any wall. Further adjustments

can be made to optimize your listening experience.

AMPLIFICATION

Conventional ampliﬁcation involves a single stereo ampli-

ﬁer wired to a single set of binding posts with straps con-

necting the second set of posts as seen in diagram above.

Simply attach the positive wire + to the red post, and the

negative wire – to the black post.

BI-AMPLIFICATION

This connection method (see diagram below) uses two sepa-

rate two channel ampliﬁers to power one set of speakers. One

ampliﬁer is attached to one set of binding posts, and another

identical ampliﬁer is attached to the other set of binding posts.

This is referred to as bi-ampliﬁcation.

CONNECTING YOUR

FLOORSTANDING LOUDSPEAKERS

Both ﬂoorstanding loudspeakers have the same quality gold

-plated binding posts that will accommodate stripped wire,

spade connectors or banana plugs. Be sure to use quality

speaker cables, up to 12 gauge (AWG). The lowest gauge

possible is recommended. Before using banana plugs, be

sure to remove the black and red inserts on the binding

posts. The straps connecting the binding posts should re-

main in place for conventional wiring, but may be removed

where bi-wiring is preferred. See the following diagrams in

the AMPLIFICATION section for further instruction.

LEFT

SUB

RIGHT

CENTER

SURROUND

LEFT

SURROUND

RIGHT

NOTE:

Binding post wrench is included

NOTE:

When moving

loudspeakers take extra

caution to place hands in a

position that will not dam-

age the drivers. This can

best be done by placing

one hand in the port at the

back of the loudspeaker,

and the other hand at either

top corner.

ALWAYS KEEP HANDS AWAY

FROM DRIVERS TO AVOID

DAMAGE.

WARRANTY

Our 10 year warranty begins from purchase date of the item.

(Receipt Date) Warranty registration must be completed at

KLHAUDIO.com/warranty. Registration of the product must

be completed within 120 days of purchase for warranty

validation. Original receipt of purchase must be retained for

proof of purchase. For warranty or service issues, please con-

tact authorized KLH dealer. The warranty covers any produc-

tion and/or material defects of the product. This warranty is

non-transferable.

The following is NOT COVERED by the warranty:

1. Accidents, misuse, poor maintenance, electrical over-

loads such as lightning or voltage.

2. Incorrect use of product.

3. Altered serial number.

4. Transportation costs for service call.

5. Purchase of KLH products from unauthorized reseller.

Replacement item cannot exceed the cost of the item under

warranty. The supplier is responsible for only repair or re-

placement. KLH toll free number is 1-833-554-8326

Be sure to remove the terminal straps before using the

bi-ampliﬁcation method. Connect positive + and nega-

tive – cables from the ampliﬁer to the top terminals, and

make sure the connection is tight. Connect the second set of

cables (positive and negative) to the bottom terminals and

tighten. Repeat these same steps using the second ampliﬁer

to connect to the second terminals.
