Kendall mk2 Collection

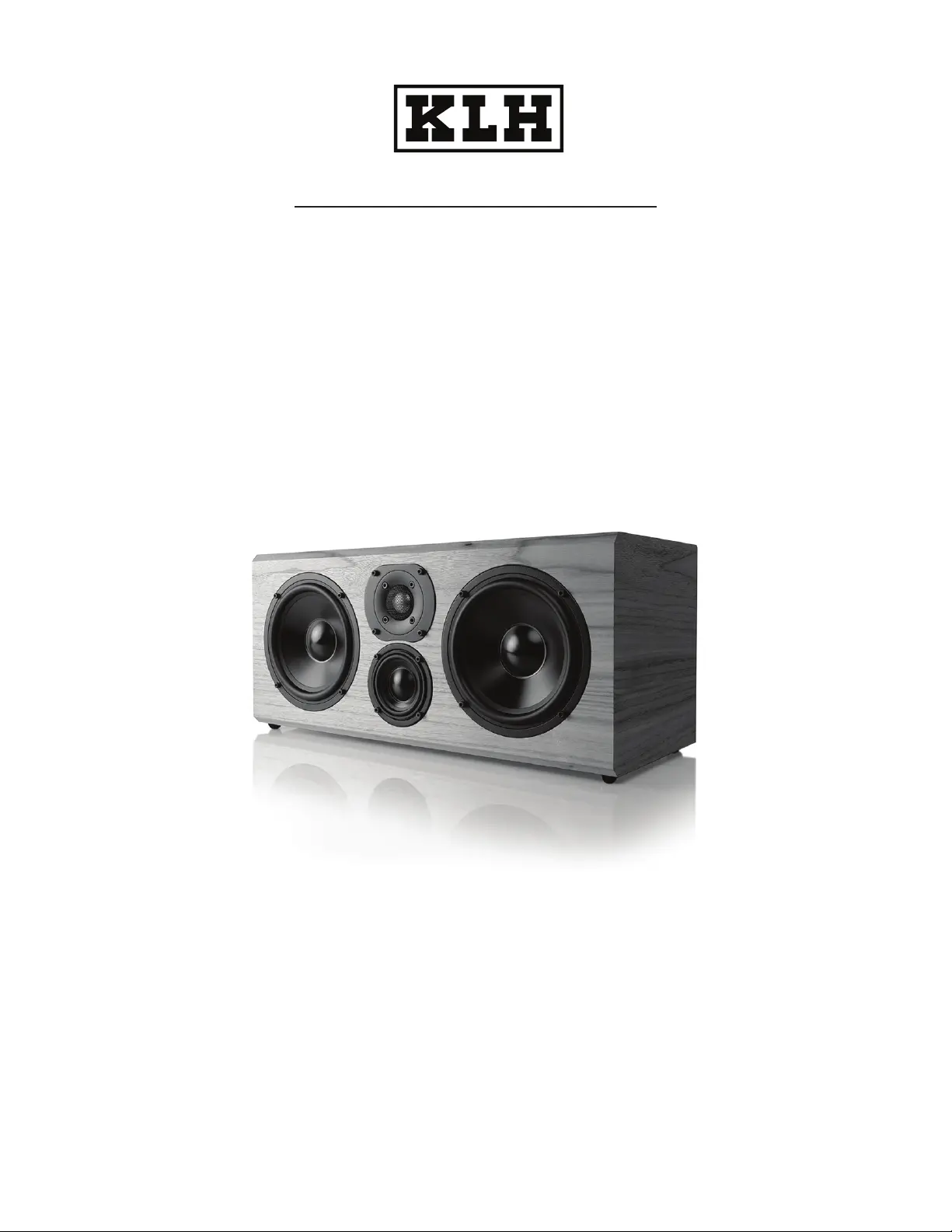

Kendall 2C Center Channel Loudspeaker
CONNECTING YOUR CENTER CHANNEL
Your 2C center channel has quality nickel-plated binding
posts that will accomodate stripped wire, spade connectors
or banana plugs. Be sure to use quality speaker cables,
up to 12 gauge (AWG). The lowest gauge possible is
recommended. Before using banana plugs, be sure to
remove the black and red inserts on the binding posts. See
the following diagrams in the AMPLIFICATION section for
further instruction.
AMPLIFICATION
Conventional amplification involves a single stereo
amplifier wired to a single set of binding posts with straps
connecting the second set of posts as seen in
diagram above. Simply attach the positive wire + to the red
post, and the negative wire – to the black post.
UNPACKING
Place package on the floor or table top with the box flaps
up. Cut the tape with a utility knife to open the package.
Fold the carton flaps back and carefully slide the speaker
and packaging from the box, or turn the box over with
flaps open and remove the box. Stand the speaker and
packing upright, making sure the speaker is right side up,
and remove the packing material.
WELCOME!
Thank you for purchasing one of the best sounding loud-
speakers ever produced. At KLH, we have been making
high-quality components since 1957, and we take pride in
making your music and movies the best experience possible.
FOR YOUR SAFETY
Important Safety Instructions!
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN with dry cotton cloth. Do not use microfiber.
7. DO NOT block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other heat producing appliances
9. USE ONLY attachments/accessories specified by
the manufacturer.
10. DO NOT expose to excess moisture or liquids, and do not
place containers with liquids on top of speakers.
The exclamation point, within an equilateral trian-
gle, is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
The lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electrical
shock to persons.
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union
EMCDirective 2004/108/EC; European Union Restriction of
Hazardous Substances Recast (RoHS2) Directive 2011/65/
drivers.dEC; European Union WEEE Directive 2002/96/EC.
KLH and the KLH logo are registered trademarks of Kelley
Global Brands Inc., registered in the U.S. and other coun-
tries.
WEEE NOTICE
Note: This mark applies only to countries within the
European Union (EU) and Norway.
This appliance is labeled in accordance with
European Directive 2002/96/EC concerning
waste electrical and electronic equipment
(WEEE). This label indicates that this product
should not be disposed of with household
waste. It should be deposited at an appropriate facili-
ty to enable recovery and recycling.
WALL
MOUNT
STAND
CENTER CHANNEL PLACEMENT
Place the center channel below the monitor in both wall
mount and stand applications.
NOTE:
When the center channel is positioned below ear level, it
should be angled upward as seen in the diagram above.
WARRANTY
Our 10 year warranty begins from purchase date of the item.
(Receipt Date) Warranty registration must be completed at
KLHAUDIO.com/warranty. Registration of the product must
be completed within 120 days of purchase for warranty
validation. Original receipt of purchase must be retained
for proof of purchase. For warranty or service issues, please
contact authorized KLH dealer. The warranty covers any
production and/or material defects of the product. This
warranty is non-transferable.
The following is NOT COVERED by the warranty:
1. Accidents, misuse, poor maintenance, electrical over-
loads such as lightning or voltage.
2. Incorrect use of product.
3. Altered serial number.
4. Transportation costs for service call.
5. Purchase of KLH products from unauthorized reseller.
Replacement item cannot exceed the cost of the item under
warranty. The supplier is responsible for only repair or
replacement. KLH toll free number is 1-833-554-8326
LEFT
SUB
RIGHT
CENTER
SURROUND
LEFT
SURROUND
RIGHT
NOTE:
Binding post wrench is included
Adhesive
rubber feet
provided
to protect
sufaces.
ROOM POSITION
The placement of your center channel is very important in
regard to home theater usage. The center channel produces
most of the dialogue, and 60% of the total sound in a home
theater application. It is recommended that the center
channel speaker be placed below the viewing screen or
monitor (see diagram).
The 2C center channel speaker is sonically matched to work
seamlessly with all other KLH speakers, and will deliver opti-
mum performance in all home theater applications.
BI-AMPLIFICATION
This connection method (see diagram below) uses two sepa-
rate two channel amplifiers to power one set of speakers. One
amplifier is attached to one set of binding posts, and another
identical amplifier is attached to the other set of binding posts.
This is referred to as bi-amplification.
