I N S T A L L A T I O N I N S T R U C T I O N S
6” Depth EZ-FOLDTM Wall Mount Bracket, 8 RMS

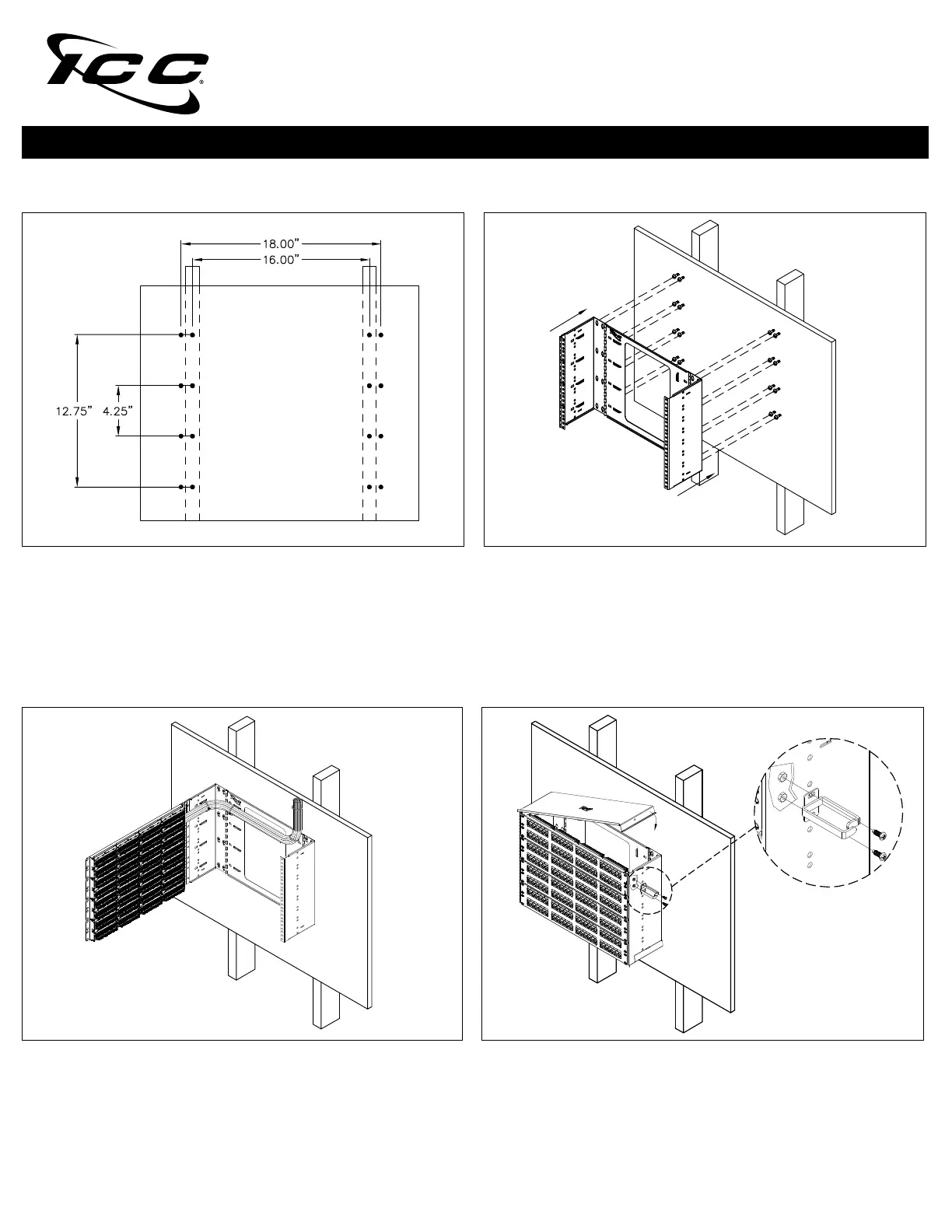

Step 1. Pre-drill screws onto the wall surface, but do not tighten completely.
•Use inner mounting holes positioned at 16.00” to secure bracket to studs.
•Use outer mounting holes positioned at 18.00” to secure bracket to board.
Note: Screws not included. It is recommended to use a level for accurate
mounting.
Step 2. Align mounting holes to the semi-tighten screws and mount the
bracket. Tighten all screws securely before mounting equipment.
Step 3. Route and secure cable bundle(s) to the bracket as shown. 1. Complete installation by installing covers on top and bottom of bracket.
2. Metal rings can be mounted along the sides of the bracket for cable
management. Note: To secure the rings, use #12-24 machine screw nut
with lock washer or #12-24 ange nut. (Not sold by ICC)
F E A T U R E S A N D B E N E F I T S
888-ASK-4ICC csr@icc.com icc.com
© Copyright 2012, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved. MSR-0509A-Rev A
O P T I O N A L A C C E S S O R I E S
I N S T A L L A T I O N I N S T R U C T I O N S
6” Depth EZ-FOLDTM Wall Mount Bracket, 8 RMS
Item No. Description Weight CapacityRack Mount Spaces #12-24 Screws
19.30” L X 14.00” H X 6 D 8 30 lbs 32ICCMSABR68
• Designed with heavy duty steel supporting up to 30 lbs. of equipment
• Hinged every 2 rack mount spaces for easy maintenance
• 6” depth for network and phone equipments
• Cable tie anchors throughout for organizing cables
• Compatible with standard 19” width equipment and EIA-310-D hole pattern
Metal Cable Management Rings
ICCMSCMPR1 1.70 Single, Vertical
ICCMSCMPR2 3” Single, Vertical
• Metal construction for durability
• Single sided rings
Single Horizontal Finger Ducts
ICCMSCMA41 1.58 H x 3.15” D, 1 RMS
ICCMSCMA42 3.15 H x 3.15” D, 2 RMS
• For front cable management
• Durable steel base with plastic ngers
• Includes slide-on cover
EZ-FOLD Wall Mount Bracket Cover
ICCMSHBCVR
• Top cover
• Mounts on top
• Helps protect equipment and cables
• Strong steel construction
Blank Panels
ICCMSCMPB1 1.75”H x 19”W, 1 RMS
ICCMSCMPB2 3.50”H x 19”W, 2 RMS
ICCMSCMPB3 5.25”H x 19”W, 3 RMS
• Fills empty spaces between mounted
equipment
• Strong steel construction
