Instrukcja obsługi ICC IC1078E5YL

ICC nieskategoryzowany IC1078E5YL

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla ICC IC1078E5YL (1 stron) w kategorii nieskategoryzowany. Ta instrukcja była pomocna dla 2 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Strona 1/1

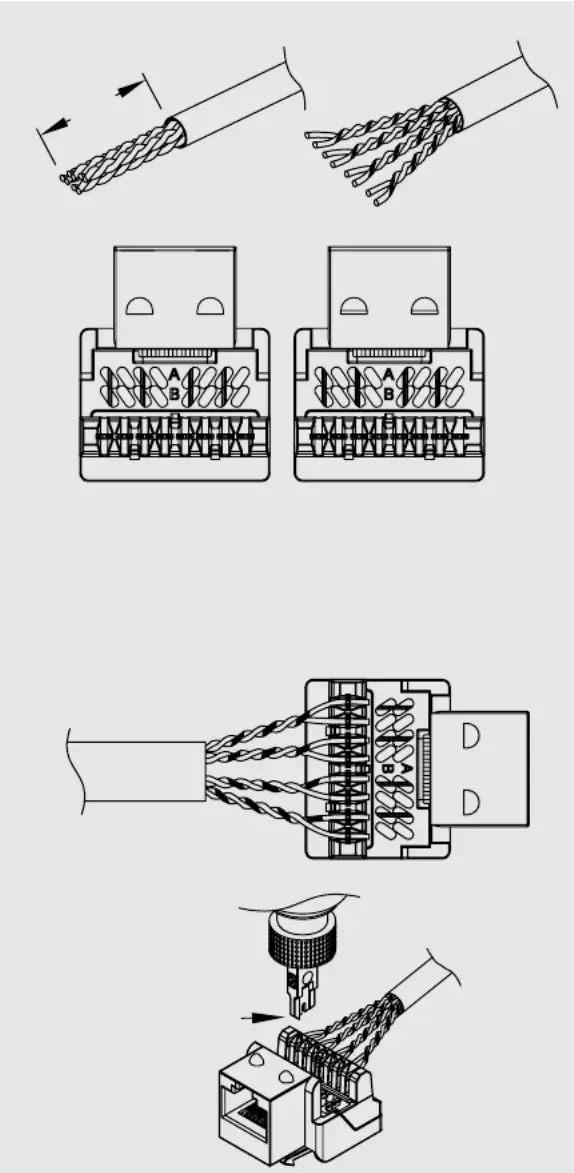

1. Strip approximately 1.50” of cable jacket and separate wires.
2. Choose between TIA 568-A or TIA 568-B wiring configuration.
3. Sort wires and place into the IDC.
Note: For maximum performance, minimize the untwisting of
individual pairs to 0.125”
4. Terminate wires using a Punch-Down Tool.
1.50”
Cutting edge
TIA 568-A TIA 568-B
1
2
5
4
3
6
7
8
White/Green
Green
White/Blue
Blue
White/Orange
Orange
White/Brown
Brown
1
2
5
4
3
6
7
8
White/Orange
Orange
White/Blue
Blue
White/Green
Green
White/Brown
Brown

Specyfikacje produktu

Marka: ICC
Kategoria: nieskategoryzowany
Model: IC1078E5YL
Kolor produktu: Żółty
Certyfikaty: ANSI/TIA-568-C, UL 1863
Zakres temperatur (eksploatacja): -40 - 68 °C
Materiał pokrycia styków: Złoto
