Strona 1/4
STANDARD PRODUCT WARRANTY
Quality is part of the company philosophy and all products are manufactured to the highest quality standards. All
technical data and measurements are approximate values and based upon single shift operations. All products are
subject to different limits and specifications due to operation length, paper size, grain, weight, misuse/abuse and power
configurations.
Prior to operation read the Manufacturer’s Operating Instructions included with this product. This will help ensure all
precautions are taken to avoid cancellation of the manufacturer’s warranty.
The manufacturer warrants that any new products sold will be free from defects in material and workmanship
when used under specified and normal operating conditions. This warranty is void if repairs are necessitated by
accidents, misuse, abuse, water damage or fire.
The capabilities of all products are in each specification flier. Exceeding model specifications causing product failure
is not covered by this warranty. Modifications, alterations and repairs must be performed by an authorized technician.
Lubrication for cross cut shredders is required every fifteen to thirty minutes of operation, to maintain top working
condition and this warranty.
Professional Shredders
Parts and labor to repair any failure caused by defect is limited to two (2) years from date of invoice. Cutting Rollers are
warranted to be free of manufacturer defects for twenty (20) years from date of invoice. If machine is purchased with an
Automatic Oiler, the Cutting Roller is warranted to be free of manufacturer’s defects to the first buyer for the Lifetime of
the shredder from the date of the original purchase invoice.
NOTES:
• Freight or transportation damage is not classified as a warranty repair in any case.
• Proof of purchase invoice is required from the end-user for warranty validation or warranty registration date.
• All parts under warranty will be shipped and invoiced using standard costs and will be credited for the full amount only
when the defective part is returned.
• IT IS RECOMMENDED THAT A MAINTENANCE AGREEMENT BE UTILIZED TO SUPPLEMENT ALL WARRANTIES.
PAPER SHREDDER
INSTRUCTION MANUAL
Cutting type Cross cut
Shred size 1/8" x 2" 5/64" x 19/32"
Security level DIN 32757 – 1 3 4
Cutting capacity (sheets), DIN A4 70 g/m
280 - 85 35 - 40
Cutting speed 41 ft./min. 42 ft./min.
Loading width 17.4"
Voltage 3 x 208 V, 60 Hz
Power for the maximum number of sheets 3 kW
Dimensions W x D x H 29.5" x 26.1" x 62.6"
Weight 485 lbs.
Volume of shredded material bag 76.6 gallons
OPERATING INSTRUCTIONS

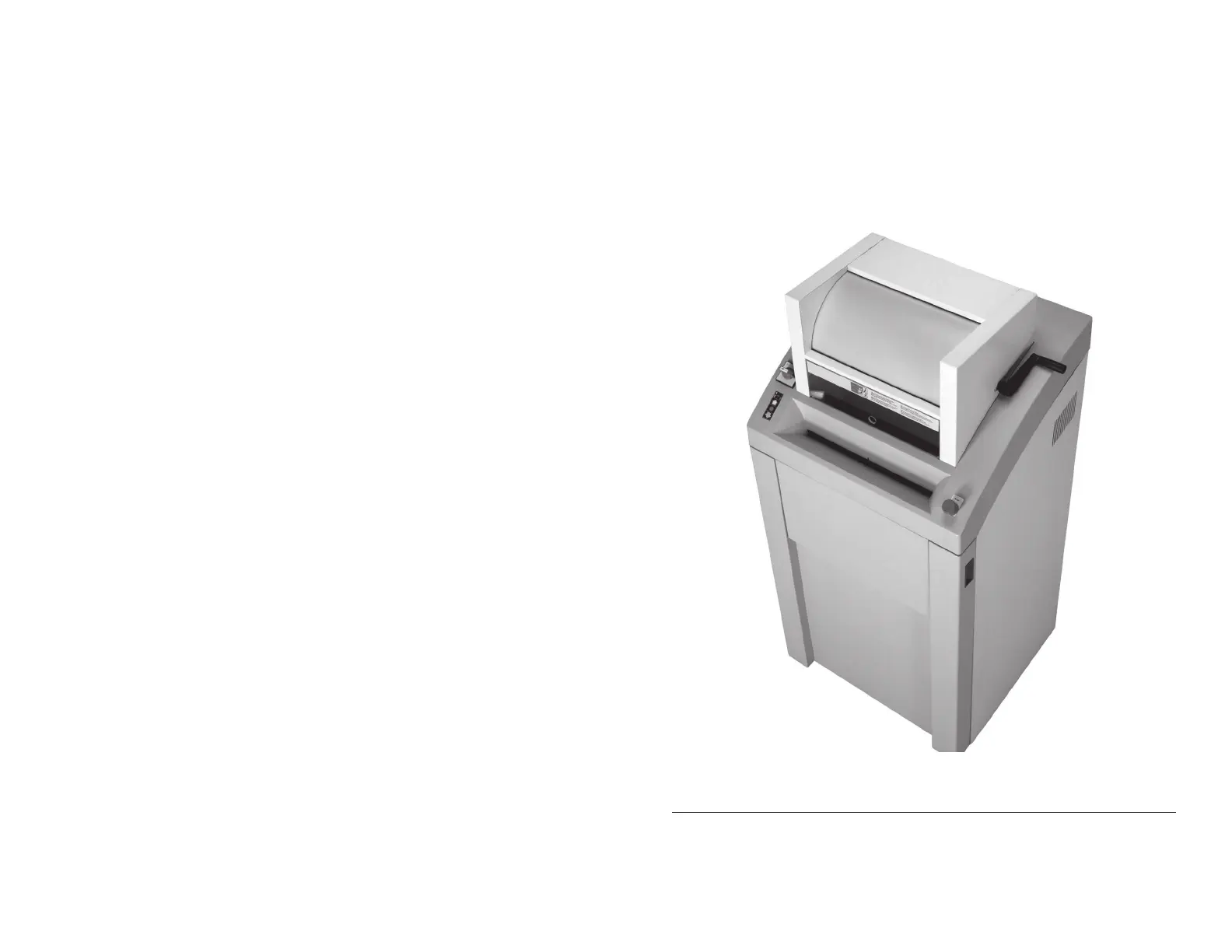

2. Machine components
7
8
3
1
4
2
9
5
6
10 1 Main switch
2 Emergency-stop
pushbutton
3 Membrane
keyboard
4 Filling drum
5 Drum handle
6 Funnelap
7 Folding tray
8 Front door
9 Paper feed slot
10 Name plate
3. Safety instructions
• Read all instructions before start-up of the paper shredder. Save these instructions
for later use.
• Follow all warnings and instructions marked on the product!
• Make sure no liquid is spilled on or in the paper shredder.
• Do not attempt to repair this paper shredder yourself.
• If the shredder is damaged or does not function properly, switch the device off, pull out the
power plug and inform our service engineers.
• Keep paper shredder out of the reach of children.
• This shredder should be operated only with an operator in attendance.
Caution!
Empty the shredded material container after the paper shredder has been
switched off, because otherwise malfunctions of the cutting system could
occur when the rocker switch is pressed several times in succession
9. Maintenance and care
Cleaning:
• Switch off the shredder, pull out the power plug.
• When cleaning only use a soft cloth and a mild soap-water solution. Never use scouring
agents,cleaninguid,petroleumorthinners.
When the cutting capacity drops or the noise increases:
•Lifttheaponthetopofthedeviceandsprayspecialcuttingblockoilon
the blade rollers of the cutting device.
• Run cutting system forwards and backwards several times without feeding
paper. Paper dust and particles are shaken off.
10. Technical Data
Technicalandopticalmodicationsreserved.
OPERATING INSTRUCTIONS
1. Proper use, warranty
We provide a warranty for the device in accordance with our general sales and
delivery terms. This warranty excludes wear, damage due to improper handling,
natural depreciation, and actions taken by third parties.
Shredding Capabilities:
ec
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS
Risk of injury!
Do not reach into the paper feed slot.
Risk of injury from slivers!
Wear protective goggles when destroying diskettes, CD’s and hard credit cards.
Risk of injury by pulling in!
Keep long hair, loose articles of clothing, ties, scarves, jewelry etc. away from
feed opening. Material with the tendency to form loops, e.g. tapes, strapping
material, etc. must not be shredded.
Before taking off the cover, changing the location, cleaning or anything else
other than normal operation turn off and unplug the paper shredder!
Maintenance and service work may be performed only by:
• Customer service
• Spciay traind staff (.g. quaid ctricians)
• An authorized service technician
4. Installation
• This paper shredder should never be
placed near or over a radiator or heat source.
• The ventilation slots must not be blocked or covered and they must be at a distance of at
least 4” away from walls or furniture.
• Make sure the power plug is easily accessible.
• Before plugging in the power plug, check that the voltage and frequency of your local main
supply correspond to those stated on the type plate.
Inserting a new bag for cut material
• Open the front door and pull out the cut material container completely.
• Insert a new cut material bag into the container and fold the upper border approx. 4” over
the upper frame tubes.
• Push in cut material container completely and close the door.
5. Operating elements
Membrane keyboard
Ready for operation - green LED
Cut material bag full - red LED
Paper jam – electric motor overloaded - red LED
 Frontdoororfunnelap opened - red LED
ON pushbutton - shredder is switched on – cutting system runs in feed direction
Accessories
• Cut material bag
• Spcia cutting bock oi (8.4 oz.)
Contact your dealer
8. Troubleshooting
Paper jam
You have fed in too much paper.
• Paper shredder jammed.
• Rd LED in th ky pad ashs.
• Paper shredder reverses automatically.
CAUTION!
Injuries by cutting rollers are possible even when the paper shredder is
idle. Keep hands away from the cutting system!
• Opn th funn ap and car th papr jam.
If material is not completely pushed out, then
• Cos th funn ap again.
• Press dashed arrow button.
• Rmov th papr from th funn ap.
• Press the green arrow button.
• Separate paper stack and feed paper again.
CAUTION !
Do press dashed arrow button and green arrow button alternately not
forwards and backwards. Cutting system can be damaged.
Electric motor overheated
• Red LED on membrane keyboard lights.
• Paper shredder switches off automatically.
• Allow paper shredder to cool down for approx. 15 to 20 min.
Frontdoororfunnelap opened
• Red LED on membrane keyboard lights.
• Paper shredder stops automatically.
• Cos front door and ap.
If the door is opened when the cutting device is running, the document
shredder must be started again using the green button after the door of
the document shredder has been closed.
Bag for shredded material full
• Red LED on membrane keyboard lights.
• Paper shredder stops automatically.
Rvrsing th cutting dvic (“Rvrs” button) is aso possib vn
when the shredded material container is full.
• Insert new bag.
