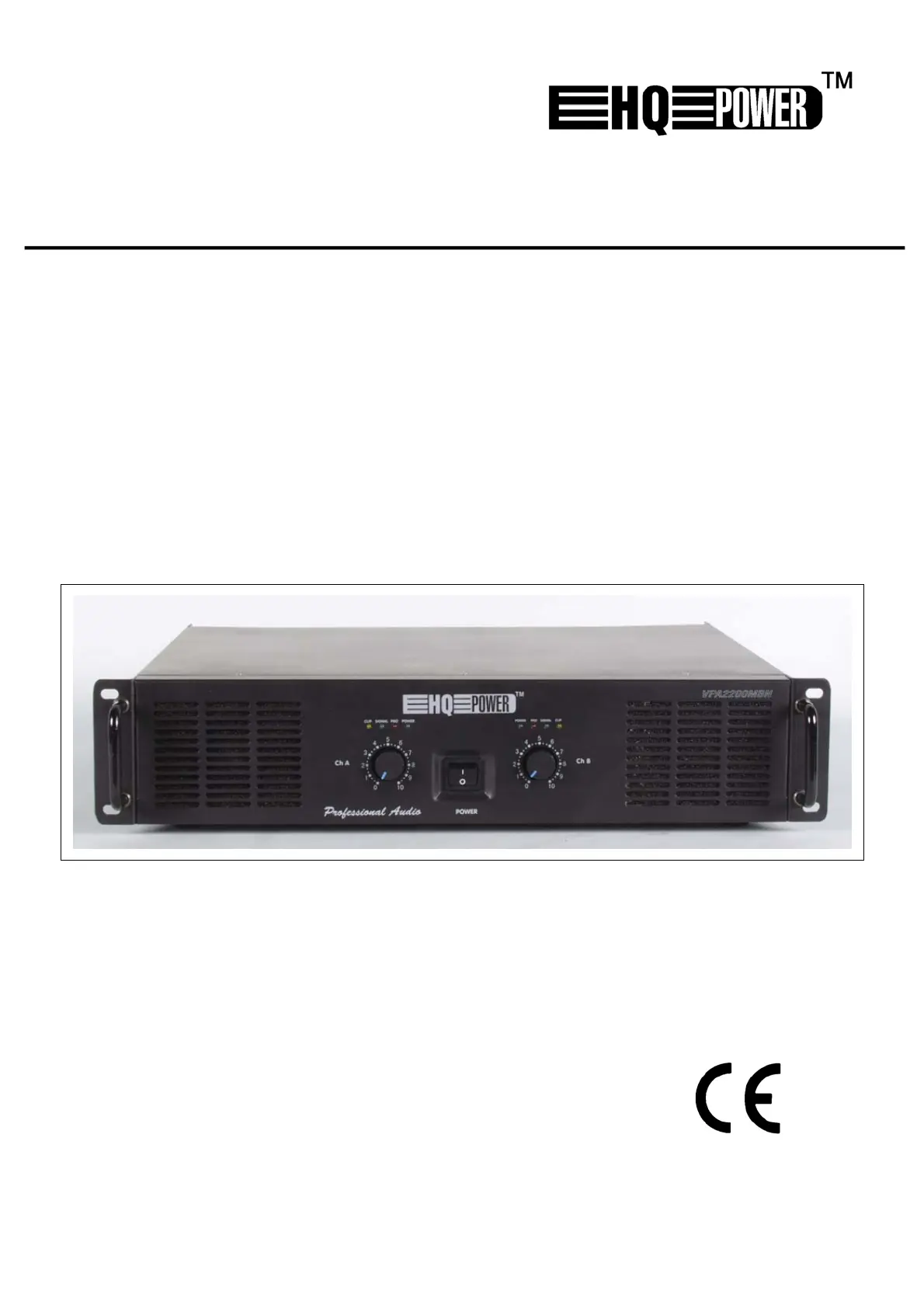

VPA2200MBN
2 X 200W RMS POWER MOSFET AMPLIFIER
2 X 200W RMS MOSFET VERMOGENVERSTERKER
AMPLIFICATEUR DE PUISSANCE MOSFET 2 X 200W RMS
AMPLIFICADOR DE POTENCIA MOSFET 2 X 200W RMS
MOSFET-LEISTUNGSVERSTÄRKER 2 X 200W RMS
USER MANUAL
GEBRUIKERSHANDLEIDING
NOTICE D’EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
VPA2200MBN_v3 2 VELLEMAN
VPA2200MBN – 2 X 200W RMS POWER MOSFET AMPLIFIER
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the VPA2200MBN! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer
will not accept responsibility for any ensuing defects or problems.
• A qualified technician should install and service this device.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device
against damage by leaving it switched off oom temperature. until it has reached r
• This device falls under protection class I. Plug the device into a mains with a protective earthing. Have a qualified
person carry out the electric connection.
• Do not expose the device to dripping or splashing liquids. Never place objects filled with liquids, such as vases,
on top of the device.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
• Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug only.
• Note that damage caused by user modifications to the device is not covered by the warranty.
• Keep the device away from children and unauthorised users.
3. General Guidelines
• The VPA2200MBN should only be used indoors connected to an alternating current of max. 230V AC/50Hz.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Select a location where the device is protected against extreme heat (>45°C), direct sunlight, dust and moisture.
Install it in a well-ventilated area and leave a distance of 30cm in front of and behind the device for ventilation.
• Make sure the cooling circulation is never obstructed. Clean the ventilation openings regularly.
• Keep the device away from dripping and splashing liquids. Never place any objects filled with liquids, such as
vases, onto the device.
• Place the power switch of the device in the off position to completely disconnect the power.
• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified
people. Any damage that may occur will most probably be due to unprofessional use of the device.
• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
Be very careful during the installation: touching live wires can cause life-threatening electroshocks.
Keep this device away from rain and moisture.
Unplug the mains lead before opening the housing.
VPA2200MBN_v3 3 VELLEMAN
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks,
crash, etc. Using the device in an unauthorised way will void the warranty.
4. Fuse Replacement
• Only fit or replace a fuse when the device is unplugged from the mains.
• Replace a blown fuse with a fuse 5A 5 x 20mm fuse, order code FF5N): of the same type and rating (250Vac /
1. Unscrew the fuse holder cap at the back with an appropriate screwdriver.
2. Remove the old fuse and install a new one.
3. Replace the old fuse holder and fasten it with the screwdriver.
5. Use
a. Front Panel
1. ON/OFF switch
2. CHANNEL A gain control. In MONO/BRIDGE use, it will
control both channels simultaneously.
3. CHANNEL B gain control
4. ON/OFF LED (‘POWER’)
5. PROTECTION LED (‘PRO’): lights up when the amplifier
gets too hot.
6. SIGNAL LED (‘SIGNAL’): this green LED indicates a safe
operation (-30dB~0dB).
7. CLIPPING LED (‘CLIP’): red LED indicates a state of over-modulation (distortion at high volumes). Check the
input signal to the amplifier and turn down its level if possible. If not, turn down the gain control on the amplifier.
Keep in mind that the amplifier cannot correct a distorted signal.
b. Back Panel
8. Channel B input through 6.35mm balanced mono jack.
9. Channel B input through balanced XLR connector.
10. Channel A input through 6.35mm balanced mono jack.
11. Channel A input through balanced XLR jack.
12. BRIDGE/STEREO selection switch.
13. Channel B output (min. loudspeaker impedance: 4Ω).
14. Bridge output: to be used when selector switch #12 is set to ‘BRIDGE’ (min. loudspeaker impedance: 8Ω).
15. Channel A output (min. loudspeaker impedance: 4Ω).
16. Fuse holder.
17. Mains connector.
