Strona 1/8

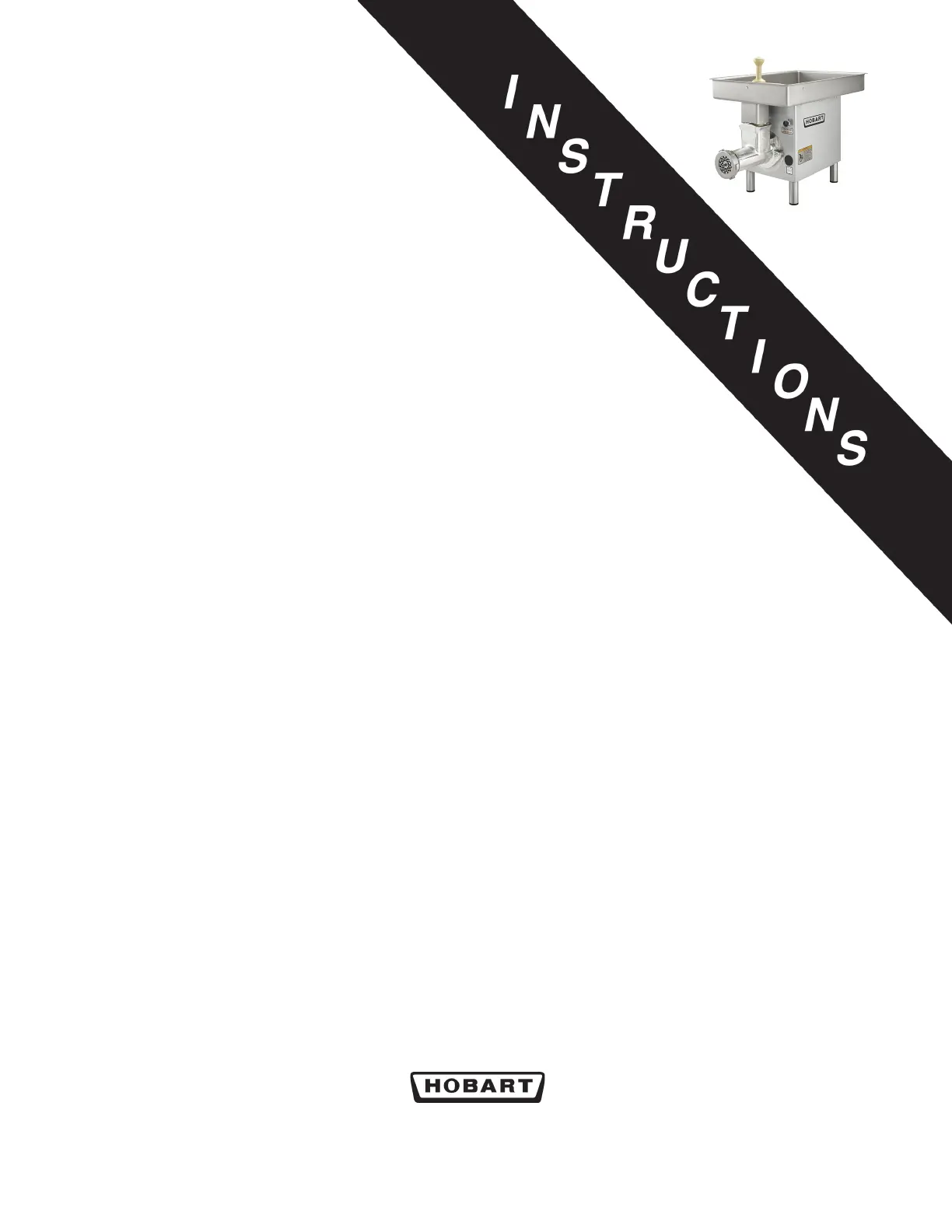

701 S. RIDGE AVENUE

TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

4732 & 4732A CHOPPERS

MODEL

4732 ML-18887 (PAINTED, NON-REMOVABLE PAN)

ML-19282 (SST, NON-REMOVABLE PAN)

4732A ML-19689 (PAINTED, REMOVABLE PAN)

ML-19690 (SST, REMOVABLE PAN)

MODEL 4732 CHOPPER

FORM 34747 Rev. A (March 2012)

– 2 –

Installation, Operation and Care of

4732 & 4732A Choppers

SAVE THESE INSTRUCTIONS

GENERAL

The 4732 and 4732A Choppers are equipped with a 3 HP motor that rotates the worm at 151 RPM. The

4732 and 4732A are designed to use a #32 size knife and plate. Knives and plates, available at extra cost,

are not included with the chopper.

The stainless steel feed pan on the 4732 is not removable and must be cleaned in place. Model 4732A

has a removable stainless steel feed pan and an interlock that requires the feed pan to be in place before

the machine can be turned on. On both models, a cast aluminum guard is permanently mounted to the

front and sides of the feed pan. Dimensions on the feed pan are 34" long x 21" wide x 5" deep. The motor

and switch housing is available in painted steel or stainless steel. The table models use 5 3/8" high legs

that provide 8" clearance between the table and the lowest point on the adjusting ring. Leg sets of other

heights (18" or 21") are available to convert the 4732 or 4732A into a ﬂ oor model. Sausage stuffers for

hog or sheep casings are available accessories.

The chopper can grind 35 to 40 pounds of boneless beef per minute, ﬁ rst cut, through a 1/8" plate. The

second cut grind rate is 25 to 30 pounds per minute through a 1/8" plate. Frozen meat must be tempered

to 24°F or higher before grinding and can be in either ﬂ ake or stick form.

INSTALLATION

UNPACKING

Immediately after unpacking, check for possible shipping damage. If the chopper is found to be damaged,

save the packaging material and contact the carrier within 15 days of delivery.

Remove the carton from around the machine. Remove the four bolts holding the machine to the skid.

Unpack the feed stomper.

Prior to installation, verify that the electrical service agrees with the speciﬁ cations on the machine data plate.

Use the spanner wrench to loosen the adjusting ring. Unscrew and remove the adjusting ring using both

hands. Remove and discard the retaining washer and rubber pad used at the front of the worm where the

knife and plate are to be installed.

The chopper must be thoroughly cleaned and sanitized after installation and before operation. Refer to

CLEANING (page 7).

– 3 –

LEGS (FIGS. 1 & 2)

The four leg assemblies are packed in a separate

carton for shipment. The standard legs (53/8" high)

allow the rim of the feed pan on the table model to

be 27" above the table surface. These legs have

neoprene feet and require assembly. To assemble

53/8" high legs: Slide the Leg Stud through the Leg End

Cap and the Leg; then thread the Leg Stud into the

base of the machine (Fig. 2). Do not overtighten; the

legs need only be hand-tight. Thread the Neoprene

Foot into the Leg Stud (Fig. 2).

Floor model choppers are equipped with optional 18" or 21" legs. Each Leg is one piece and threads into

the base of the machine at the four corners. These Legs can be adjusted by threading the Feet in or out

as necessary (Fig. 2) to level and stabilize the chopper.

Fig. 1

Fig. 2

PL-56170

LEG (18" or 21")

LEG

LEG END CAP

LEG STUD

NEOPRENE FOOT FOOT

34"

INSIDE

8-1/2"

4-3/8"

33-5/16"

DIM "B"

DIM "C"

DIM "A"

15-1/4"

4-1/16"

21"

INSIDE

17-3/8" 1-3/8"

20-1/8"

12-1/2"

1-5/16"

MACHINE HEIGHT FOR LEG OPTIONS

LEGS DIM "A" DIM "B" DIM "C" MODEL

5-3/8"

STD 10-3/4" 5-3/8" 4732

4732A

18"

OPT 23-3/8" 18" 4732

4732A

21"

OPT 26-3/8" 21" 4732

4732A

00-088182

ACCESS FOR

ELECTRICAL

POWER CONNECTION

WARNING

ELECTRICAL & GROUNDING CONNECTIONS MUST COMPLY WITH

THE APPLICABLE PORTIONS OF THE NATIONAL ELECTRICAL

CODE AND/OR OTHER LOCAL ELECTRICAL CODES.

(1-1/16 DIA HOLE)

FOR 3/4" TRADE SIZE CONDUIT

ELECTRICAL CONNECTION HOLE

ON/OFF SWITCH MAY BE

MOUNTED FOR RIGH HAND

OR LEFT HAND OPERATION

27"

27-3/8"

39-5/8"

40"

42-5/8"

43"
