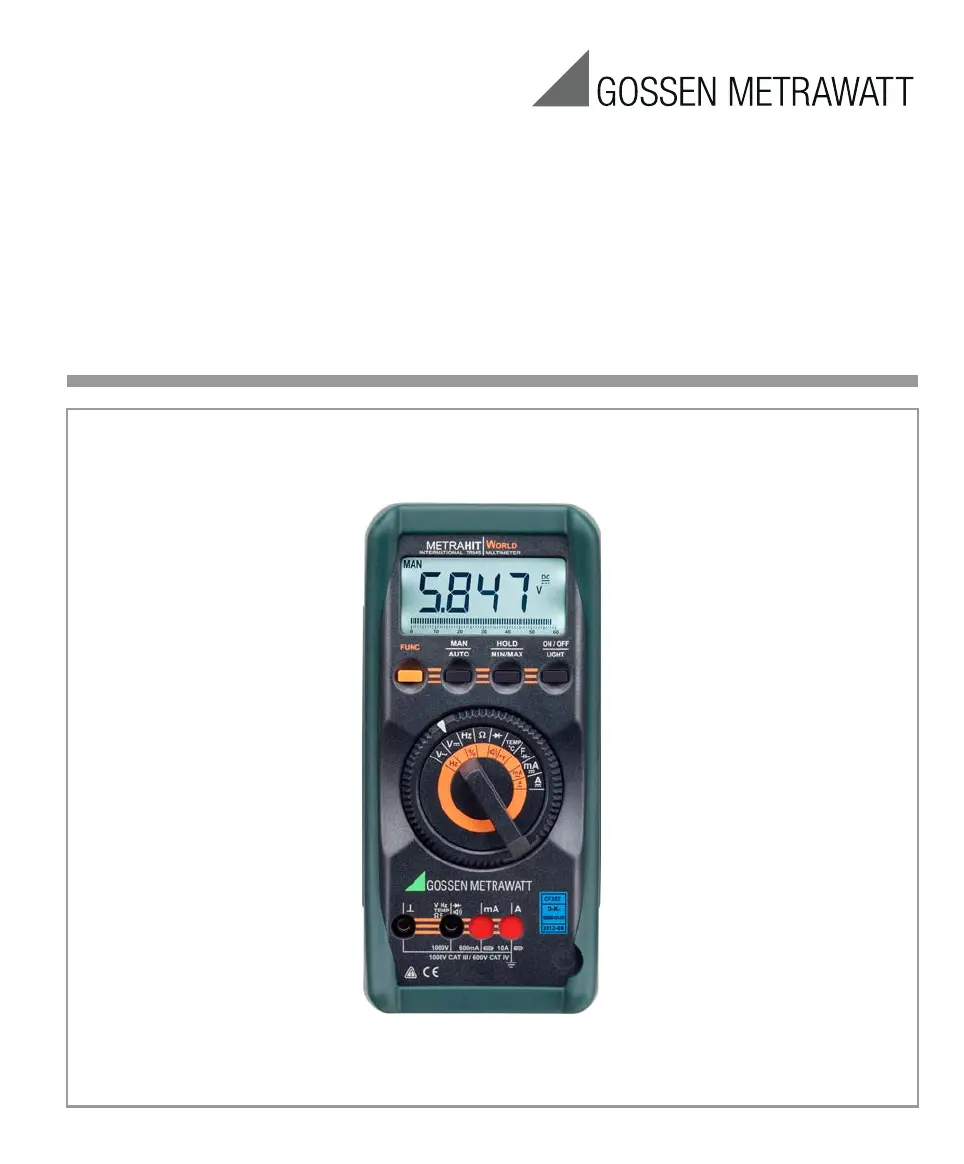

Operating Instructions
METRAHITWORLD
International TRMS Multimeter 3-349-529-03
10/6.17
2 GMC-I Messtechnik GmbH
1Display (LCD)
2ON / OFF
Light
Key for ON / OFF and display illumination
ON / OFF
3HOLD Key for the following functions: save
measured value, delete and MAX-MIN
4MAN / AUTO Key for manual measuring range selection
5FUNC Key for selecting ranges or functions
6rotary selector switch for measuring functions
7 Connector jacks
Symbols used in the Digital Display
1 MAN: manual measuring range selection is active
2 MAX/MIN value storage
3 HOLD: display memory, “freeze” measured value
4 Digital display with decimal point and polarity display
5 Diode measurement selected
6 Display Duty Cycle Measurement
7 appears when acoustic signal is active
8 Selected type of current
9 interface active
10 Unit of measure
11 Unit of measure  C / F for temperature measurement
12 Rotation Per Minute measurement selected
13 Triangle appears: indicates overranging
14 Pointer for analog display
15 REL: relative measurement with reference to offset
16 Scale for analog display
17 Indicates that the negative analog display range has been exceeded
18 Warning regarding dangerous voltage: > 40 V AC / 60 DC
19 Display in case of defective fuse
20 Low battery display
21 Symbol for continuous duty
Standard Equipment
1 TRMS-digital multimeter
1 Protective rubber holster
2 1.5 V AA size batteries
1 Set of measurement cables KS17-2
1 DAkkS calibration certificate
1 Short-form operating instructions
1
2
3
4
5
6
7
Max.
1000 V !
14
542
12
13
9
1516
19
18
21
71 3
10
17
20
8
6
11
GMC-I Messtechnik GmbH 3
Table of Contents
Page Page
1 Safety Features and Precautions ...............................3
2 Initial Start-Up ............................................................5
3 Selecting Measuring Functions and Measuring
Ranges .......................................................................5
3.1 Automatic Measuring Range Selection ..................................... 5
3.2 Manual Measuring Range Selection ......................................... 5
3.3 Quick Measurements .............................................................. 5
3.4 Relative Measurement D REL ................................................... 6
4 LCD .............................................................................6
4.1 Digital Display .........................................................................6
4.2 Analog Display ........................................................................ 6
4.3 Display Illumination ................................................................. 6
5 Measured Value Memory “HOLD..............................6
6 Saving Minimum or Maximum Values
“MIN/MAX” Hold .........................................................6
7 Voltage Measurement ................................................7
7.1 Sub-function Hz ...................................................................... 7
8 Current Measurement ................................................8
8.1 Measuring Alternating Current with (Clip-On) Current
Transformers ........................................................................10
8.1.1 Transformer Output mA / A ................................................... 10
8.1.2 Transformer Output V ............................................................10
9 Resistance Measurement .........................................10
10 Continuity and Diode Testing ...................................11
11 Capacitance Measurement ......................................12
12 Frequency Measurement
Duty Cycle Measurement .........................................12
12.1 Duty Cycle Measurement ....................................................... 12
12.2 RPM Measurement ............................................................... 12
13 Temperature Measurement ......................................13
14 Characteristic Values ...............................................14
15 Maintenance ............................................................17
15.1 Battery ................................................................................. 17
15.2 Fuses ................................................................................... 17
15.3 Housing ................................................................................ 17
16 Recalibration ............................................................18
17 Accessories .............................................................18
17.1 General ................................................................................ 18
17.2 Technical Data for Measurement Cables
(included: KS17-2 safety cable set) ........................................ 18
18 Repair and Replacement Parts Service,
Calibration Center and Rental Instrument Service ...19
19 Manufacturer’s Guarantee .......................................19
20 Product Support .......................................................19
1 Safety Features and Precautions
You have selected an instrument which provides you with a
high level of safety.
This instrument fulfills the requirements of the applicable EU
guidelines and national regulations. We confirm this with the
CE marking. The relevant declaration of conformity can be
obtained from GMC-I Messtechnik GmbH.
The analog-digital multimeter is manufactured and tested in
accordance with safety regulations IEC 61 010–1:2010/
DIN EN 61 010–1:2011/VDE 0411–1:2011. When used for its
intended purpose, safety of the operator, as well as that of
the instrument, is assured. Their safety is however not
guaranteed, if the instrument is used improperly or handled
carelessly.
In order to maintain flawless technical safety conditions, and to
assure safe use, it is imperative that you read the operating
instructions thoroughly and carefully before placing your instrument
into service, and that you follow all instructions contained therein.
In the interest of your own safety and in order to protect the
instrument, the multimeter is equipped with an automatic
socket blocking mechanism. This mechanism is linked to the
function selector switch and only allows access to those
jacks which are actually required for the selected function. It
also prevents the user from turning the selector switch to
impermissible functions after the measurement cables have
already been plugged in.
Observe the following safety precautions:
The instrument may only be operated by persons who
are capable of recognizing contact hazards and taking
the appropriate safety precautions.
Contact hazards exist
anywhere, where voltages of greater than 33 V
RMS
may occur.
Avoid working alone when taking measurements which
involve contact hazards. Be certain that a second person
is present.
Maximum allowable voltage between any of the connector
jacks and earth is 1000 V, category III or 600 V CAT IV.
Nominal voltage at the system may not exceed 600 V.
For the application of measuring cables see chap. 17.2.
