Strona 1/10

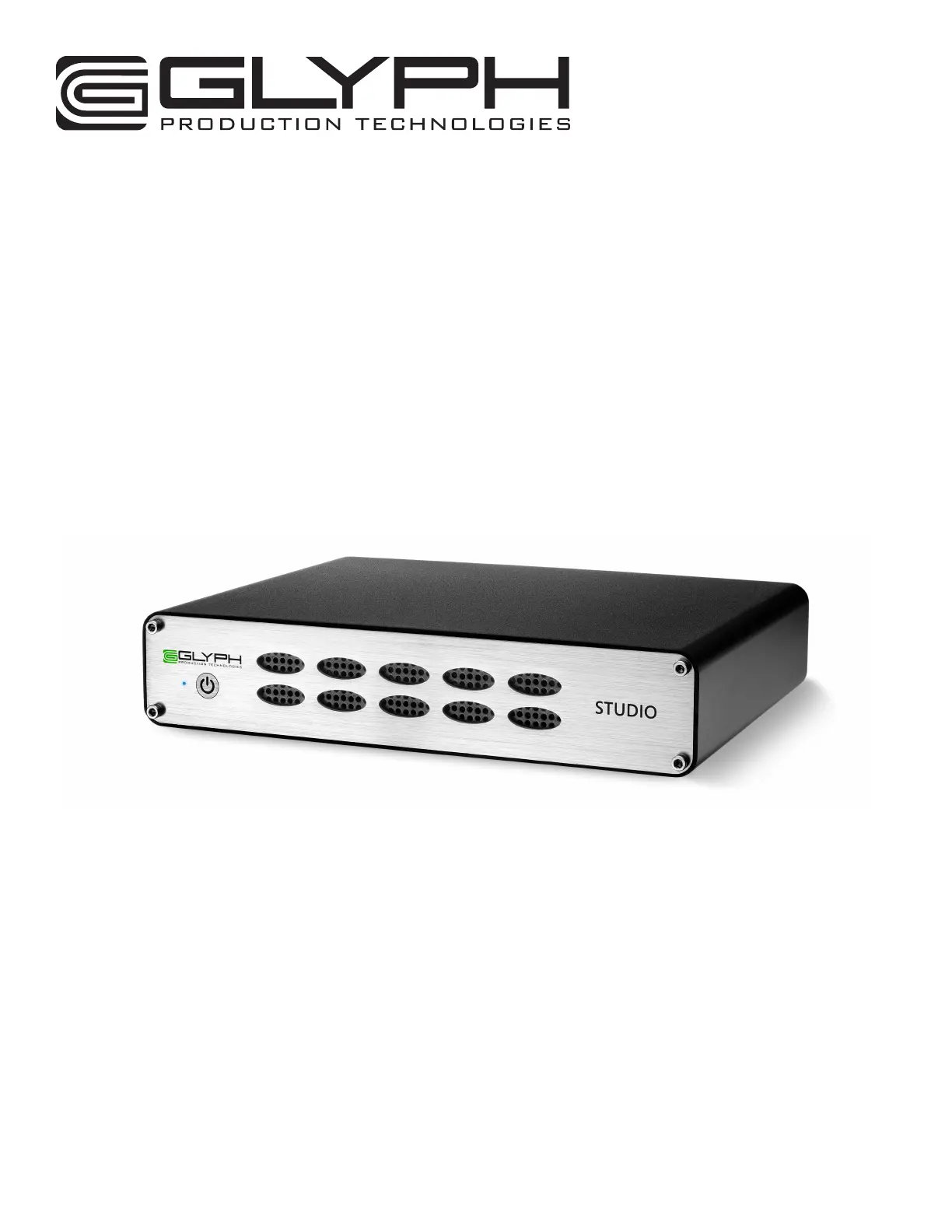

1
Studio Manual
Fixed-Mount Tabletop Hard Drive
with FireWire 800, USB 3.0 Hi-speed, and eSATA
610036-1.1 Manual.pdfStudio
August 1 4, 201
Proprietary Notice and Disclaimer
Unless noted otherwise, this document and the information herein disclosed are proprietary to Glyph Technologies, 3736 Kellogg
Road, Cortland NY 13045 (“GLYPH”). Any person or entity to whom this document is furnished or having possession thereof, by
acceptance, assumes custody thereof and agrees that the document is given in condence and will not be copied or reproduced
in whole or in part, nor used or revealed to any person in any manner except to meet the purposes for which it was delivered.
Additional rights and obligations regarding this document and its contents may be dened by a separate written agreement with
GLYPH, and if so, such separate written agreement shall be controlling.
The information in this document is subject to change without notice, and should not be construed as a commitment by GLYPH.
Although GLYPH will make every eort to inform users of substantive errors, GLYPH disclaims all liability for any loss or damage
resulting from the use of this manual or any software described herein, including without limitation contingent, special, or inci-
dental liability.
© 2002-2013 Glyph Technologies. All rights reserved. Specications are subject to change without notice. Glyph and the Glyph
logo are registered trademarks of Glyph Technologies. All other brands and product names mentioned are trademarks of their
respective holders.
2
Contacting Glyph
Please use the following contact information to contact Glyph and its distributors.
Glyph USA oers phone support Monday through Friday, 8:00 am to 5:00 PM Eastern Time.
Note: DO NOT ship any return goods to the mailing addresses below unless you have a valid RMA number.
All goods will be refused delivery unless a valid RMA number is displayed on the outside of the package.
United States of America
Glyph Technologies
3736 Kellogg Rd.
Cortland, NY 13045 USA
Phone: +1 607-275-0345, 1(800) 335-0345
Fax: +1 607-275-9464
www.glyphtech.com
Sales Contact:
sales@glyphtech.com
Technical Support:
tech@glyphtech.com
Unpacking Your Studio
Your Glyph and accessories are packaged in a sturdy shipping container. Please inspect the container Studio
for evidence of shipping damage and mishandling. If the container is damaged, file a report with the carrier
or dealer immediately. Do not attempt to unpack and operate your until the carrier or dealer Studio
confirms the damage. If the container is in good condition, proceed with unpacking the . Verify that Studio
all of the items described in the next section are present and in good condition. If any of the items you
expect to find in your container is missing or damaged, contact the dealer before proceeding any further.
In any case, do keep the shipping container and all packing materials in a safe place.
The package includes:Studio
Studio Hard Drive
USB 3.0 Cable
9-Pin FireWire 800 Cable
IEC Power Cable
3
About the Studio
Ports
The enclosure contains a single hard disk drive, and has FW800, USB 3.0 Hi-speed and eSATA con-Studio
nections. Depending on which port(s) your computer has, you can connect the in a number of ways. Studio
The fastest interface on the is eSATA on the rear panel. The Studio and the USB 3.0 port. Both are located
Studio can sustain over 130MB/sec (reads) and over 140MB/s (writes) when connected to a 4-lane PCIe
eSATA card such as the Sonnet E4P. It can sustain 125MB/sec (reads) and 100MB/s (writes) when connected
to a 2-lane PCIe eSATA card such as a Glyph EC2 card. FireWire 800 is the next fastest and there are two
FW800 ports on the rear panel. Officially, these IEEE 1394b ports run at up to 800Mbits/sec. One of these
ports can be connected to your computer, and the other should be connected to other downstream
FireWire devices, if applicable. It doesn’t matter which port you connect to the computer, they are
functionally identical. If your computer has a FireWire 800 port you can use the provided FireWire 800 9-pin
cable. If your computer has a FireWire 400 port only, you can use a FW400 to FW800 adapter cable, which is
available from Glyph. If your computer doesn’t have any FireWire ports you can either purchase a FireWire
or eSATA adapter card (recommended), or use the USB 3.0 port on the back of the . Studio
Front panel LED
The front panel has a single bi-color LED. The LED will display solid blue when power is on. The Studio
LED will flash blue when there is disk activity. The LED will display red if there is a hard drive failure.
Power Switch
The power switch must be held for three seconds to power off the . After three seconds the LED Studio
will turn off, and releasing the button will power off the unit. This is a safety precaution against
unintended power off.
Internal Power Supply
Glyph uses efficient, high-quality power supplies, selected specifically for the demands of production
environments. The has an auto-switching universal power supply. Its input voltage can range from Studio
100- 240v at 50/60 Hz, allowing the to be safely used overseas. Studio
Internal Temperature-Controlled Fan
The has an internal temperature-controlled fan. Software inside the sets the fan RPM to Studio Studio
either HI or LOW speeds. We have found that both HI and LOW fan speeds are very quiet.
