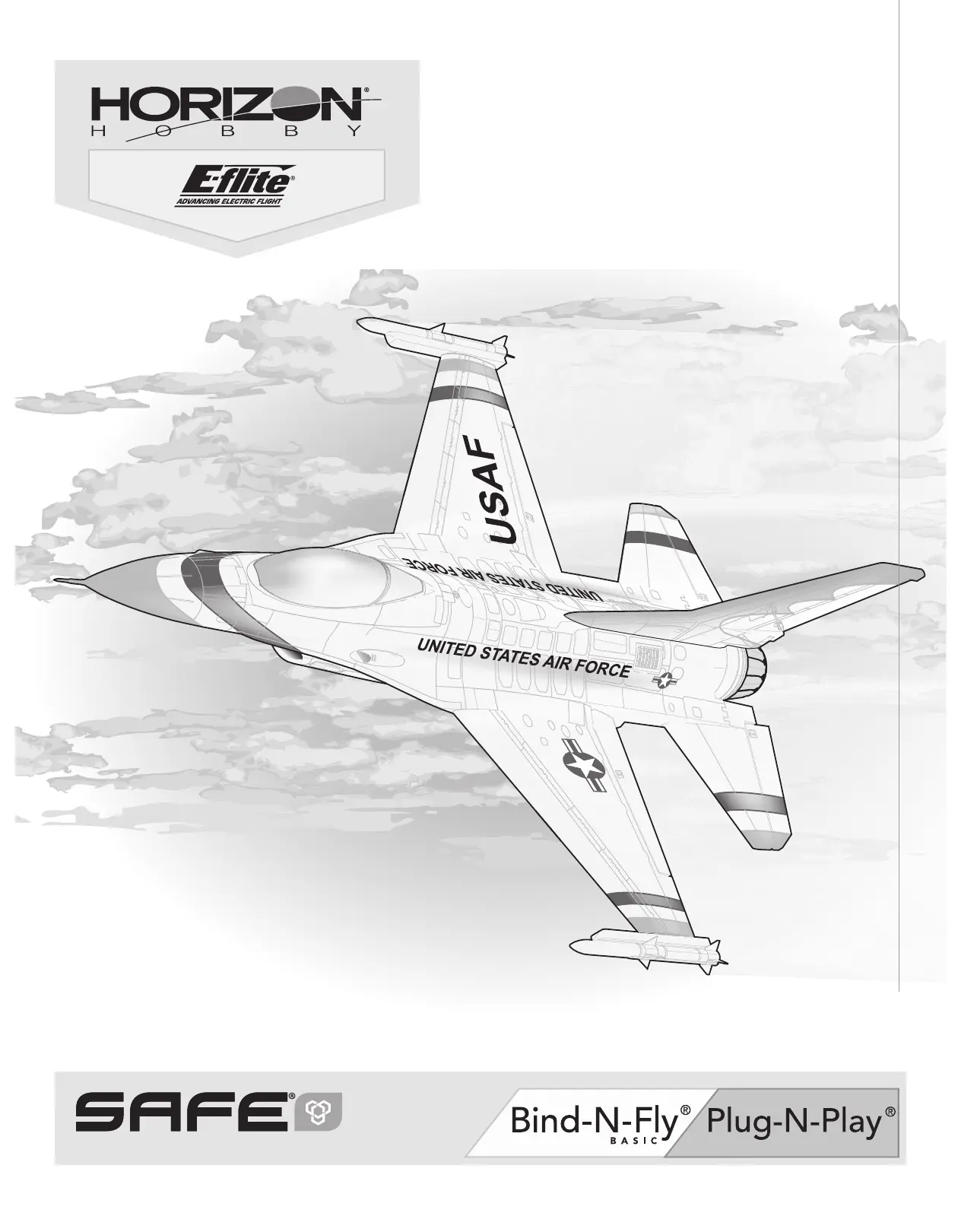

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
Thunderbird F-16
with 70mm EDF
2F-16 70mm EDF
EN
As the user of this product, you are solely responsible for operating in a
manner that does not endanger yourself and others or result in damage to the
product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can
cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traffi c and people.
• Always carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not specifi cally designed
and protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause
serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the
manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under 14
years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver
found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby
authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support
and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products
claiming compatibility with DSM or Spektrum technology.
3
EN
Required Adhesives:
Medium CA
SAFE® Select Technology (BNF Basic) ................................................4
Prefl ight .............................................................................................4
Transmitter Setup (BNF Basic) ............................................................4
Model Assembly ................................................................................5
Scale Accessories Optional ................................................................7
Battery Installation and ESC Arming ...................................................8
Transmitter and Receiver Binding /
Switching SAFE Select ON and OFF (BNF Basic) .................................9
SAFE Select Switch Designation ......................................................10
Control Horn and Servo Arm Settings ...............................................10
Center of Gravity (CG) .....................................................................11
AS3X Control Direction Test (BNF Basic) ..........................................11
In Flight Trimming (BNF Basic) .........................................................11
Flying Tips and Repairs ....................................................................12
PNP Receiver Selection and Installation ...........................................12
Post Flight .......................................................................................13
Motor Service ..................................................................................13
Troubleshooting Guide AS3X ............................................................13
Troubleshooting Guide .....................................................................14
AMA National Model Aircraft Safety Code .........................................15
Limited Warranty .............................................................................16
Contact Information .........................................................................16
FCC Information ...............................................................................17
IC Information ..................................................................................17
Compliance Information for the European Union ...............................17
Recommended Receivers ................................................................62
Replacement Parts ...........................................................................63
Optional Parts ..................................................................................64
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, visit https://
registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage, visit
knowbeforeyoufl y.org/.
https://www.horizonhobby.com/content/e-fl ite-rc
Box Contents
Quick Start Information
Transmitter Setup Set up your transmitter using the
transmitter setup chart
Travel and Dual
Rates
Hi Rate Low Rate
Ail 26mm 18mm
Ele 18mm 14mm
Rud 20mm 16mm
Center of Gravity
(CG)
90 – 110mm back from leading edge of
wing at the fuselage.
Flight Timer Setting
3 minutes
Table of Contents
Components
Motor:
Motor 2860 KV1850
(EFLM1850)
Installed Installed
ESC: 70A Brushless Switch Mode
(EFLA1070400EC5) Installed Installed
Servos: (7) (SPMA380, SPMA380R) Installed Installed
Receiver: Spektrum
™ AR636A 6-Channel
Sport Receiver (SPMAR636) Installed
Required
to
Complete
Recommended Battery: 22.2V
3200–4000mAh 30C 6S LiPo with EC5
connector
Required
to
Complete
Required
to
Complete
Recommended Battery Charger:
6-cell Li-Po battery balancing charger
Required
to
Complete
Required
to
Complete
Recommended Transmitter:
Full-Range 2.4GHz with Spektrum
™
DSM2®
/DSMX ® technology and adjustable
dual rates
Required
to
Complete
Required
to
Complete
S
P
T
M
S
B
T
S
S
C
C
A
I
F
P
P
M
T
T
A
L
C
F
I
C
R
R
O
I
f
F
r
F
T
32 in (813mm)
49.53 in (1258mm)
73.7oz (2090g)
RECEIVER BIND INFORMATION
Channels 6
Frequency 2405 – 2476 MHz
Compatibility DSM2 and DSMX
