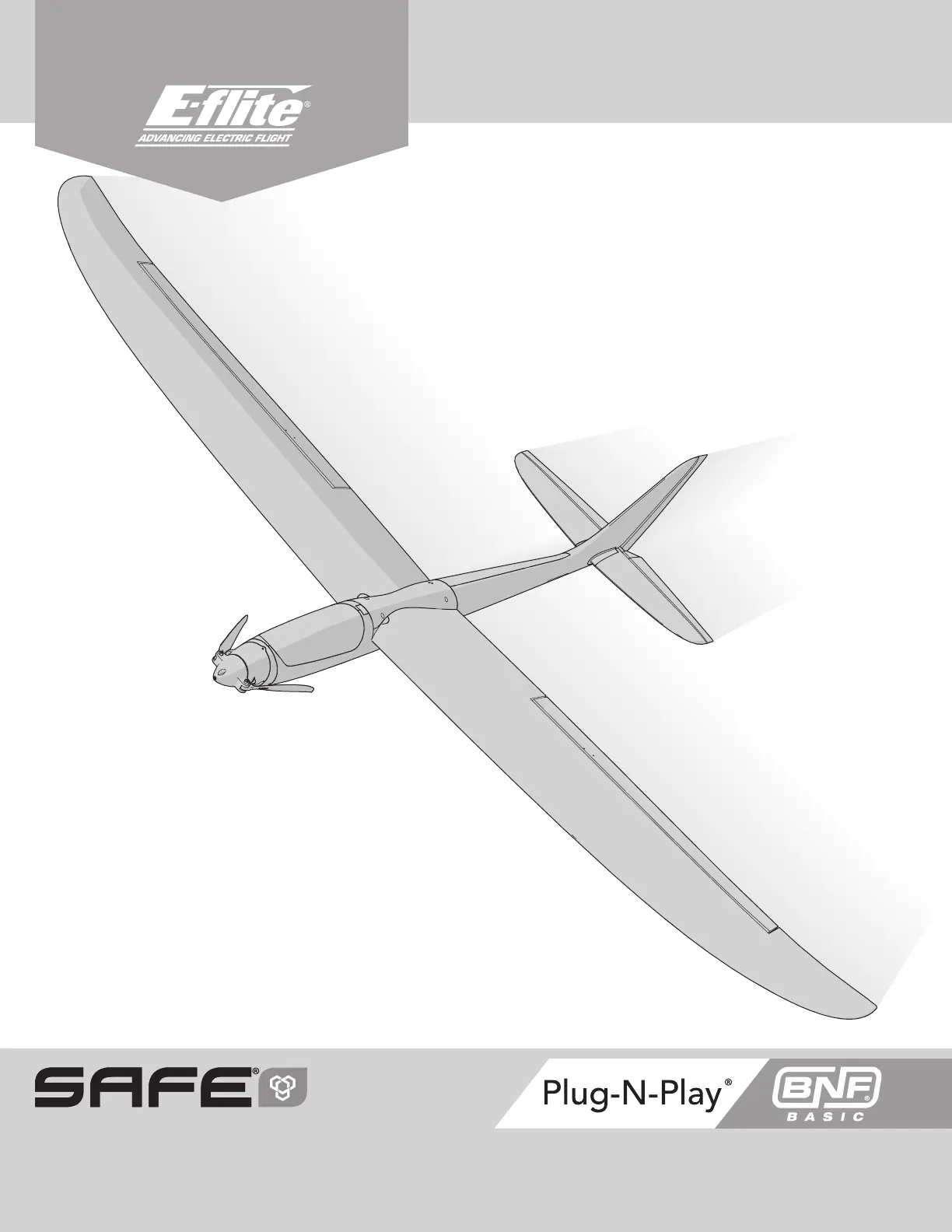

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
Conscendo® Evolution 1.5m
Visit www.horizonhobby.com for any product and instruction manual updates.
EN
Conscendo Evolution1.5m
2
Safety Precautions and Warnings
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.
AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of
superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can
result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult
supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the
property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic
and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach
of children.
• Always avoid water exposure to all equipment not specifically designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from
Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and
warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
EN
3
Box Contents
Table of ContentsSpecifications
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufly.org/.
Preflight 4 .................................................................................................................
Transmitter Setup (BNF) 4 .........................................................................................
Model Assembly ...................................................................................................4
Model Assembly ...................................................................................................5
Model Assembly (Continued) ..................................................................................6
PNP Receiver Selection and Installation 6 .................................................................
Battery Installation and ESC Arming 7 .......................................................................
Center of Gravity (CG) 7 ............................................................................................
Transmitter and Receiver Binding / Enabling and Disabling SAFE Select 8 .................
SAFE Select Switch Designation.............................................................................9
Integrated ESC Telemetry ....................................................................................... 9
Control Surface Centering 9 ......................................................................................
Control Surface Direction 10 .....................................................................................
AS3X Control Direction Test (BNF Basic) 10 ...............................................................
Dual Rates and Control Throws 11 ............................................................................
In Flight Trimming ................................................................................................11
Flying Tips and Repairs 11 ........................................................................................
SAFE Select Flying Tips 12 ........................................................................................
Post Flight............................................................................................................12
Power Components Service 12 .................................................................................
Troubleshooting Guide AS3X ................................................................................13
Troubleshooting Guide 13 .........................................................................................
Replacement Parts 14 ...............................................................................................
Recommended Parts 14 ............................................................................................
AMA National Model Aircraft Safety Code 15 .............................................................
Limited Warranty .................................................................................................16
Warranty and Service Contact Information 16 ...........................................................
FCC Information 17 ...................................................................................................
IC Information 17 ......................................................................................................
Compliance Information for the European Union 17 ...................................................
Quick Start Information
Transmitter Setup
1. Blank (Acro) Model
2. Wing Type: Normal
3. Servo Reversing: All Channels Normal
4. Travel Adjust (All Surfaces): 100%
Dual Rates*
High Rate Low Rate
Aileron p = 15mm
q = 15mm
p = 10mm
q = 10mm
Elevator p = 10mm
q = 10mm
p = 7mm
q = 7mm
Rudder = 18mm
= 18mm
= 13mm
= 13mm
EXPO
(Soft center)
High Rate Low Rate
Aileron 10% 5%
Elevator 15% 5%
Rudder 10% 5%
Center of Gravity (CG) 2-1/4” - 2-3/4” inches (57-71mm) back from the
leading edge,
measured at the wing root
Flight Timer Setting 5 minutes
Weight:
22.9 oz (650 g)
59 inches (1500mm)
39.6 inches (1005mm)
Motor: 3226-970Kv Brushless Outrunner (SPMX1200)
Installed Installed
ESC: 30-Amp BEC Brushless ESC (EFLA1030E)
Installed Installed
Servos: (4) 9g Mini Servo (SPMSA381)
Installed Installed
Receiver: Spektrum
™ AR637TA 6-Channel Sport
Receiver (SPMAR637A)
Installed Required to
Complete
Battery:
11.1V 3S – 14.8V 4S, 1200mAh – 2200mAh Li-Po
Required to
Complete
Required to
Complete
Battery Charger:
3-4 cell Li-Po battery balancing charger
Required to
Complete
Required to
Complete
Transmitter:
6+ channel, Full-Range 2.4GHz with Spektrum
™
DSM2®/DSMX® technology and adjustable dual rates
Required to
Complete
Required to
Complete
