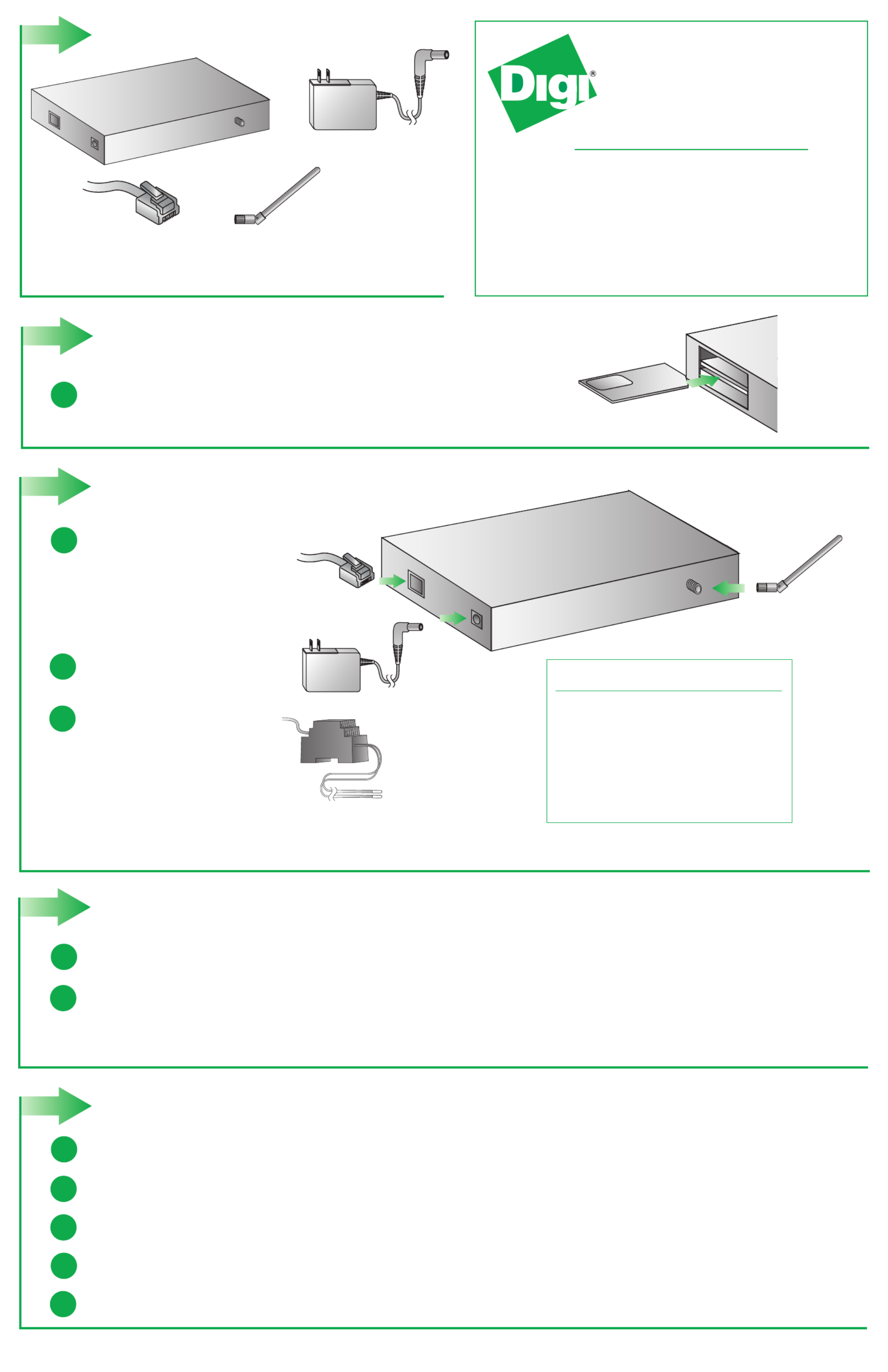

Quick Start Guide
Digi Connect
™WAN
1Verify kit contents
2Insert SIM card
© Digi International, Inc., 2010
Digi, Digi International, Digi Connect and the Digi logo are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are property of their respective owners.
4Congure your cellular settings
Digi Connect WAN
Ethernet
cross-over cable
Antenna - may be sold
separately
b
NOTE:
a
b
c
d
Orient SIM card with metal side up and short corner to the inside. Use caution to insure
card is properly seated in SIM slot.
a
Not included: A SIM card must be supplied and activated by a Cellular Service
Provider for device operation.
5Verify
aOpen your web browser and enter the IP address 192.168.1.1in the URL address bar.
From the web interface, under Conguration, click “Mobile.” Enter your service provider name and connection parameters and click “Apply.”
The Digi Connect WAN has DHCP server enabled by default. In order to discover your Digi device, make sure your host computer is set up to obtain IP
addresses automatically. Also ensure all rewall software is temporarily disabled.
Your device has been properly provisioned and is active if the PPP section shows (connected).
Remove the Ethernet cable and plug it back into the PC to update the DNS.
Open a web browser and enter a web site of your choice in the URL address bar of your browser and hit “enter” (e.g. www.digi.com).
™
For additional information about your cellular connection, go to Administration > System Information > Mobile.
Power supply
Connect Antenna
NOTE: Do not over-tighten antenna.
Over-tightening may damage internal
connections. Loosen antenna before
adjusting antenna angles.
bConnect Ethernet cross-over cable
to a PC
cConnect Power Supply
b
a
a
c
+
-
(WAN IA
Models)
Or
DB9
1
2
3
4
5
6
7
8
9
RS232
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
RI
RS422/485
Full Duplex
CTS-
RxD+
TxD+
DTR
GND
RxD-
RTS+
CTS+
TxD-
RS485
Half Duplex
not used
RxD+
TxD+
not used
GND
RxD-
not used
not used
TxD-
DB9 Serial Pinout
NOTE: Set serial mode in software then on the
web interface go to Conguration/Serial Ports
Connect hardware
3
™
eFor more information on the Digi Connect WAN reference the User’s Guide provided on the Digi support site (www.digi.com/support).
™
90000670_H
