M0111 3/ / Canarm/LFI Ltd. Revision: 29 10
1

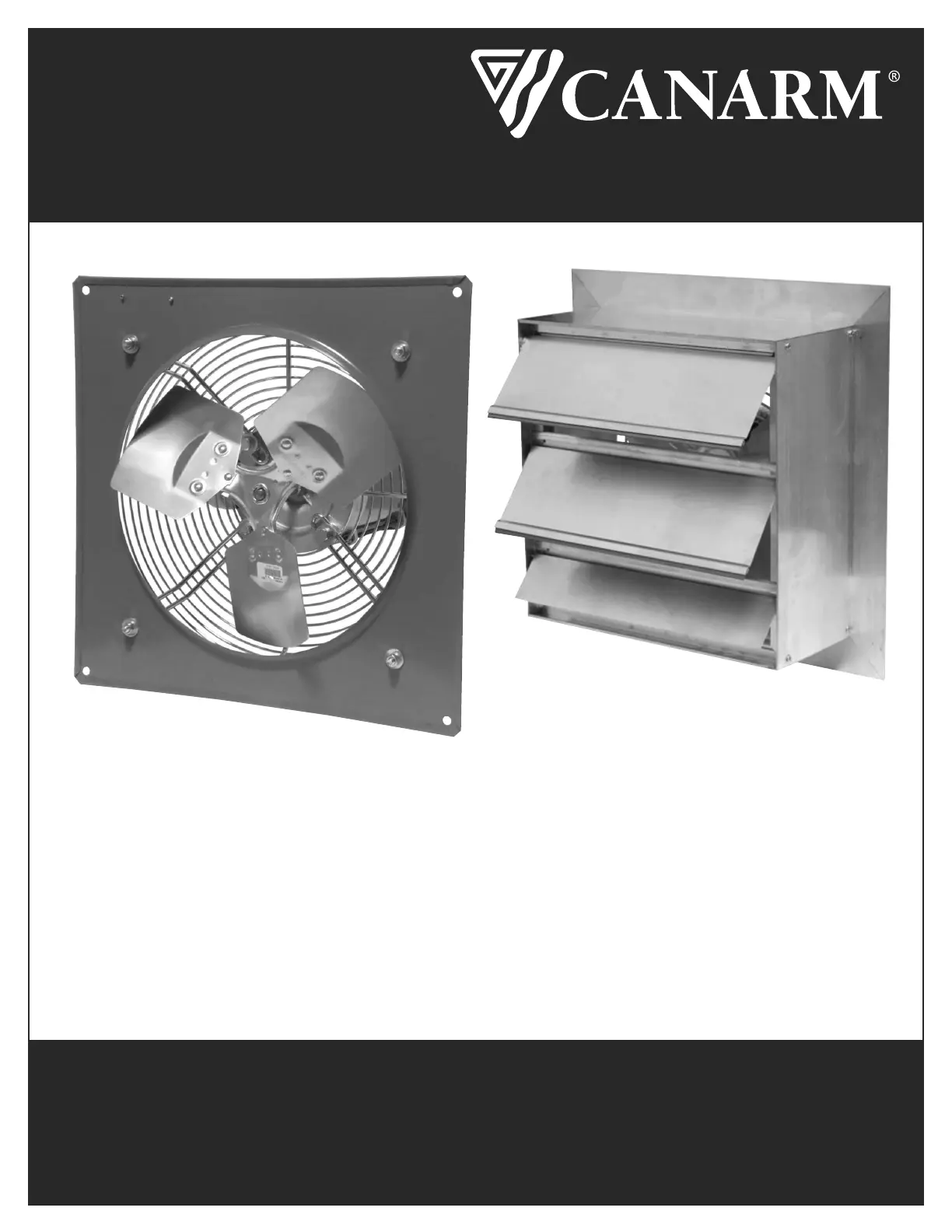

INSTALLATION FOR AX & P WALL EXHAUST FANS
WALL OPENING SIZES
The Canarm/LFI P series fans can be mounted either horizontally or vertically. AX-
series fans are to be mounted horizontally only. When mounting the AX series fan, the
wall opening should be ” larger than the shutter box size. The P series wall opening ½
should be 1-3/4” larger than the fan blade diameter. Both the AX & P series fans are
meant to be installed on the inside of an outside wall; the fan should be centered over
the opening and lagged to the wall.
PRE- INSTALLATION CHECK
Prior to installation of a fan, please check carefully for any damage. If damage is found,
do not install. Check and tighten all nuts, bolts, set screws, etc., which may have
loosened during shipping and handling. Before connecting to the power source, check
the motor nameplate, and the power supply, to ensure that they are both rated for the
same power supply. Make sure the propeller turns freely without striking the fan frame
or any other objects.
AIR EXHAUST AND SUPPLY
The AX series fan is to be used as an exhaust fan only . (not suitable for supply air)
The P series fan is primarily used as an exhaust fan, however, the single speed (1700
rpm models) can be set up to act as a supply fan. This is accomplished by mounting
the blade opposite to the exhaust configuration and reversing the rotation of the motor.
When used as a supply fan, in conjunction with a shutter, the shutter must be
motorized. To attach the shutter to the fan, a wall sleeve may be required. For wall
opening sizes on P series with sleeve refer to catalogue sheet.
VARIABLE SPEED FANS
Canarm/LFI AX-1V, AX 1HE and P 1V, P- - -1VHE Series are variable speed or single
speed. These are the only models that can be used with a speed controller. When
using the AX-1V or AX-1VHE Series with a variable speed controller care should be
taken not to reduce the speed to low. If the airflow is reduced significantly the shutters
may not open properly. This may cause motor problems.
For variable operation, a suitable variable speed control is required.
M0111 3/ / Canarm/LFI Ltd. Revision: 29 10
2
OPERATION AND MAINTENANCE FOR AX & P SERIES WALL FANS
REGULAR MAINTENANCE
Fans should periodically be cleaned to remove accumulated dust, dirt, or any other
foreign matter. If rust or corrosion is found, the affected area or part should be cleaned
and refinished or replaced.
Periodically - check and tighten all nuts, bolts, set screws, etc.
Periodically - check for damage or worn parts and replace.
** CAUTION **
All local, provincial or national codes should be checked. Ensure that all wiring,
guarding and fan applications comply with all applicable codes The proper type and .
class of fan and motor must be used in Explosive/Hazardous Applications.
WARRANTY AND LIMITATION OF LIABILITY
If the products sold hereunder are defective at the time of delivery in material or
workmanship and written notice is given to Seller within one year after shipment, Seller,
at its option will repair or replace the products, give Buyer an equitable credit, or refund
the purchase price for such products determined by Seller to be defective, provided that
the products shall not been altered or repaired after shipment to Buyer by anyone
except Sellers authorized employees.
S
S
S
SS ’
’
’
’’
EL
EL
EL
ELEL L
L
L
LL E
E
E
EE R
R
R
RR S
S
S
S S T O
T O
T O
T OT OT A
T A
T A
T AT AL
L
L
LL R E
R E
R E
R E R ES P
S P
S P
S PS PO N
O N
O N
O NO NS I
S I
S I
S IS IB
B
B
BBI L I
I L I
I L I
I L II L ITY
TY
TY
TYT Y SH
SH
SH
SH SH AL
AL
AL
ALAL L
L
L
L L
NO T
NO T
NO T
NO TNO T
EX CE
EX CE
EX CE
EX CEEX CE ED T
ED T
ED T
ED TED T H
H
H
HH E S
E S
E S
E SE S A
A
A
AA LES
LE S
LE S
LE SLE S P R I C
P R I C
P R I C
P R I C P R I CE
E
E
E E O F
O F
O F
O FO F T H E
T H E
T H E
T H E T H E D E F
D E F
D E F
D E F D E FE C
E C
E C
E CE CT
T
T
TT IVE
IVE
IVE
IVEIVE P
P
P
P P RO D
RO D
RO D
RO DR OD U
U
U
UU C
C
C
CC TS
TS
TS
TSTS.
.
.
. .
T
T
T
TTRA
RA
RA
RARA NS
NS
NS
NSNS P
P
P
PP O
O
O
OO RT
RT
RT
RTRT A
A
A
AA TI
TI
TI
TITI O
O
O
OO N
N
N
N N TO
TO
TO
TOTO
R
R
R
RR ET
ET
ET
ETET UR
UR
UR
URUR N D
N D
N D
N DN D E
E
E
EE FE
FE
FE
FEFE C T I
CT I
CT I
CT ICT I V
V
V
VV E P
E P
E P
E PE P R OD
RO D
RO D
RO DRO D U
U
U
UU C
C
C
CCTS
TS
TS
TST S IS
IS
IS
IS IS T O
TO
TO
TO TO
B
B
B
BB E
E
E
E E PR
PR
PR
PRPR E
E
E
EE PAID
PAID
PAID
PAIDPAID
. If Buyer
fails to give such notice within one year after shipment, any claims for breach of
warranty by Seller shall be barred. Products manufactured by others but furnished by
Seller are limited to original manufacturer’s warranty. Canarm/LFI Limited assumes no
liability for resultant damages, labour and service charges of any kind arising from the
use of its products. On equipment furnished by Canarm/LFI Limited but manufactured
by others, such as motors, the warranty will be honored by the manufacturer hereof.
CANARM LTD.
2157 Parkedale Avenue, Brockville, Ontario K6V 5V6 Canada
Ph: (613) 342-5424
Fax: (613) 342-8437
www.canarm.com
