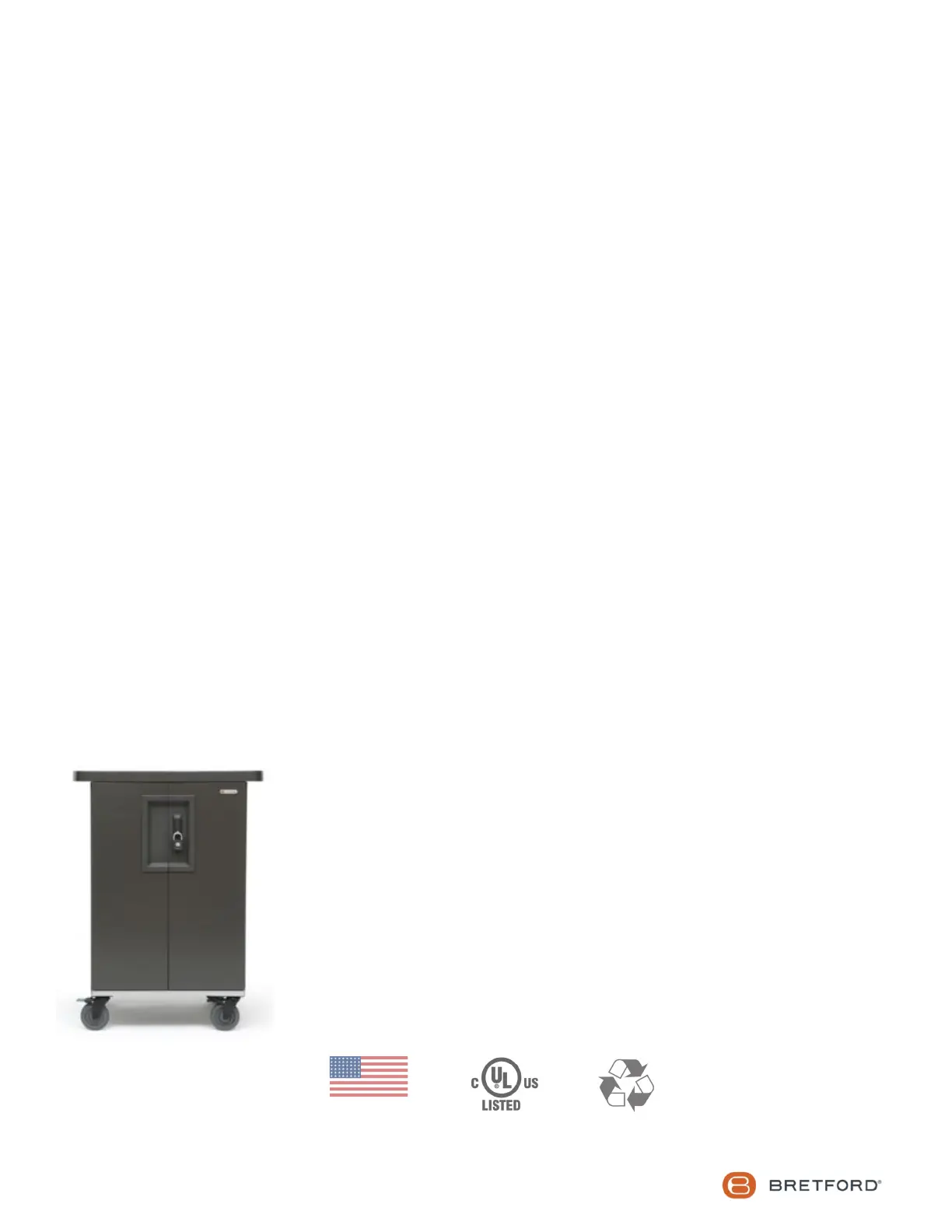

USER GUIDE
MiX Carts
T30C-P-AC-US EVER Charging Cart AC for up to 30 devices w/180° front doors w/Back Panel !
T30CB-P-AC-US EVER Charging Cart AC for up to 30 devices w/180° front doors w/Rear Door !
T30CD-P-AC-US EVER Charging Cart AC for up to 30 devices w/270° front doors w/Back Panel !
T30CDB-P-AC-US EVER Charging Cart AC for up to 30 devices w/270° front doors w/Rear Door !
T45C-P-AC-US EVER Charging Cart AC for up to 45 devices w/180° front doors w/Back Panel !
T45CB-P-AC-US EVER Charging Cart AC for up to 45 devices w/180° front doors w/Rear Door !
T45CD-P-AC-US EVER Charging Cart AC for up to 45 devices w/270° front doors w/Back Panel !
T45CDB-P-AC-US EVER Charging Cart AC for up to 45 devices w/270° front doors w/Rear Door !
T30C-P-DC-US EVER Charging Cart USB for up to 30 devices w/180° front doors w/Back Panel !
T30CB-P-DC-US EVER Charging Cart USB for up to 30 devices w/180° front doors w/Rear Door !
T30CD-P-DC-US EVER Charging Cart USB for up to 30 devices w/270° front doors w/Back Panel !
T30CDB-P-DC-US EVER Charging Cart USB for up to 30 devices w/270° front doors w/Rear Door !
T45C-P-DC-US EVER Charging Cart USB for up to 45 devices w/180° front doors w/Back Panel !
T45CB-P-DC-US EVER Charging Cart USB for up to 45 devices w/180° front doors w/Rear Door !
T45CD-P-DC-US EVER Charging Cart USB for up to 45 devices w/270° front doors w/Back Panel !
T45CDB-P-DC-US EVER Charging Cart USB for up to 45 devices w/270° front doors w/Rear Door!
CAPACITY per slot width 1.00” 1.25” 1.50” ! ! !
T30 Series 2 modules 30 24 20 devices ! ! ! !
T45 Series 3 modules 45 36 30 devices ! ! ! !
COMPATIBILITY Designed for various sized laptops & chromebooks, yet versatile
enough to support most tablets.
AC versions use the device manufacturer supplied AC power cord and adapter.
DC versions provide USB ports for USB to Lightning or USB to Micro USB plugs
! "OUTSIDE DIMENSIONS 33.50”W x 26.00”D x 44.5”H
! ! "SLOT DIMENSIONS 1.00” or 1.25” or 1.50” W x
! ! 10.00”H or 12.00”H x 17”D"
!WEIGHT WITHOUT DEVICES!T30 series 176 pounds"
! ! T45 series 190 pounds"
! "POWER MANAGER!Digital
!POWER REQUIREMENTS!100 -125V ac, 12A, 50/60Hz;
! ! 220-240Vac, 8A, 50/60Hz;
! ! optional USB output; 5Vdc, 2.4A
!SHIPPING Ships fully assembled, ready to load devices
!WARRANTY For product specific warranty information,
! ! please visit: bretford.com/warranty
Part # 031-10609 rev December 2016
MADE IN USA
with globally
sourced products
www.bretford.com
Technical Specifications
POWER SWITCH
Located on the left side
of the cabinet, in the
Power Cord Shroud
DIRECTIONAL LOCK CASTERS
When engaged, keep the
cart rolling in the right
direction. When
unengaged, allow the cart
to be easily maneuvered
into small spaces. Marked
with a Green Locking Tab
CORD PASS-THRU ON TOP
Allows devices to be
powered on top of the cart,
while their power cords are
plugged inside the cart.
DOOR LOCK SHROUD
Protects the padlock
and the locking
handle during
transport
DURABLE PLASTIC TOP
Provides a soft, skid-
resistant platform for
objects placed on top of
the cart.
WARNING: Maximum
weight restriction on top
shelf = 25 pounds.
USER GUIDE | MiX Carts // EVER CARTS
SETTING THE COMBINATION LOCK
Your new EVER Cart comes equipped with a resettable Combination Padlock. You can program the
lock with your own combination. The lock starts with 0-0-0-0. Follow the directions with the look for
changing the combination. Remember to depress the shackle before un-engaging it from the lock.
General Use
UNIQUE POWER ACCESS CENTER
Directly behind the left front door is a
cutout for the following:
•A short power whip which provides
a single outlet for plugging in a
device on the top of the cart,
accessible through the Cord Pass-
Thru.
•A Circuit Breaker rated for 2 amps
that is tied to that short power whip.
•A USB Port which allows for
upgrades and updates to the Power
Manager inside the cart, as power
requirements might change for
future decides. This truly is a
Future-Proof Cart!
REAR SECURITY PANEL
VERSION
Can be securely held in place
with accessory Security Bolts, in
the hardware pack Panel easily
lifts off to expose the back of the
cart, where the adapters and
cord sets are kept in cable bins.
Also access to the removable
MiX Modules
REAR LOCKING DOOR
VERSION
Hinged rear door provides easy
access to the back of the cart.
Door locks in place with a key.
Keys found in the Hardware
Pack.
Rear Access Versions
180° DOORS
VERSION
Doors open wide to provide
access to the devices inside the
cart. Do not fold back agains
the sides of the cart.
270° DOORS
VERSION
Fold-back front doors swing
around, out of the way, snug
against the sides of the cart.
Front Door Versions
1. Remove the devices from the front of the cart and place in a safe
location (very important)
2. From the front of the cart, reach in under the MiX Module dividers
and slide the Locking Tabs away from the cart’s interior side wall
… both sides. This releases the MiX Module from the cart interior.
3. Rear Security Panel Version: At the back of the cart, unscrew
the two thumb screws. Lift the Back Panel off of the chassis.
Rear Locking Door Version: Using the key from the hardware
pack, unlock the back door and swing it open.
This exposes the backs of the MiX Modules.
4. Unplug the power cord and the cat 6 cable from the cart. This cat
6 cable is used for the Power Management System to
communicate with each of the power strips in the cart. The MiX
Module is now ready to be lifted out of the cart.
5. Using the built-in handles, lift the MiX Module out of the cart and
set it on a work surface. You are now ready to start customizing
the slots for your specific devices and cable management.
Removing MiX Module from EVER Cart
front of the module inside the cart"
2. Slide Locking Tabs toward center of cart
back of the module inside the cart"
4. Unplug the power cord and the cat 6 cable
5. Using the handles, lift the MiX Module out
of the cart and set on a work surface
3. Unscrew the Thumb
Screws - one on each side
of the cart at the back.
Lift o the Back Panel.ff
2
4
3
5
The MiX Module disconnects from the EVER Cart and can be removed
through the back of the cart, then placed on a work surface for simple,
time-saving cable management & changing slot width - all outside the cart!
Security Screws
Your new EVER Cart
comes equipped
with 2 Security
Screws and a
Security Bit, included
in the hardware
pack."
Replace the Thumb
Screws with the
Security Screws if
you need to restrict
access to the
computer adapters in
the back of the cart.
USER GUIDE | MiX Carts // EVER CARTS
REAR SECURITY PANEL VERSION
