Strona 1/16

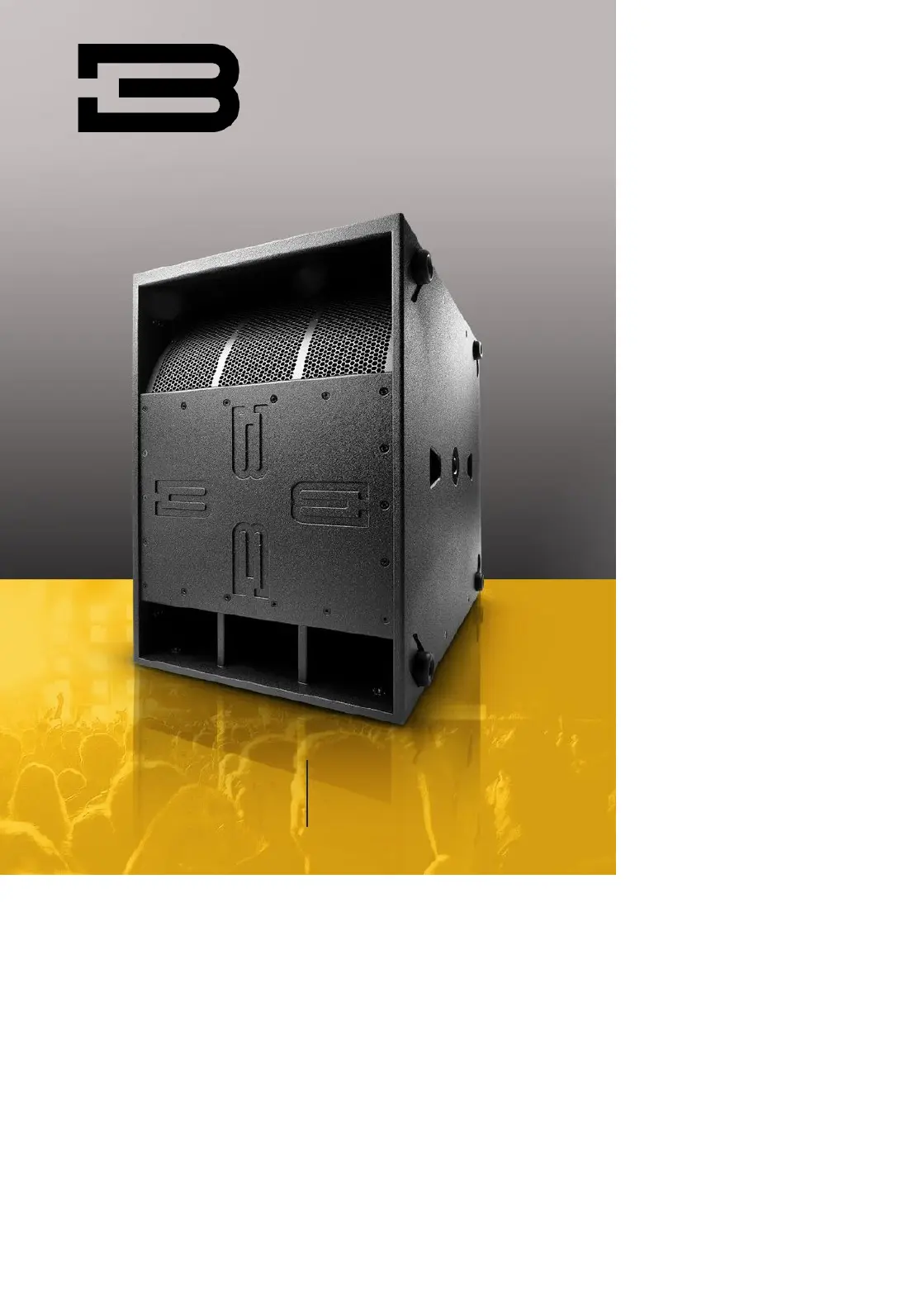

User ManUal
Single 21”
Powered Subwoofer
VS21-MK3
VS21-MK3 User Manual
2
Table of Contents
Overview 2
QuickStartGuide 4
OutboardProcessorWarning 5
SetupProcedure 5
OperationandControls 6
IndicatorLEDs 6
HowtoUsethePresets 7
Pre-InstalledOnboardPresets 8
PowerDistribution 9
Troubleshooting 9
CardioidMode 10
Specifications 11
Warranty 12
SafetyInformation 13
ImportantNotes 14
FCCComplianceNotice 14
Overview
The VS21-MK3 Single 21” Powered Subwoofer oers low-frequency extension similar to vented
dual 18” subwoofers in combination with the hard hitting punch of horn loaded subwoofers.
The VS21-MK3 brings the world of extended low frequency together with the world of high-impact:
You’re no longer forced to choose either deep OR punchy, as the VS21 oers both.
The VS21-MK3 is a vented, short horn hybrid sixth order bandpass which features a massive
displacement, long excursion 21” woofer, rear-loaded into a large acoustical volume that is tuned to
a low frequency, and front-loaded onto a short horn. The vented enclosure section provides extended
low frequency performance and the horn section provides increased upper frequency sensitivity and
improved transient response.
Estemanualestádisponibleenespañolennuestrositiowebenbassboss.com/support
Single 21”
Powered Subwoofer
VS21-MK3
bassboss.com
3
The VS21-MK3 features a 2500W amplifier with an auto-sensing, globally compatible power supply
that can run on mains supplies anywhere between 90 and 250 Volts. Full output power is available
on anything over 110V. The amplifier’s high peak-output voltage provides for intense high SPL
hits while its sustained output is unparalleled in its ability to deliver the liquid lows. The amplifier
is passively cooled via its external heat-sink and by woofer-generated air-flow through the port.
When necessary, two blower-fans will engage to provide additional forced-air cooling capacity in more
extreme conditions.
New to the MK3 are Neutrik powerCON True 1 TOP (Total Outdoor Protection) waterproof mains
connectors. Waterproof mains connectors along with a totally isolated input connection section and
cones that are waterproofed make the MK3 series the powered loudspeakers that can be used outdoors
without fear of what the weather will bring. (Or used indoors without fear of what the partiers bring.)
Electrical power is converted into the much more desirable acoustical power by a robust, neodymium
motor, 21-inch woofer with a massive 4.5-inch (115mm) voice coil. Neodymium magnets are lighter, and
their higher intensity provides higher eiciency, so the result is a lighter and louder cabinet than those with
ferrite drivers.
New to the MK3 are Neutrik powerCON True 1 TOP (Total Outdoor Protection) waterproof mains
connectors. This permits the levels of multiple loudspeakers to be adjusted together and yet
independently from the levels of other groups of loudspeakers.
Electrical power is converted into the much more desirable acoustical power by two robust, neodymium
motor, 18-inch woofers with massive 4.5-inch (115mm) voice coils. Neodymium magnets are lighter, and
their higher intensity provides higher eiciency, so the result is a lighter and louder cabinet than those with
ferrite drivers.
The MK3 features an all-new DSP. The comprehensive suite of processing includes high-pass and low-
pass filters as well as multiple protection systems and limiters to prevent driver overload in as many
ways as possible, including thermal, excursion and clipping. The five levels of protection actively prevent
overheating of the voice coil, minimize long-term thermal compression and limit excursion. Because they
operate in 5 dierent modes, the limiters are sophisticated enough to have a largely unnoticable eect
on the transient response and allow the subwoofer to deliver peak output safely.
The new DSP features an Ethernet interface. This can be used to control the cabinets from a computer
or to load software or firmware updates. The ethernet connectivity in conjunction with the DSP board
allows signal to be sent via Milan AVB. Firmware updates will provide access to this feature.
Within the software, multiple cabinets can be grouped together, allowing them to respond to commands
simultaneously. This permits the levels of multiple loudspeakers to be adjusted together and yet
independently from the levels of other groups of loudspeakers. In addition to individual and grouped
level controls, presets can be loaded and signal levels and temperatures can be monitored. Each cabinet
includes a two-port switch so multiple cabinets can be chained on the same data cable.
The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch
of a button with no need for a connected computer. The eight directly accessible presets are compatible
with all the presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs.
