DATASHEET
Axis PoE midspans provide power (max. 15.4 W per port)
over Ethernet cables to network video products with
built-in PoE support. For a network video product without
built-in PoE support, a PoE splitter must be used to
separate power and data coming over the network cable.
The PoE products enable network cameras and video
encoders to be installed in areas where traditional power
cabling and outlets are unavailable or dicult to install.
Installations are made easier and costs are reduced.
Power over Ethernet (PoE) oers an easy, fast and cost-eective solution for supplying power to
network video products without the need to install power outlets and electrical cabling. Simply
connect the Axis PoE midspans and PoE splitters to the network, and the network video products are
supplied with power.

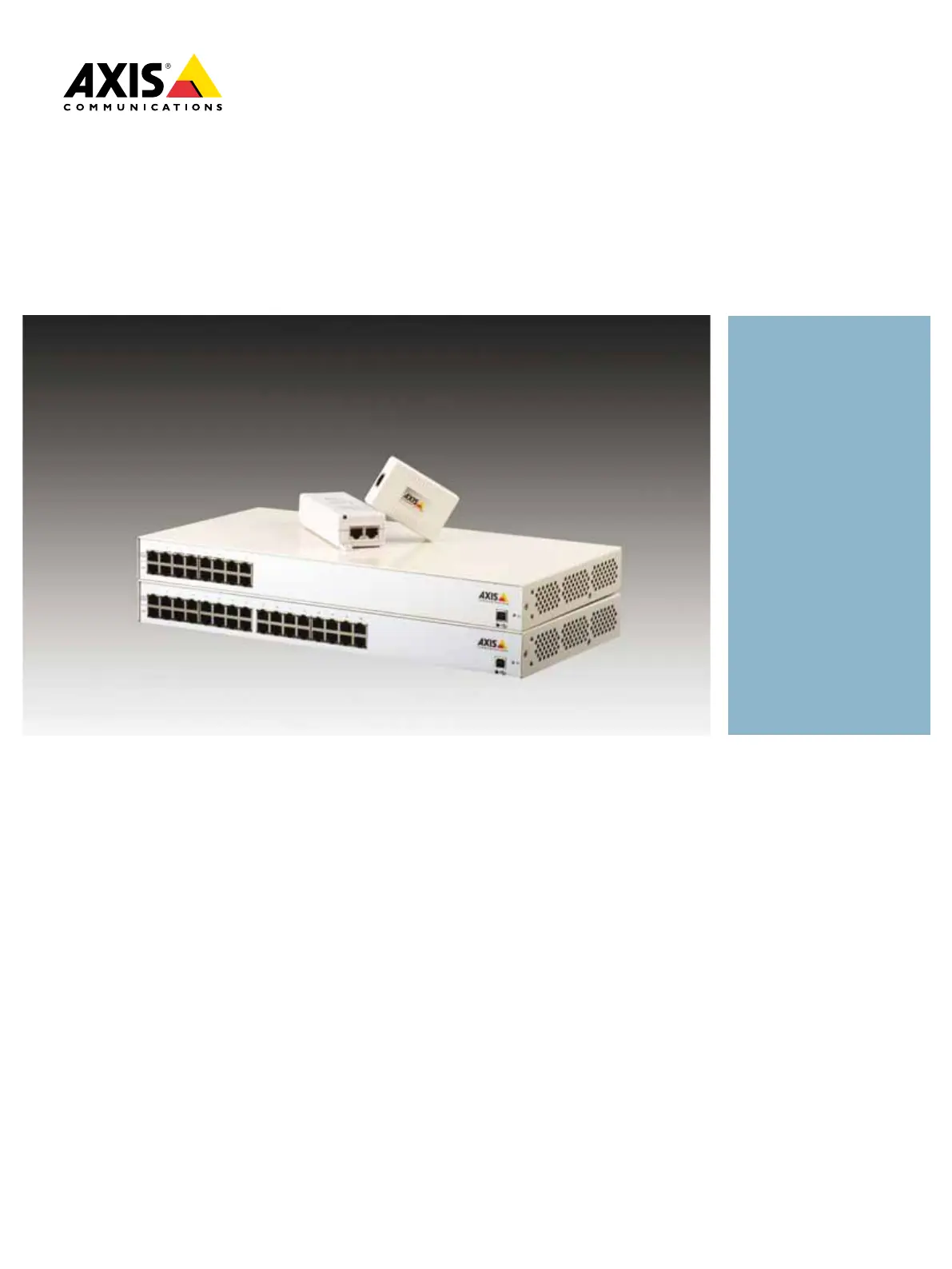

Axis Power over Ethernet midspans & splitters
Network video without the need for power outlets.
Axis PoE midspans and PoE splitters are IEEE 802.3af
compliant, which ensures compatibility with most of Axis
products that have built-in support for PoE.
For network cameras such as PTZ (pan/tilt/zoom) and PTZ
dome cameras that require higher power than what PoE
products can provide, High PoE midspans and splitters are
available. See Axis High Power over Ethernet midspan and
splitters datasheet.
> Reduced
installation costs
> IEEE 802.3af
compliance
Axis High PoE products are
available for Axis PTZ and PTZ
dome cameras. See separate
datasheet.
Technical Specications – Axis Power over Ethernet midspans
Technical Specications – Power over Ethernet splitters
www.axis.com
©2012 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modications without notice.
48258/EN/R2/1210
Midspans
Models AXIS T8120 Midspan 15 W 1-port
AXIS Power over Ethernet Midspan 8 port
AXIS Power over Ethernet Midspan 16 port
Function Data and power are fed to a network video product through an
Ethernet cable; use together with a PoE splitter for a network
video product without built-in PoE support
Data rate AXIS T8120: 10/100/1000 Mbps
8- and 16-port midspans: 10/100/1000 Mbps
Data & Power
Connectors Shielded RJ–45, EIA 568A and 568B
Network cables Shielded category 5 (or higher) Ethernet
Wiring AXIS T8120: Mode B; data provided over pairs 1/2 and 3/6,
power over spare pairs 4/5 (+) and 7/8 (-)
8- and 16-port midspans: Mode A; data and power provided
over pairs 1/2 (+) and 3/6 (-)
Output power 48 V DC (max. 15.4 W/port)
Input power AXIS T8120:
AC input voltage: 100 - 240 V AC (50/60 Hz)
AC frequency: 47 - 63 Hz
AC input current: 0.5 A maximal
8- and 16-port midspans:
AC input voltage range: 90 - 264 V AC
AC Input frequency: 47 - 63 Hz
AC input current: 4.5 A (RMS) max. for 90 V AC, 2.25 A (RMS)
max. for 240 V AC
Installation and
management
Plug-and-play installation; midspans automatically detect all
devices with support for PoE and supply inline power
Local LED management display
Port
auto-sensing
Standard IEEE 802.3af auto-sensing
Pre-standard backward compatibility algorithm
(AXIS T8120 Midspan 15 W 1-port only)
General
Display and
indicators
All port interfaces are located on the front panel for easy access
and real-time network monitoring
System: AC power, Channel indicator - power and fault
For more information, see www.axis.com/techsup
Compliance IEEE 802.3 standard (when no inline power is supplied) and
IEEE 802.3af, DTE Power via Media Dependent Interface (MDI)
Mounting AXIS T8120: Wall or shelf mounting
8- and 16-port midspans: Prepared for 19”, 1U rack installation
Approvals AXIS T8120: FCC Part 15 Class B with FTP cabling
EN55022 (CISPR 22) Class B with FTP cabling
Safety: cUL/UL, TUV, CE
8- and 16-port midspans: TUV EN 60950
FCC Class B, EN55022 Class B, EN61000-4-2. EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11,
EN61000-3-2 Class A
Safety: cUL/UL, TUV, CE
Operating
conditions
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10 - 90% RH (non-condensing)
Dimensions
(HxWxD) and
weight
AXIS T8120:
33 x 53 x 140 mm (1.3” x 2.1” x 5.5”)
450 g (1 lb.)
8- and 16-port midspans:
44.5 x 228 x 438 mm (1.75” x 8.98” x 17.26”)
4.08 kg (9 lb.)
Splitters
Models AXIS PoE Active Splitter 5V AF (only supported by 1-port
Midspan)
For a complete list of supported products, please refer to
www.axis.com/products/pol/poe/
Function Separate data and power coming over a network cable for a
network video product without built-in PoE support
Data & Power
Connectors Data & power in: Shielded RJ-45
Data out: Shielded RJ-45; Power out: DC barrel connector,
cable adapter for supported network video products
Output current 5 V unit: 2 A at 5 V DC
Input power 48 V nominal
Installation Plug-and-play installation between midspan and network video
product
General
Operating
conditions
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10 - 90% RH (non-condensing)
Approvals EMC and Immunity:
FCC Part 15 subpart B Class A, EN 55022 (CISPR 22) Class A,
EN 55024 (CISPR 24)
Dimensions
(HxWxD) and
weight (without
DC cable and
package)
5 V unit: 25 x 55 x 81 mm (1” x 2.2” x 3.2”),
100 g (0.22 lb.)
More information is available at www.axis.com
More information is available at www.axis.com
