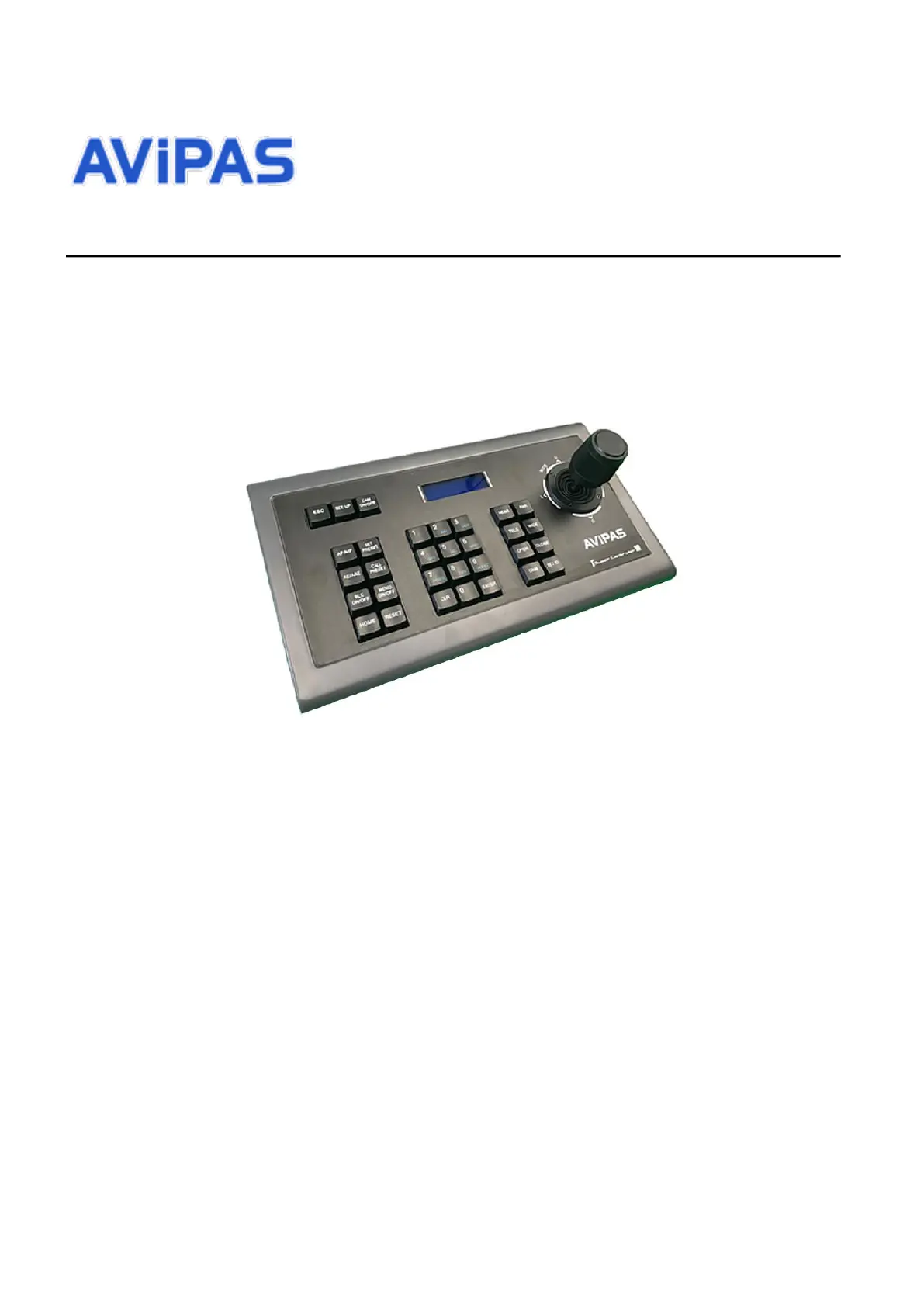

Model: AV-3104
3D Joystick Keyboard Controller
User Manual
V1.0
(English)
Please read this user manual
thoroughly before using.
www.avipas.com
Contents
1.Brief Introduction............................................................................................................................................................2
1.1 Notice......................................................................................................................................... .............................2
1.2 Functions and Features...........................................................................................................................................2
1.3 Items Included........................................................................................................................................................2
2.Interface Illustrations................................................................................................................................ ................. .....3
2.1 Rear panel....... ....................................................................................................................... ................ .........3 ... ....
2.2 Wiring diagram......... .............................................................................................................................................3
2.3 Connection between keyboard and camera. .................................................................... .................... ......4 .... ..... ....
2.4 Connection between cameras....................................................................................................................... ..... .....4
3.Technical Specifications........ .............................................................................................................................. ........5 ... ..
3.1 General specifications.................. ................................................................................................................ ......5 ... ..
3.2 Input/Output interface.......... ............................................................................................................... ............5 ...... ..
3.3 IPC features................................................................................................................................................. .........5 ..
4.Controller Operations……….......................................................................................................... ..................... ...........6
4.1 Keyboard................................................................................................................................................... .......6 .......
4.2 LCD screen display................................................................................................................................ ...............7 ..
4.3 Joystick control.................................................................................................................................. ..............7 .......
5.Keyboard Setups......... ..................................................................................................................... ..........................7 .... ..
5.1 PTZ setup............................................................................................................................................ ..................7 ..
5.2 System setup............................................................................................................................... ..... .....................8 ..
5.2.1 Password setting............................................................................................................... .........................8 ..
5.2.2 Restore factory settings.... ............................................................................................. ................9 ....... .......
5.3 Keyboard menu..................................................................................................................................... ..............10 ..
5.4 Keyboard parameters................................................................................................................................ .....10 .......
6. Appendix........................................................................................... ................................................... ......................11 .. ..
6.1 Transmission distance ......................................................................................... . .................11 ……............... ....... ..
6.2 Connection thod and terminating resistor............................................................................................ . ..11 me ....... ..
6.3 Applications...................................................................................................... ............................... . .........11 .. ....... ..
6.4 Trouble shooting........................................................................................................................... . ..............12 ....... ..
7. Maintenance Service Terms... ........................................................................................................ ............. ..........13 ..... ..
7.1 Range of warranty........... .......................................................................... ........................... . ........13 ............. .. ....... ..
7.2 Warranty conditions.............................................................................................................................. . ...........13 .. ..
7.3 Shipping........................ ....................................................................................................... . .........14 .. ............ ....... ..
1
1. Brief Introduction
1.1 Notice
●
Please read this manual thoroughly before use, and keep it handy for futur reference. e
●
Do not use or store AV-3104 in the environment where the product is exposed to rainwater, moisture
vapor, salty water, oil, etc.
●
Do not place the controller close to any exothermic object for a long time.
1.2 Functions and features
●
AV-3104 is equipped with RS485/ RS422/ RS232 serial control ports. It can control up to 255 cameras
max.
●
Support PELCO-D, PELCO-P VISCA protocols. and
●
Metal housing, with computer keyboard buttons.
●
Adopt 3D joystick r camera / tilt/ zoom and speed control. fo pan
●
Cont l camera rotation, zoom, erture, focus and other camera parameter settings. ro ap
●
English & Chinese display; real-time working status of the connected decoder and matrix. LCD
●
Selectable button sound on/off.
●
Advanced control code learning function that suppor user-defined control code commands. ts
●
Any device connected via RS485 can be set with identical protocol and baud rate separately.
●
O -current protection functions for RS422 interface, in case the controller needs to recover from ver
short circuit.
●
M communication distance up to 9ft (1200m, w twisted pair c le). ax is 34 / 0.5mm ab
1.3 Items included
Please check the items in the package once get the keyboard. Check whether all parts are included and
are in good condition.
3-axis control key board………………………1 pc
5pi pcn plug 1 … ……………………… ……………
DC-12V power adapter . . ……… … .. .1 pc…………
RS232 cable . . ……………… …..….. .1 pc…………
(9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
User manual …………… …………..………… .1 pc
Warranty card . ……………… ……… ………...1 pc
2
