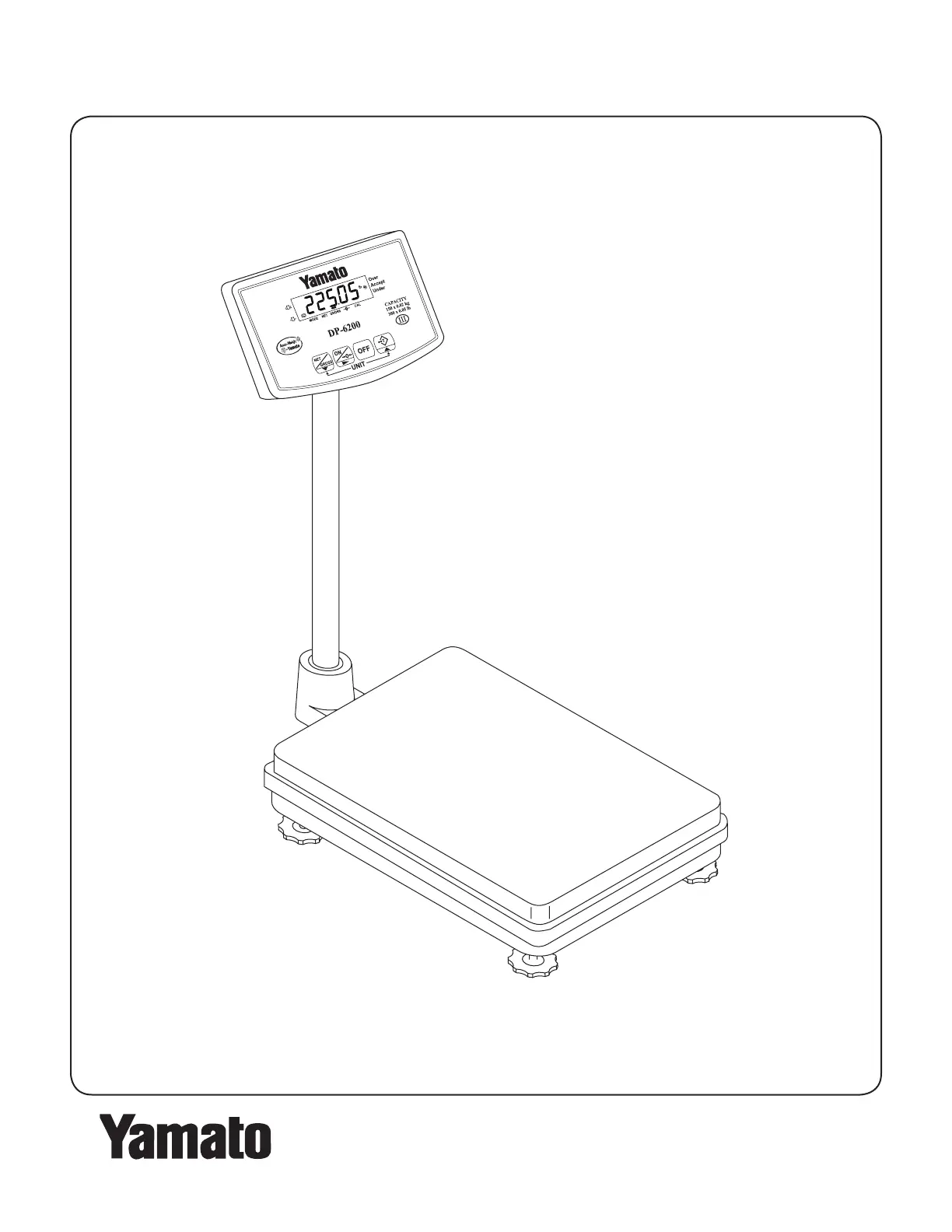

DP-6200 Operation Manual

YCO-1111-03-13

YAMATO CORPORATION

1775 S. Murray Blvd.

Colorado Springs, CO 80916 USA

Tel (719) 591-1500 Fax (719) 591-1045

YAMATO TECH CORPORATION

#112-19425 Langley By-Pass

Surrey, B.C. V3S 6K1 Canada

Tel (604) 533-2338 Fax (604) 533-0827

www.YamatoCorp.com

Version 5.00

YCO-1111-03-13

DP-6200 Operation Manual

Table of Contents

I. Safety Instructions 1

II. Description 2

Name and Function of Parts

Specications

III. Setup 5

Assembling the Scale

Adjusting the Indicator Angle

Leveling the Scale

Installing Batteries or AC Adaptor

IV. Directions for Use 7

Turning the Scale On and Off

Checking the Battery Level

Zero the Display

Switching Units

The CAL Indicator

Setting the Over/Under Indicator

V. Weighing 9

Using the Over/Under Indicator

Gross Weighing

Net Weighing

Batching

VI. Troubleshooting and Error Messages 11

VII. User Parameters 13

Setting the User Parameters

User Parameter Table

YCO-1111-03-13

DP-6200 Operation Manual

Before using the scale, carefully read, understand, and follow the “Safety Instructions” described in this manual. Observe the

advice given in the “Directions for Use” section to ensure proper operation. Keep this operation manual handy for ref-

erence.

To prevent injury

1) DO NOT SHOCK LOAD the scale, Never step on or sit on the scale. Not only will the scale be damaged, but you may

also be injured.

2) DO NOT APPLY DIRECT WATER SPRAY to the scale if it is powered by an AC adaptor!! You could receive a shock. The

scale is not washdown unless the AC jack is plugged with a water-tight seal.

4) Do not operate the scale if there is smoke or a burnt smell coming from the scale. Remove the batteries or unplug the

AC adaptor immediately. After making sure that there is no danger, consult your dealer. Never try to repair the scale

by yourself.

5) This scale is not an explosion‑proof model. Do not use the scale in an atmosphere containing ammable gases or

explosive fumes. A re or an explosion can result.

6) Place the item to be weighed in the center of the platform. Items placed on the edge of the platform may fall off and

cause injury.

7) When weighing a heavy, large or unbalanced item, make sure the item is stable on the platform, otherwise an accident

may occur.

8) When carrying or moving the scale, be sure to hold it by the bottom of the weighing platform with both hands. If you hold

it by the column, the column may become detached causing the scale to fall. This will damage the scale and could cause

injury.

9) Do not insert your nger into the gap or holes in the scale. You may be injured.

10) The DP-6200 uses a liquid crystal display. If the LCD breaks and the liquid leaks from the LCD, do not touch it with your

ngers. The liquid is toxic if ingested. Be especially careful around small children.

To prevent damage to the scale

1) Do not push the indicator or keys with sharp objects. They may break or puncture the switch membrane panel.

2) Use the specied power supply and choose a suitable environment. If you do not, the weight readings may be inaccurate

and the scale may be damaged.

3) The scale is a sensitive weighing instrument, avoid physical shocks. If you drop something on the scale, overload the

scale, step on the platform, or drop the scale, the scale may be damaged and lose accuracy.

4) If the scale becomes dirty, wipe it with a soft cloth. For stubborn stains, apply a little neutral detergent and then wipe the

scale with a dry cloth. Do not use thinner, benzene, hot water, or chemical agents, all of which can cause deformation, dis-

coloration, or deterioration of the scale.

5) Never remove the case. The ne adjustment section may be damaged and you may be injured by sharp edges on the

internal parts.

6) Do not place the scale upside down.

7) When the low battery indicator appears, replace all six of the batteries. When installing the batteries, install them accord-

ing to the polarity markings in the case (+, -). If the scale will not be used for a long period, remove the batteries.

8) Never connect or disconnect the RS-232 cable while the DP-6200 and a connected computer are on. The DP-6200 and/or

the computer may be damaged. RS-232 ports are not hot-swappable.

To keep the scale working efciently

1) Place the scale on a at stable surface that will support the scale and the load.

2) Do not place the scale in an area exposed to direct sunlight or to wind currents from an air conditioner, otherwise, the mea-

surements will not be accurate.

3) Do not place the scale near machines that create vibrations or electromagnetic disturbance, such as microwave ovens,

portable phones, or large motors. This will affect the accuracy.

4) The operating temperature range is from –5°C to +35°C (23°F to 95°F). Do not subject the scale to sudden temperature

changes; allow the scale to adjust to the new temperature before use.

5) If the scale is sealed, do not break the seal. If you break the seal, the scale will not be considered legal for trade. In this

case, contact your dealer.

6) Do not disassemble or modify the scale, you will void the warranty. Modied scales will not be legal for trade.

I Safety Instructions
