INSTRUCTIONS

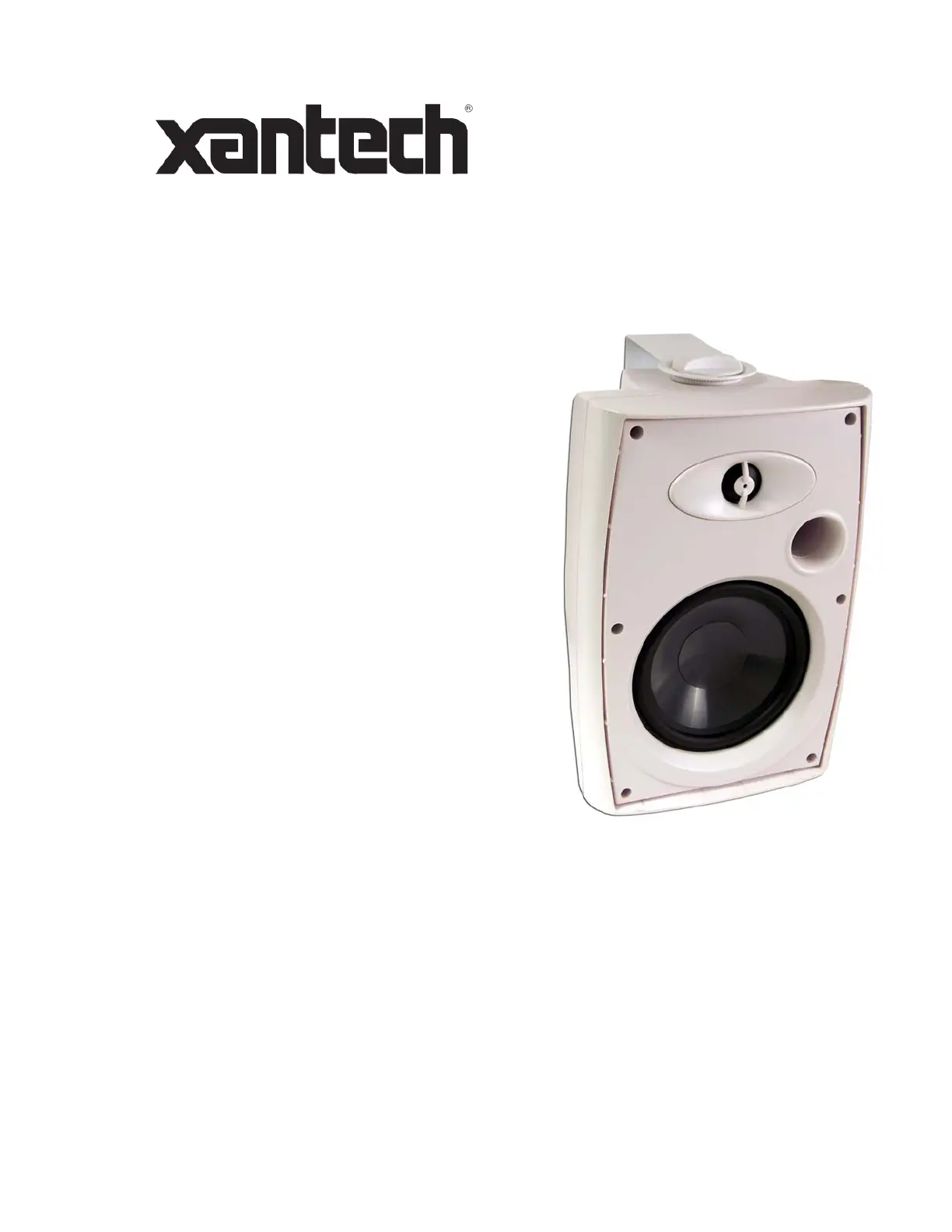

XOD65
DESCRIPTION
The XOD series features a weather resistant construction. The acoustic
suspension speaker housing is further enhanced with UV resistant stabilizers
to prevent yellowing. A rust-proof aluminum
grill is securely attached with commercial-
grade adhesives to protect the audio drivers
during the harshest elements.
Audio tones are accurately reproduced using
a 2-way speaker design composed of a
25mm silk-dome tweeter and a 6.5” IMG
cone woofer with rubber surround. The
tweeter is constructed with an advance
neodymium magnet and has rear acoustic
damping to achieve accurate tonal
reproduction. The woofer features a large
voice coil which allows responsive
performance and loud, tight bass when the
user demands it. The crossover features
over-spec’ed components for long lasting
performance and premium sound.
Premium gold-plated wire posts specified to
withstand the outdoor elements. Gold is
corrosion resistant and will maximize a
reliable connection over the years. A pivotal mounting bracket makes
installation fast and simple.
FEATURES
Aluminum mounting bracket.
6.5” Woofer, IMG cone, rubber surround, steel frame.
25mm silk-dome tweeter, acoustic damping.
Rugged speaker enclosure
INSTALLATION
STEP A: The XOD speaker is intended
to be mounted using the included
bracket only. Select a desirable location
to mount the speakers. Then determine
if they are to be installed vertical or
horizontal.
STEP B: Using a bubble level, align the
speaker bracket. Secure the speaker
bracket using screws or fasteners that
are applicable for surface. Concrete or
brick surfaces require different screws
or fasteners than a painted wood
surface.
STEP C: Slide the main speaker
housing onto the mounting bracket.
Then, using the mounting knobs,
attached the main speaker housing to
the mounting bracket. Hand-tighten the
mounting knobs while moving the
speaker to a desired angle. Caution,
excessive tightening can cause damage
to the threads.
STEP D: Attached speaker wire to the XOD speaker’s gold-plated posts.
INSTALLATION COMPLETE!
XANTECH CORPORATION
13100 Telfair Avenue
Sylmar, CA 91342
Document No. 08905094A, © 2007 Xantech Corporation
This document is copyright protected. No part of this manual may be copied or reproduced in any
form without prior written consent from Xantech Corporation.
Xantech Corporation shall not be liable for operational, technical, or editorial errors/omissions
made in this document.
