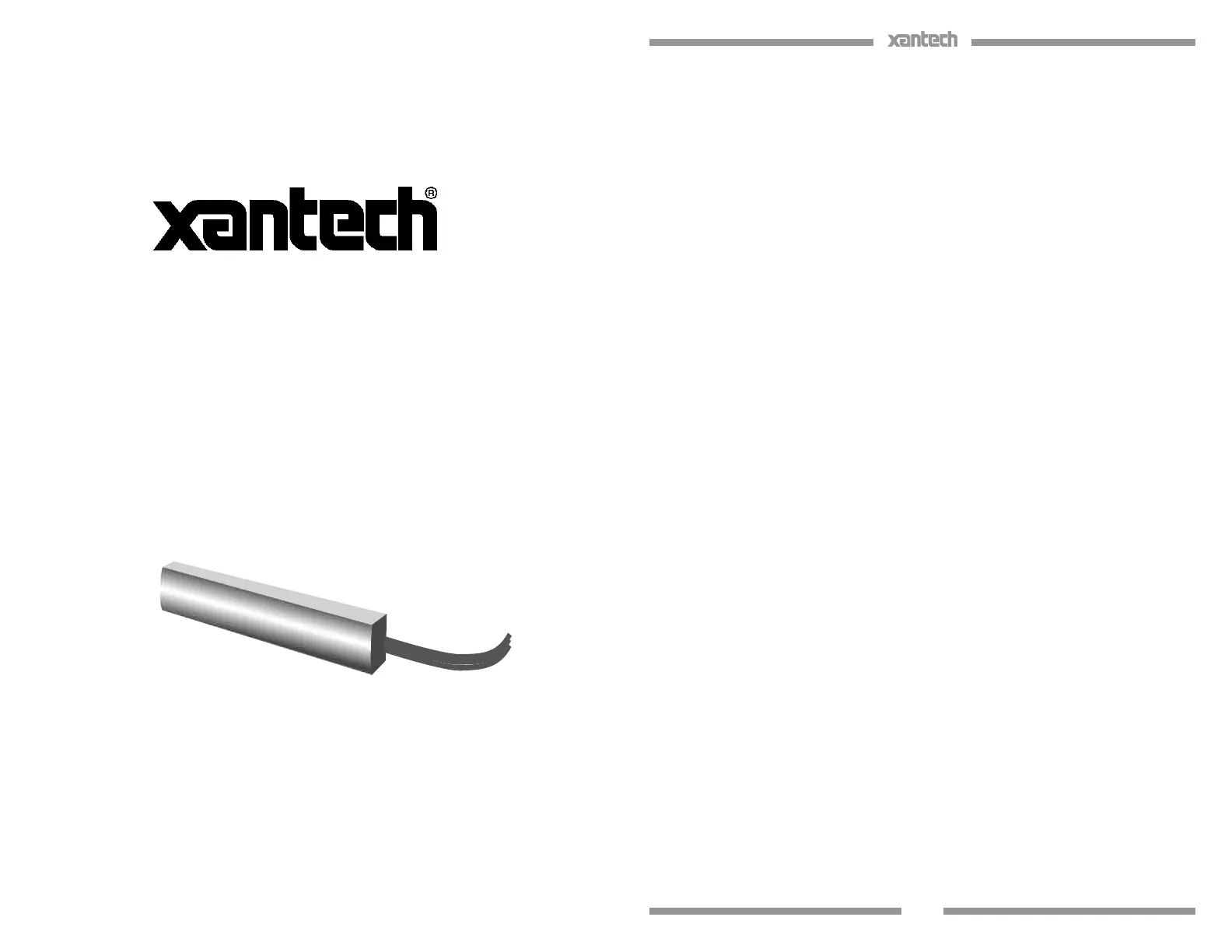

INSTALLATION INSTRUCTIONS
DL85K
Dinky Link™ Surface Mount
Plasma\LCD\LED\CFL Friendly
IR Receiver
1
DESCRIPTION
These small IR receivers have been designed for mounting in very small
spaces. They may be mounted under shelf edges, cabinet ledges, in wall
speakers, etc. – anywhere an inconspicuous appearance is desired. The high
sensitivity of these receivers allows placement behind speaker grilles and still
receive IR commands up to 80 feet away*.
FEATURES
• Wire channel for clean installation.
• System testing red-talk-back LED.
• Includes 789-44 connecting block, power supply, and four 283D emitters
for easy system installation.
SPECIFICATIONS
• Infrared carrier frequency bandwidth: 25 - 60 kHz.
• Reception range: Up to 80 feet.*
• Reception angle: +/- 60 degrees.
• Cable requirements: See “INSTALLATION” below.
• Max. Transmission length: 1 mile using 18 gauge wire.
• Maximum current output: 100mA.
• Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
• Dimensions: 2.55” x 0.55” x 0.35” (65mm x 14mm x 9mm).
• Power requirements: +12VDC, 10mA.
* Depending on remote control output strength and ambient conditions.
MOUNTING
The IR receiver can be mounted to any flat surface, using the two-sided
adhesive tape supplied.
An additional feature is a wire channel on the rear of the surface mount IR
receiver. This will give the installer the ability to provide clean wire dressing in
any direction.
2
INSTALLATION
QUICK-START
A typical system will use an IR receiver, several emitters, and a power supply
all connected to a connecting block.
1. Connect the IR receiver to the “IR RCVR” port on the connecting
block. The ‘red’ connector is installed to the ‘red’ plug.
Note: In some extended distances, additional 3-conductor may be
required and can be connected to the terminals on the connecting
block.
2. Connect the Emitters to the connecting block. The ‘yellow’ connector
is installed to the ‘yellow’ plug.
3. Connect the power supply to the connecting block.
REMOTE ROOM APPLICATION
One application is to locate the IR receiver in a remote room. This will give the
end-user the ability to control audio/video equipment from a location where
the remote control no longer has the ability of direct line-of-sight.
The IR receiver will need the 3.5mm stereo type mini plug removed to extend
the wire run to the connecting block. A 3-terminal block can be purchased
separately to connect the IR receiver to the connecting block with a 3-
conductor inter-room cable in between.
To 120 V AC
(unswitched)
781ERGPS
789-44
Connecting Block
MAIN ROOM
A/V Receiver
DVD
Satellite Receiver
283D Emitter
12VD C
+12 VDC
GND
STATUS
IR IN
EMITTERS
IR
RCVR
789-44
CONNECTING BLOCK
®
283D Emitter
283D Emitter
(mounted on or
near cabinet in an
inconspicuous
location).
DL Series
I
R Receiver
Hand Held
Remote
IR Photodiode
Red
Talkb ac k LED
3
The 3-conductor inter-room cable (24 gauge up to 200’, 22 gauge up to 600’,
20 gauge up to 2000’, 18 gauge up to 5000’), is run to the main room.
Input connections must be made as illustrated. To extend the emitter wires to
a more distant location, you may splice in 2-conductor wire, in the wire
gauges mentioned before, as needed.
While it is possible to make wired connections without the connecting block, it
is not recommended. The connecting block reduces installation time, helps to
eliminate errors, allows easy troubleshooting and permits easy system
upgrades later, if needed.
DL Series
IR Receiver
Red (or white)
Stripe
To 120 V AC
(unswitched)
781ERGPS
789-44
Connecting Block
REMOTE ROOM MAIN ROOM
Hand Hel d
Remote
3-Terminal Block (not included)
3-Conductor
Inter-room Cable
(unshielded OK)
7' Ribbon Cable
A/V Receiver
DVD
IR Photodiode
Red
Talkback L ED
Satellite Receiver
283D Emitter
12VD C
+12 VDC
GND
STATUS
IR I N
EMITTERS
IR
RCVR
789-44
CONNECTING BLOCK
®
IR OUT
+12V
GND
283D Emitter
283D Emitter
4
LOCAL SYSTEM APPLICATION
Another application is to locate the IR receiver in a central location, such as
the TV, video screen and/or a speaker. The audio/video equipment can then
be hidden inside a cabinet or located away from the front of a room. This will
give the end-user the ability to direct a remote control to one central location
and not have to worry about aiming to the respective device to be controlled.
The IR receiver is in close proximity to the audio/video equipment, no wiring
extension should be required so long as the connecting block is within reach
of the 7-foot cable. The 3.5mm stereo type mini plug is connected to the “IR
RCVR” jack on the Xantech Connecting Block.
PLACEMENT
The IR receiver should be located so that it is not directly facing a light source
such as lamps or displays (standard, LCD, and Plasma). When mounted near
a display, it should be flush to the display and away from light reflections that
may occur.
To 120 V AC
(unswitched)
Emitter
Emitter
7 Foot Ribbon
Cable with Quick
Connect Mini Plug
Controlled Equipment
(mounted behind
closed cabinet doors)
(mounted on or
near cabinet in an
inconspicuous
location).
Emitter
Emitter
Satellite Receiver
VCR
AV Receiver
CD Changer
Cassette Deck
DL Series
IR Receiver
Hand Held
Remote
IR Photodio de
Red
Talkba ck LED
791-44
Amplified
Connecting Block
+1 2 VD C
GN D
EMITTERS
12 VDC
HIGH
IR
OUT
STAT US
IR I N
IR
RCVR
791- 44
AMPLIFIE D
CONNECTING BLOCK
®
781ERGPS
Emitter
5
1.
Dinky-Link (DL) IR Receiver Kit
DESCRIPTION
The DL Series Kit comes with everything needed for a complete IR repeater
system. With a Xantech IR Kit, equipment can now be concealed for clean
room design. In addition, a centralized IR receiver means there is only one IR
target resulting in improved remote control interaction. Featuring color-coded
connectors, a Xantech IR Kit is now an easy to install, and allows a worry-free
installation.
INCLUDED ITEMS
ITEM A: (1) DL Series IR Receiver
ITEM B: (1) 784-44 Connecting Block
