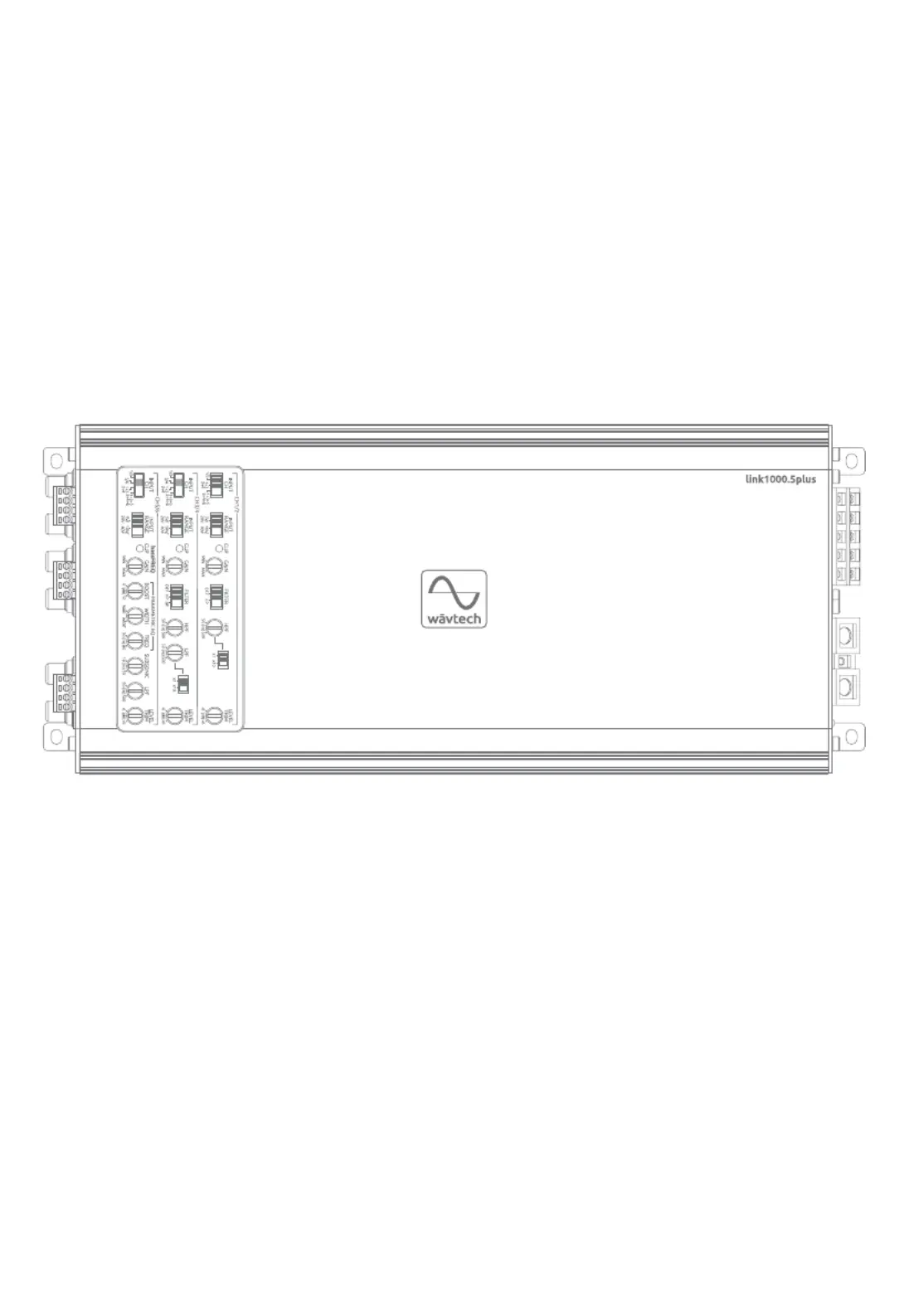

Owner’s Manual
1000W RMS 5-Channel Amplifier
link1000.5plus
www.wavtech-usa.com
1
• DO NOT DRIVE WHILE DISTRACTED. Any function that requires your prolonged attention should not be
performed while driving. Always stop the vehicle in a safe location before performing any such function. Failure to
do so may result in an accident.
• KEEP THE VOLUME AT MODERATE LEVELS WHILE DRIVING. Excess volume levels can obscure sounds such as
emergency vehicle sirens or road warning signals and may result in an accident. Continuous exposure to high sound
pressure levels may cause permanent hearing loss. Use common sense and practice safe sound.
• FOR USE WITH 12V NEGATIVE GROUND VEHICLE APPLICATIONS ONLY. Using this product other than in its
designed application may result in fire, injury or product damage.
• MAKE THE CORRECT WIRING CONNECTIONS AND USE PROPER FUSE PROTECTION. Failure to connect wiring
correctly with appropriate gauge and fuse protection may result in fire, injury or product damage . When replacing
fuse(s), never exceed the specified rating. Ensure proper protection of all system power wiring and install an
external fuse (not included) with specified rating for each amplifier connected with the +12V lead at the battery
terminal.
• DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE INSTALLATION. Failure to do so may result in fire,
injury or damage to the unit.
• D O NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS. Arrange wiring and cables to
prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as steering wheel,
brake pedals, etc. can be extremely hazardous.
• DO NOT DAMAGE VEHICLE SYSTEMS OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis
for installation, take precautions so as not to contact, puncture or obstruct brake lines, fuel lines, fuel tanks,
electrical wiring, etc. Failure to take such precautions may result in fire or an accident.
• DO NOT UTILIZE OR CONNECT TO ANY PART OF VEHICLE SAFETY SYSTEMS. Bolts, nuts or wires used in the
brake, airbag, steering or any other safety-related systems or fuel tanks should NEVER be used for mounting,
power or ground connections. Using such parts may disable control of the vehicle or result in fire.
WARNING This symbol means important instructions.
Failure to heed them can result in serious injury or death.
CAUTION
• STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the
product. Return it to your authorized Wāvtech dealer.
• HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience
for wiring and installation. To insure safety and proper function, always contact the authorized dealer where you
purchased the product to have it done professionally.
• INSTALL THE UNIT SECURELY WITH SPECIFIED PARTS. Be sure to use only the included parts and specified
installation accessories (not included). Use of other than designated parts may damage this unit. Install the unit
securely so that it will not come loose during a collision or sudden jolt.
• ROUTE WIRING AWAY FROM SHARP EDGES AND MOVING PARTS. Arrange cables and wiring away from sharp
or pointed edges and avoid moving parts such as seat hinges or rails to prevent pinching or wear. Use loom
protection where appropriate and always use a grommet for any wiring routed through metal.
• NEVER RUN SYSTEM WIRING OUTSIDE OR UNDERNEATH THE VEHICLE. All wiring must be routed, secured
and protected inside the vehicle. Failure to do so may result in fire, injury or property damage.
• INSTALL THE UNIT IN A DRY AND VENTILATED LOCATION. Avoid mounting locations where the unit will likely
be exposed to high moisture or heat without adequate ventilation. Moisture penetration or heat buildup may
result in product failure. Always make sure the amplifier chassis temperature is safe before touching it.
• REDUCE GAIN AND SOURCE VOLUME TO MINIMUM LEVELS FOR INITIAL SYSTEM TUNING. Ensure amplifier
power is off before connecting signal cables and follow proper system gain setting procedures. Failure to do so
may result in damage to the amplifier and/or connected speakers.
Package Contents: Accessories Required for
Installation (not included):
WARNING
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or property damages.
Mounting Tabs
(pre-attached)
Spk Level
Input Terminals
Main Unit
Hex Wrenches
ŸRCA Cables or Signal Wire
ŸPower Supply & Speaker Wire
ŸIn-line Fuse Holder w/100A Fuse
ŸBattery Ring Terminal
ŸChassis Ground Terminal
ŸWire Crimp Connectors
ŸGrommets & Loom
Mounting Screws
Power Supply / Output Panel Connections & Settings
Auto Turn-On Detect Jumpers:
Œ
By default, the amplifier is set to
detect both DC-offset and audio
signals for turning itself on/off
automatically. These jumpers
allow either turn-on mode to be
defeated independently or to
bypass both modes when a
switched +12V trigger is available
and connected to the remote turn-on (REM) terminal.
Power/Protect Indicator: This LED will illuminate green when the amplifier is powered on and
❷
operating normally. If a shutdown occurs due to a detected fault, the LED will turn red. Once the
fault has been corrected or the condition has cleared, the amplifier will
automatically recover, indicated by the LED changing back to green.
2
Introduction
Welcome to Wāvtech, exceptional mobile audio products for audiophiles. Our products are engineered
from the ground up to provide a truly remarkable listening experience with superior performance,
sound quality and reliability. Built for the professional installer, our innovative features enable
maximum application coverage with ultimate system flexibility. Whether retaining the factory receiver
or utilizing an aftermarket source, our solutions are simply the best available for unlimited sound
system upgrades.
Features:
• 5/4/3-Channel Bridgeable
• Differential Balanced Inputs
• Dual Input Range with Ideal Gain Structure
• Variable Gain Adjustments with Clip LEDs
• 6ch Input with up 3-way Summing Capability
• +/-6dB Output Level Trim for After Sum or Copy
• Variable -12dB/oct. HP/LP/BP Filters (Main Ch)
• bassFREQ Processor with Parametric EQ,
-24dB/oct. Subsonic and LP Filters (Sub Ch)
• Remote Level Control Ready (Sub Ch)
• Auto Turn-On via DC-Offset and Audio Detect
• Stop-Start Vehicle Compatible
• OEM Load Detect System Compatible
• Active Rollback Thermal Management
• Panel Mount RCA Inputs with Bal/Unbal Select
• Locking Detachable Spk Level Input Terminals
• 4AWG Insert Power/Ground Terminals
• 12AWG Insert Speaker Output Terminals
• Compact Chassis w/Detachable Mounting Tabs

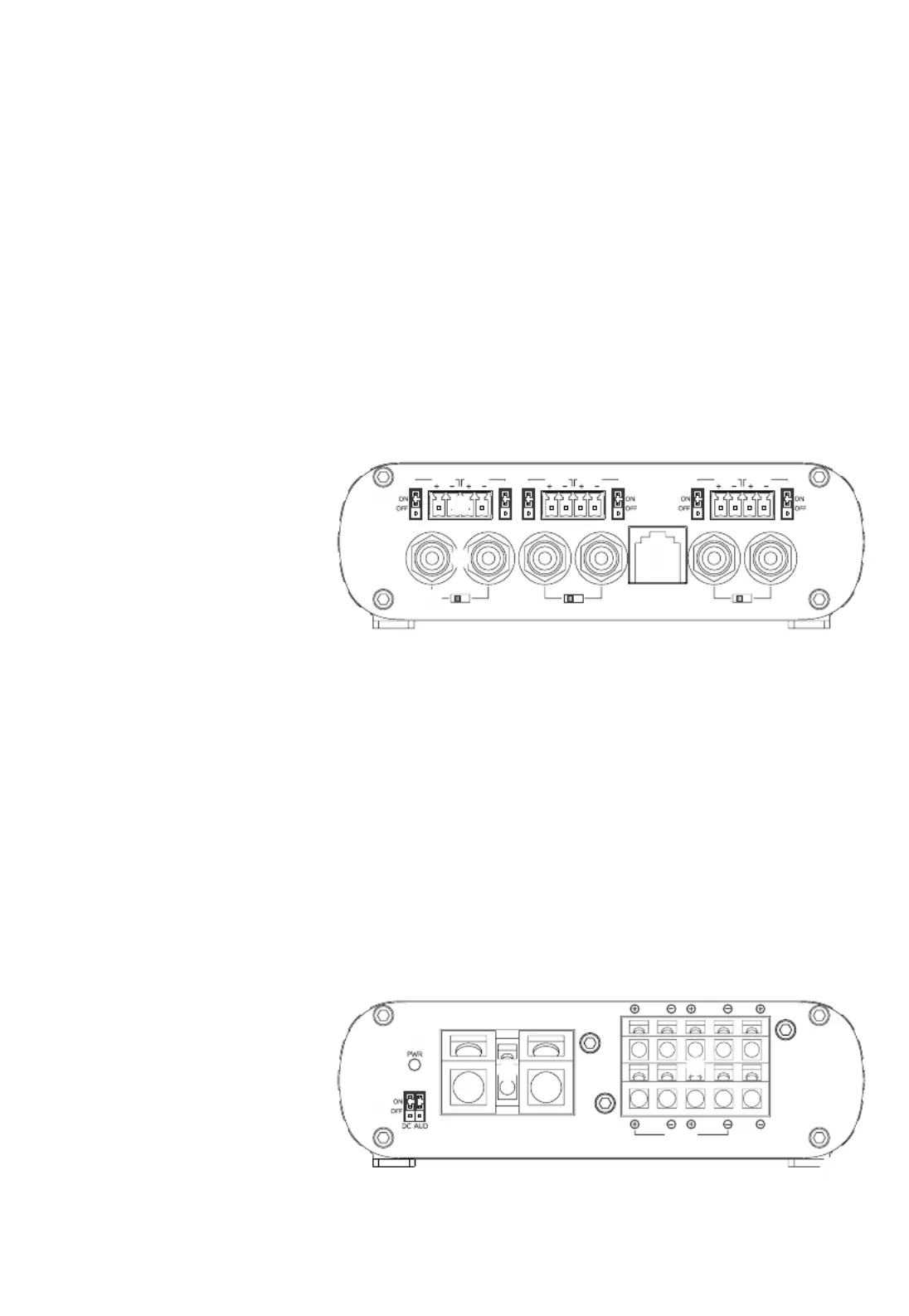

Input Panel Connections & Settings
Load Jumpers: Each speaker
Œ
level input channel has built-in
adaptive loading to satisfy most
OEM load detect systems. These
internal loading circuits can be
bypassed (OFF) for channels
where no loading is required,
such as when a speaker is still
directly connected to the source.
Speaker Level Inputs: For up to six channels of speaker level input connections to the source.
❷
When set to the 20V input range (default), audio signal from 1-20Vrms will produce up to full
power output from maximum to minimum gain. For factory amplifiers with more than 20Vrms
output signal or if volume range is not sufficient with gains set at minimum, select the 40V input
range, which will reduce the input sensitivity by half for signals up to 40Vrms.
RCA Inputs: For up to four channels of RCA line level input connections to the source. When set to
Ž
the 5V input range (default), audio signal from 0.2-5Vrms will produce up to full power output from
maximum to minimum gain. For sources with more than 5Vrms output signal or if volume range is
not sufficient with gains at minimum, select the 10V input range, which will reduce the input
sensitivity by half for signals up to 10Vrms. Use quality interconnects to ensure stable connection
and minimize the possibility for induced noise.
RCA Input Bal/Unbal Switches: These switches select the associated RCA input’s configuration
❹
between balanced (default) and unbalanced. Unbalanced connects the RCA shield to ground
reference, which may be useful in eliminating noise under certain source or system conditions.
Remote Level Control Jack: This RJ45 jack is for connecting the optional linkRC to the main unit
❺
for remote adjustment of CH5/6 (Sub) output volume from 0dB (max) to -30dB (min).
CH6(R)CH5(L)
LOAD LOAD LOAD LOAD
CH5(L) CH6(R)CH2(R)CH1(L)
CH1(L) CH2(R)
RLC
CH4(R)CH3(L)
LOAD LOAD
CH3(L) CH4(R)
BAL UNBAL BAL UNBAL BAL UNBAL
Œ❷
Ž
❹
❺
DETECT
CH3(L) CH4(R)
BRIDGED
CH1(L) CH2(R)
SUB
SUB
GND REM +12V
PRO
Œ
❷
Ž❹
❺
