Instrukcja obsługi Volla Phone X23

Volla smartfon Phone X23

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla Volla Phone X23 (28 stron) w kategorii smartfon. Ta instrukcja była pomocna dla 3 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Pobierz PDF
Strona 1/28

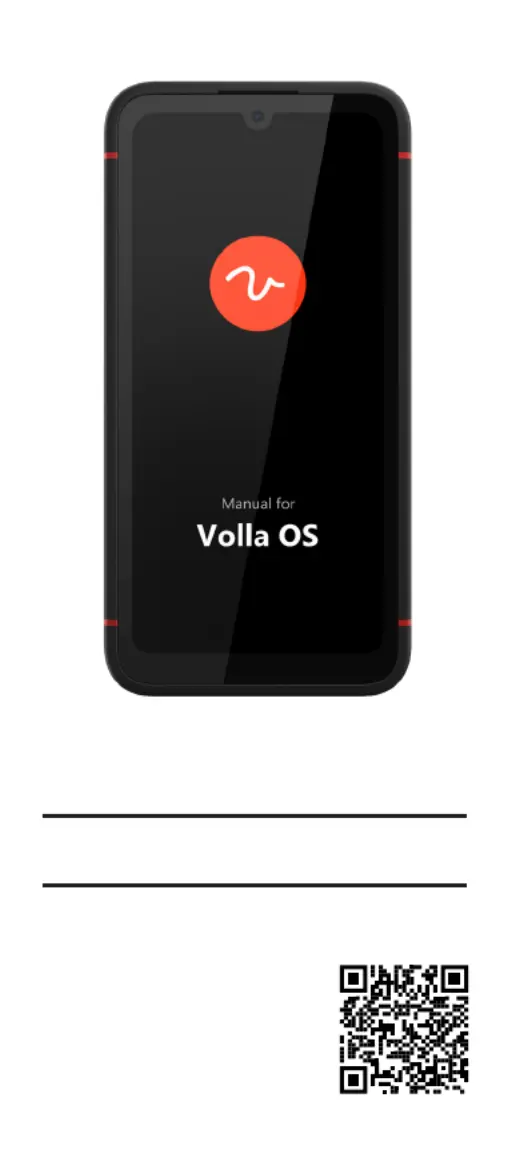

Volla Phone X23
You can find an extended operating
manual in other languages by
accesing: volla.online/en/downloads
Available languages online:
BG DE DK EN ES FI FR IT NL
RO SE SK
EN 1 - 13
DE 14 - 27
1
Your Volla Phone X23
First steps
PACKAGE CONTENTS:
• Volla Phone X23
• USB-C charging cable
• Battery (already inserted in the device)

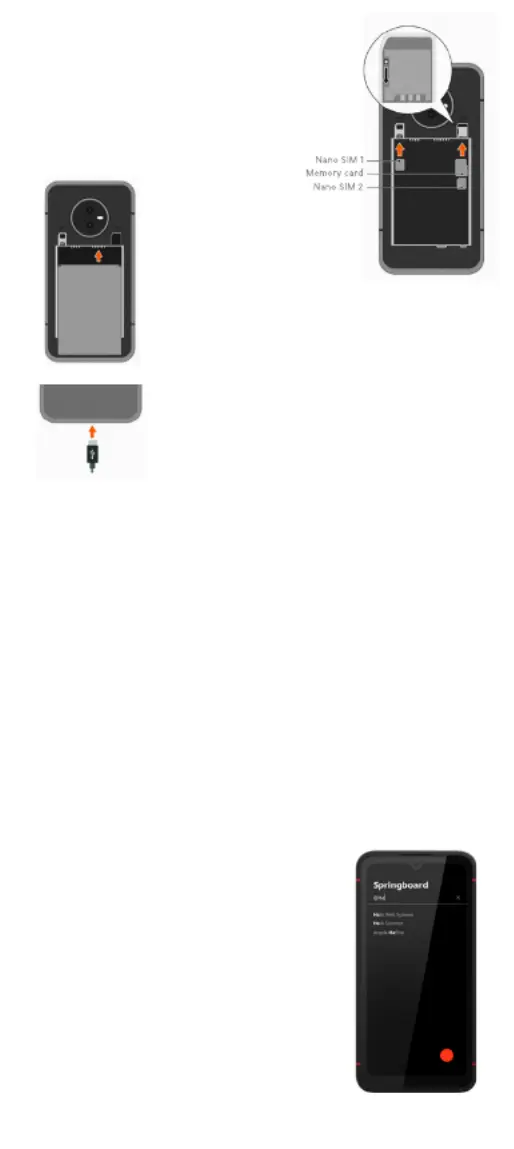

INSERT SIM AND MEMORY CARD
You can insert two nano SIM cards and one microSD memory card
into the smartphone.
Use your fingernail to grab the notch
on the lower left corner of the back
and pull up the back cover.
1. speaker (receiver)
2. microphone (top/bottom)
3. brightness sensor
4. message LED
5. Volume +: press up
Volume -: press down
6. Power on/o / fingerprint
sensor
7. Touchscreen
8. speaker
9. USB type C connector
10. microphone (up/down)
11. headphone and microphone
jack
12. function key (individual
assignment)
13. front camera
14. air pressure sensor
15. main camera
16. flash
17. macro camera
18. coil (internal)\for NFC and
for charging the smartphone
via induction
11 10 9 8
1 2 3 4
6
7
5
14
13
12
16
15
17
18
Slide the nano SIM card(s) and memory
card into the designated slot. Do not
apply force when inserting the SIM
and memory card - the connector on
the phone and other parts may be
damaged.
INSERT BATTERY
If you change the
battery, insert it into
the smartphone so
that the contacts
on the upper right
side meet the contacts on the smartphone. Then
replace the cover and gently press it closed until it
clicks into place.
CHARGE BATTERY
Insert the USB Type C plug of the supplied
charging cable into the USB Type C port of the
smartphone. Connect a USB power adapter to the
USB port of the charging cable and connect to
a power outlet. The device is charged when the
charging icon in the status bar or charging mode is
completely filled.
SET UP DEVICE
When you start the device for the first time, the setup wizard appears.
If you have inserted a SIM card, in most cases you will need to enter
your SIM PIN first. Tapping “Next” or “Skip” at the bottom will take
you to the next step in each case. To accept the End User License
Agreement, scroll to the bottom of the text to move to the next step.
CREATE ACCOUNTS
You can connect the Volla Phone X23 to your email inboxes, online
calendars, and address books. In the app overview, tap the system
settings (gear icon). Scroll down the list of settings and select the
entry for accounts. Select Add account and choose one of the oered
account types. You can get the settings from your service provider.
2
Springboard
INTELLIGENT TEXT FIELD
Tap on the text field to write something.
The system will show you suggestions for
completion and suitable functions:
• Start with an @ sign and you will get name
suggestions to the contacts stored on your
device. Entering more letters filters the
names.
• Tap on a name and the Volla Phone will
suggest a call. Tap on a suggestion to
execute the function.

Specyfikacje produktu

Marka: Volla
Kategoria: smartfon
Model: Phone X23
