VL120008
18G HDMI Repeater w/ Audio Extraction
User Manual
18G HDMI Repeater w/ Audio Extraction
Statement
Read this user manual carefully before using the product. Pictures shown in this manual is for reference
only. Different models and specications are subject to real product.
This manual is only for operation instruction only. The functions described in this version are updated till
June 20, 2017. In the constant eort to improve our product, we reserve the right to make functions or
parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Safety Precaution
To insure the best from the product, please read all instructions carefully before using the device. Save
this manual for further reference.
Follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
Do not dismantle the housing or modify the module to avoid electrical shock or burn.
Using supplies or parts not meeting the products’ specifications may cause damage, deterioration or
malfunction.
Do not expose the unit to rain, moisture or install this product near water.
Install the device in a place with ne ventilation.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Unplug the power cord when left unused for a long period of time.
Refer all servicing to qualied service personnel.
After-sales Service
We provide limited warranty for the product within three years counting from the rst day you buy this
product (The purchase invoice shall prevail).
Introduction
The VL120008 is a small-size HDMI2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three
kinds of audio outputs. It is designed to extract audio from 4K HDMI signal via stereo balanced L/R
audio, analog RCA, and coaxial digital audio output ports.
It supports 4K@60Hz/4:4:4 HDR, EDID & CEC pass-through, and the transmission rate is up to 18Gbps.
Moreover, there are three audio modes can be chosen in order to be compatible with various audio
processing device.
Features
Supports stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.
Supports three audio modes PASS, BITSTREAM, and PCM. ：
HDMI input supports HDCP2.2, and the output supports HDCP1.4.
Supports HDMI2.0 4K@60Hz/4:4:4 HDR, EDID & CEC pass-through.
The transmission rate is up to 18Gbps.
18G HDMI Repeater w/ Audio Extraction
Package List
Please take an inventory of the package contents to ensure you have all the items listed below. If
anything is missing or damaged, please contact your distributor for a replacement.
1 VL120008 x
1 x Power Adaptor (12VDC,1A)
1 x 5-pin Phoenix Connector
4 x Plastic Cushions
1 x User Manual

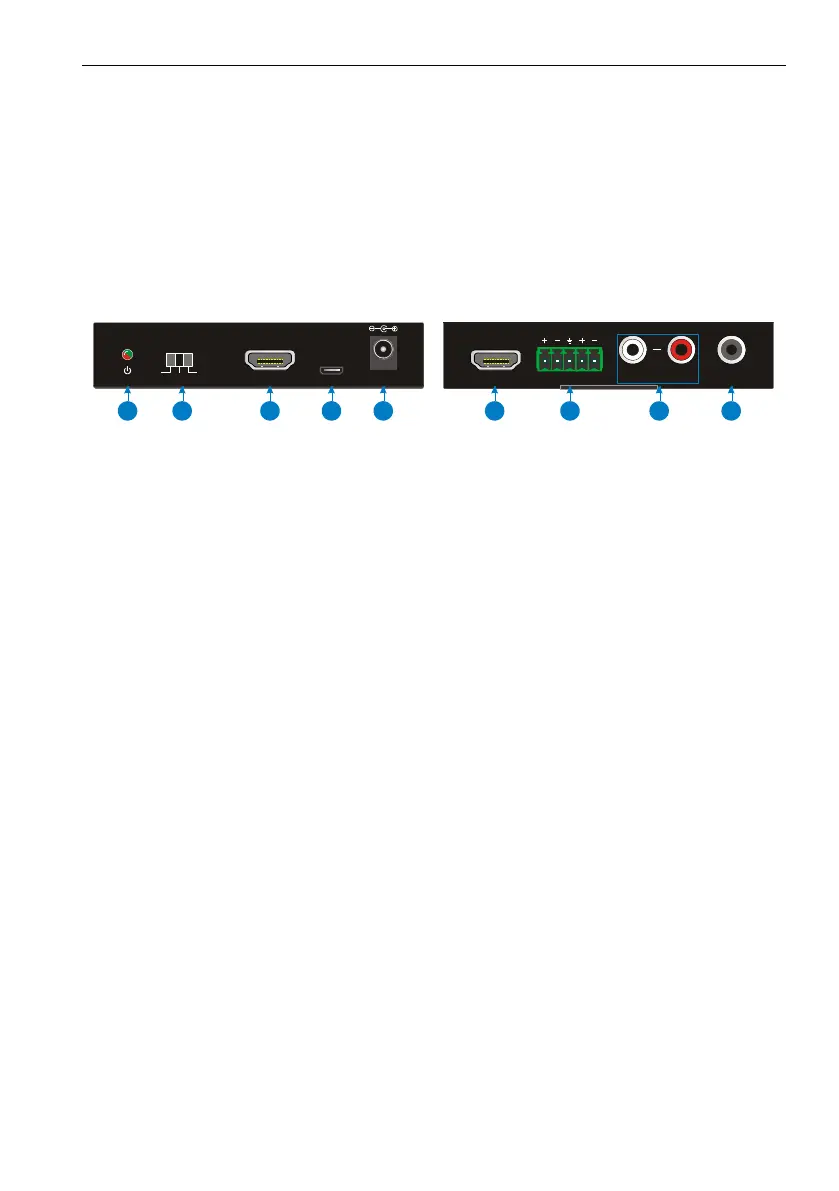

Panel Description
① Bicolor LED: GREEN when powered on, Green when HDMI signal input.
② Audio Modes Switcher:
PASS (default): The source device obtains its EDID from display.
BITSTREAM: If the display only supports PCM, and the format of audio source is DTS/Dolby, the
switcher should be turned to BITSTREAM to ensure the DTS/Dolby audio can be output via HDMI
and coaxial digital audio ports ( &⑥ ⑨), there will be no audio output on analog audio ports( & ⑦ ⑧).
BITSTREAM: If the format of source audio is PCM, it should DTS/Dolby to process and be be ed
via AV amplier, the switcher should be turned to BITSTREAM, there will be no audio output on
analog audio ports( & ⑦ ⑧).
PCM: If the digital audio need to be output via analog audio ports( & ), the switcher should be ⑦ ⑧
turned to PCM, and the coaxial audio port( ) will also output PCM audio. ⑨
③ HDMI IN: Connect with HDMI source.
④ FW: Firmware upgrade.
⑤ DC 12V: Connect with the included power adaptor.
⑥ HDMI OUT: Connect with HDMI display.
⑦ L/R: Stereo balanced L/R audio output.
⑧ L/R: analog RCA audio output.
⑨ COAX: Coaxial digital audio output.
DC 12V FW HDMI IN
BITSTREAM
PASS PCM
12345
COAXL RL RHDMI OUT
67 8 9
