Grain + Rod
Wall Mounted Wood and Metal Wine Rack Panel Installation Instructions
The following instructions can be used for all congurations of the Grain + Rod modular wine wall
system.
Video guides, spec sheets, and additional support are available at grainandrod.com.
• (1) Wood board
• (3, 6, or 9) Vino Pins
or Vino Rail
• Extension studs
(optional)
• (6 or 18) 35mm
screws
Parts List & Congurations
• (3) Keyhole hangers
• (6) Keyhole screws
• (3) Sprial Drywal Anchors
• (3) Wood lags
• (1) Plotting Guide

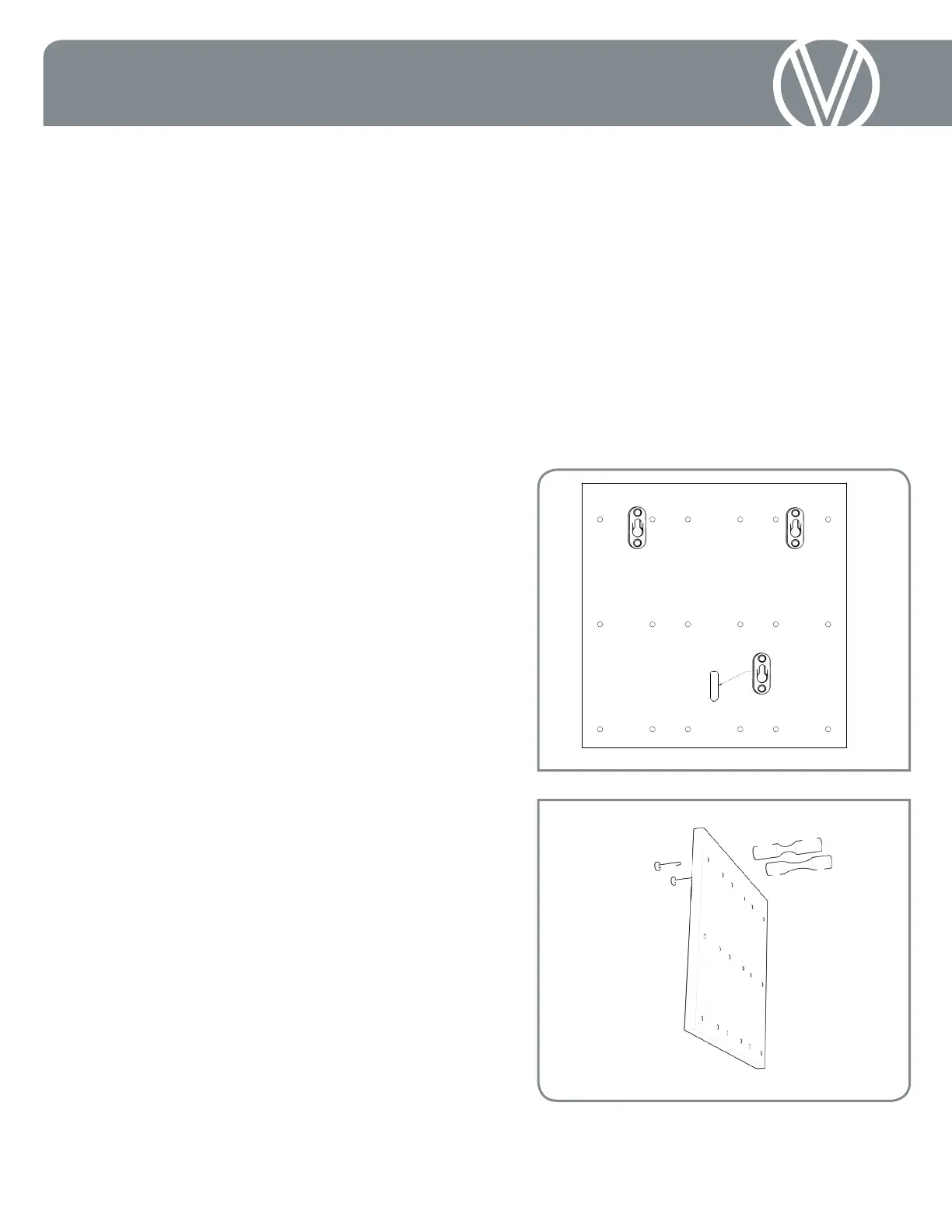

Step 1: Attach the Keyholes
Using 2 short wood screws for each hanger, afx 3 metal
keyholes to the corresponding pre-drilled holes on the
back of the wood board. Position the hanger with the
smaller side of the opening toward the top of the board.
Step 2: Install the Racks
Insert the 35mm screw sthrough the back of the board so
the screw head ts into the inset hole. For Vino Pins* lay-
outs, ensure the base Pin (wider impression) is installed
on the lower of the two holes, and the neck Pin (narrower
impression) is installed in the higher of the two holes.
Thread the Pin or Rail to the front of the board onto the
exposed screw that is sticking through. With a screw-
driver or drill, tighten the Pin or Rail.
Repeat for remaining Pins or Rails.
* If installing a two-deep or three-deep Vino Pins cong-
uration, connect the extension Pins before attaching to
the board. Thread a stud into one end of the extension
Pin and screw the starter base Pin onto the remaining
exposed end and rmly hand tighten. Connect any ad-
ditional extensions in a similar fashion for both the neck
and base side of the Pins.
Instructions
Step 3: Plot the Wall
Use the printed template to mark the mounting holes on
the wall. If installing multiple boards, we recommend
1/8” spacing between each board (guides are provid-
ed on the template). Using a level, ensure the printed
template is level along the top edge and mark the hole
locations by piercing the template with a sharp pencil or
a screw at the center of the 3 hole locations.
Step 4: Install the Wall Anchors
Drill a 5/32 inch (4mm) pilot hole at each mark to deter-
mine whether to use provided drywall spiral anchors or
the wood screws.
For drywall mounting, use a Phillips head screw driver
to screw the Spiral Drywall Anchors into the wall at the
marked hole locations until the head of the anchor is ush
with the wall surface. Insert the screw using a Phillips
head screw driver until approximately 3/8” of the screw
remains sticking out of the anchor.
If hole location is over a wood stud, use the wood screw
only, inserting the screw using a Phillips head screw driv-
er until approximately 3/8” of the screw remains sticking
out of the wall.
Step 5: Hang the Board
Place the board against the wall with the keyhole hang-
ers lined up just above the screw heads sticking out of
the wall. Slowly slide the board against the wall until the
screw heads fall into the keyholes. Then pull rmly down
until the screw heads make a popping sound into the top
portion of the keyhole hanger.
Step 6: Repeat & Add Wine
Repeat with other boards and interchange colors and
styles as many times as you’d like. Display your favorite
bottles.
metal | wood infused collection
by VintageView
GRAIN ROD
Plo ttin g Gu id e
*We recomm end a minimum of 1/8”
spacing between boards
Add a Boa rd Below
Measure:
12 5/8“ + perferre d
spacing* from ma rks
1 & 2 on ea ch board
12 5/8” + perferre d
spacing* from ma rk 3
on ea ch board
Add a Boa rd
to the Left
Measure:
5 1/8” +
perferred
spacing* from
ma rk 1 to mark
2 on the left
boa rd
12 11/16“+
perferred
spacing* from
ma rk 3 on each
boa rd
Add a Boa rd to
the Right
Measure:
5 1/8” +
perferred
spacing* from
ma rk 2 to mark
1 on the right
boa rd
12 11/16“ +
perferred
spacing*
from ma rk 3
on ea ch board
Add a Boa rd Above
Measure:
12 5/8“ + perferre d
spacing* from ma rks
1 & 2 on ea ch board
12 5/8” + perferre d
spacing* from ma rk
3 on ea ch board
1 2
3
