DESCRIPTION

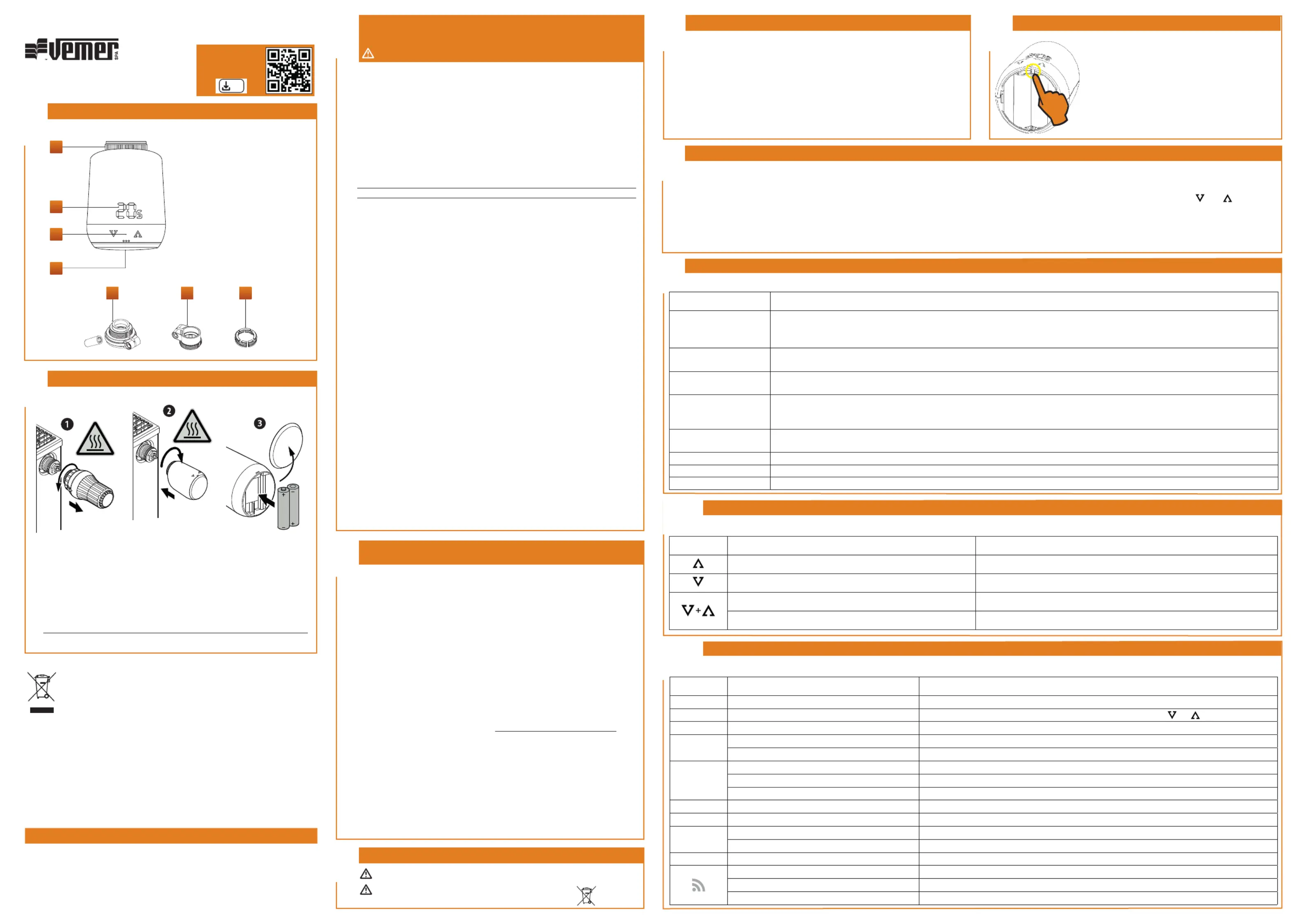

1User manual

WI-FI CHRONOTHERMOSTATS FOR RADIATORS

Read all the instructions carefully

Wi-Fi chronothermostat for installation on thermostatically-controlled valves with

weekly programming and battery power supply. The device is managed principally

using the app, which is available free of charge for iOS and Android systems.

Programming, switching on the system, changing of the operating settings and

the creation of new programs are all operations that can be performed easily and

from anywhere you are thanks to the integrated Wi-Fi module that connects the

device to the Internet through the home router. It comes with adapters that allow it

to be installed on the main thermostatic valves. ThermoPro Wi-Fi is an electronic

device is intended to operate in environments pollution degree 2 in accordance with

EN 60730-1 standard.

Code Model Descriprion

VE798100 ThermoPro Wi-Fi Weekly Wi-Fi chronothermostat for radiators

SAFETY WARNINGS

During installation and operation of the device, it is necessary to comply with the

following instructions:

1) The device must be installed by a qualified person.

2) The device must be installed and activated in compliance with current electric

systems standards.

3) Do not use the product for anything other than the indicated purpose.

4) Do not instal the device if any part of it is damaged.

TECHNICAL SPECIFICATIONS

• Power supply: 2 x 1.5 V AA alkaline batteries (NOT rechargeable)

• Battery life: 1 year (low battery indication)

• Weekly programming via app

• Programming resolution : 10 min

• Regolation type: in the modulation of the valve opening according to the setpoint,

the mesured temperature and the characteristics of the environment

• Compatible valve connections:

- compatible with the most part of valves with thread M30X1.5

- Danfoss RAV, RA, RAVL (with appropriate adapters)

• Measurement accuracy: ± 1°C

• Measured temperature resolution: 0,5°C

• Temperature setting field: 8 ÷ 28°C

• Wi-Fi operating frequency band: 2,4 GHz IEEE 802.11 b/g/n

• Maximum transmitted Wi-Fi radiofrequency power: 18,3 dBm

• Operating temperature: 0°C ÷ 50°C

• Storage temperature: -20 ÷ 70°C

• Operating humidity: 20% ÷ 90% non-condensing

• Protection degree: IP20

• Dimensions (LxHxP): 62x68x83 mm

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

e-mail: info@vemer.it - web site: www.vemer.it

ISCOM092-2407 Mod. ThermoPro Wi-Fi

Manuals

download

PDF

1 Union nut

2 Display with backlighting

3 Backlit touch keys

4 Cover for battery replacement

5 Adaptability accessories for

Danfoss RAV

6 Adaptability accessory for

Danfoss RA

7 Adaptability accessory for

Danfoss RAVL

5DISPOSAL OF BATTERIES

It is necessary to remove the batteries before the instrument is scrapped.

In case of replacement, dispose of the batteries in the

appropriate places separate waste collection containers.

REFERENCE STANDARDS

07-2024

EU Declaration of Conformity: Vemer declares that the device complies with EU

Directive 2014/53/EU (red) with reference to the following standards:

• EN 62311 • EN 60730-1 • ETSI EN 301 489-1 • ETSI EN 301 489-17

• ETSI EN 300 328

The full text of the EU Declaration of Conformity is available at the Internet address

www.vemer.it

4PRELIMINARY OPERATIONS AND WARNINGS FOR THE CORRECT

CONNECTION OF THE DEVICE TO A WI-FI NETWORK

WARNINGS

The use of the devide via the ThermoPro Wi-Fi APP must be carried out

in the presence of a Wi-Fi network connected to the Interne

and there are no browsing restrictions.

Make sure that the Router and/or the Wi-Fi Access Point are correctly switched

on and at a distance such as to guarantee a stable communication signal

with the device.

• Install and connect the device according the installation instructions given in this

manual.

• Check that:

1. the 2.4 GHz frequency band is also enabled in the Router settings (if the Router only

supports the 5 GHz frequency range, it will not be possible to operate the device;

for further information see the user instructions of your Router)

2. the smartphone used for configuration is connected to the same Wi-Fi network

to which the device is connected

3. position detection (GPS) of your smartphone is active and the consent to the

ThermoPro Wi-Fi App to be able to identify the position (GPS) of the device is enabled

(adapt the settings on the smartphone such as to be able to perform this tracking;

for further information see the instructions of your smartphone)

• Create a Vemer account by installing the app on your smartphone ThermoPro Wi-Fi

and starting the registration procedure by pressing the “REGISTER NOW” button

To manage the device via the application, start the device configuration procedure

by pressing the on the Home page and “+” button carefully following the

step-by-step instructions in the guided procedure.

Note: During setup device a message may be displayed on the phone informing

that are not connected to the Internet. Confirm this message to stay

connected to the device and continue with the setup.

6REMOTE CONTROL CONFIGURATION

KEYBOARD OPERATION

The keys on the device allow you to carry out the operations described in the table:

KEY Pressure type Function

Short pressure Increase of the temperature set point in local operation

Short pressure Reduction of the temperature set point in local operation

Long pressure at the same time (>3sec) Lock (or unlock) keyboard

Long pressure at the same time (>3sec) (when the

Ad icon is present on the display) Start adaptation procedure to the valve

DISPLAY SIGNALS

Based on the display signals described in the table, it is possible to understand the operating status of the device:

SIGNALING Operating status Action

AP Remote control setup phase Proceed with device conguration via App

Ad Necessary adaptation Proceed with the adaptation procedure (Long pressure at the same time (>3sec) of keys and )

bt Low battery Replace the batteries

C1 Incorrect Wi-Fi password entered Repeat the setup procedure

The WiFi signal strength is too weak Improve the Wi-Fi signal strength in the environment where the device is installed

The WiFi password has been changed Repeat the setup procedure

Interruption of the existing wireless connection Improve the Wi-Fi signal strength in the environment where the device is installed

Set-up WiFi connection was temporarily interrupted Check the correct functioning of the Router/Access Point

C3 WiFi connection without Internet access Check the correct functioning of the Router/Access Point

E1 No adaptation possible Install device correctly on the radiator

E2 Valve stroke too short Open and close the valve plunger by hand several times

Battery charge too low Replace the batteries

E3 No valve movement possible Make sure that the valve plunger can move freely

Fixed on (when the display is on) Normal operation (device connected to server)

Flashing (when the display is on) Connection to server is established

Spento (when the display is on) No Wi-Fi connection

MOUNTING

① Open the current thermostatic head completely.

Loosen the fastening and pull the thermostatic head off the radiator.

② Place the ThermoPro WiFi on the radiator by turning the union nut clockwise.

If necessary, use the adapter according to the type of valve present on the

radiator.

③ Open the battery compartment cover and insert the batteries

pay attention to the correct polarity and do not use rechargeable batteries.

LOCAL OPERATION

When the ThermoPro Wi-Fi keyboard is operated, the device activates local operation. In this way it is possible to set a different setpoint than that forecast in the programming

carried out by the app. Local operation is automatically stopped at the first setpoint change sent by the app (manually or by program).

It is possible to limit or disable local operation by locking the keyboard which can be activated from the application or by pressing and holding the and keys

simultaneously.

Note: From the application it is possible to activate the function which disables the operation of the keys, “Key Lock Plus” useful if you want to have control of the device

only from the app.

DEVICE RESET

Perform a reset to delete the settings entered and restore

the device to the factory default or in case of replacement

of the Router/Access Point of the home network or if it is

necessary to change the network settings entered in the

device (SSID network name or password).

To reset, open the battery compartment cover and hold

down the reset button in the battery compartment until

the number 10 appears on the device display.

5 6 7

DEVICE OPERATION

The device manages the functions described in the table which can be set via the application:

Function Description

Programs ON (AUTO)

Allows to use the device as a chronothermostat, the temperature is regulated following the “prole” of the program created and set.

In this mode is possible to temporarily modify the set point forecast in the programming by acting on the device keyboard or with the appropriate cursor in the app.

The device resumes normal operation at the rst change in the set point forecast by the set program.

Programs OFF (MANU) Allows to use the device as a thermostat, the adjustment occurs according to the temperature set manually from the device keyboard or with the appropriate slider

in the app.

Holiday Allows to set a temperature of your choice for a period of time delimited by a start and end point.

When the set time expires the device resumes normal operation. nto.

Ventilation detection Allows to automatically close the heating valve to save energy if a sudden drop in temperature is detected due to an open window.

In this mode it is possible to set the sensitivity of temperature drop detection and the valve closing duration.

Oset Allows to introduce a temperature adjustment in particular installation conditions if the temperature measured by the device deviates from the average temperature present

in the room.

Rotate display Allows to rotate the device display by 180° to obtain an optimal reading based on the positioning of the radiator valve.

Antifreeze protection Function always active. Avoids the risk of the system freezing when the temperature drops below 8°C.

Llimescale protection Function always active. Prevent radiator valves from calcifying by carrying out an opening and closing cycle of the valve once a week (Friday at 11:00)

information to users pursuant to art. 14 of the directive

2012/19 / EU of the european parliament and of the council

of 4 july 2012 on waste electrical and electronic equipment (WEEE)
