Instrukcja obsługi TOA IR-200BC

TOA mikrofon IR-200BC

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla TOA IR-200BC (8 stron) w kategorii mikrofon. Ta instrukcja była pomocna dla 5 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Pobierz PDF
Strona 1/8

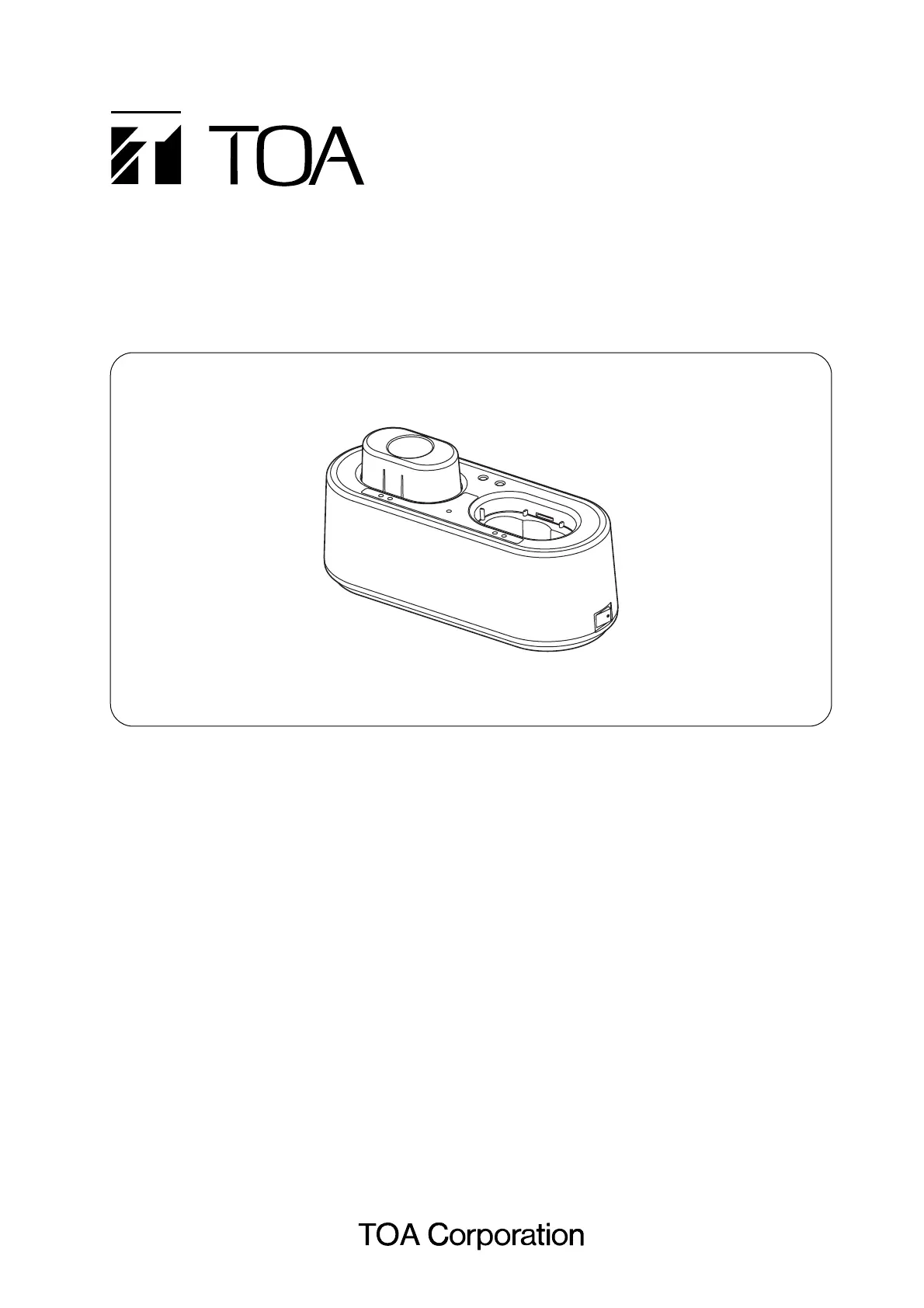

OPERATING INSTRUCTIONS
BATTERY CHARGER IR-200BC
1. SAFETY PRECAUTIONS ........................... 2
2. GENERAL DESCRIPTION ......................... 3
3. HANDLING PRECAUTIONS ...................... 3
4. NOMENCLATURE AND FUNCTIONS ....... 4
5. CHARGING ................................................. 5
6. TROUBLESHOOTING ................................ 7
7. SPECIFICATIONS ...................................... 8
Accessories ................................................. 8
Thank you for purchasing TOA's Battery Charger.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
2
When Installing the Unit
• Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
• Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is
specified may result in fire or electric shock.
• Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never
place heavy objects -- including the unit itself -- on
the power cord, as doing so may result in fire or
electric shock.
• Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down and causing personal injury and/or property
damage.
When the Unit is in Use
• Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and
contact your nearest TOA dealer. Make no further
attempt to operate the unit in this condition as this
may cause fire or electric shock.
· If you detect smoke or a strange smell coming
from the unit
· If water or any metallic object gets into the unit
· If the unit falls, or the unit case breaks
· If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
• To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage
components inside the unit. Refer all servicing to
your nearest TOA dealer.
• Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the unit. If they
accidentally spill into the unit, this may cause a fire
or electric shock.
• Do not insert nor drop metallic objects or
flammable materials inside the battery charger or
its infrared microphone receptacle, as this may
result in fire or electric shock.
• Do not touch a power supply plug during thunder
and lightning, as this may result in electric shock.
• Stop charging if the batteries are not fully charged
within 3 hours. Failure to do so may cause the
batteries to fire, explode, leak, or heat.
When Installing the Unit
• Never plug in nor remove the power supply plug with
wet hands, as doing so may cause electric shock.
• When unplugging the power supply cord, be sure to
grasp the power supply plug; never pull on the cord
itself. Operating the unit with a damaged power
supply cord may cause a fire or electric shock.
• When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit
with the power supply cord connected to the outlet
may cause damage to the power supply cord,
resulting in fire or electric shock.
• Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or
electric shock.
When the Unit is in Use
• If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it
periodically. In addition, insert the plug in the wall
outlet securely.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
CAUTION
CAUTION
3
• Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.
• Use the dedicated AC adapter for the unit. Note
that the use of other adapter may cause a fire.
• Avoid charging microphones installed with
rechargeable batteries other than the dedicated IR-
200BT battery. Charging any other than the
specified battery could result in fire or personal
injury due to battery rupture.
• When the infrared wireless microphone is not in
use for 2 weeks or more, be sure to take the
batteries out of the microphone because battery
leakage may cause a fire, personal injury, or
contamination of environment.
• Make sure to observe the following handling
precautions so that a fire or personal injury does
not result from leakage or explosion of the battery.
· Be sure to use only the rechargeable battery
designed for use with the infrared wireless
microphone
· Avoid mixed use of new and old batteries,
batteries of different types, or fully charged and
discharged batteries in the same microphone.
· Do not short, disassemble, heat nor put the
battery into a fire.
· Do not solder a battery directly.
· Note correct polarity (positive and negative
orientation) when inserting a battery in the unit.
· Avoid locations exposed to the direct sunlight,
high temperature and high humidity when storing
batteries.
2. GENERAL DESCRIPTION
The TOA IR-200BC is a dedicated battery charger for the IR-200M and IR-300M Infrared Wireless
Microphones.
It employs a quick charging system for nickel metal hydride (NiMH) batteries, allowing up to 2 infrared wireless
microphones to be fully charged within 3 hours.
3. HANDLING PRECAUTIONS
• Since the supplied power cord is designed for use specifically with the IR-200BC charger, do not use it with
equipment other than the IR-200BC.
• Use the IR-200BC in locations where an ambient temperature ranges from 0 to 40 ºC (32 to 104 ºF).
• When cleaning the case, be sure to first switch off the power, then wipe with a dry cloth. Never use benzene,
thinner, alcohol or chemically processed towels, as these may damage the charger's components and parts.
• Clean the charging terminals on a regular basis using a dry cotton swab. Dirty terminals can cause poor
electrical contact and cause batteries to be charged incorrectly.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Any modifications made to this device that are not approved by TOA Corporation may void the authority
granted the user by the FCC to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required correct the interference at his own expense.
FCC Compliance

Specyfikacje produktu

Marka: TOA
Kategoria: mikrofon
Model: IR-200BC
