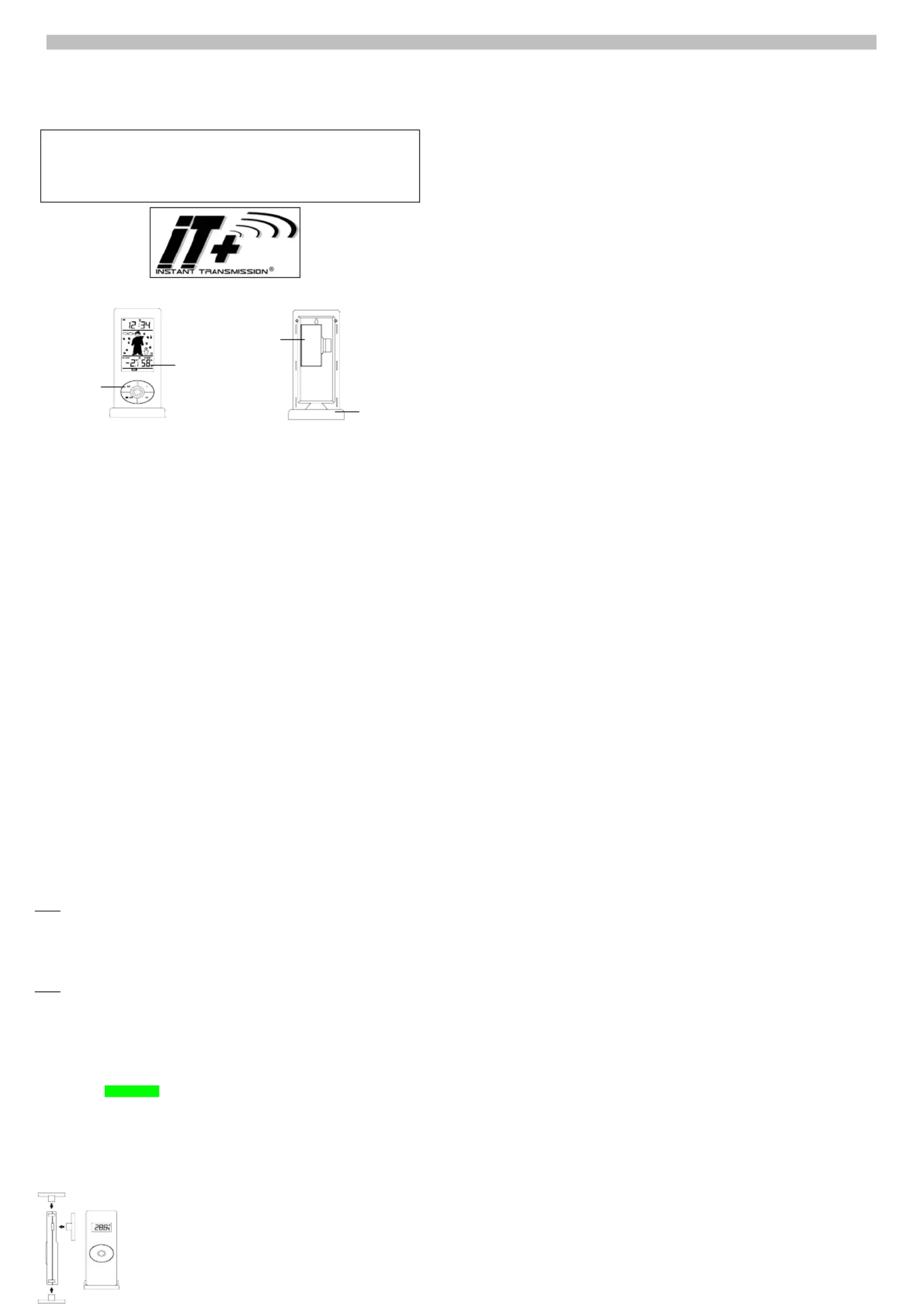

WIRELESS 868 MHz WEATHER STATION

Instruction Manual

INTRODUCTION:

Congratulations on purchasing this fancy Weather station with wireless 868MHz transmission.It not only displays the indoor temperature and humdity but also receives the outdoor data. It is

further acting as a DCF-77 radio controlled clock. With the totally 15 different weather forecast icons featured by "weather man", users can easily observe the forecast weather condition and

will no longer worry the sudden weather change. This innovative product is ideal for use in the home or office.

« Instant Transmission+» is the up and coming state-of-the-art new

wireless transmission technology, exclusively designed and developed by

LA CROSSE TECHNOLOGY.

“

IT +” offers you an immediate update of all your outdoor data measured

from the transmitters: follow your climatic variations in real-time!

FEATURES:

The Weather station

• DCF-77 Radio controlled time with manual setting options

• DCF Time reception ON/OFF

• 12/24 hour display

Removable

Stand

Batter

compartment

cove

Function

Keys

LCD

Display

• Hour and minute display

• Time zone option ±12 hours

• Wireless transmission at 868 MHz

• Display indoor temperature and humidity

• Display outdoor temperature and humidity (3 channels)

• Outdoor Signal reception intervals at 16-second

• Weather forecasting with 15 easy-to-read weather forecast signs featured by

weather man

• Weather forecasting icon sensitivity setting

• Temperature display in degrees Celsius (°C) or Fahrenheit (°F) selectable

• Outdoor temperature and humidity display with MIN/MAX recording

• All MIN/MAX outdoor recordings show date and time received

• All MIN/MAX recordings can be reset

• Can take up to three outdoor transmitters

• LCD contrast setting

• Low battery indicator

• Table standing/ Wall mounting

SETTING UP:

When one transmitter is to be used

1. First, insert the batteries into the Thermo-hygro transmitter. (see “How to install and replace batteries in the Thermo-hygro transmitter“).

2. Immediately after and within 2 minutes, insert the batteries into Weather station (see “How to install and replace batteries in the Weather station”). Once the batteries are in place, all

segments of the LCD will light up briefly. Following the time as 0:00 and the "weather man" icon will be displayed. If these are not displayed after 60 seconds, remove the batteries and

wait for at least 10 seconds before reinserting them.

3. After inserting the batteries into the transmitter, the Weather station will start receiving data from the transmitter. The outdoor temperature/ humidity and the signal reception icon should

then be displayed on the Weather station. If this does not happen after 3 minutes, the batteries will need to be removed from both units and reset from step 1.

4. In order to ensure sufficient 868 MHz transmission however, this should under good conditions be a distance no more than 100 meters between the final position of the Temperature

Station and the transmitter (see notes on “ ” and “Positioning 868 MHz Reception”).

When more than one transmitter is to be used

1. User shall remove all the batteries from the temperatuire station and transmitters and wait 60 seconds if setting has been done with one transmitter before.

2. Insert the batteries to the first transmitter.

3. Within 2 minutes of powering up the first transmitter, insert the batteries to the Weather Station. Once the batteries are in place, all segments of the LCD will light up briefly. Following

time as 0:00 and the weather man icon will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature and humidity from the first transmitter (channel 1) should then be displayed on the Temperature station. Also, the signal reception icon will be displayed. If this

does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

5. Insert the batteries to the second transmitter as soon as the outdoor temperature and humidity readings from the first transmitter are displayed on the temperature station.

Note: User shall insert the batteries into the second transmitter within 45 seconds of reception of the first transmitter.

6. The outdoor temperature and humidity from the second transmitter and the "channel 2" icon should then be displayed on the weather station. If this does not happen after 2 minute, the

batteries will need to be removed from all the units and reset from step 1.

7. Insert the batteries to the third transmitter as soon as the "channel 2" icon and outdoor data are displayed on the weather station. Then within 2 minutes, the channel 3 outdoor data from

the third transmitter will be displayed and the channel icon will shift back to "1" once the third transmitter is successfully received. If this is not happen, user shall restart the setting up

from step 1.

Note: User shall insert the batteries into the third transmitter within 45 seconds of reception of the second transmitter.

8. In order to ensure sufficient 868 MHz transmission however, this should under good conditions be a distance no more than 100 meters between the final position of the Temperature

Station and the transmitter (see notes on “ ” and “Positioning 868 MHz Reception”).

IMPORTANT:

Transmission problems will arise if the setting for additional sensors is not followed as described above. Should transmission problems occur, it is necessary to remove the batteries from all

units and start again the set-up from step 1.

9. Once the remote data has been received and displayed on the Weather station, the DCF-77 time code reception is automatically started. This takes typically between 3-5 minutes in

good conditions.

If after 10 minutes, the DCF time has not been received, press the SET key to manually enter a time initially.

Daily DCF reception is done at 02:00 and 03:00. If the reception at 03:00 is not successful, then at 04:00 and 05:00 and 06:00 there are other tries, until one is successful. If the reception at

06:00 is still not successful, then the next try takes place at 02:00 next day.

When this is successful, the received time will override the manually set time. The date is also updated with the received time. (Please refer also to notes on “DCF-77 Radio controlled Time”

and “Manual Time Setting”).

The Outdoor Thermo-hygro Transmitter

• Remote transmission of outdoor temperature and humidity to Weather Station by 868 MHz

• Displays alternately the measured temperature and humidity readings on LCD

• Shower proof casing

• Wall mounting case

• Mounting at a sheltered place. Avoid direct rain and sunshine

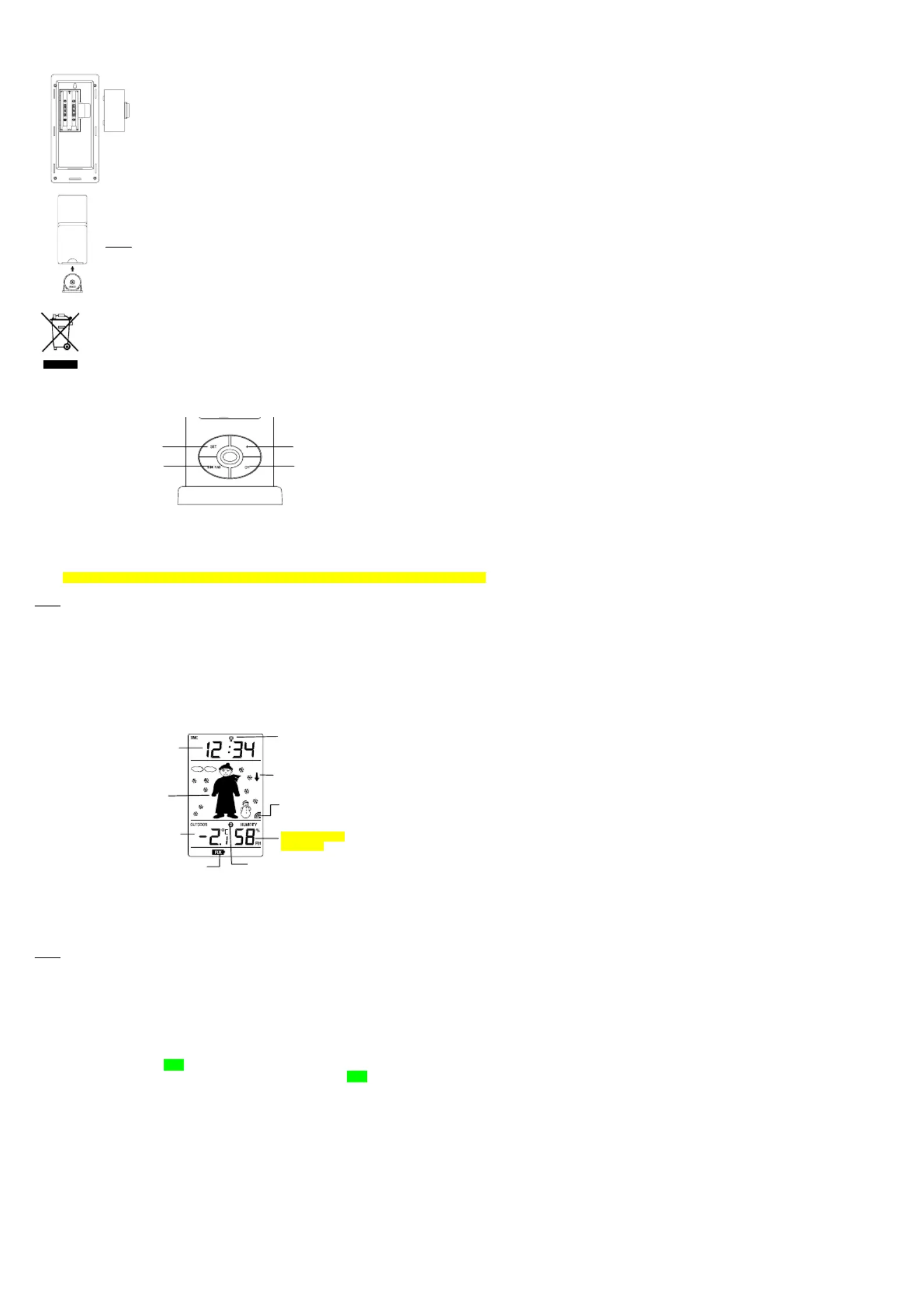

HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION

The Weather station uses 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries, please follow the steps below:

1. Remove the cover at the back of the weather station.

2. Insert batteries observing the correct polarity (see marking).

3. Replace compartment cover.

HOW TO INSTALL AND REPLACE BATTERIES IN THE THERMO-HYGRO TRANSMITTER

The Thermo-hygro Transmitter uses 1 x 3.0V IEC CR2032, Lithium battery. To install and replace the batteries, please follow the steps below:

1. Pull out the battery holder at the bottom of the transmitter.

2. Insert the batteries, observing the correct polarity (see marking).

3. Replace the battery holder on the unit.

Note:

In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by

the transmitter at start-up and this code must be received and stored by the Weather station in the first 3 minutes of power being supplied to it

BATTERY CHANGE:

It is recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of these units.

Please participate in the preservation of the environment. Return used batteries to an authorised depot.

FUNCTION KEYS:

Weather station:

The weather station has four easy to use function keys.

SET key (Setting):

• To enter the set mode for the following functions: LCD contrast, Time zone, Time Reception ON/OFF, 12/24 hour display, Manual time, Year, Month, Date, °C/°F, and Weather forecast

sensitivity settings.

• Press to reset at the maximum or minimum temperature and humidity records of the indoor or the currently selected outdoor channel (will reset all records to current level)

MIN/ MAX

• To toggle between the maximum/ minimum indoor and outdoor temperature and humidity data

SET ke

MIN

MAX ke

+ key

CH key

Note: The Time/date shown is corresponding to MIN/MAX temperature data.

+ key

• To toggle between the current time and current "Indoor Temp + Humidity" display

• To make adjustment for various settings

CH key

• To toggle between the Outdoor transmitters 1, 2 and 3 (if more than 1 transmitter is used)

• To exit from the manual setting mode

LCD SCREEN AND SETTINGS:

Outdoor Relative

Humidity %

Weather

Tendency icon

DCF Tower Icon (for time

reception)

Displays

"Time" o

"Indoor Temp

+ Humidity"

Weathe

Forecast icon

(Weather boy)

Low batter

indicato

Outdoo

Temperature

in °C

Outdoor

Reception

Signal*

Transmitter identification

(channel No.)

For better distinctness the LCD screen is split into 3 sections displaying the information for time and indoor data, weather forecast, and outdoor data.

Section 1 - TIME / INDOOR TEMPERATURE AND INDOOR HUMIDITY

• In normal mode, display the radio controlled time.

A reception tower symbol will be shown

Note: The symbol will not be shown when radio time reception is not successful or when time reception function is turned off.

• Display "Indoor temp + Indoor humidity" when the "+" key is pressed

Section 2 - WEATHER ICON (FEATURED BY WEATHER MAN)

• Display of the weather to be expected in form of 15 fancy weather symbols (featured by Weather man) which change their appearance depending on the air pressure development (past

air pressure change) and the current outdoor temperature.

• Display the weather tendency indicator

• Format of the weather man icons refers to the "WEATHER FORECAST AND TENDENCY"

Section 3 - OUTDOOR TEMPERATURE AND HUMIDITY

• Display the current outdoor temperature and humidity.

• By pressing the MIN/ MAX key, display the stored MIN/MAX outdoor temperature and humidity, with simultaneous display of MIN/ MAX icon.

• By pressing the CH key, display outdoor sensor data (up to three outdoor transmitters). The channel number 1, 2 or 3 will be shown.

• A signal reception symbol will be shown indicating that receiver is receving outdoor temperature.

DCF-77 RADIO CONTROLLED TIME:

The time base for the radio controlled time is a Cesium Atomic Clock operated by the Physikalisch Technische Bundesanstalt Braunschweig which has a time deviation of less than one

second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500

km. Your radio-controlled Weather station receives this signal and converts it to show the precise time in summer or wintertime. The quality of the reception depends greatly on the geographic

location. In normal cases, there should be no reception problems within a 1,500 km radius around Frankfurt.

Once the outdoor temperature is displayed on the Weather station after initial set-up, the DCF tower icon in the clock display will start flashing in the upper left corner. This indicates that the

clock has detected that there is a radio signal present and is trying to receive it. When the time code is received, the DCF tower becomes permanently lit and the time will be displayed.

If the tower icon flashes, but does not set the time or the DCF tower does not appear at all, then please take note of the following:

• Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 1.5 - 2 metres.

• Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window and/or point its front or

back towards the Frankfurt transmitter.

MANUAL SETTINGS:

The following manual settings can be done in the setting mode:

• LCD contrast setting

• Time zone setting

• Time reception ON/OFF setting

• 12/24-Hour setting

• Manual time setting

• Calendar setting

• °C/ °F setting

• Weather forecasting icon sensitivity setting

Press the SET key to advance to the setting mode:

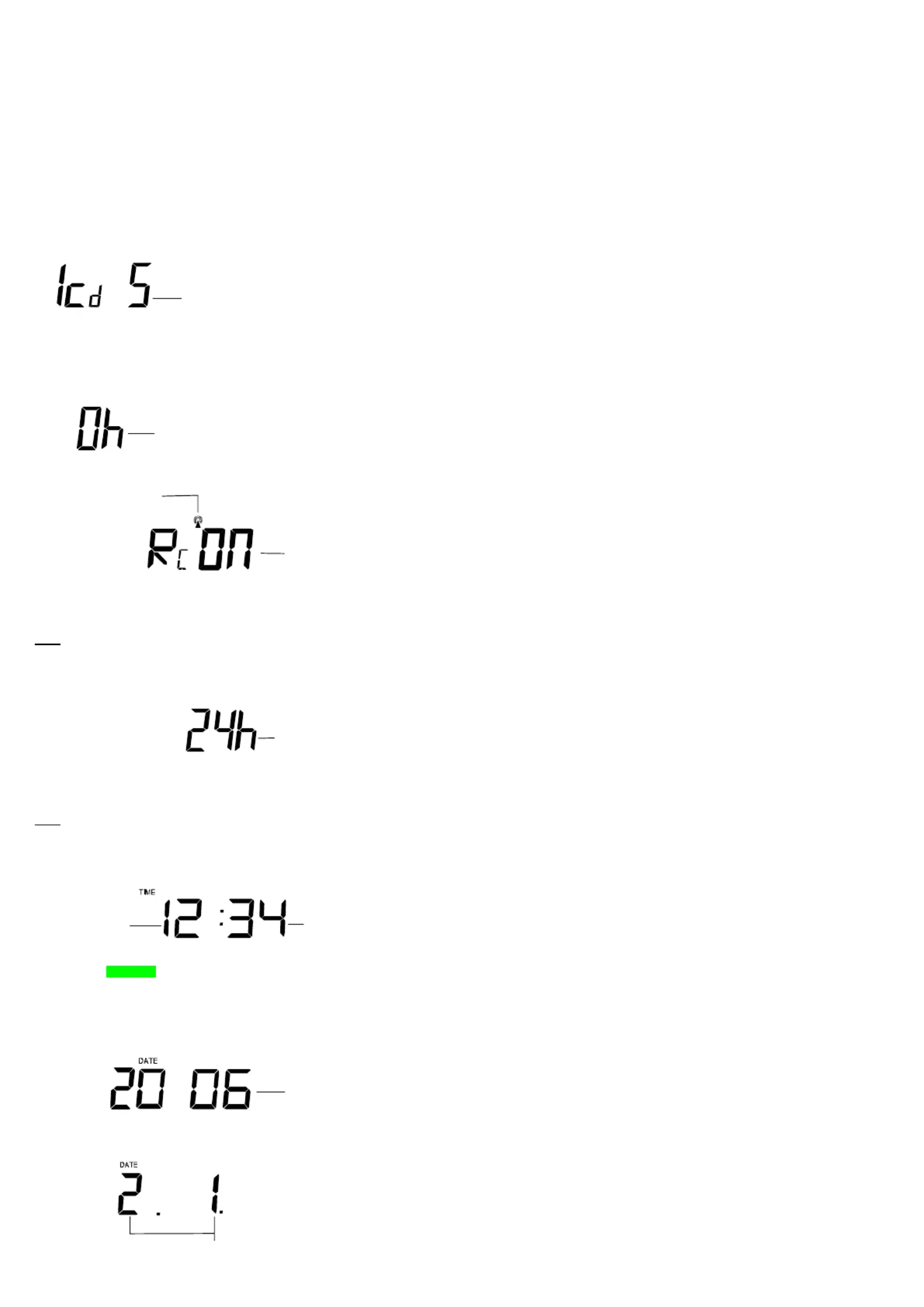

LCD CONTRAST SETTING

The LCD contrast can be set to 8 different levels to suit the users needs (default LCD contrast setting is LCD 4). To set the desired contrast level:

1. The above display will be seen. Press the + key to select the level of contrast desired.

2. Press the SET key to confirm and enter the “Time Zone setting” or exit the setting mode by pressing the CH key

flashing

TIME ZONE SETTING:

The time zone default of the Weather station is 0h. To change to another time zone:

1. Press the SET key after completing the LCD contrast setting in order to enter the time zone setting (flashing).

2. Using the + key, set the time zone. The range runs from 0 to +12 and then runs from -12 back to 0 in consecutive 1hour intervals.

3. Press the SET key to confirm and enter the “Time Reception ON/OFF setting” or exit the setting mode by pressing the CH key

flashing

TIME RECEPTION ON/OFF SETTING

flashing

Flashing (time

reception icon)

In area where reception of the DCF-77 time is not possible, the DCF-77 time reception function can be turned OFF. The clock will then work as a normal Quartz clock. (Default setting is ON).

1. The digit “ON” and the time reception icon will start flashing on the LCD.

2. Use the + key to turn OFF the time reception function.

3. Confirm with the SET key and enter the “12/24-Hour Display setting” or exit the setting mode by pressing the CH key.

Note:

If the Time Reception function is turned OFF manually, the clock will not attempt any reception of the DCF time as long as the Time Reception OFF function is activated. The Time

Reception icon will not be displayed on the LCD.

12/24 HOUR TIME DISPLAY SETTING

1. After setting time reception ON/OFF, press the SET key, “12h” or “24h” flashes in the LCD. (default: 24 h)

2. Press the + key to select the “12h” or “24h” display mode.

3. Press the SET again to confirm and to enter the or exit the setting mode by pressing the CH key. “Manual Time setting”

Note: When 24h mode display is selected, the calendar format will be date and month display. When 12h mode display is selected, the calendar format will be month and date display.

MANUAL TIME SETTING

In case the Weather station is not able to detect the DCF-signal (disturbances, transmitting distance, etc.), the time can be manually set. The clock will then work as a normal Quartz clock.

To set the clock:

1. The hour and minute digits start flashing in the time display section.

2. Use the + key to adjust the hours and then press SET key to go to the minute setting.

3. The minute will be flashing. Press the + key to just the minutes.
