INSTALLATION MANUAL
SB-WM-F-L-BL / SB-WM-T-L-BL
Weatherproof Universal Fixed and Tilt Mounts
For Large Displays
pg.2
Installation Manual
© 2017 SunBrite
WARNINGS:
• Installation by a qualied professional is highly recommended for this product.
• Do not begin installation until you have thoroughly read and understand these instructions.
• This mount ts displays up to VESA 700mm x 500mm and supports a maximum load of 165 lbs (75 kg).
• Ensure the mounting wall will safely support four times the combined weight of the mount and display panel.
• The manufacturer does not accept responsibility for incorrect installation.
SPECIFICATIONS: TOOLS REQUIRED:
• Power Drill
• 5/16” and 1/4” Drill Bit
• Phillips Head Screw Driver
• Level
BOX CONTENTS:
• Wall Plate (1)
• Arm left (1)
• Arm right (1)
• Maximum Load: 165 lbs. (75 kg)
• Forward Tilt Range: - 8° /+ 13°
• Horizontal Tilt Range: 5° +
•Weather Resistant Coating
• Stainless Steel Mounting Hardware • Socket Wrench
with 1/2” Socket head
CAUTION:
This wall mount is intended for use only with the maximum weight of 165 lbs (75kg).
HARDWARE KIT
Bag 2
PACKAGE CONTENTS: Arms
(With Tilt)
Wall Plate
Arms
(With Fixed)
Bag 3
Bag 1
Bag 4
Bag 5
Bag 6
Bag 7
(W) Concrete Anchor (x6)
(U) M8x63
Lag Bolt (x6)
(V) Lag Bolt
Washer (x6)
(S) M5 Washer (x16) (T) M8 Washer (x8)
(A) M4x10 Bolt (x4) (B) M4x20 Bolt (x4) (C) M4x30 Bolt (x4) (D) M4x40 Bolt (x4)
(E) M5x10 Bolt (x4) (G) M5x30 Bolt (x4) (H) M5x40 Bolt (x4)(F) M5x20 Bolt (x4)
(I) M6x10 Bolt (x4) (J) M6x20 Bolt (x4) (K) M6x30 Bolt (x4) (L) M6x40 Bolt (x4)
(M) M8x10 Bolt (x4) (N) M8x20 Bolt (x4) (O) M8x30 Bolt (x4) (P) M8x40 Bolt (x4)
(Q) M4/M5
Nylon Spacer (x8)
(R) M6/M8
Nylon Spacer (x8)
Allen
Key (x1)
Installation Manual
pg.3
INSTALLATION:

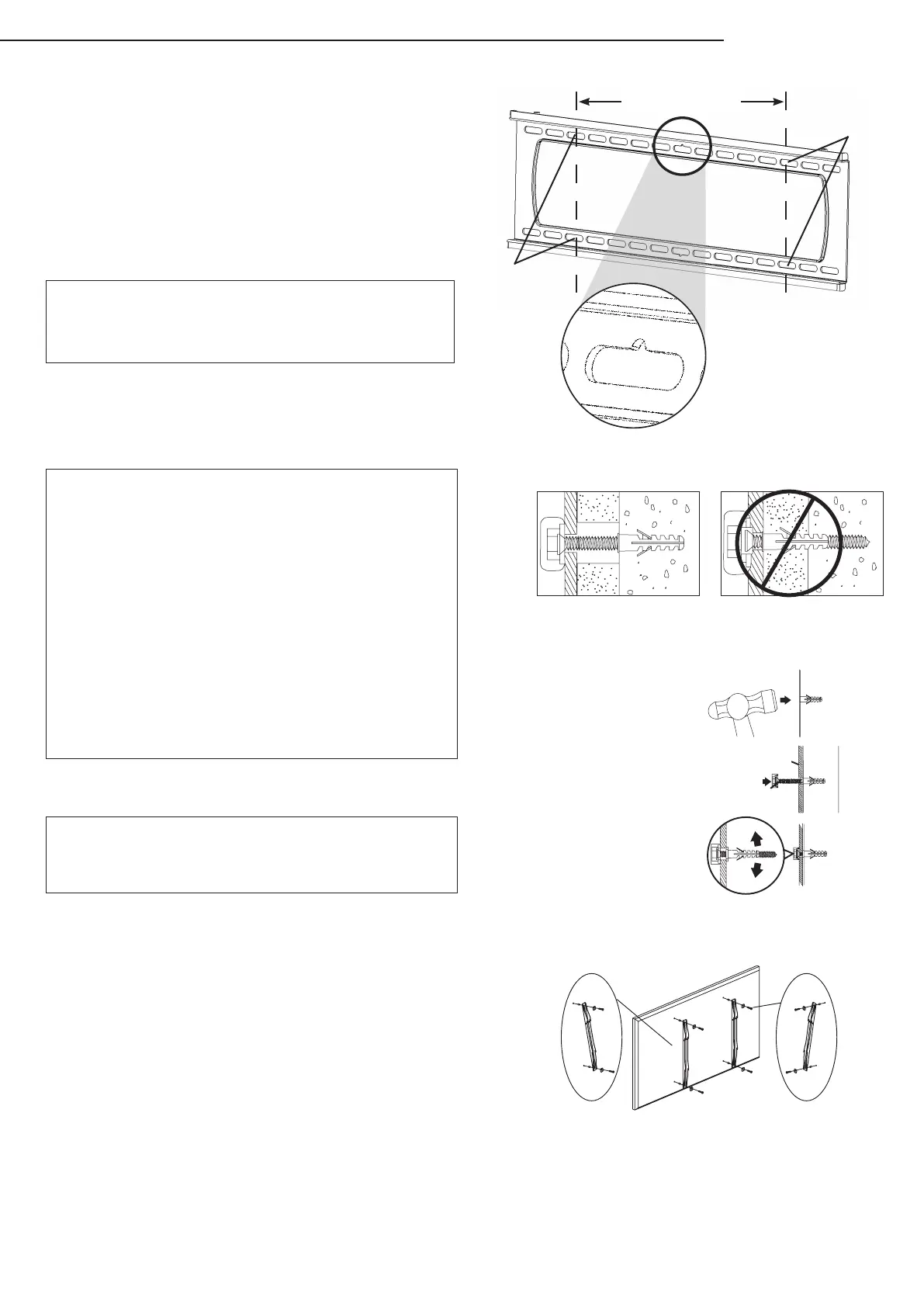

Step 1: Mount the Wall Bracket Assembly
For Mounting on a Stud Wall
a. Pre-drill holes into two wood studs using a 1/4” drill bit.
Be sure to drill into the center of the studs at least
2-1/2” deep. The use of a stud nder is highly
recommended.
b. Insert four Lag Bolts (U) into holes through the Wall
Plate and tighten down. (Figure 1)
WARNING: Tighten bolts so that wall plate is rmly
attached, but do not overtighten. Overtightening
can damage the bolts, greatly reducing their
holding strength.
For Mounting on a Concrete Wall
a. Pre-drill holes into concrete using 5/16” drill bits to a
depth of 2 1/2”. Insert concrete wall anchors (W)
and tap in with hammer, if necessary (Figures 2 & 3).
WARNING: When installing wall arm assembly on
cinder block, verify rst that you have a minimum
of 1-3/8” of concrete thickness to be used for the
concrete anchors. Do not drill into mortar joints! Be
sure to mount in a solid part of the block, generally
1”minimum from the side of the block. Cinder block
must meet ASTM C-90 specications. It is suggested that
a standard electric drill on slow setting is used to drill the
hole instead of a hammer drill to avoid breaking out the
back of the hole when entering a void or cavity.
Concrete must be 2000 psi density minimum.
Lighter density concrete may not hold concrete
anchor.
Make sure that the supporting surface will safely
support the combined load of the equipment and
all attached hardware and components.
b. Insert four Lag Bolts (U) into the wall anchors (W)
through the Wall Plate. Tighten all bolts.
WARNING: Tighten bolts so that wall plate is rmly
attached, but do not overtighten. Overtightening
can damage the bolts, greatly reducing their
holding strength.
Step 2: Mount Arms to TV
a. Determine the diameter of the screw (parts A through
P) your TV requires by carefully trying to hand-thread
one into the threaded insert on the rear of the TV. If
there is any resistance, stop immediately.
b. Thread the screw through the washer (Q or R), arm,
spacer (S or T), and into the TV.
Note: Spacers are commonly needed on TVs with
curved backs or recessed screw inserts.
c. Ensure the arms are installed at side to TV
and are square to each other after all screws have
been installed (Figure 4).
Correct
concreteconcrete
plaster/
drywall
plaster/
drywall
Incorrect
Cutaway View
Figure 2
Drill holes and
insert anchors.
Place wall arm
assembly plate
over anchor and
secure with
lag bolt.
Tighten all
lag bolts.
Wall Arm
Concrete
Wall
Lag Bolt
Figure 3
TIP: To assist in
installation, the
wall bracket features
a screw slot for
temporary hanging
of the bracket.
Figure 1
Figure 4
Bolts
Bolts
Center of Studs
