Strona 1/8

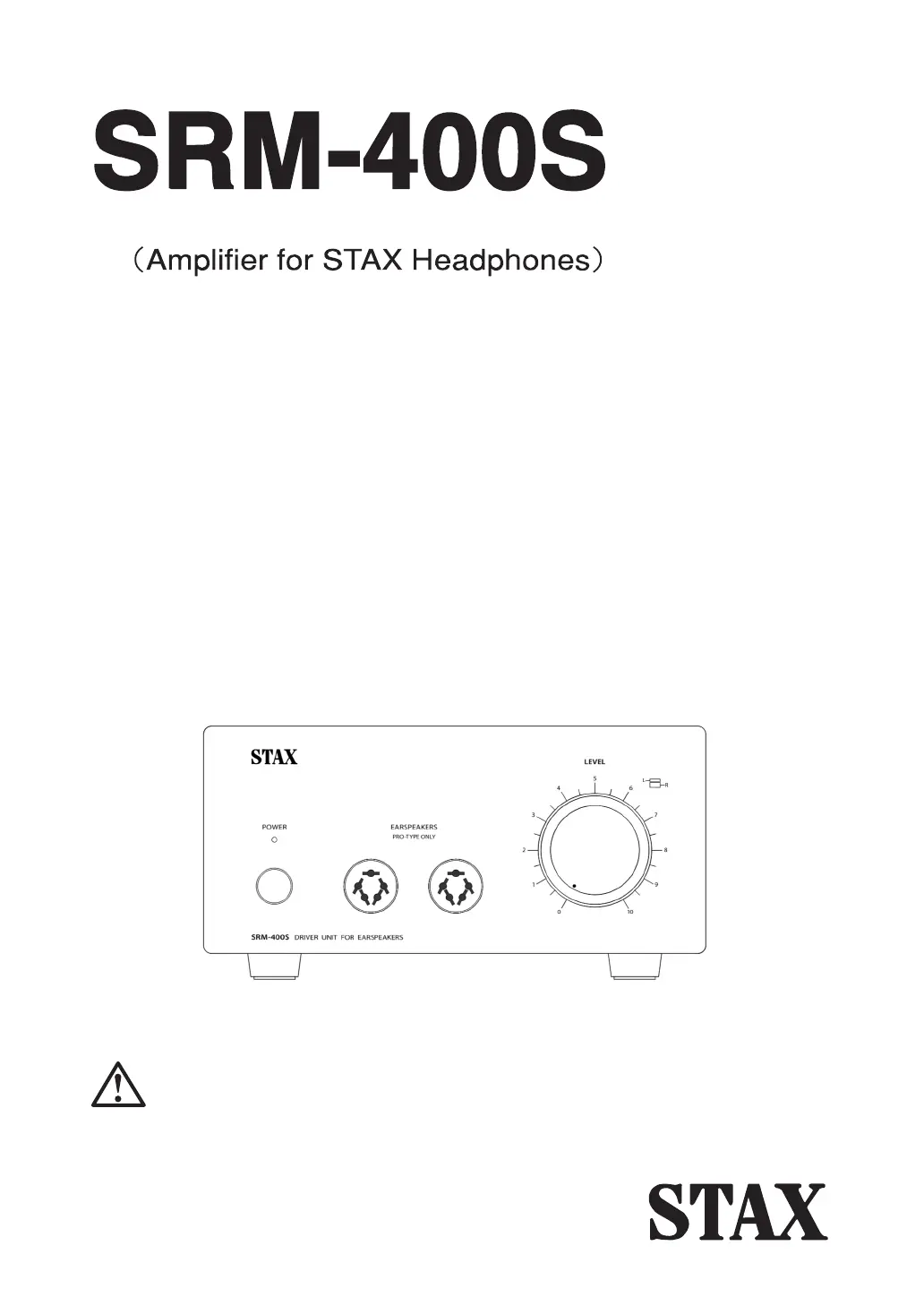

DRIVER UNIT
DRIVER UNIT
DRIVER UNIT
DRIVER UNITDRIVER UNIT
FOR EARSPEAKERS
FOR EARSPEAKERS
FOR EARSPEAKERS
FOR EARSPEAKERSFOR EARSPEAKERS
This unit contains a high voltage circuitry. Never disassemble or modify the unit.
RISK OF ELECTRIC SHOCK DO NOT OPEN!
The SRM-400S contains high voltage circuitry.
It is dangerous to disassemble or to remodel it. Please observe Don'ts. ○
R
User
User
User
UserUser'
'
'
''s Manual
s Manual
s Manual
s Manual s Manual
Thank you for purchasing STAX Driver Unit for Earspeakers SRM-400S.
Please read this instruction manual carefully to enjoy sound, performance and
functions of SRM-400S for a long time.
After reading this manual, be sure to keep it with the warranty.
T
T
T
TTo Ensure Safe Use
o Ensure Safe Use
o Ensure Safe Use
o Ensure Safe Use o Ensure Safe Use ( )Please read first
●Before using: about warning symbols
This manual uses various warning symbols for safety use. The symbols are
classified as below. Please read the symbol description first.
This symbol indicates a hazard that could cause injury or product
damage if the caution is ignored and the unit is misused.
This symbol indicates a hazard that could cause death or serious
injury if the warning is ignored and the unit is misused.
Triangle symbols indicate cautions including warnings( ).
This example on the left indicates “Risk of electric shock”.
Circle with a slash symbols indicate prohibited actions.
This example on the left indicates “Do not disassemble”.
Black circle symbols indicate mandatory actions.
This example on the left indicates “Unplug the unit”.
-2-
Warning
Caution
●Do not handle the power plug and the earspeaker plug with wet hands.
It may cause electric shocks.
●Use the unit only on the specified power supply.
●Do not modify, forcibly bend, twist or pull the power cable.
●Do not block the ventilation holes on the top cover for heat dissipation.
●Do not insert metal, liquid or objects inside of the unit.
●Do not touch the earspeaker output terminal.
●If the unit emits unusual smells or smoke, stop using immediately and turn off the power.
This may cause fires and electric shocks.
Do not attempt to repair the unit by yourself.
For repairs, consult the dealer from which you purchased or a nearest distributor.
● Do not remove the bottom cover and the top cover.
●Do not disassemble or modify the unit.
Do not place the unit in the places as below. It may cause injury or breakdowns.
●Tilted places or places exposed to vibration, shocks or direct sunlight
●Wet, humid or dusty places.
● (Places with large temperature difference or places near heat emitting devices heaters,
stoves etc.)
●Do not put earspeakers or objects on the unit.
Blocking ventilation holes causes heat and breakdowns of the unit.
●Do not drop or expose the unit to shock.
●Do not turn up the volume too high. It may damage your ears and the unit.
Warning
Caution
● ( ) Before connecting, make sure that the power switch is set to OFF. Refer to page 4
● (Connect to the output terminal RCA pin jack or XLR connecter) of the audio player device.
For RCA connection, use the attached cable.
For XLA connection, use your cable.
Both XLR input and RCA input are connectable, but input signals cannot be switched.
Be sure to disconnect the unused cable.
●XLR connector pinout drawing indicates that No.2 is HOT.
To use Pin-3 HOT audio player device, use your conversion adaptor or cable.
●Plug the attached power cable into AC inlet on the rear panel and insert the plug into the outlet on the
wall.
● Plug the earspeakers to the earspeaker sockets on the front panel.
● Push the power button. The Green LED ①
①
①
①① lights.
●Turn the volume knob slowly to the right to adjust to the best volume.
Turn the front section of the concentric dual knob to adjust the left channel.
Turn the back section of the knob to adjust the right channel.
Adjust the left/right volume balance with this knob.
●If the volume is not enough using a “REC OUT” terminal of a pre-amplifier or integrated amplifier,
connect to a PRE OUT terminal.
●Another way to connect: To connect to a audio player device with a mini stereo jack.
Your stereo mini plug to RCA plug conversion cable or conversion plug can be connected to the unit.
Set the volume of your audio player device to the normal position. And adjust the volume of SRM-400S.
2.
2.
2.
2.2. for use
for use
for use
for use for use
-3-
3. Precautions for use
3. Precautions for use
3. Precautions for use
3. Precautions for use 3. Precautions for use
●The unit contains a high voltage circuitry. It is dangerous. Do not remove the top cover and
the bottom cover. Do not use the unit in wet, dusty, high temperature humid places.
●The unit emits heat. Do not block the ventilation holes on the top and bottom of the unit.
Install the unit in a well ventilated place.
●To install on shelves, make sure that there is at least 5cm space between the unit and a
shelf board.
●Do not install the unit vertically.
●Because of low distortion, the volume of the earspeakers is likely to be too high.
Listening sound at high volume for a long time is not good for your health.
● If the unit is installed near a main amplifier, hum noises may be emitted.
●The power cable is exclusive for SRM-400S. Use only the attached power cable.
●Unplug the power cable from an outlet when not in use for a long time.
