Truck Door Kit Instructions
1. Start by locating the fastening hardware on the door
panel, take the appropriate screw driver and remove.
2. Once all the screws are removed you can take off the
door panel using a panel tool. Be sure to not break any
of the clips or mounting hardware. Pull panel away slowly
and unplug any electrical connections.
3. Now you are ready to prep the metal surface
using a microfiber cloth, Acetone (use a breathing mask),
and wipe away any moisture, oil, debris or etc. Then let air
dry for an appropriate time. The point is to get the surface
clean to ensure material glue contact.
R
• Screw driver
• Panel tool
• Microber cloth
• Acetone or cleaning solution
• Razor blade
• Roller
Tools needed for installation:
Soundskins USA
13452 Alondra Blvd, Cerritos, Ca 90703
Phone: 877.211.5597
Email: team@soundskinsglobal.com
www.SoundSkinsGlobal.com
4. When the surface is dry and clean, locate the
piece of the kit with the label on the back that coincides
with the door you’re working on. Make sure it lines up
correctly before you pull the backing off. After you confirm
the right piece, pull off the backing paper and apply the
material at the top and working your way down with a roller.
Make sure the material is pushed down completey and that
no air is trapped. Use a razor blade point or household
needle to release air. Repeat these steps for all door panels.
6. Now you are ready to place the door panel back on your
door. All necessary openings will be available after you
have applied the SoundSkins material. Secure door panel
with all screws and you are now ready to hit the road!
5. Press down firmly onto the area where your car speaker
hole is, and feel for the speaker wire. Use a razor blade to
cut around the speaker hole, being careful to not cut the
wire harness. Take the piece you just cut out and stick it
behind the speaker hole on the outer door skin to act as a
backwave. Score the area where the wire harness is with
your blade and tuck the harness between the two flaps.
Plug in your speaker.
Recommended Installation Instructions
A. Prepping the Surface
After removing interior door panels, you are ready to clean the metal areas that will be insulated. If the metal
has “new” look without imperfections, then take a microfiber cloth and wipe away any dust and
debris. If the metal is showing signs of age like rust, we recommend using Acetone with a breathing mask to
wipe off debris and loose particles. A shop vacuum might be needed to remove loose debris on the floorboard.
B. Installing Panels
Now that you have a clean surface, you are ready to start applying the sheets. We recommend using a roller to release
air pockets that might be lingering from trapped air. You want to make sure that you have rolled those out to the
edge and all the material has a good seal to the metal surface. Make sure all pieces are installed and inspected
before reinstalling the interior.

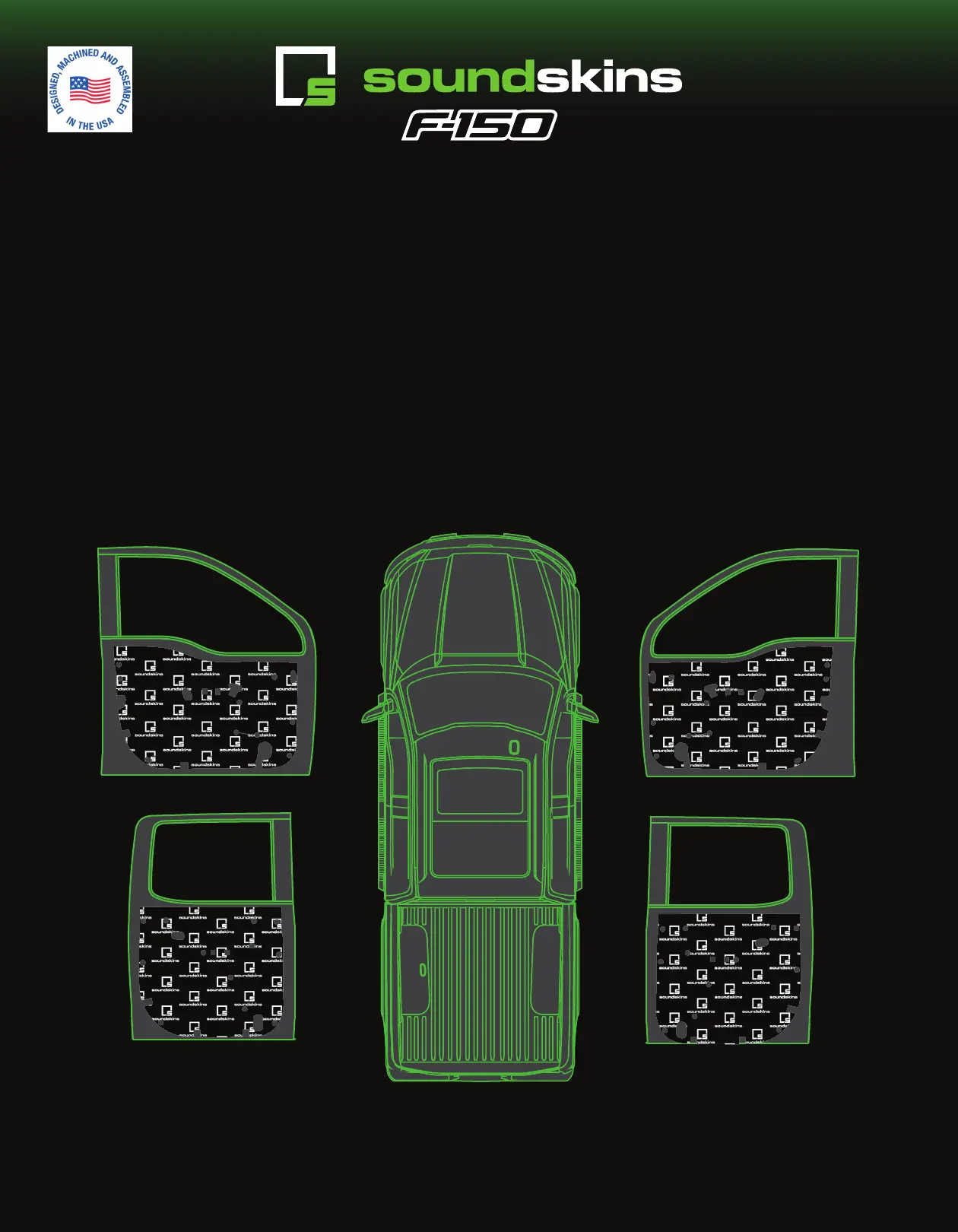

1) Driver Front Door Panel 3) Passenger Front Door Panel
2) Driver Rear Door Panel 4) Passenger Rear Door Panel
4 Piece Custom Cut PRO KIT
2021+
1
2
3
4
