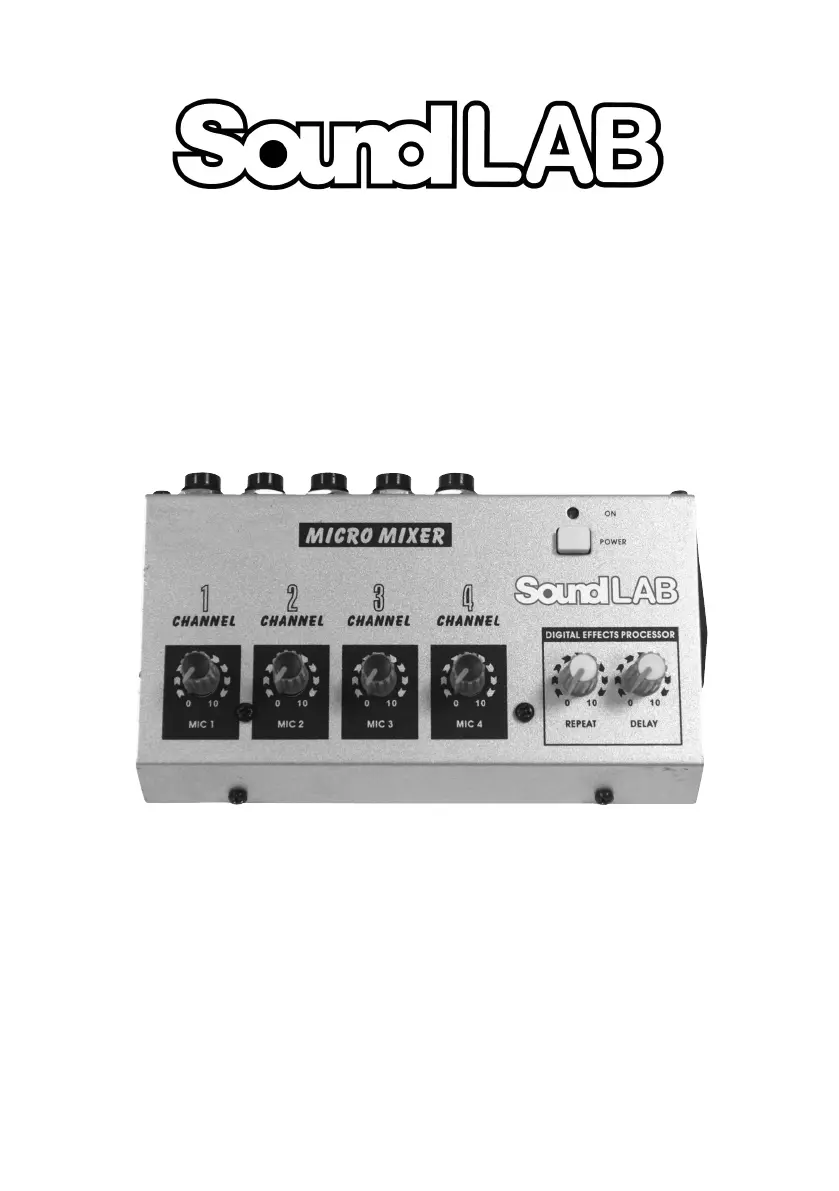

G105C
4 Channel Mono Microphone
Mixer With Effects
User Manual
Please retain for future reference
2 Ver 1 02/2015
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the user of the product for future reference.
Before use please inspect the product for any signs of damage. If the product is damaged, DO NOT use
it, and contact your supplier immediately.
0 10 0 10 0 100 10
MIC 2 MIC 3 MIC 4MIC 1
0 100 10
REPEAT DELAY
POWER
ON
3 4 5 62 7
1 8
B AT T E R Y
L I F T TO W IT HD R A W
OPERATING INSTRUCTIONS
POWER
Press the power switch to turn the mixer on and off.
The unit can be powered by a 9Vdc power supply
(not supplied) or a 9V PP3 battery (not supplied)
To insert a battery, push inwards on the battery
cradle (on the right hand side of the unit) and slide
up to remove the battery cradle. Insert a 9V PP3
battery making sure to observe the polarity marked
on the bottom of the cradle.
Re-insert the battery cradle and slide the catch
down to lock the battery compartment.
1
REPEAT
The repeat control is used to adjust the microphone echo repeat time.
6
DELAY
The delay control is used to adjust the delay time of the microphone echo by changing the effect
IC frequency.
7
ON INDICATOR
The On indicator shows the unit is working when the power button has been pressed.
8
MIC CHANNELS
The mic channels allow you to separately control four microphone input levels.
23 4 5
3 Ver 1 02/2015
MASTER OUT INPUT
MIC 4 MIC 3 MIC 2 MIC 1
DC INPUT
(+9V)
6 5 4 3 2 1
OPERATING INSTRUCTIONS
SPECIFICATIONS
Microphone Input.....................................................................................................................3mV/10KΩ
Line Output..........................................................................................................................0.775V/10KΩ
Max Gain .......................................................................................50dB (from MIC input to LINE output)
Input Impedance .............................................................................................................................4.5KΩ
Frequency Reponse ...................................................................................No less ±1dB (20Hz~20KHz)
Total Harmonic Distortion (THD)............................................................................<0.5% (20Hz~20KHz)
Noise ................................................................................................................>108dB (convert to input)
Continuous Working Time........................................................................≥20 hours (via 9V PP3 battery)
Dimensions..........................................................................................................................152 x 84 x 52
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic household waste.
Most local authorities have specific collection system for appliances and disposal is free of charge to
the end-user.
When replacing an existing appliance with a similar new appliance your retailer may take the old
appliance for disposal.
MIC INPUT CONNECTORS
Four x 6.35mm unbalanced jack sockets.
123 4
MASTER OUT
Master line output. 6.35mm unbalanced jack socket.
5
DC INPUT
The unit can be powered by a 9Vdc power supply (not supplied). When purchasing a power supply
ensure the diamter of the plug is 5.5mm and the centre hole is 2.1mm diameter. When connecting
the power supply make sure to observe the correct polarity (positive outer sheath, negative centre
pin).
6
