Parts Manual fo
r
Revision 3,
21" STEEL DECK WALK BEHIND MOWER
SERIES 7
McDonough, GA, 30253 U.S.A.
TP 400-5143-3-WB-N
8/10/2007 Manual No. 7006051A
Copyright © 2007
Briggs & Startton Yard Power Products Group
Milwaukee, WI USA. All Rights Reserved
Briggs & Startton Corporation
PUSH MODELS PROPELLED
MODELS
21357B DP21357B
21407T DP21407
T
21407T-2 DP21407T-
2
21507B DP21507B
21507T DP21507BE
G23157B GP21507B
M21357B GP21507B
E
R21357B MP21357B
R21407
T
MP21507BE
R21507B OP21407T-2
R21507TV OP21507B
P21357B
P21407R-
2
P21407
T
P21407T-2
P21507B
P21507BE
P21507TV
PD21357B
RP21357B
RP21407
T
RP21507B
RP21507BE
RP21507TV
Table Of Content
s
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 3
PAGE GROUP
4Handles & Controls
8Cutting Deck, Blade, Interlock
10 Front Wheel Bracket, Latches
12 Rear Wheels, Brackets, Latches
14 Front Wheels
16 Rear Wheels
18 Drive System - Self Propelled
22 Transmission (Differential)
24 Throttle Controls - Series 7
26 Decals (Part 1)
28 Decals (Part 2)
30 Side Chute, Adapter
32 Grass Bag
34 Accessories - Recycling Kits
36 21" Hi-Vac Mulcherizer Kits
38 Accessory - Snapperizer
40 Accessory - Thatcherizer
42 Electric Start Group

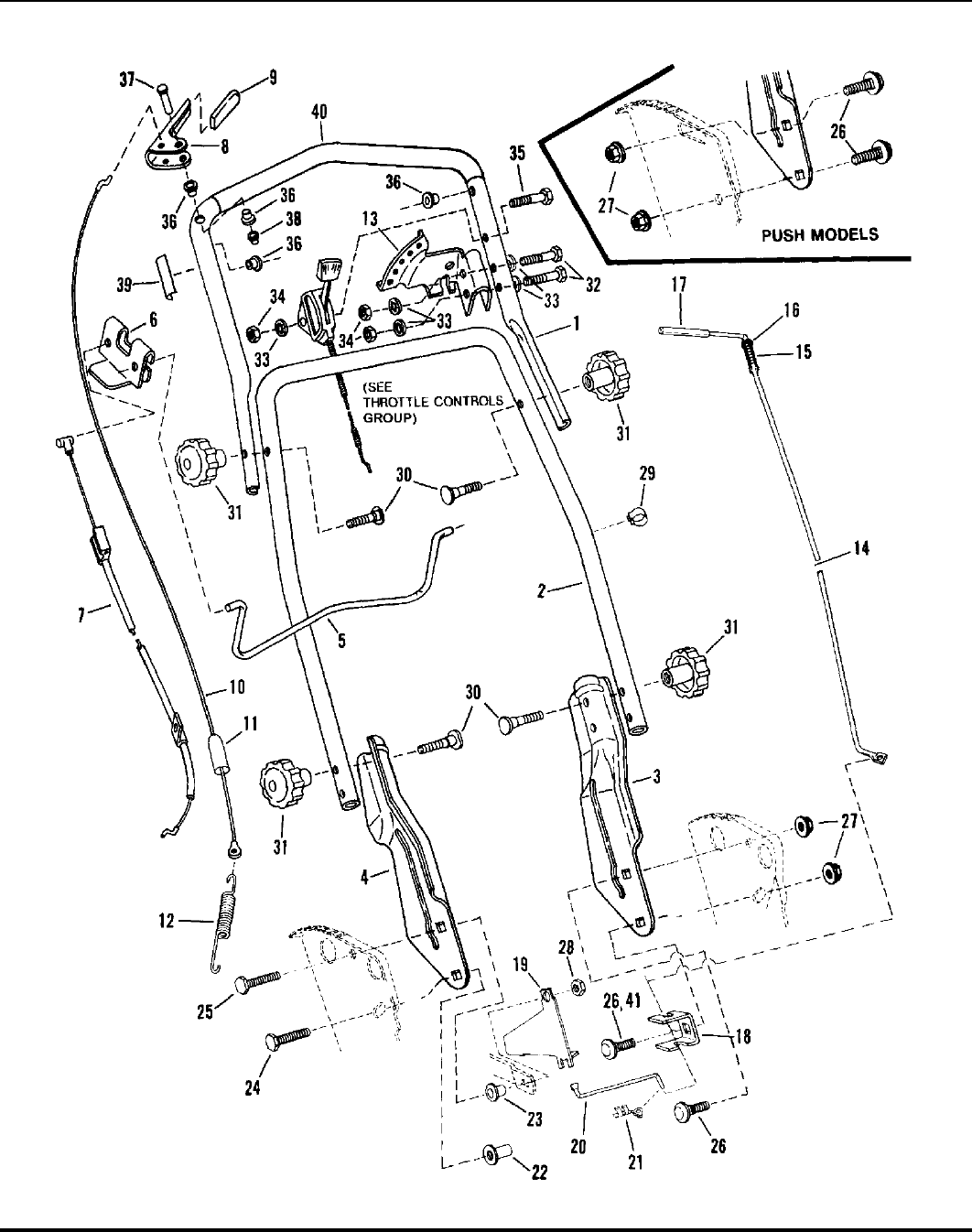

Handles & Controls
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
4
Handles & Controls
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
6
Handles & Controls
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 7
Part No Descri
p
tionItem Qt
y
Note
30 7091013 4 SCREW, 1/4-20 x 1-7/8 Curved Head Used on All
31 7023735 4 KNOB, 5/16-18 Used on All
32 7091025 2 CAPSCREW, 1/4-28 x 1-3/8 Used on Self-propelled
33 7090053 5 LOCKWASHER, 1/4 Internal Tooth Was 91023 (Used on All
(different locations))
34 7090095 3 NUT, 1/4-20 Hex Was 91024 (Used on All
(different locations)
35 7091022 1 CAPSCREW, 1/4-28 x 1-3/4 Used on All (throttle control)
36 7014343 4 BUSHING Used on All
37 7023792 1 PIN, Clutch Handle Used on Self-propelled
38 7091020 1 PUSH-NUT (for handle pin) Used on Self-propelled
39 7023745 1 DECAL, Blade Control Used on All
40 7023901 1 GRIP, Foam 18" Used on Push
40 7022460 1 GRIP, Foam 13.5" Was 23841, Used on Self-
Propelled
41 7091077 1 BOLT, 5/16-18 x 5/8" Carriage Used on Self-Propelled
Cutting Deck, Blade, Interlock
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
8
Front Wheel Bracket, Latches
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
10
Front Wheel Bracket, Latches
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 11
Part No Descri
p
tionItem Qt
y
Note
1 7051885 1 ARM ASSEMBLY, Left Wheel (Not shown) (Consists of items 2, 3, 4, 5A,6)
1 7051886 1 ARM ASSEMBLY, Right Wheel (Consists of items 2, 3, 4, 5B, 6)
2 7015761 2 BOLT, 5/16-18 Shoulder
3 7012325 2 LATCH, Height
4 7027702 2 GRIP, Latch
5 7031016 1 ARM, Left Wheel (Not shown)
5 7031017 1 ARM, Right Wheel
6 7011791 2 RETAINER, 5/16 Bolt
7 7090391 2 WASHER, 5/16 Internal Tooth Lock
8 7091511 2 NUT, 5/16-18 Hex Was 90196
9 7047971 1 BRACKET, Front Wheel
10 7021119 1 AXLE
Rear Wheels, Brackets, Latches
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
12
Rear Wheels, Brackets, Latches
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 13
Part No Descri
p
tionItem Qt
y
Note
1 7046983 2 BEARING Was 18767
2 7091012 6 SCREW, #10-32 x 3/8" Self-Tapping
3 7035717 2 LATCH, Height Adjusting Was 19218 (Self-Propelled
Models)
4 7090731 6 BOLT, 5/16-18 x 1/2" Short Neck Carriage
5 7091601 6 NUT, 5/16-18 Hex Flange Lock Was 90585
6 7052909 1 ASSEMBLY, Wheel Arm (Square Hole, Front Left & Rear Right) Was 51954 (Includes items
10,14,15,16,17)
7 7052908 1 ASSEMBLY, Wheel Arm (Round Hole, Front Right & Rear Left) Was 51955 (Includes Items
11,14,15,16,17)
8 7054246 1 WHEEL ARM ASSEMBLY (Rear Right "P" Models) Was 51814 Includes items
(1,2,3,12,14,15,16,17,25)
9 7054247 1 WHEEL ARM ASSEMBLY (Rear Left "P" Models) Was 51815 Includes items
(1,2,3,13,14,15,16,17,25)
10 7031016 1 ARM (Square Axle End)
11 7031017 1 ARM (Round Axle End)
12 7032722 1 ARM, Wheel Rear Right "P" Models
13 7032723 1 ARM, Wheel Rear Left "P" Models
14 7015761 2 BOLT, 5/16-18 x 1 Shoulder
15 7011791 2 RETAINER, 5/16 Bolt
16 7012325 2 LATCH, Height Adjusting (For Push Models)
17 7027702 2 GRIP, Latch
18 7036050 1 BRACKET, Right Rear Wheel (For Push Models)
19 7036049 1 BRACKET, Left Rear Wheel (For Push Models)
20 7036048 1 BRACKET, Right Rear Wheel (For Self-prop. "P" Models)
21 7036242 1 BRACKET, Left Rear Wheel (For Self-prop. "P" Models)
22 7021119 1 AXLE (For Rear on Push Models also
front on all)
23 7011780 2 RING (For Push Models)
24 7026166 1 GUARD, Rear Foot Was 37765 (Push Models)
25 7091809 2 PIN, 1/8 x 1-1/2" Cotter Was 90297
26 7019522 1 GUARD, Rear Foot (For Self-prop. "P" Models)
27 7012616 1 SUPPORT, Foot Guard
28 7091604 1 BOLT, 1/4-20 x 1/2 Short Neck Carriage Gr.5 Was 90005
29 7090053 1 WASHER, 1/4 Int. Tooth Lock Was 91023
30 7091576 1 NUT, 1/4-20 Hex Was 90063
31 7023791 1 RING
32 7090391 2 WASHER, 5/16 Int. Tooth Lock
33 7091511 2 NUT, 5/16-18 Hex Was 90196
Front Wheels
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
14
Rear Wheels
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
16
Rear Wheels
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 17
Part No Descri
p
tionItem Qt
y
Note
1 7019420 2 WHEEL, 9 x 2.00 Plastic Rim Was 19196 or 19334 (For Push
Models)
2 7022801 2 WHEEL, 9 x 2.00 Plastic Rim Was 19335 (For 3.5 H.P. Self-
Propelled) ('91 Models & Later)
2 7019421 2 WHEEL, 9 x 2.00 Plastic Rim Was 19197 (For 3.5 H.P. 1990
Self-Propelled Models & Earlier)
3 7022801 2 WHEEL, 9 x 2.00 Steel Rim Was 19336 (Self-Propelled)("91
Models & Later)
3 7019201 2 WHEEL, 9 x 2.00 Steel Rim Was 19198 (Self-Propelled,
1990 Models & Earlier)
4 7019385 2 COVER, Wheel (For Push & w.5 H.P. Self-
Propelled)
5 7019349 2 COVER, Wheel (For Self-Propelled)
6 7090377 2 NUT, 5/16-18 Hex Center Lock
7 7031960 4 CAP, Deep-Dish Hub
8 7031961 4 WASHER, 7/16 Flat
9 7012309 2 BUSHING, Axle (Push)
Drive System - Self Propelled
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
20
Drive System - Self Propelled
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 21
Part No Descri
p
tionItem Qt
y
Note
36 7032831 1 CONNECTOR, Transfer Rod
37 7061275 1 ASSEMBLY, Drive-Disc (Includes item 38)(Was 60710)
38 7013893 1 BUSHING
39 7029025 2 SPRING (Wheel Drive & Idler) Was 17326
40 7032116 1 ARM, Idler
41 7013847 1 RETAINER, 3/8 Bolt
42 7090078 1 BOLT, 1/4-20 x 1-1/4" Carriage
43 7090372 1 NUT, 1/4-20 Hex Center Lock
-- 7050751 1 ASSEMBLY, Deck Bracket (Includes items 44 thru 46)
44 7033774 1 BRACKET, Deck Was 31919 (Now 17696 +
33774)
45 7012306 2 BUSHING, Flange
46 7021758 1 SPACER
47 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap
48 7090391 1 WASHER, 5/16 Internal Tooth Lock
49 7011079 1 WASHER, Spring
50 7091597 1 COTTER-PIN, 3/32 x 1/2" Was 90555
51 7091122 2 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
52 7090731 2 BOLT, 5/16-18 x 5/8" Short Neck Carriage
53 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 90585
54 7012122 1 SPRING, Clutch
55 7015752 1 LINK, Transfer Used on Electric Start models
only.
56 7015753 1 JOINT, Ball Used on Electric Start models
only.
57 7090095 2 NUT, 1/4-28 Hex Used on Electric Start models
only.
58 7091294 1 WASHER, 1/4 Flat Was 90055 (Used on Electric
Start models only.)
59 7090053 1 WASHER, 1/4 Internal Tooth Lock Used on Electric Start models
only.
Transmission (Differential)
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
22
Transmission (Differential)
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 23
Part No Descri
p
tionItem Qt
y
Note
-- 7059070 1 ASSEMBLY, Transmission Was 57525 (Includes 1 thru 29)
1 7092062 3 NUT, 5/16-24 Hex Lock, GR C Was 11201
2 7011132 1 WASHER, Spring
3 7019213 1 PULLEY, Poly-Vee Belt
4 7011724 1 WASHER, Spring
5 7053942 1 HOUSING ASSEMBLY, Right Was 59794 (Includes 6 thru 10)
6 7051908 1 HOUSING, Right Side Was 17080
7 7014155 3 SCREW, 5/16-24 x 1-1/8" Rib Neck
8 7012314 2 SEAL, 5/8" ID
9 7012507 2 BEARING, Differential
10 7073963 2 BEARING, Ball Was 11767
11 7016544 1 PLUG, Housing Was 11133
12 7050767 1 GEAR, Input Includes one of #10)
13 7050830 1 AXLE, Short
14 7012495 1 GEAR, Differential, 46 Tooth
15 7031970 2 PLATE
16 7031965 2 WASHER, Thrust
17 7090557 4 SCREW, Cap, 10-32 x 1-1/2"
18 7011774 1 GASKET, Housing
19 7090189 3 WASHER, 5/16" Internal External Tooth Lock
20 7051903 1 BRACKET, Differential
21 7090911 4 SCREW, 1/4-20 x 1-1/4 Self-Tapping
22 7012543 1 SPACER, Axle Gear
23 7050831 1 AXLE, Long
24 7021115 4 GEAR, Pinion, 12 Tooth
25 7012500 4 SPACER, Pinion Gear
26 7011110 4 SHAFT, Pinion
27 7090376 4 LOCKNUT, 10-32
28 7053939 1 HOUSING ASSEMBLY, Left Was 57523 (Includes 8, 9 & 29)
29 7057634 1 HOUSING, Left Side Was 17015
Throttle Controls - Series 7
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 25
Part No Descri
p
tionItem Qt
y
Note
-- 7019254 1 Conduit Length, 45.0" - Briggs 4 Cycle For '90 Models & Earlier
-- 7023829 1 Conduit Length, 62.0" - Tecumseh 2 Cycle For '90 Models & Earlier
-- 7016565 1 Conduit Length, 58.0" - Briggs 4 Cycle For '91 Models & Earlier
-- 7016705 1 Conduit Length, 44.25" - Tecumseh 4 Cycle For '91 Models & Earlier
-- 7016706 1 Conduit Length, 62.0" - Tecumseh 2 Cycle For '91 Models & Earlier
-- 7016798 1 Conduit Length, 44.0" - Robin 2 Cycle For '91 Models & Earlier
Decals (Part 1)
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
26
Decals (Part 1)
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 27
Part No Descri
p
tionItem Qt
y
Note
1 7013010 1 DECAL, Danger
2 7023745 1 DECAL, Blade Control
3 7023870 1 DECAL, Warning
4 7044640 1 DECAL, SNAPPER Was 19279
5 7016191 1 DECAL, Warning & Starting
Decals (Part 2)
TP 400-5143-3-WB-N
Manual No. 7006051A 21" STEEL DECK WALK BEHIND MOWER
SERIES 7
28
Decals (Part 2)
Footnotes:
TP 400-5143-3-WB-N
Manual No. 7006051A21" STEEL DECK WALK BEHIND MOWER
SERIES 7 29
Part No Descri
p
tionItem Qt
y
Note
1 7017300 1 NLA - DECAL, Housing
2 7017303 1 NLA - DECAL, Housing
3 7017298 1 NLA - DECAL, Housing
4 7017297 1 NLA - DECAL, Housing
5 7017305 1 NLA - DECAL, Housing
6 7017295 1 NLA - DECAL, Housing
7 7017302 1 NLA - DECAL, Housing
8 7017306 1 NLA - DECAL, Housing
9 7017301 1 NLA - DECAL, Recoil (3.85 O.D.)
10 7017304 1 NLA - DECAL, Recoil (3.35 O.D.)
11 7017294 1 NLA - DECAL, Recoil (2.575 O.D.)
Specyfikacje produktu
| Marka: | Snapper |
| Kategoria: | kosiarka |
| Model: | R21507B |
Potrzebujesz pomocy?
Jeśli potrzebujesz pomocy z Snapper R21507B, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą
Instrukcje kosiarka Snapper
27 Września 2024
24 Września 2024
23 Września 2024
23 Września 2024
23 Września 2024
15 Września 2024
13 Września 2024
8 Września 2024
8 Września 2024
8 Września 2024
Instrukcje kosiarka
- kosiarka Electrolux
- kosiarka Worx
- kosiarka Braun
- kosiarka Honda
- kosiarka Philips
- kosiarka SilverCrest
- kosiarka Stihl
- kosiarka Bosch
- kosiarka Yato
- kosiarka Parkside
- kosiarka Stiga
- kosiarka Toolcraft
- kosiarka Kärcher
- kosiarka Severin
- kosiarka Panasonic
- kosiarka MacAllister
- kosiarka Stanley
- kosiarka Black & Decker
- kosiarka OK
- kosiarka Scheppach
- kosiarka Adler
- kosiarka BaByliss
- kosiarka Marquant
- kosiarka Lider
- kosiarka Conair
- kosiarka Ardes
- kosiarka Taurus
- kosiarka Orbegozo
- kosiarka Blaupunkt
- kosiarka Grizzly
- kosiarka Gardena
- kosiarka DeWalt
- kosiarka Einhell
- kosiarka Grundig
- kosiarka Remington
- kosiarka Hyundai
- kosiarka Rowenta
- kosiarka Mesko
- kosiarka Husqvarna
- kosiarka ECG
- kosiarka Makita
- kosiarka Hecht
- kosiarka Viking
- kosiarka Rapid
- kosiarka Ozito
- kosiarka Draper
- kosiarka Fuxtec
- kosiarka Orbex
- kosiarka Trisa
- kosiarka RYOBI
- kosiarka NAC
- kosiarka Wolf Garten
- kosiarka Zelmer
- kosiarka Eurogarden
- kosiarka Cobra
- kosiarka Handy
- kosiarka Yard Force
- kosiarka Bomann
- kosiarka Garden Feelings
- kosiarka Baumr-AG
- kosiarka Biltema
- kosiarka Sovereign
- kosiarka CMI
- kosiarka SABO
- kosiarka Beper
- kosiarka Kubota
- kosiarka Sterwins
- kosiarka MPM
- kosiarka Meec Tools
- kosiarka AL-KO
- kosiarka Güde
- kosiarka Pyle
- kosiarka Segway
- kosiarka Texas
- kosiarka ATIKA
- kosiarka Wahl
- kosiarka Bavaria
- kosiarka Cecotec
- kosiarka AFK
- kosiarka Zipper
- kosiarka Camry
- kosiarka Flymo
- kosiarka Faworyt
- kosiarka Scarlett
- kosiarka TriStar
- kosiarka MTD
- kosiarka First Austria
- kosiarka Fiskars
- kosiarka Aurora
- kosiarka Florabest
- kosiarka Hanseatic
- kosiarka Solo
- kosiarka Ferrex
- kosiarka G3 Ferrari
- kosiarka Ergotools Pattfield
- kosiarka Clatronic
- kosiarka NEO Tools
- kosiarka Oregon Scientific
- kosiarka Rover
- kosiarka Princess
- kosiarka GA.MA
- kosiarka Ferm
- kosiarka Hitachi
- kosiarka Herkules
- kosiarka Moser
- kosiarka Craftsman
- kosiarka EcoFlow
- kosiarka Robomow
- kosiarka Fieldmann
- kosiarka Homelite
- kosiarka Gardenline
- kosiarka PowerPlus
- kosiarka Sencor
- kosiarka Vonroc
- kosiarka Tesco
- kosiarka Spear & Jackson
- kosiarka HiKOKI
- kosiarka McCulloch
- kosiarka Proviel
- kosiarka Becken
- kosiarka OKAY
- kosiarka Masport
- kosiarka GARDA
- kosiarka Powerbase
- kosiarka Bestgreen
- kosiarka Zoofari
- kosiarka Toro
- kosiarka Comelec
- kosiarka Cotech
- kosiarka Skil
- kosiarka Cocraft
- kosiarka NAX
- kosiarka Snow Joe
- kosiarka Greenworks
- kosiarka Yellow Garden Line
- kosiarka OBH Nordica
- kosiarka Challenge
- kosiarka Bestron
- kosiarka Alpina
- kosiarka Ambrogio
- kosiarka Powerworks
- kosiarka AS Motor
- kosiarka Ashiko
- kosiarka Walker
- kosiarka Saturn
- kosiarka ACG
- kosiarka Oster
- kosiarka Sinbo
- kosiarka Jata
- kosiarka Logik
- kosiarka Sun Joe
- kosiarka Mellerware
- kosiarka Termozeta
- kosiarka Eldom
- kosiarka Maxxmee
- kosiarka Tanaka
- kosiarka King
- kosiarka Hustler
- kosiarka Troy-Bilt
- kosiarka Topcraft
- kosiarka Gamma
- kosiarka John Deere
- kosiarka Aqua Joe
- kosiarka Kress
- kosiarka Dolmar
- kosiarka Mountain Buggy
- kosiarka Harper
- kosiarka Team
- kosiarka Mountfield
- kosiarka McGregor
- kosiarka Qualcast
- kosiarka Varo
- kosiarka Pattfield
- kosiarka Defort
- kosiarka IKRA
- kosiarka JCB
- kosiarka Kibani
- kosiarka Coline
- kosiarka Eliet
- kosiarka Echo
- kosiarka VARI
- kosiarka Klippo
- kosiarka Zoef Robot
- kosiarka Carmen
- kosiarka Valera
- kosiarka Powerblade
- kosiarka Hayter
- kosiarka Gianni Ferrari
- kosiarka Ariens
- kosiarka Andis
- kosiarka Grouw
- kosiarka Lumag
- kosiarka McConnel
- kosiarka Yard Machines
- kosiarka Central Park
- kosiarka Gtech
- kosiarka Park
- kosiarka Graphite
- kosiarka Sanli
- kosiarka CentralPark
- kosiarka Levita
- kosiarka Efco
- kosiarka Black Decker
- kosiarka Blackline
- kosiarka Brill
- kosiarka Gardol
- kosiarka Atco
- kosiarka Gartenmeister
- kosiarka Plantiflor
- kosiarka Powertec Garden
- kosiarka Lux Tools
- kosiarka Orec
- kosiarka Scotts
- kosiarka Chapin
- kosiarka Giardino
- kosiarka Germania
- kosiarka Garden Gear
- kosiarka Anova
- kosiarka Hurricane
- kosiarka Budget
- kosiarka Fleurelle
- kosiarka Deltafox
- kosiarka Palmera
- kosiarka Yardforce
- kosiarka Murray
- kosiarka PLUS
- kosiarka PowerG
- kosiarka LEA
- kosiarka Yamabiko
- kosiarka Jacobsen
- kosiarka Exgain
- kosiarka Stabilo
- kosiarka Robot Mower
- kosiarka Garden
- kosiarka Toledo
- kosiarka Earthwise
- kosiarka Practixx
- kosiarka Belrobotics
- kosiarka Mr Gardener
- kosiarka Einhell Royal
- kosiarka Ransomes
- kosiarka Kingcraft
- kosiarka Mac Allister
- kosiarka Jonsered
- kosiarka Gude Pro
- kosiarka Green Technology
- kosiarka Do It Garden
- kosiarka Victa
- kosiarka Robust
- kosiarka Ultranatura
- kosiarka Shav
- kosiarka LawnMaster
- kosiarka G-Technology
- kosiarka Morrison
- kosiarka Cub Cadet
- kosiarka Maxbear
- kosiarka Lawn Star
- kosiarka Craftfull
Najnowsze instrukcje dla kosiarka
5 Kwietnia 2025
2 Kwietnia 2025
2 Kwietnia 2025
1 Kwietnia 2025
31 Marca 2025
29 Marca 2025
27 Marca 2025
27 Marca 2025
27 Marca 2025
13 Marca 2025
