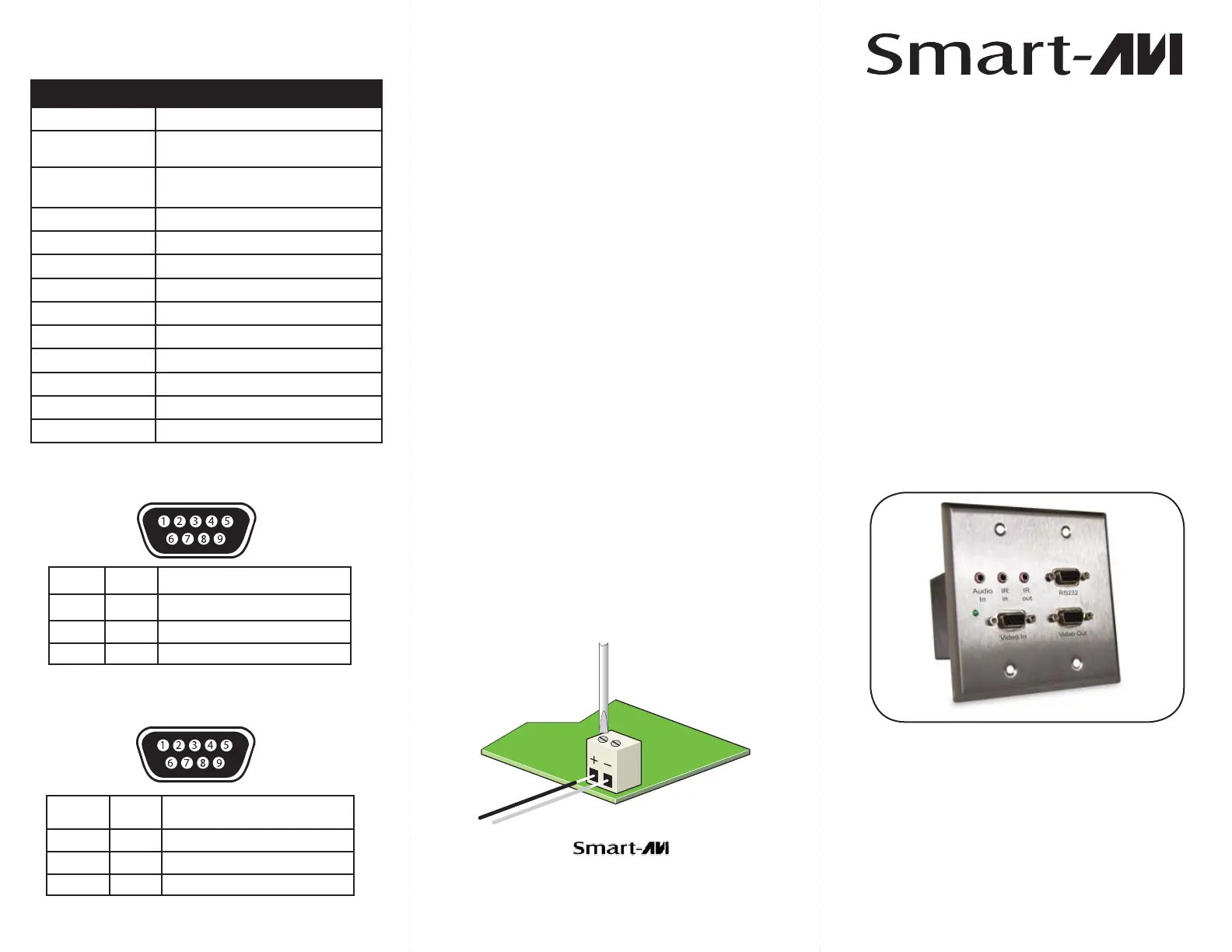

Use a single CAT5 to broadcast high
resolution SXGA, Stereo Audio, RS232
and IR up to 1000ft away.
XTWALL
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
Technical Specifications
XTWALL SPECIFICATIONS
VGA Data
Format RGBHV, RGsB, YUV, Y/C, CVBS
Resolution Up to 1900 x 1200
VGA, SVGA, XGA, SXGA
Connector type HD 15 socket
Audio
Signal Type Stereo unbalanced
Connector 3.5mm jack socket
Power
Requirements 5VDC @.5A
Connector 2.1mm DC jack (center +ve)
Physical
Dimensions 135 x 90 x 23mm (26 with pegs)
Weight .8 lbs or .36 kg
Pin No. Name Description
2 RxD Receive Data on DB9 Male
3 TxD Transmit Data on DB9 Male
5 SGND Ground
Pin No. Name Description
2 TxD Transmit Data on DB9 Female
3 RxD Recieve Data on DB9 Female
5 SGND Ground
Recieve on DB9 Male
Transmit on DB9 Female
© Copyright 2008 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties
of merchantability and fitness for any particular
purpose.
Smart-AVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced or translated into another language
with
out prior written consent from Smart-AVI.
For the complete manual, visit www.smartavi.com.
S M A R T A U D I O V I D E O I N N O VAT I O N
Attaching the Power Supply
Insert black wire into the positive input (left) and 1.
secure.
Insert white wire into the negative input (right) 2.
and secure.
Plug into outlet.3.
Introduction
The XTWALL allows the extension of a wide range of
video and audio formats, RS232, and IR via a sing
Category 5 Unshielded Twisted Pair (UTP) cable.
Features
Supports Dual Screens.
Uses easy to install, inexpensive CAT-5/5e/6/7/8.
Output reaches up to 1,000 feet (300 m).
Resolutions up to 1900x1200.
300 MHz Bandwidth.
Sends high-resolution UXGA, Stereo Audio and
Compatible with Line Level Stereo Audio Signals.
High ground loop immunity.
Built-in lightning, power surge and transient
protection.
Designated trimmer in the remote unit to
compensate for cable length.
Compact Metal Case Enclosure.
Supports RS232 and IR
What’s in the box?
XTPRO
Please check the contents of the package before
beginning installation.
Adjusting and Tuning the Signal
In order to fine tune the signal, adjust the individual
dials one at a time starting with GREEN, then BLUE,
and lastly RED. As you turn the dials you will notice the
colors slightly change as you increase or decrease the
strength. All dials should be around the same distance.
Preparing & Connecting System CAT5 Cable
Following is the wiring standard for terminating CAT 5 cable
using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
4 - Pair
Connecting The Transmitter
1. Connect the output of the computer video card to the
video input of the transmitter using the included male
to male video cable.
2. Connect the output of the computer audio card to
the audio input of the transmitter using 3.5mm audio
male to male audio cable.
3. Connect local monitor to the VGA out of the
transmitter.
4. Connect external speakers to the transmitter’s audio
out (Standard 3.5mm stereo miniplug).
5. In the back of the unit connect the CAT5 cable that
will connect to the receiver (XTW-RX).
*NOTE: You can not use RS232 and IR at the same time.
Connecting The Receiver
1. Connect CAT5 cable (coming from the transmitter) to
the back of the receiver.
2. Connect 1-2 display monitors to the VGA out
connectors on the front of the receiver.
3. Connect 1-2 sets of external speakers to the audio
output connections on the front of the unit.
(Standard 3.5mm stereo Miniplug)
XTWALL Package Content
Qty Items Part No.
1 XTWALL Transmitter unit XTW-TX
1 XTWALL Receiver unit XTW-RX
2 5 volt dc power supply PS5D1AW-US
1 HDD 15 male to male VGA
cable (6ft) CC-VGAMM-06
Optional
1 Audio 3.5 mm stereo mini-
plug cable CC-ADMM06
1 IR EYE Receiver SM-EYE
1 IR Emitter SM-LED
1 Serial m/f DB9 6ft. CCSERMF06
Installation Diagram
XTWALL Transmitter XTWALL Receiver
Blue Green Red
