16-Port Dual DVI-D and USB 1.1
Extender up to 275 feet
over STP Cable
RK-DVX-Plus
16-Port Dual DVI-D and USB 1.1
Extender over STP
www.smartavi.com
Installation
Manual

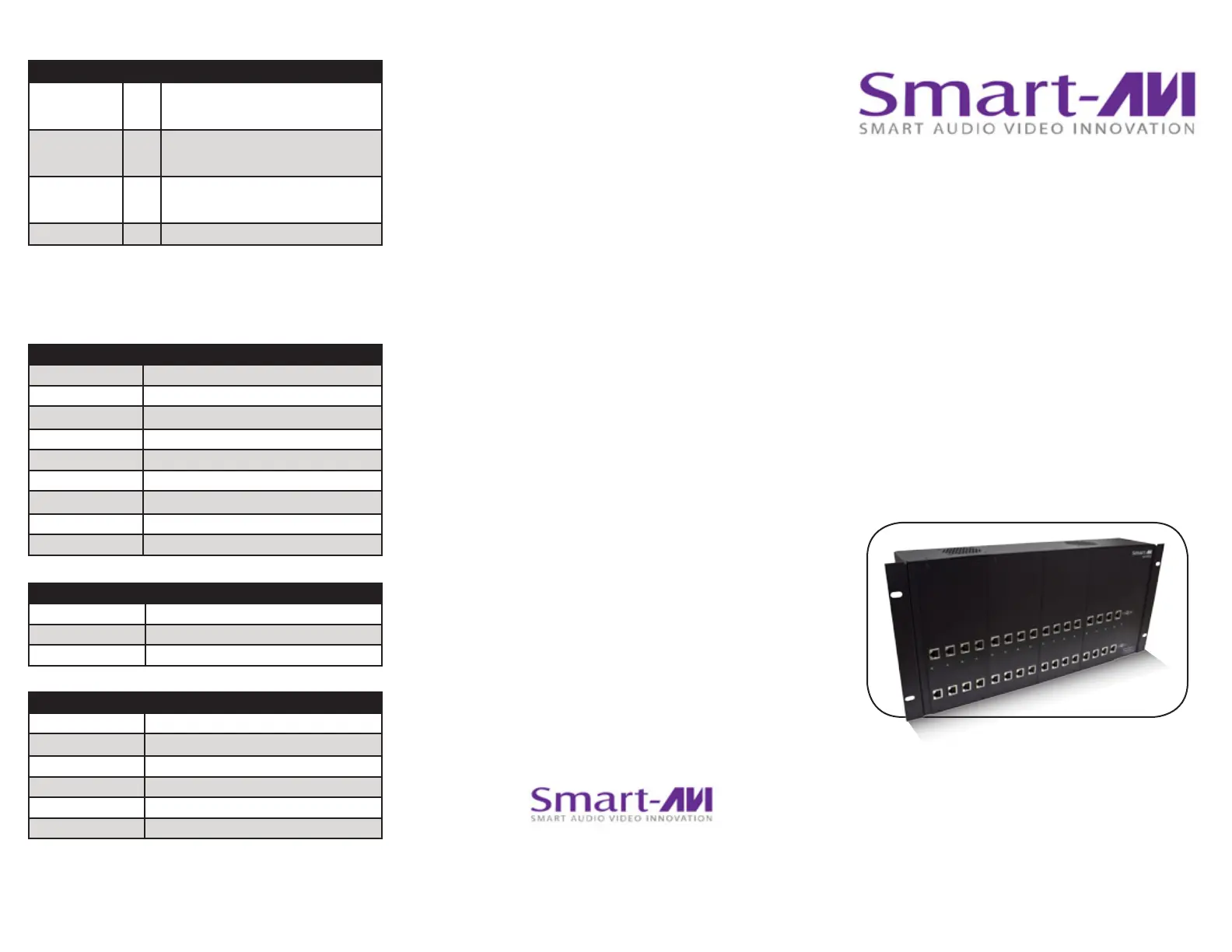

Technical Specications*
What’s in the Box?
PART NO. QTY DESCRIPTION
RK-DVX-Plus-TX4S Powered Rack/Chassis with DVI/USB CAT6
Transmitter, 4 Card Package. Includes: [RK-
DVX-Plus-TX4 and CCPWR06]
RK-DVX-Plus-TX8S Powered Rack/Chassis with DVI/USB CAT6
Transmitter, 8 Card Package. Includes: [RK-
DVX-Plus-TX8 and CCPWR06]
RK-DVX-Plus-
TX16S
Powered Rack/Chassis with DVI/USB CAT6
Transmitter, 16 Card Package. Includes: [RK-
DVX-Plus-TX16 and CCPWR06]
User Manual 1
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) 16 DVI-D 29-pin female
Output Interface (RX) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 1.1 (Fully Transparent)
Input Interface (TX) 16 x (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power Internal 110-240 VAC
Dimensions 17 in W x 7 in H x 3.25 in D
Weight 10 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
*specications shown are for 16-Port option
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Introduction
The RK-DVX-Plus is the perfect solution for extending
DVI-D and USB 1.1 signals to a remote location up to
275 feet away. It is the ideal way to consolidate up to
16 workstation computers into one location. The RK-
DVX-Plus features DVI-D extension up to 275 feet over
STP. It is fully compatible with MAC, PC and LINUX DVI
standards.
The RK-DVX-Plus also features transparent USB 1.1 signal
extension, with full support for all USB 1.1 devices and
an integrated 4-port hub in the receiver. Flash Drives,
Printers, Cameras, Scanners, etc. may all be used with the
RK-DVX-Plus.
Applications
• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios
Features
• Supports DVI-D single-link
• Supports Mac, PC, and Linux DVI
• Supports High Resolution 1920x1200 60Hz
WUXGA
• Distance: 275 feet with three CAT6 STP cables
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Supports all USB 1.1 Devices Transparently
(Flash Drives, Printers, etc.)
• Supports USB 1.1 keyboard and mouse
• Compatible with all operating systems
• Compatible with all major KVM switches
• Rack Mountable Solution
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
• Plug-and-play
The following is the wiring standard for terminating UTP/STP
cable using RJ-45 connector:
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connecting the RK-DVX-Plus
1. Power o all devices.
2. Connect DVI-D sources (computers) to each of the
16 DVI-D ports on the rear of the RK-DVX-Plus-TX
labeled
3. Connect USB sources to each of the 16 USB ports
on the rear of the the RK-DVX-Plus-TX labeled
4. Connect the RK-DVX-Plus-TX to the the DVX2U-RX
with three STP (Sheilded Twisted Pair) cables using
each the front ports labeled
5. Connect a DVI monitor to the port on the rear of
the DVX-Plus-RX labeled
6. Connect up to 4 USB 1.1 devices to the ports on
the DVX-Plus-RX labeled .
7. Connect the power to the ports labeled POWER
110-240V on the RK-DVX-Plus-TX and on
the DVX-Plus-RX.
8. Power on the computers, displays and USB 1.1
devices.
RK-DVX-Plus
DVX2U-RX
USB FLASH DRIVE USB KEYBOARD USB MOUSE
16 DVI-D
DISPLAYS
COMPUTERS
up to 275 ft
over 2 STP cables
Product - Installation Diagram
