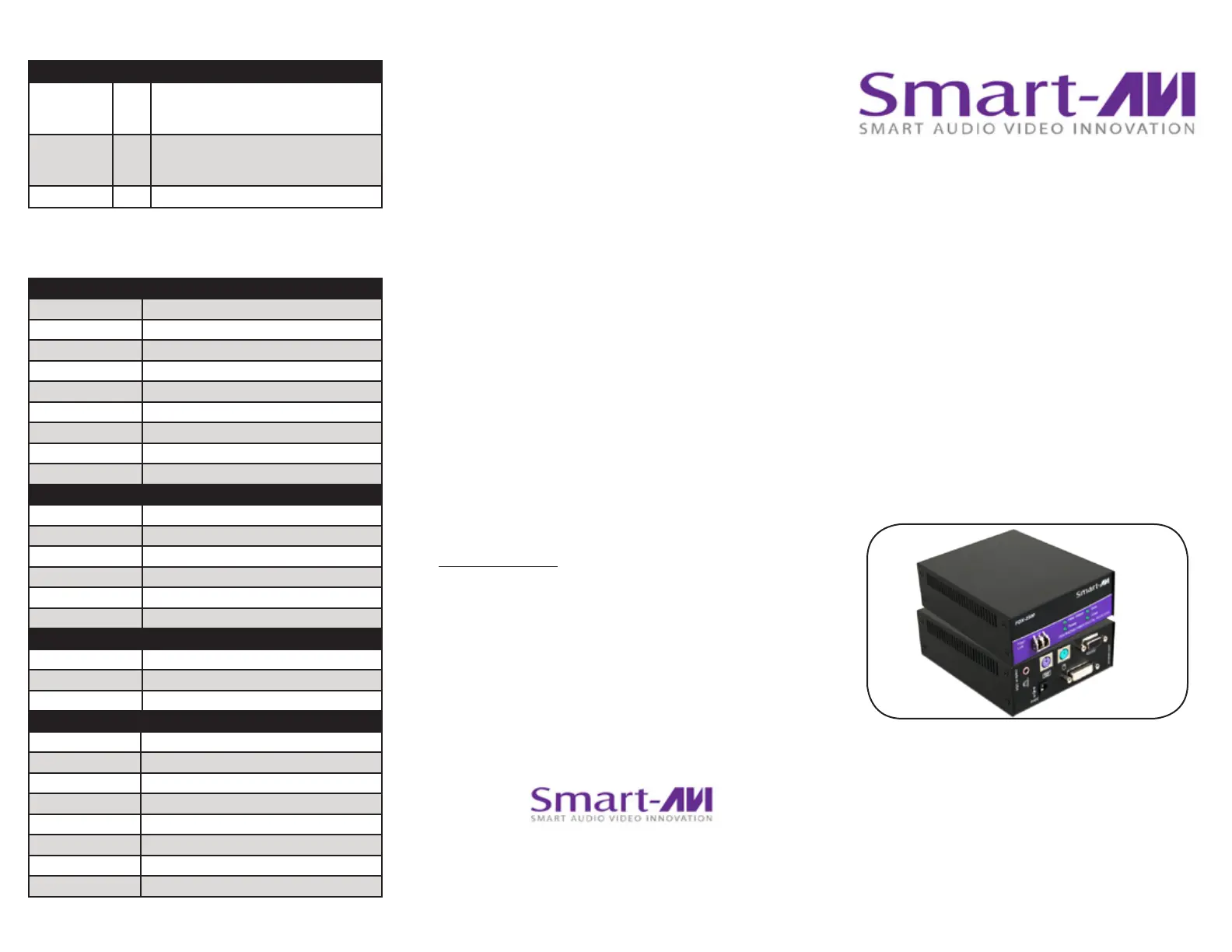

NOTICE

T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St., North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

The FDX-2500 consists of a transmitter

and receiver that extend KVM, DVI-D,

audio and RS-232 signals. It is a

professional quality KVM capable of

extending signals up to 15 kilometers

over a single singlemode ber optic cable.

FDX-2500

DVI-D Video, Stereo Audio, PS/2

Keyboard/Mouse and RS-232

Extender over Fiber Optic Cable

www.smartavi.com

Installation

Manual

What’s in the Box?

PART NO. QTY DESCRIPTION

FDX-TX2500 1 FDX-2500 Transmitter Unit - DVI-D, Stereo

Audio, PS/2 Keyboard/Mouse and RS-232

Extender over Fiber Optic Cable

FDX-RX2500 1 FDX-2500 Receiver Unit - DVI-D, Stereo

Audio, PS/2 Keyboard/Mouse and RS-232

Extender over Fiber Optic Cable

Power Supply 2 PS5VDC4A

Technical Specications

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (1) DVI-D 29-pin female

Output Interface (1) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC Internal

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

AUDIO

Frequency Response 20 Hz to 20 KHz

Impedance 600 ohm

Nominal Level 0-1.0 V

Common Mode Rejection at 60dB

Input Interface (1) 3.5 mm Stereo Audio

Output Interface (1) 3.5 mm Stereo Audio

PS/2

Signaling PS/2 Keyboard and Mouse ONLY

Input Interface (2) PS/2 Female

Output Interface (2) PS/2 Female

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 4.5”W x 5.375”H x 1.75”D

Weight 1 lb.

Approvals UL, CE, ROHS Compliant

Operating Temp. 32-131°F (0-55 °C)

Storage Temp. -4-185 °F (-20-85 °C)

Humidity Up to 95%

RS-232 Data up to 115,000 bps

Why Fiber Optic?

SmartAVI has created a full line of ber optic extender products,

understanding that this technology is superior to traditional

cabling.

Fiber optic cables are:

• capable of transmitting over very long distances with no

signal loss.

• immune to electromagnetic interference. In situations where

there is considerable interference, ber optic cabling is the

only solution.

• much more secure because they cannot be easily tapped.

For this reason, military and law enforcement agencies use

ber optic cables for the transmission of sensitive data.

• relatively inexpensive and small enough to be routed

through small spaces.

Introduction

The FDX-2500 consists of a transmitter and receiver

that extend KVM, DVI-D, audio and RS-232 signals. It is

a professional quality KVM capable of extending signals

up to 15 kilometers over a single singlemode ber optic

cable.

Features

• Top Signal Quality at Maximum Extension Over

Singlemode Fiber (15 Km)

• Superior Image Quality at all Resolutions

• Video Resolutions up to 1920 x 1200 at 60Hz (1280

x 1024 at 75Hz)

• Customizable/Programmable DDC Table

• Supports PS/2 Keyboard/Mouse

• Supports Stereo Audio

• Supports DVI-D

• Supports RS-232 Control from 300bps to 115,000bps

• Supports all PS/2 Keyboards

• Fiber Plug Type LC

• Compatible With all Operating Systems

• Compatible With all Major KVM Switches

• Compact Metal Casing

Applications

• Corporate or Educational Presentations

• Financial (Remote Servers/User Control)

• Call Centers

• Industrial (Long-Range Workstation Isolation)

• Information Terminals/Kiosks

• Airport Installations (Air Trac Control/Passenger

Information)

• KVM Extension where Exceptional Quality of Signal

is Crucial

• Medical (Remote Operation Away from Sensitive/

Magnetic Equipment)

• Recording (for Large Studios where Editing/Mixing

Stations are Compact and/or Require Complete

Silence)

Installation

1. Turn o the computer, display, and speakers.

2. Connect the DVI extension cable, PS/2 keyboard and mouse cables, and audio cable

(not included) to the computer and to the ports on the FDX-2500-TX.

3. Connect the display to the DVI connector on the FDX-2500-RX.

4. Connect PS/2 mouse and keyboard to the PS/2 connectors on the FDX-2500-RX.

5. Connect speakers to the audio connector on the FDX-2500-RX.

6. Connect the power cord and power on the FDX-2500TX and the FDX-2500-RX.

7. The FIBER STATUS and POWER lights should illuminate.

8. Power on the computer, display and speakers.

Receiver Transmitter

Fiber Optic Cable up to 15 Km

Product - Installation Diagram

FDX-2500 Receiver Front

FDX-2500 Receiver Rear

DDC provides plug-and-play capability to your

displays. When you plug a display into your

computer, the DDC table in the display tells the

computer the optimal resolution to use. In order

to preserve this plug-and-play capability, we have

integrated DDC learning into all of our DVI Solutions.

ABOUT DDC

Learning the DDC

1. Plug in the ber connection.

2. DO NOT connect the computer to the transmitter.

3. Power on the transmitter and recevier.

4. Verify the FIBER STATUS and POWER lights are

illuminated.

5. Power o the transmitter and receiver.

6. Power on the display and plug it into the recevier.

7. Power on the receiver.

8. Power on the transmitter and wait for approximately

30 seconds. The VIDEO light on the transmitter

will blink on and o for approximately 10 seconds

indicating the DDC has been learned.

9. Plug the computer into the transmitter and power it on.
