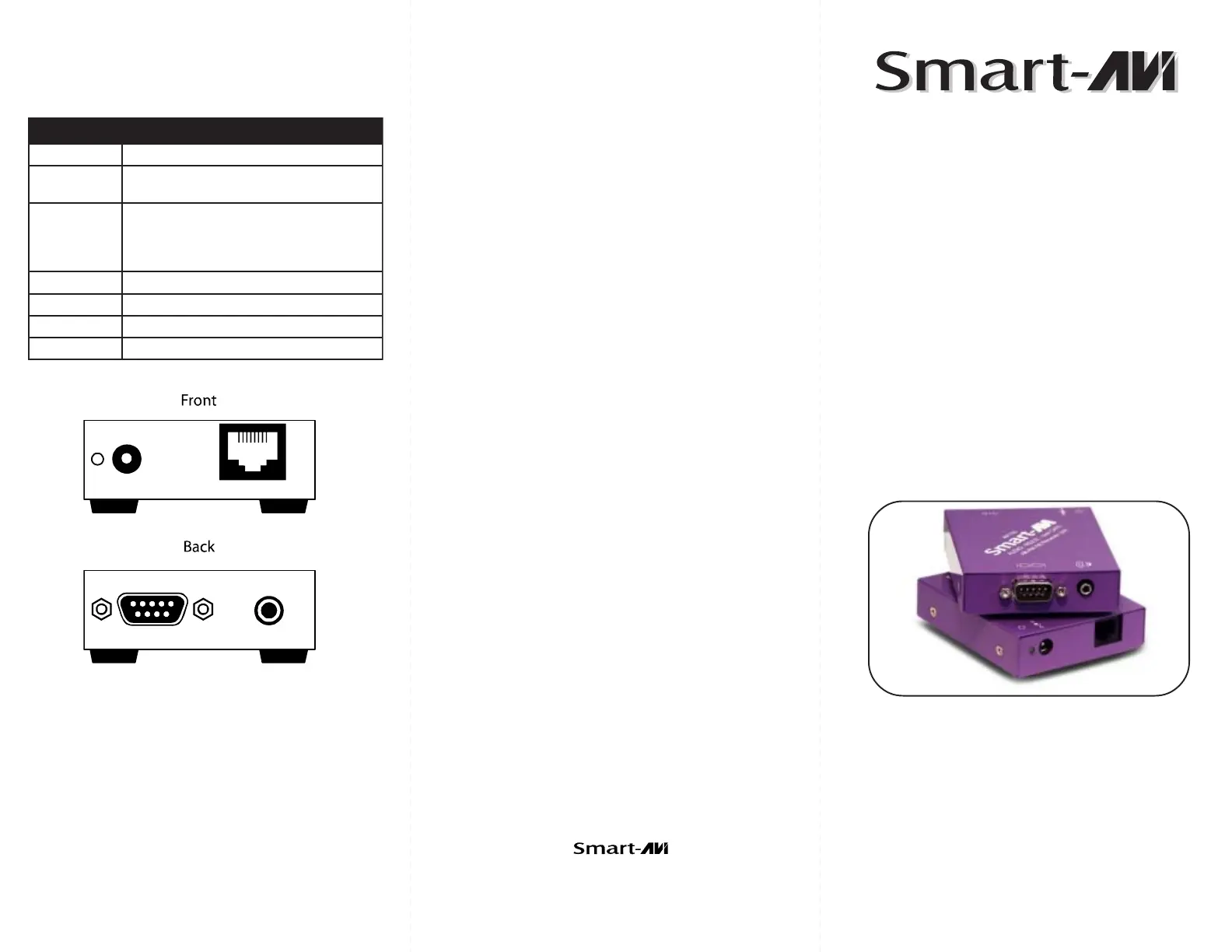

Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular

purpose.

Smart-AVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use

of this material.

No part of this document may be photocopied,

reproduced or translated into another language with

out prior written consent from Smart-AVI.

For the complete manual, visit www.smartavi.com.

Extend any RS232 and stereo device up

to 3000ft using a single Cat5 cable.

AR100

www.smartavi.com

User Manual

3111 Winona Ave., Suite 101

Burbank, California 91504

Phone: (818) 565-0011

Facsimile: (818) 565-0020

Technical Specifications

3MART!UDIO6IDEO)NTEGRATION

SNOITACIFICEPS001RA SNOITACIFICEPS001RA SNOITACIFICEPS001RA SNOITACIFICEPS001RA SNOITACIFICEPS001RA

232SR )elaM9BD-XR()elameF9BD-XT(

locotorP duabllaottnerapsnart,xelpudlluF

etar

oiduA

oiduAoeretSepyTlangiS

Bd0,zHM51htdiwdnaB

mhO001ecnadepmI

elameF,kcajinimmm5.3rotcennoC

5taC tf0033otpu,5taCPTU

rewoP CDV5

snoisnemiD ”528.)H(x”57.2)W(x”5.3)L(

thgieW sbl02.0

Introduction

The AR100 RS232 - Sound Cat5 extender allows

you to extend any full Duplex RS232 with any

Stereo sound up to 3000ft using a single

unshielded Cat5 cable.

Features

 Unbalanced stereo line level analogue audio to

be transmitted via UTP Cat5 Hi-fidelity audio

frequency response.

 Extend any touch screen up to 3000ft.

 Extend any sound system up 3000ft.

 Supports all protocol and baud rates.

 Uses easy to install inexpensive CAT5.

 Output reaches up to 3000 feet.

 Compatible with line level stereo audio signals.

 High ground loop immunity.

 Built-in lightning, power surge and transient

protection.

 Remote units come with buffered outputs.

 Compact enclosure.

 Optional power supply for remote unit.

 Fully transparent path for all protocols and data

transfers.

ApplicationsApplications

Applications

 Hotel

 Cable TV remote control

 Control rooms

 Remote On-Digital set-top control

 Sky box control extension and switcher output

 Dealer rooms

 Point of Sale

 Remote VCR control

What’s in the box?

Installation Diagram

Connecting The TransmitterConnecting The Transmitter

Connecting The Transmitter

1. Connect an RS232 cable and/or audio cable to the

souce unit.

2. Connect power supply to the unit. Observe LED

lighting up indicating power present

Connecting The ReceiverConnecting The Receiver

Connecting The ReceiverConnecting The ReceiverConnecting The Receiver

1. Connect an RS232 cable and/or audio cable to the

reveiver unit.

2. Observe LED lighting up indicating power present

Preparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 CablePreparing & Connecting System CAT5 Cable

Following is the wiring standard for terminating CAT 5

cable using RJ-45 connector:

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8
