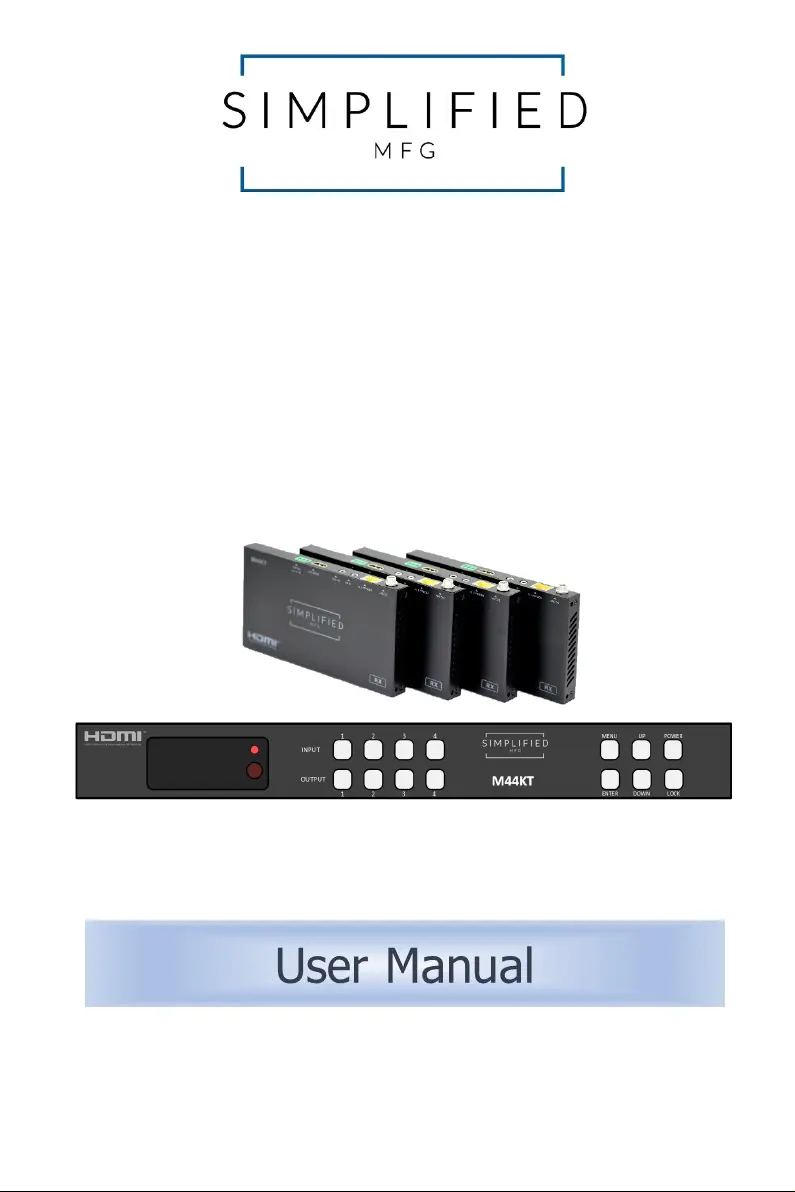

M44KT
HDMI 2.0b (18Gbps) Scaling
4x4 Matrix Kit
V2.1
Thank you for purchasing the M44KT Scaling Matrix Kit
The Simplified Manufacturing M44KT is designed to provide years of reliable service. At
Simplified MFG, we want the experience with this device to be the best possible and are
committed to helping achieve that experience. Please keep this manual for future
reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended to protect and extend the life of your equipment. Cable and satellite boxes
can send surges through the HDMI port as will the Simplified MFG HDSURGE can help
prevent damage from these occurrences.
Table of Contents
1.
Introduction. ....................................................................................................................
1
2.
Features. ..........................................................................................................................
1
3.
Package Contents. ..................................................................................................... 2
4.
Specifications. ........................................................................................................... 2
5.
Operation Controls and Functions. ............................................................................
4
5.1.
Matrix Panel. .....................................................................................................
4
5.2.
HDBaseT Receiver Panel. ..................................................................................
6
6.
IR Remote ........................................................................................................................
7
7.
IR Control System. ...........................................................................................................
9
8.
IR Cable Pin Assignment. .......................................................................................... 11
9.
EDID Management. ..........................................................................................................
11
10.
Matrix Audio and RS- 232 Introduction. ...................................................................
13
11.
Web GUI User Guide. ............................................................................................... 14
12.
RS- 232 Control Command. ......................................................................................
22
13.
Application Example. ............................................................................................... 29
14.
Warranty…………….. …………………………………………………………………………….30.
15.
Contact ……………..………………………………………………………………………………30
Page 1 30of
1.
Introduction
The M44KT is a Scaling HDMI 2.0b (18Gbps) x 4 4 HDMI and HDBaseT matrix kit. There
are four HDMI inputs for 4 sources and there are 4 outputs that feature parallel HDMI and
HDBaseT outputs. 4 HDBaseT receivers are included with the kit. Each output can
individually scale. The HDMI output can be set to a different resolution than the HDBaseT
output on the same output channel. The HDBaseT output will transmit 1080p up to 70m
and 4K content up to 40m.
In addition to AV the M44KT also can switch IR and audio in a matrix as well. The audio can
be routed independently of the video including ARC to coaxial audio and analog audio output
via the Web GUI or ASCII code control. It can also extract the audio signal from HDMI source
device to analog audio and coaxial audio output as well. The M44KT also supports individual
bi-directional 12V IR and RS232 by output via the HDBaseT/RX.
The M44KT can be controlled via the LED front panel and buttons manually, with the
supplied IR remote control, via the web GUI, or from a third party control system via IR,
RS232, or LAN connection.
2.
Features
• HDMI 2.0b (18Gbps) and HDCP 2.2 compliant
• Each output can scale independently from each other including the HDMI and HDBaseT on
the same channel
• DolbyVision™ and all HDR formats are supported
• 4 HDMI output ports support 18Gbps lossless uncompressed video
• The 4 HDBaseT Outputs are 18Gbps lossless (DSC) signal transmission
• Audio can be routed independently of the video
• ARC Audio can be returned from the display to the matrix via HDBaseT and/or HDMI
• IR can be routed through the matrix independently as well
• Supports video resolution up to 4K@60Hz 4:4:4
• HDBaseT outputs can extend video transmission distance up to 230ft / 70 meters for
1080p or 131ft / 40 meters for 4K60 via a single CAT5e/6/7 cable.
• The M44KT supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS- - -EX, DTS 96/24, DTS High Res, DTS HD Master Audio, DSD
• Intelligent EDID management combined with scaling makes the M44KT easy to use with
multiple displays with different resolutions
• The supplied HDBaseT receivers are powered via 24V POC from the matrix
• Control options include via the front panel, IR remote, web GUI, or control with a third party
control device via IR, RS232, or LAN
