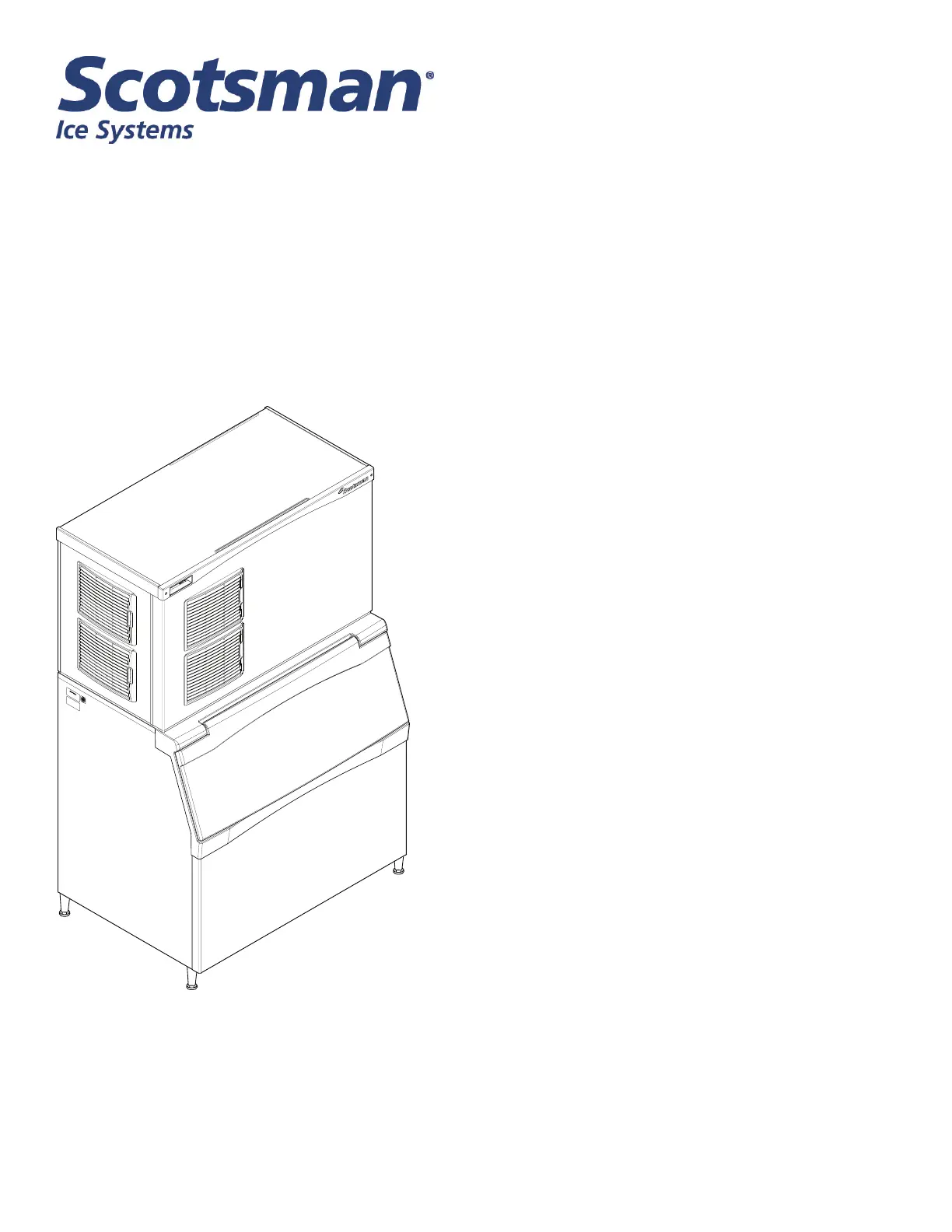

Installation and User’s Manual
Models C1448, C1848, C2148W

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 1
The design of this modular cuber is the result of years
of experience and testing. Standard features include
front accessible indicator lights and on-off switches
that provide the user with fast access to critical
information and easy operational control.
When desired, optional controls can add features
like ultrasonic bin ice level sensing, seven day
programmable bin ice level setting, remote lock out
and more.
This installation and user manual is divided into
three main sections: Installation, which provides
the trade person with the information needed to
set up and install this product; Use and Operation,
which provides the user with the information to use
the product; and Maintenance, which provides the
user with the information needed keep it operating
efciently.
Introduction
Contents
Installation: Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Product Information Page 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Description & Electrical Requirements Page 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabinet Layout, Air Cooled Page 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabinet Layout, Water Cooled Page 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Page 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panel Removal Page 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uncrate and Set Up Page 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Plumbing Requirements Page 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drains Page 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Page 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Final Check List Page 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Start Up Page 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments Page 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water ush setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Use and Operation Page 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switches Page 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Options and Other Information Page 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning, Sanitation and Maintenance Page 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air cooled condenser lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22
What to do before calling for service Page 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 2
Installation: Product Specications
Location Limitations: The product is designed to be
installed indoors, in a controlled environment. Air
cooled models discharge very warm air into the room
out the back. Space must be allowed at the left side
and back for air intake and discharge.
Water cooled models discharge warm water into the
building’s drain. Space needs to be provided on both
sides and above for service access.
Space Limitations
Note: Although the machine will function, ice capacity
of air cooled machines will be signicantly reduced
with minimal clearance at the sides, back and
top. Some space is recommended for service and
maintenance purposes on all models.
6" of space at the sides and back are required for
adequate operation. To get the most capacity, locate
the machine away from heat producing appliances
and heating ducts. Provide several feet of space to
the left for maximum ice capacity.
Walls or other large machines near to the ice machine
might also cause a reduction in ice capacity. One foot
behind and two feet above will be required to make
rated capacity.
Airow is in the front, in the left side, out the back (as
viewed from the front).
Environmental Limitations
Minimum Maximum
Air temperature 50oF. 1 100oF.
Water
temperature
40oF. 100oF.
Water pressure 20 psi 80 psi
Power supply – acceptable voltage ranges
Minimum Maximum
208-230 volt
model
198 volts 253 volts
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for applicable
coverage. In general warranty covers defects
in material or workmanship. It does not cover
maintenance, corrections to installations, or situations
when the machine is operated in circumstances that
exceed the limitations printed above
Airow

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 3
Product Information
The product is a modular cuber. That type of machine
is designed to be placed on an ice storage bin or
an ice dispenser. Many installations only require the
matching bin, but some also require an adapter to be
placed between the bin and the cuber or between the
dispenser and the cuber.
This product cannot be stacked. See the chart for
application information.
Model Number Description
Example:
• C1448SA-32B
• C= cuber
• 14= nominal ice capacity in 100s of pounds
• 48= nominal width of cabinet
• S= Cube size. S=small or half dice cube.
• M=medium or full dice cube
• A=Condenser type. A=air cooled. W=water cooled
• -32=Electrical code. -32=208-230 single phase.
-3=208-230 three phase
• B=Series revision code. B=2nd series
Note: In some areas of this manual model numbers
may include only the rst ve characters of the model
number, meaning that the cube size, condenser
type and voltage differences are not critical to the
information listed there.
Options:
There are several eld-installed options that can be
installed at initial start up or later. They include: • KVS
- Vari-Smart adjustable ice level system.
• KSBU - Smart-Board advanced feature control.
• A39515-021 air bafe to reduce air recirculation
around the back of the cabinet when installed in a
corner.
Some installations require bin adapters. See the table
below.
Standard Bin Applications - Adapter information.
Model BH900*, B948S BH1100,
BH1300,
BH1600
C1448, C1848,
C2148
Direct Fit, no
adapter needed
No adapter
needed
* Note. If previously equipped with stainless steel
bafe, KBAFFLE3, remove and replace with original
plastic bafe.
Other Bins & Applications:
Note the drop zone and ultrasonic sensor locations in
the illustrations.
Scotsman ice systems are designed and
manufactured with the highest regard for safety and
performance. They meet or exceed the standards of
UL and NSF.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the use
of any part and/or other components not specically
approved by Scotsman.
Scotsman reserves the right to make design changes
and/or improvements at any time. Specications and
design are subject to change without notice.
December 2011

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 4
Product Description & Electrical Requirements
Dimensions
w” x d” x h”
Model Electrical Condenser Minimum
Circuit
Ampacity
Suggested
Fuse Size
Maximum
Fuse Size*
48 x 24 x 29 C1448SA-32 208-230/60/1 Air 17.7 20 30
same C1448SW-32 208-230/60/1 Water 16.0 20 30
same C1448SA-3 208-230/60/3 Air 13.6 20 30
same C1448SW-3 208-230/60/3 Water 11.9 15 30
same C1848SA-32 208-230/60/1 Air 25.5 30 30
same C1848SW-32 208-230/60/1 Water 23.8 30 30
same C1848SA-3 208-230/60/3 Air 16.5 20 30
same C1848SW-3 208-230/60/3 Water 14.8 20 30
same C2148SW-32 208-230/60/1 Water 22.2 30 30
same C2148SW-3 208-230/60/3 Water 18.0 20 20
Table notes: Medium cube models have the same
electrical characteristics as Small. Series revision
code omitted.
* Or HACR type circuit breakers.
This manual covers several models. The model
number on the product is located in two places, on the
back dataplate and on the model and serial number
tag, located behind the front panel.
Write the model and serial number of this product
here:
_________________________________________
August 2008

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 5
AIR COOLED
BACK VIEW
LEFT SIDE VIEW
FRONT VIEW
PLAN VIEW
LOUVER AND
REMOVABLE FILTER
AC UNITS ONLY
48.00
121.9
29.00
73.7
48.89
124.2
.92
2.3
24.00
61
.92
2.3
1.57 REFRIGERATION
AND ELECTRICAL CHASE
46.17
117.3
18.00
45.7
24.90
63.2
2.91
7.4
24.18
61.4
20.54
52.2
3/8" FPT
WATER
INLET
3/4" FPT
DRAIN
.88 DIA
ELECTRICAL
ACCESS
9.00
22.9
2.00
5.1
9.63
24.5
48.00 REF.
24.00
REF.
22.75
MINIMUM BIN
TOP OPENING
57.8
18.30
46.5
ICE DROP OPENING
Cabinet Layout, Air Cooled

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 6
LEFT SIDE VIEW
FRONT VIEW
PLAN VIEW
48.00
121.9
29.00
73.7
48.89
124.2
.92
2.3
24.00
61
1.57 REFRIGERATION
AND ELECTRICAL CHASE
9.00
22.9
2.00
5.1
9.63
24.5
48.00 REF.
24.00
REF.
22.75
MINIMUM BIN
TOP OPENING
57.8
18.30
46.5
ICE DROP OPENING
WATER COOLED
BACK VIEW
18.00
45.7
46.17
117.3 24.90
63.2
24.20
61.5
4.63
11.7
3.70
9.4
5.64
14.3
22.09
56.1
2.96
7.5
20.59
52.3
3/8" FPT (C1448/1848)
1/2" FPT (C2148)
CONDENSER
WATER INLET
1/2" FPT
CONDENSER
DRAIN
3/4" FPT
DRAIN
3/8" FPT
WATER
INLET
.88 DIA
ELECTRICAL
ACCESS
Cabinet Layout, Water Cooled

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 7
Water
The quality of the water supplied to the ice machine
will have an impact on the time between cleanings
and ultimately on the life of the product. There are
two ways water can contain impurities: in suspension
or in solution. Suspended solids can be ltered out.
In solution or dissolved solids cannot be ltered,
they must be diluted or treated. Water lters are
recommended to remove suspended solids. Some
lters have treatment in them for suspended
solids. Check with a water treatment service for a
recommendation.
Scotsman lters:
A triple head lter is recommended for the potable
water. Either the Scotsman SSM3 taste and odor lter
system, or the ADS-AP3 Aqua Patrol system. RO
water. This machine can be supplied with Reverse
Osmosis water, but the water conductivity must be no
less than 10 microSiemens/cm.
Condenser Water Supply - ltration not recommended
for this water supply
GPH, 70 degree water
C1448W 70
C1848W 106
C2148W 1 10
Potential for Airborne Contamination
Installing an ice machine near a source of yeast
or similar material can result in the need for more
frequent sanitation cleanings due to the tendency of
these materials to contaminate the machine.
Most water lters remove chlorine from the water
supply to the machine which contributes to this
situation. Testing has shown that using a lter that
does not remove chlorine, such as the Scotsman
Aqua Patrol, will greatly improve this situation, while
the ice making process itself will remove the chlorine
from the ice, resulting in no taste or odor impact.
Additionally, devices intended to enhance ice machine
sanitation, such as the Scotsman Aqua Bullet, can
be placed in the machine to keep it cleaner between
manual cleanings
Water Flush
Cube ice machines use more water than what ends
up in the bin as ice. While most water is used during
ice making, a portion is designed to be drained out
every cycle to reduce the amount of hard water scale
in the machine. That’s known as water ush, and an
effective ush can increase the time between needed
water system cleaning.
In addition, this product is designed to automatically
vary the amount of water ushed based on the purity
of the water supplied to it. The water ush rate can
also be set manually.
Adjustments of ush due to local water conditions are
not covered by warranty.

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 8
Panel Removal
1. Locate and loosen the two screws at the front
edge of the top panel.
2. Pull the front panel out at the top until it clears the
top panel.
3. Lift the front panel up and off the machine.
4. Remove two screws at front edge of top panel.
5. Lift up the front of the top panel, push it back an
inch, then lift to remove.
6. Locate and loosen the screw holding each side
panel to the base.
7. Pull the side panel forward to release it from the
back panel.
Switch Bezel
All models ship with the On and Off switches front
accessible. if desired, the On and Off switches can be
covered up to prevent unauthorized use by changing
the bezel in the front panel's trim strip. A cover-up
bezel ships loose with the machine.
To change bezels: Remove the front panel and refer
to the instruction label on the inside of the front panel.
Push snaps of the standard bezel in and pull the bezel
out of the front panel. Locate other bezel. Push into
trim strip from the front until it snaps into place. Return
the front panel to its original position and secure it to
the cabinet.
Panel Removal
1
6
5
5

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 9
Uncrate and Set Up
Begin with unpacking the ice storage bin. Remove the
carton, and using part of the carton as a cushion, tip
the bin on its back to remove the skid and attach the
legs or casters.
Note: Turn the leg levelers in all the way and adjust
after the ice machine is on top and in its selected
location.
Return the bin to an upright position. Check the bin
top gasket for gaps and tears, ll any in with food
grade sealant prior to placing the ice machine on the
bin.
Install the bin top adapter if one is required for the
application.
If the ice machine has not been unpacked, do so now.
Remove the carton from the skid. Lift the ice machine
off the skid directly onto the bin.
Note: The machine is heavy! Use a mechanical hoist
if necessary.
Secure the ice machine to the bin with the hardware
provided (two metal straps and 4 bolts).
Level the bin and ice machine using the adjustment
part of the legs.
Bin Recycling
Many times an ice machine head will be replaced,
while the existing ice storage bin will be reused. This
is an acceptable practice, if some precautions are
taken:
• The used bin must be in good condition. Broken
doors, hinges, or warped walls are reason for
considering a new bin.
• The used bin top edge gasket must be replaced.
Water leaks could occur if the gasket tape is not
replaced.
• The used bin should be the proper size for the ice
machine head.

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 10
Plumbing Requirements
All models require connection to cold, potable water.
A hand actuated valve within site of the machine is
required. Air cooled models have a single 3/8” FPT
inlet water connection.
Water cooled models have a 1/2" FPT drain tting
plus an additional 3/8” FPT condenser inlet water
connection.
Water Filters
If connecting to water ltration, lter only the water
to the reservoir, not to the condenser. Install new
cartridges if the lters were used with a prior machine.
A triple head lter is recommended. Either the
Scotsman SSM3 taste and odor lter system, or the
ADS-AP3 Aqua Patrol system.
Water Fitting
Field Supplied
Inlet Water Connection
December 2011

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 11
Drains
All models require drain tubing to be attached to them.
Air cooled models have a single ¾” FPT drain tting
in the back of the cabinet. Water cooled models have
the same tting plus an additional ½” FPT drain tting
in the back of the cabinet. Install new tubing when
replacing a prior ice machine, as the tubing will have
been sized for the old model and might not be correct
for this one.
1. Connect water supply to water inlet ttings.
Note: This NSF listed model has a 1" anti-back ow
air gap between the end of the water inlet tube and
the highest possible reservoir water level, no back
ow device is required for the potable water inlet.
2. Connect drain tubing to drain ttings.
3. Route the drain tubing to building drain. Follow
local codes for air gap.
Use rigid drain tubes and then route them separately
– do not Tee into the bin’s drain or, if water cooled,
Tee the condenser drain into the reservoir or bin drain.
Vent the reservoir drain. A vertical vent at the back of
the drain, extended about 8 – 10” will allow the gravity
drain to empty and also keep any surges during
draining from discharging water.
Horizontal runs of drain tubing need a ¼” per fall per
foot of run for proper draining. Follow all applicable
codes.
Water Supply and Drain Connections
Water Inlet
Connection
Potable
Water
Supply
Floor Drain
Water Cooled
Condenser
Inlet
Water Cooled
Condenser
Drain
Optional Water
Filters
Reservoir
Drain

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 12
Electrical
The machine is not supplied with a power cord, the
machine should be hard-wired.
The dataplate on the back of the cabinet details
the power requirements, including voltage, phase,
minimum circuit ampacity and maximum fuse size.
HACR type circuit breakers may be used in place of
fuses. Extension cords are not permitted. Use of a
licensed electrician is recommended.
Electrical connections are made inside the junction
box in the back panel of the ice machine.
1. Remove the junction box cover and route the
power cord through the access hole and properly
attach the power supply wires to the leads in the
junction box.
2. Install a eld supplied strain relief per code.
3. Attach a ground wire to the ground connection in
the junction box.
4. Check voltage when complete.
5. Return the junction box cover to its original
position and secure with the original screws.
Follow all applicable local, state and national codes.
Power
Supply
Wires
Ground Wire
Connection
Install
Strain
Relief

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 13
Final Check List
After connections,
1. Wash out the bin. If desired, the interior of the bin could be sanitized.
2. Locate the ice scoop (if supplied) and have it available for use when needed.
Final Check List:
1. Is the unit located indoors in a controlled environment?
2. Is the unit located where it can receive adequate cooling air?
3. Has the correct electrical power been supplied to the machine?
4. Have all the water supply connections been made?
5. Have all the drain connections been made?
6. Has the unit been leveled?
7. Have all unpacking materials been removed?
8. Is the water pressure adequate?
9. Have the drain connections been checked for leaks?
10. Has the bin interior been wiped clean or sanitized?
11. Have any water lter cartridges been replaced?
12. Have all required kits and adapters been properly installed?

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 14
Initial Start Up
1. Remove front panel. Check machine for any
packing or wires rubbing moving parts. Note
location of control board in upper left corner of the
machine’s front.
2. Switch on the electrical power to the machine.
Observe that some of the control’s indicator lights
glow and its display shows .O
3. Open the water supply valve.
4. Push and release the ON button. The indicator
light will begin to blink .F
The purge valve will open and the water pump will
start. The inlet water valve will open to add water to
the reservoir. After a few seconds the purge valve will
close and the water pump will stop. Water will ow
into the machine until the reservoir is full. The hot gas
valves and harvest assist devices will activate then
the compressor and water pump will start. If its an air
cooled model the fan(s) motors will begin to turn. The
display will show a continuous . Five seconds later F
the hot gas valves will close and the harvest assist
device will return to its standby position. Warm air will
be discharged from air cooled models.
5. Observe the Ready for Harvest indicator light. It
may blink early in the cycle, that is normal. The
control will ignore that signal for the rst 6 minutes
of freeze.
6. During the Freeze cycle open and close the
curtains. The SW1 and SW2 lights on the control
board will blink ON when each curtain is opened
and OFF when closed.
7. Note: Moving a curtain during the Freeze cycle
has no affect on the control, but will cause water
to ow into the cube chute.
8. When the ice has frozen enough, the Ready for
Harvest indicator light will be on steady. After it’s
been on steady for a few seconds Harvest will
begin.
9. The display shows an .H
The hot gas valves open, the air cooled fan motors
shut off and the harvest assist mechanisms are
activated. The purge valve opens to drain some water,
when it does the inlet water valve opens to rell the
reservoir. After a few seconds the purge valve closes
but the inlet water valve continues to ll the reservoir.
Harvest continues until the ice is released as a unit
and forces the curtain to open. When both curtains re-
close the controller returns the unit to a freeze cycle.
10. Check the ice harvested for proper bridge
thickness. The ice bridge is factory set at 3/16
inch. If needed, adjust bridge thickness. Do NOT
make it too thin.
11. Determine the water purge setting from the
table below. If desired, change the setting to
accommodate the local water conditions.
12. Return the front panel to its normal position and
secure it to the machine.
13. Instruct the user in the operation of the machine
and its maintenance requirements.
14. Fill out and mail warranty registration form or
register on line at www.scotsman-ice.com.
Typical Ice Making Cycle Times (minutes).
Listed times are for clean machines in proper
installations. Cycle length at start up will be longer
until the system stabilizes.
Model 70oF. air / 50oF.
water
90oF. air / 70oF.
water
C1448A 12-14 14-16
C1448W 13-15 14-16
C1848A 9-11 12-14
C1848W 9-11 10-12
C2148W 9-11 10-12
December 2011

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 15
Adjustments
Bridge Thickness - For Service Tech Only
1. Push and hold Off till the machine stops.
2. Remove evaporator cover.
3. Remove curtain.
4. Use a box wrench and rotate the bridge thickness
adjustment screw in 1/8 turn increments CW to
increase bridge thickness.
5. Rotate CCW to decrease bridge thickness.
Caution: Do not make the bridge too thin or the
machine will not harvest properly. Bridge thickness
adjustments are not covered by warranty.
6. Return curtain to its normal position.
7. Push and release the On button. Check next
harvest of ice. Repeat steps 1-6 if needed.
Note: Water cooled models, the refrigeration system
discharge pressure is factory set at 245 PSIG,
which should yield a freeze cycle discharge water
temperature of about 105-110 degrees F. Adjust if
necessary.
Ice Bridge Thickness Check
Ice Thickness Sensor
Too Big Just Right for
Small Cube
Just Right for
Medium Cube
Too
Thin
1/8 - 3/16” bridge

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 16
Water ush setting
The water ush is factory set to the automatic
position, suitable for most water conditions. The
setting can be changed to one of 5 manual settings or
left on automatic.
Flush setting 1 - Minimum 2 - Moderate 3 - Standard 4 - Heavy 5 - Maximum A - Automatic
Water Type RO water or
equivalent
Factory
Setting for
typical water
High TDS
water
Any with
conductivity
not less
than 10
To set:
1. Switch the machine OFF by holding the Off button
in until a number or the letter A shows on the
display.
2. Press and release the On button repeatedly until
the number on the display corresponds to the
desired setting.
3. Press and release the Off switch again to return to
the normal control state.
Power
Status
Water
De-Scale
On
Off

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 17
Use and Operation
Once started, the ice machine will automatically make
ice until the bin or dispenser is full of ice. When ice
level drops, the ice machine will resume making ice.
Caution: Do not place anything on top of the ice
machine, including the ice scoop. Debris and moisture
from objects on top of the machine can work their way
into the cabinet and cause serious damage. Damage
caused by foreign material is not covered by warranty.
There are four indicator lights at the front of the
machine that provide information on the condition of
the machine.
Indicator Lights:
• Power
• Status
• Water
• Clean
Light indicators & their meanings
Power Status Water De-Scale & Sanitize
Steady Green Normal Normal – bin full or
making ice
- -
Blinking Green Self Test Failure Switching on or off - -
Blinking Red - Diagnostic
shutdown or,
if making ice,
temperature sensor
failure
Lack of water
Yellow - - - Time to de-scale
and sanitize
Blinking Yellow - - - In Cleaning mode
Light off No power Switched off Normal Normal
All Blinking Unit remotely locked out – check with leasing company
If the Water light is on, the machine has sensed a
lack of water. Check the water supply to the machine.
The water may have been shut off or the water lter
cartridges need to be changed.
If the Clean light is on, the machine has determined
that it may need to be cleaned. Contact an authorized
Scotsman service agent and have the machine
cleaned, de-scaled and sanitized.
Note: A Component Indicator Light switches ON to
indicate that the component is operating.
Note: There are two Curtain Switch lights, SW1 and
SW2. A curtain switch light is ON when a curtain is
either open or not present.

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 18
Switches
The two switches – on and off - can be accessed from
the front of the machine.
• To switch the machine OFF, push and release the
Off button. The machine will shut off at the end of
the next cycle.
• To switch the machine ON, push and release the
On button. The machine will go through a start up
process and then resume ice making.
Control Options
There are two optional, eld installed controls that can
be on this machine.
• Vari-Smart (KVS) Adjustable ice level control
• Smart-Board (KSBU) Advanced Feature control
Adjustable ice level control
When this option is present there is an adjustment
post and an additional indicator light to the right of the
four indicator lights mentioned above. The ultrasonic
ice level control allows the use to control the point that
the ice machine will stop making ice before the bin or
dispenser is full. Reasons for this include:
• Seasonal changes in ice used
• Planning to sanitize the bin
• Faster turnover for fresher ice
• Certain dispenser applications where maximum ice
level is not desired
Use of control
Vari-Smart Control Area
There are several positions the ice level can be set
to, including Off (knob and label indicators lined up),
where it lls the bin until the standard bin control shuts
the machine off. See the kit’s instructions for complete
details.
Rotate the adjustment post to the desired ice level.
The machine will ll up to that level and when it shuts
off the indicator light next to the adjustment post will
be On.
Note: Ice will build up in the bin or dispenser at an
angle, the distances listed above will be from the
sensor to the top of the ice directly beneath it. The
actual distance between the highest point of the ice
may be closer or further away, depending upon the
angle of the ice.
Adjust Ice Level
Bin
Full
N
o
r
m
L
o
w
e
r
02-4294-01
Graphic Rev. B
Rotate knob to set ice level
Yellow Arrow = Max Ice
White Arrow = Min Ice
Left Green = Dispenser high
Norm = Lower in Dispenser
Power
Status
Water
De-Scale
On
Off
July 2007

C1448, C1848, C2148W
Air and Water Cooled User Manual
November 2006
Page 19
Options and Other Information
Smart-Board
When this option is present there is an additional
display panel in the area below the main control
board. It is not visible when the front panel is on.
The Smart-Board’s features include:
• Seven day programmable ice level setting when
used with the optional Vari-Smart ice level control
• Recording of machine operation, including cycle
time.
• Calculation of average cycle time
• Recall of malfunctions with the time they occurred.
Ice
The cuber drops ice in large sections. That ice will
break up into random parts as it falls into the bin, but
some large sections may remain on top of the ice in
the bin. When removing ice, tap the groups of ice with
an ice scoop to separate them into smaller units. In a
dispenser, this ice will break up into mostly individual
cubes as the dispense mechanism moves the ice.
Heat
Air cooled models will generate heat when in
operation. That heat is discharged out the back of the
cabinet.
Noise
The ice machine will make noise when it is in ice
making mode. The compressor, fan motors if air
cooled and water pump all produce some sound. It
is also normal to hear some cracking just before the
harvest cycle begins. In addition, during the harvest
cycle the harvest assist solenoid will click twice as it
pushes the ice out and returns to its normal position.
The ice harvests as a unit or slab, which makes some
noise when it impacts the bin or dispenser. These
noises are all normal for this machine.
SmartBoard Advanced Feature Control
™
See Instructions for Available Features
34
SEL
02-4293-01
Rev A.
ESC
Specyfikacje produktu
Marka: | Scotsman |
Kategoria: | Maszyna do lodu |
Model: | FS1522A-32 |
Potrzebujesz pomocy?
Jeśli potrzebujesz pomocy z Scotsman FS1522A-32, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą
Instrukcje Maszyna do lodu Scotsman

26 Grudnia 2024

30 Września 2024

30 Września 2024

30 Września 2024

30 Września 2024

30 Września 2024

30 Września 2024

30 Września 2024

30 Września 2024

30 Września 2024
Instrukcje Maszyna do lodu
- Maszyna do lodu Hoshizaki
- Maszyna do lodu Electrolux
- Maszyna do lodu DeLonghi
- Maszyna do lodu LG
- Maszyna do lodu Caso
- Maszyna do lodu Gaggia
- Maszyna do lodu Sage
- Maszyna do lodu Tefal
- Maszyna do lodu Philips
- Maszyna do lodu Livoo
- Maszyna do lodu SilverCrest
- Maszyna do lodu Dometic
- Maszyna do lodu Bosch
- Maszyna do lodu Dash
- Maszyna do lodu Whirlpool
- Maszyna do lodu Severin
- Maszyna do lodu Nedis
- Maszyna do lodu Medion
- Maszyna do lodu Baumatic
- Maszyna do lodu Hendi
- Maszyna do lodu Quigg
- Maszyna do lodu Maytag
- Maszyna do lodu Domo
- Maszyna do lodu GE
- Maszyna do lodu Taurus
- Maszyna do lodu Brandt
- Maszyna do lodu Ambiano
- Maszyna do lodu Danby
- Maszyna do lodu Haier
- Maszyna do lodu Jocel
- Maszyna do lodu Unold
- Maszyna do lodu Viking
- Maszyna do lodu Kenwood
- Maszyna do lodu Trisa
- Maszyna do lodu Ninja
- Maszyna do lodu Cuisinart
- Maszyna do lodu Wilfa
- Maszyna do lodu Krups
- Maszyna do lodu U-Line
- Maszyna do lodu Emerio
- Maszyna do lodu H.Koenig
- Maszyna do lodu Melissa
- Maszyna do lodu Beper
- Maszyna do lodu OneConcept
- Maszyna do lodu Koenic
- Maszyna do lodu ProfiCook
- Maszyna do lodu Klarstein
- Maszyna do lodu KitchenAid
- Maszyna do lodu Camry
- Maszyna do lodu Steba
- Maszyna do lodu NewAir
- Maszyna do lodu Exquisit
- Maszyna do lodu Bartscher
- Maszyna do lodu Hestan
- Maszyna do lodu Continental Edison
- Maszyna do lodu Delta
- Maszyna do lodu Bifinett
- Maszyna do lodu DCG
- Maszyna do lodu Beautiful
- Maszyna do lodu G3 Ferrari
- Maszyna do lodu Hamilton Beach
- Maszyna do lodu Clatronic
- Maszyna do lodu Ariete
- Maszyna do lodu Princess
- Maszyna do lodu Sunbeam
- Maszyna do lodu Duronic
- Maszyna do lodu Breville
- Maszyna do lodu Elta
- Maszyna do lodu Solis
- Maszyna do lodu DCS
- Maszyna do lodu JennAir
- Maszyna do lodu Frigidaire
- Maszyna do lodu Marvel
- Maszyna do lodu Summit
- Maszyna do lodu Whynter
- Maszyna do lodu Rommelsbacher
- Maszyna do lodu Avanti
- Maszyna do lodu Kalorik
- Maszyna do lodu Sub-Zero
- Maszyna do lodu Guzzanti
- Maszyna do lodu Lagrange
- Maszyna do lodu Aroma
- Maszyna do lodu Clas Ohlson
- Maszyna do lodu Proline
- Maszyna do lodu Atosa
- Maszyna do lodu Aigger
- Maszyna do lodu Aigger Montiss
- Maszyna do lodu Progress
- Maszyna do lodu Bellini
- Maszyna do lodu Fritel
- Maszyna do lodu Monogram
- Maszyna do lodu Accucold
- Maszyna do lodu Mellerware
- Maszyna do lodu Heinner
- Maszyna do lodu Termozeta
- Maszyna do lodu Eldom
- Maszyna do lodu Igloo
- Maszyna do lodu GlobalTronics
- Maszyna do lodu Trebs
- Maszyna do lodu Boretti
- Maszyna do lodu Costway
- Maszyna do lodu Maxwell
- Maszyna do lodu SEB
- Maszyna do lodu Buffalo
- Maszyna do lodu Carpigiani
- Maszyna do lodu Blaze
- Maszyna do lodu FriFri
- Maszyna do lodu Primo
- Maszyna do lodu RGV
- Maszyna do lodu Montiss
- Maszyna do lodu Team
- Maszyna do lodu Edgestar
- Maszyna do lodu Magimix
- Maszyna do lodu Zoku
- Maszyna do lodu C3
- Maszyna do lodu Nissei
- Maszyna do lodu SPT USA
- Maszyna do lodu Manitowoc
- Maszyna do lodu Lynx
- Maszyna do lodu Springlane
- Maszyna do lodu Micromaxx
- Maszyna do lodu Domoclip
- Maszyna do lodu Rival
- Maszyna do lodu Exido
- Maszyna do lodu Avantco
- Maszyna do lodu Kogan
- Maszyna do lodu Spaceman
- Maszyna do lodu Silhouette
- Maszyna do lodu SPT
- Maszyna do lodu Lentz
- Maszyna do lodu Nostalgia
- Maszyna do lodu Ice-O-Matic
- Maszyna do lodu Nemox
- Maszyna do lodu Temptech
- Maszyna do lodu WestBend
- Maszyna do lodu Xsquo
- Maszyna do lodu Pifco
- Maszyna do lodu Petra Electric
- Maszyna do lodu Cattabriga
- Maszyna do lodu Hatsuyuki
- Maszyna do lodu Girmi
- Maszyna do lodu Maxxfrost
- Maszyna do lodu Betec
- Maszyna do lodu Orien
- Maszyna do lodu Davis & Waddell
- Maszyna do lodu Studio
- Maszyna do lodu Salco
- Maszyna do lodu Royal Catering
- Maszyna do lodu Perlick
- Maszyna do lodu Norpole
- Maszyna do lodu Musso
- Maszyna do lodu Thermostar
- Maszyna do lodu Koldfront
- Maszyna do lodu Yamazen
Najnowsze instrukcje dla Maszyna do lodu

12 Stycznia 2025

11 Stycznia 2025

11 Stycznia 2025

11 Stycznia 2025

11 Stycznia 2025

11 Stycznia 2025

10 Stycznia 2025

10 Stycznia 2025

10 Stycznia 2025

9 Stycznia 2025
