P75 Dual Source Power Amplier
Installation Manual
2 Russound P75 Installation Manual
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of
sucient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying the
appliance.
Safety Instructions
1. Read These Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
2. Keep These Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed All Warnings - All warnings on the appliance in
the operating instructions should be adhered to.
4. Follow All Instructions - All operating and user
instructions should be followed.
5. Water and Moisture - Do not use this apparatus
near water; for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near
a swimming pool.
SAFETY INSTRUCTIONS
6. Cleaning - The apparatus should be cleaned only with
a dry cloth.
7. Ventilation - Do not block any ventilation openings.
Install in accordance with the manufacturer's
instructions. Slots and openings in the cabinet
are provided for ventilation and to ensure reliable
operation of the product and to prevent it from
overheating, and these openings must not be
blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug,
or other similar surface. This product should not be
placed in a built-in installation, such as a bookcase
or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
8. Heat - Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus
(including ampliers) that produce heat.
9. Grounding or Polarization - Do not defeat the safety
purpose of the polarized alternating current line plug
or grounding-type plug. A polarized plug has two
blades with one wider than the other. This plug will
t into the power outlet only one way. This is a safety
feature. A grounding-type plug has two blades and
a third grounding prong. The wide blade or the third
prong are provided for your safety. If you are unable
to insert the provided plug into your outlet, contact
your electrician to replace the obsolete outlet.
10. Power Cord Protection - Protect the cord from
being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they
exit from the apparatus.
11. Attachments - Only use attachments/accessories
specied by the manufacturer.
12. Carts and Stands - Use only with the cart, stand,
tripod, bracket or table specied by the manufacturer,
or sold with the apparatus. When a cart
is used, use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13. Non-Use Periods - Unplug this
apparatus during lightning storms or
when unused for long periods of time.
14. Servicing - Refer all servicing to qualied service
personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. MAINS Plug - The MAINS plug or an appliance coupler
is used as the disconnect device, the disconnect
device shall remain readily operable.
16. Insulation - Class II apparatus with double
insulation, and no protective earth provided.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE. THIS APPLIANCE SHALL
NOT BE EXPOSED TO DRIPPING OR SPLASHING
WATER AND THAT NO OBJECT FILLED WITH
LIQUID SUCH AS VASES SHALL BE PLACED ON
APPARATUS..
3
Russound P75 Installation Manual
CLEARANCE REQUIREMENTS / TABLE OF CONTENTS

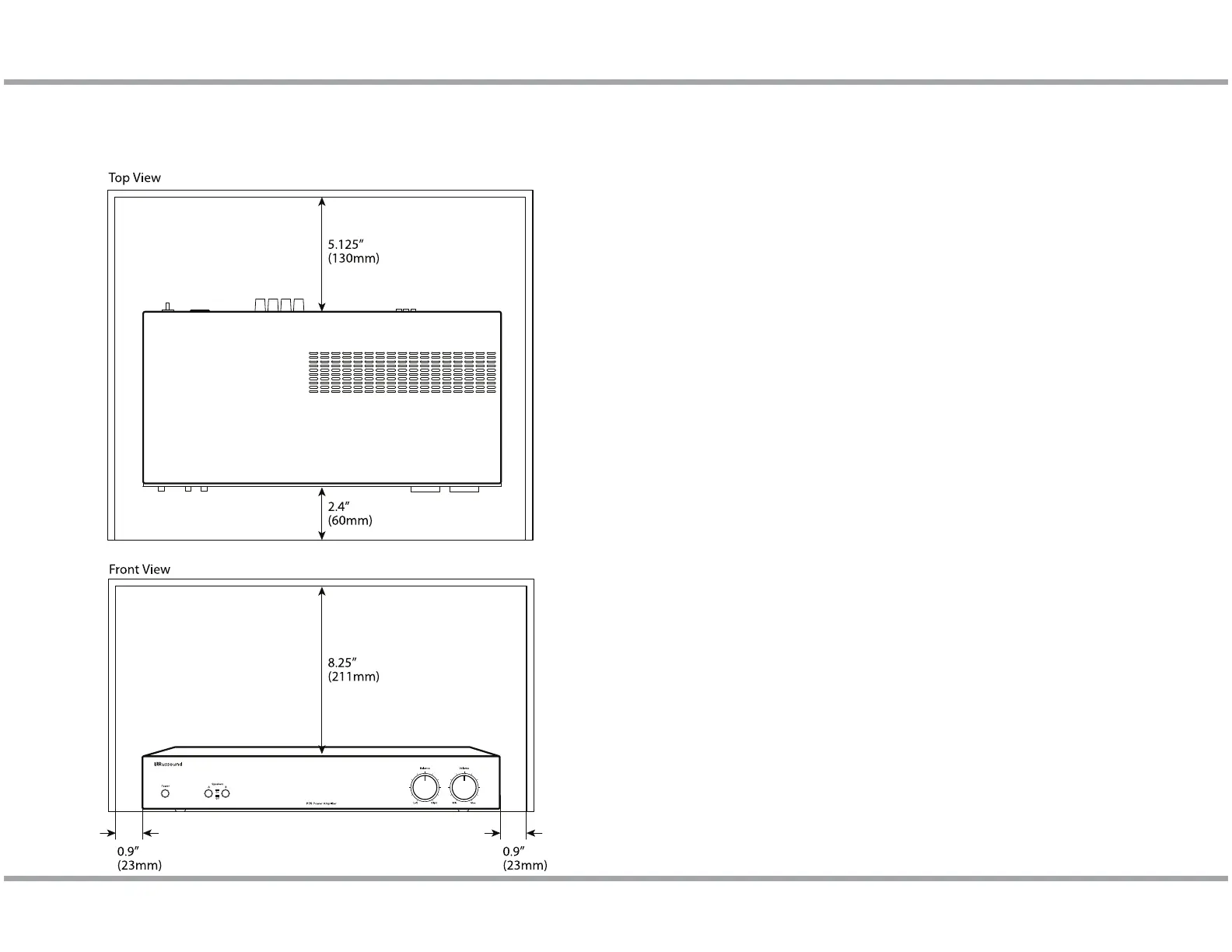

When installing the P75 Amplier, the clearances shown here MUST be kept
for proper ventilation of the amplier.
Safety Instructions .................................................................................................................. 2
Product Overview .................................................................................................................. 4
Front and Rear Panels ............................................................................................................5
System Conguration - Stereo Mode ............................................................................... 6
System Diagram - Stereo Mode.......................................................................................... 7
System Conguration - Bridged Mode ............................................................................8
System Conguration - Basic Speaker Connection .....................................................9
System Conguration - External Volume Controls ...................................................... 9
Technical Specications ......................................................................................................10
Warranty ...................................................................................................................................11
Table of ContentsClearance Requirements
