Hardware User Manual
AcousticDesign™ Series
AD-C245C Zero Bezel Accessory
AD-C305C Zero Bezel Accessory
TD-001703-01-A
*TD-001703-01*
The optional Zero Bezel Accessory for select AcousticDesign Series loudspeakers includes an adapter ring and a replacement magnetic
grille that, once installed, covers the entire loudspeaker flange. Refer to the table to match the correct accessory model number to your
loudspeaker:
Accessory Model Part Number Loudspeaker Compatibility
AD-C245C FG-901617-02 AD-C6T-HP
AD-C4T-LP
AD-C6T
AD-C305C FG-901618-02 AD-C6T-HC
AD-C.SUB
AD-C6T-LP
Mount the Loudspeaker: Zero Bezel Accessory

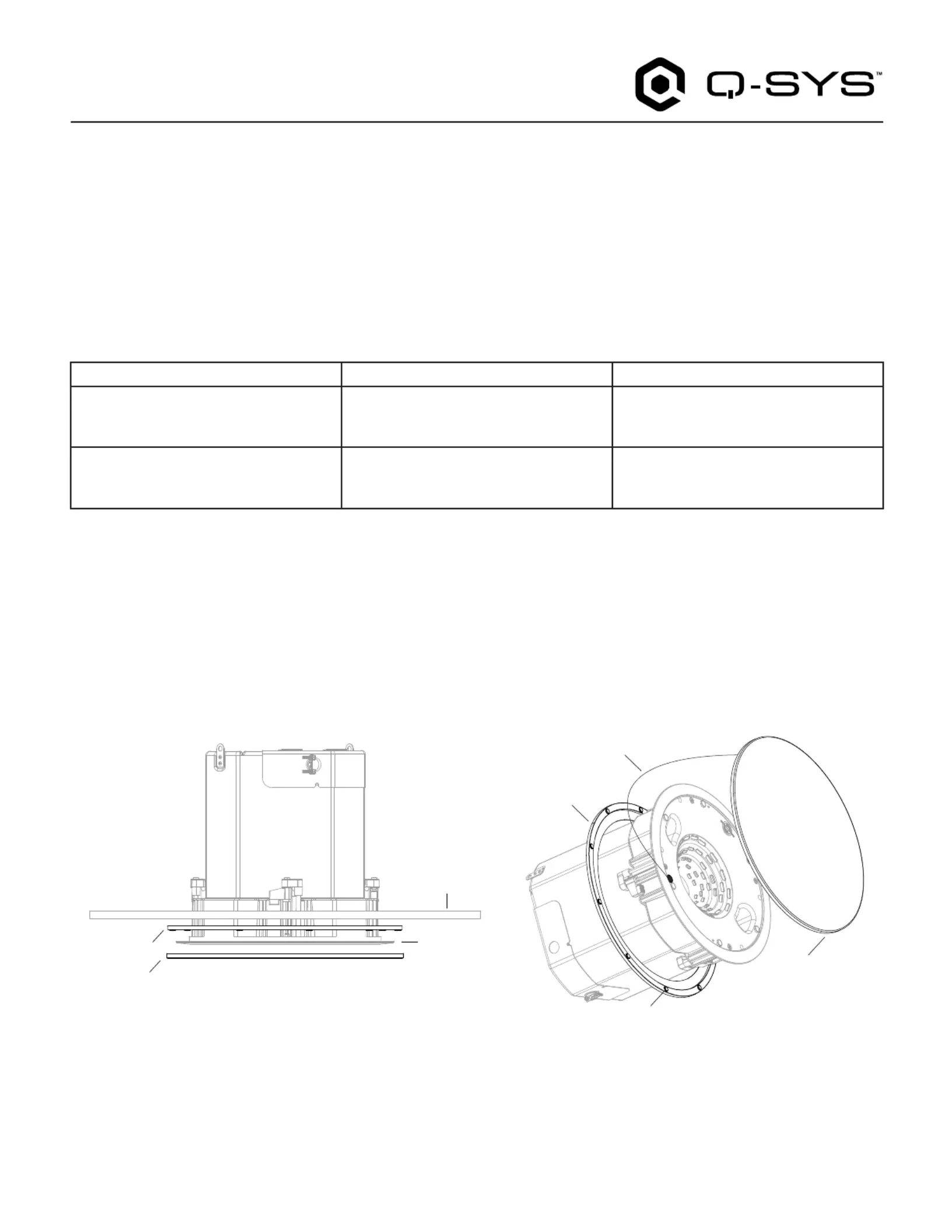

1. Place the adapter ring behind the loudspeaker flange and below the ceiling panel. See Figure 1.
2. Secure the loudspeaker's dog-ears. (Refer to your loudspeaker model's user manual for guidance.)
3. Insert the Zero Bezel magnetic grille's safety tether pin into the supplied hole on the loudspeaker baffle. See Figure 2.
4. Install the Zero Bezel grille, making sure that it's securely held in place. The old grille can be discarded, if desired.
Adapter Ring
Zero Bezel
Magnetic Grille
Magnets
Tether
Adapter Ring
Zero Bezel
Magnetic Grille
Ceiling Panel
Flange
— Figure 1 — — Figure 2 —
2
Knowledge Base
Find answers to common questions, troubleshooting information, tips, and application notes. Link to support policies and resources,
including Q-SYS Help, software and firmware, product documents, and training videos. Create support cases.
support.qsys.com
Customer Support
Refer to the Contact Us page on the Q-SYS website for Technical Support and Customer Care, including their phone numbers and
hours of operation.
qsys.com/contact-us/
Warranty
For a copy of the QSC Limited Warranty, go to:
qsys.com/support/warranty-statement/
© 2023 QSC, LLC. All rights reserved. QSC and the QSC logo, Q-SYS, and the Q-SYS logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark Office
and other countries. Patents may apply or be pending. All other trademarks are the property of their respective owners.
qsc.com/patents
qsys.com/patents
