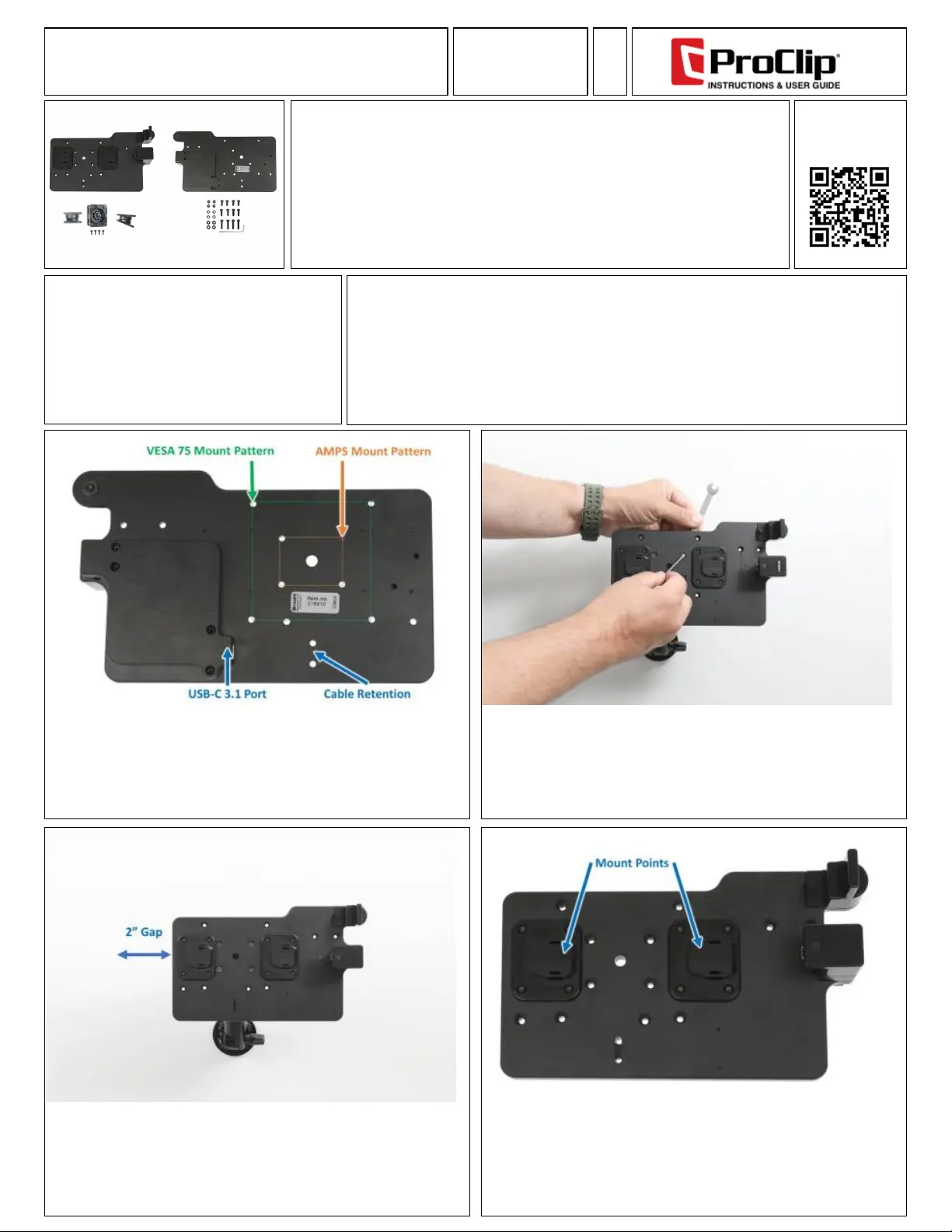

Item No. 216410 - ModTek USB-C 3.1 Dock

View Color

Instructions

Compatible with:

ProClip ModTek Hard Cases for

Android and Windows Devices

Compatible Power Supplies:

216406 - Hard-Wired Power Supply

945031 - Cigarette Lighter Adapter (Cig Plug)

945032 - AC Wall Power Supply Dual USB Ports

Important:

Self-installation instructions and advice are provided for your

convenience. It is your responsibility to determine if you have the

knowledge, skills, and physical ability required to properly perform an

installation. ProClip USA, LLC. shall have no liability for damage or

injury resulting from the installation or use of any ProClip or third

party products. It is your responsibility to ensure that all products are

installed in adherence with local laws and regulations and in such a

manner as to allow a vehicle to be operated safely and without

distraction. ProClip USA, LLC. product warranties do not cover the

installation, removal or reinstallation of any product.

Attention: Carefully read all instructions and review the images before installing this product.

Notice: It is important that the user of this product also receive this User Guide. This will give the user guidance

on how to use this product. Please leave the User Guide with the product after installation.

Warning: Docking a tablet in a ModTek Hard Case does not require signicant force. If the hard case does not

line up correctly, it is dicult to dock the tablet onto the USB-C connector. Do NOT force the tablet onto the

connector, simply remove the hard case and verify the alignment before docking again. Damage due to incorrect

docking is not covered by warranty.

1. Pedestal and Mount Compatibly:

This dock supports the AMPS and VESA75 mount hole patterns to attach of

vehicle and desktop mounts.

The back of the dock is where a USB-C 3.1 cable can be plugged in to provide

power and data to the tablet. The cable retention holes are for the included zip

tie to keep the cable in place.

An optional Tilt-Swivel is included with fasteners to enable the dock to attach to

a at surface and tilt up to 15 degrees.

3. Accessing the Dock:

Once the dock is installed it is important to leave approximately 2 inches

(50mm) of a gap to allow a ModTek Hard Case to be properly aligned and

docked.

2. Mounting the Dock:

Using the included M4 fastener pack, attach the ModTek Dock to your selected

mount. The example here shows a ProClip Heavy Duty Pedestal that is not included

with this product.

The included 3 lengths of M4 fastener pack can be used to attach the dock to a variety

of vehicle and desktop mounts. (#100223 Fastener Pack Included)

4. Mount Points:

This ModTek USB-C 3.1 Dock supports a variety of devices when installed in the

ProClip ModTek Hard Case. The two mount points are used to align the tablet with

the USB-C connector to ensure a perfect alignment and ensure the USB-C connection

to the tablet does not create excessive wear.

5. Aligning a Hard Case:

The ModTek Hard Case and USB-C Dock include alignment indicators to show

you where they should line up with each other for perfect engagement to the

mount points. Place your hand on top of the Hard Case and place it onto the

dock so both mount points are engaged before attempting to slide the case

onto the USB-C connector. NOTE: If only one mount point is engaged the

angle will be o when connecting to the USB-C connector and you can damage

it permanently. Damage due to incorrect docking is not covered by warranty.

7. Releasing the Case:

To release the case from the dock, use the quick release dial by turning it

clockwise similar to turning a key. This will release the Hard Case and it will

slide it slightly o the USB-C connector. Note: It is almost impossible to release

the tablet without using the quick release lever and it should not be attempted.

6. Docking onto the USB-C:

Once the Hard Case is aligned by engaging both mount points, smoothly slide the

tablet onto the USB-C connector until you hear an audible click. The audible click

conrms the case is properly docked. Note: Do not force the tablet onto the connector.

If you feel signicant resistance the case is not properly aligned. Remove it and

ensure alignment on both mount points before continuing.

8. Releasing from the Dock:

Switch grip from the quick release dial and place your hand on top of the case.

Continue to slide the case until you see the alignment line and then pull the case

towards you.
