PDY212SM & PDY215SM Active Stage Monitor

Ref. nr.: 178.636; 178.638

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUAL DE INSTRUCCIONES

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

NÁVOD K POUŽITÍ

V1.0

ENGLISH

Congratulations to the rchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in pu

order to benet fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to

avoid re and/or electrical shock. Repairs must only be carried out by a qualied technician in order to avoid electrical shock.

Keep the manual for future reference.

- or to using the unit, please ask advice from a Pri

specialist. When the unit is switched on for the rst time,

some smell may occur. This is normal and will disappear

after a while.

- The unit contains voltage carrying parts. Therefore do

NOT open the housing.

- Do not place metal objects or pour liquids into the unit

This may cause electrical shock and malfunction.

- Do not place the unit near heat sources such as

radiators, etc. Do not place the unit on a vibrating

surface. Do not cover the ventilation holes.

- The unit is not suitable for continuous use.

- Be careful with the ins lead and do not damage it. A ma

faulty or damaged mains lead can cause electrical shock

and malfunction.

- When unplugging the unit from a mains outlet, always

pull the plug, never the lead.

- not plug or unplug the unit with wet hands. Do

- If the plug and/or the mains lead are damaged, they

need to be replaced by a qualied technician.

- If the unit is damaged to such an extent that internal

parts are visible, do NOT plug the unit into a mains outlet

and DO NOT switch the unit on. Contact your dealer.

- To avoid re and shock hazard, do not expose the unit to

rain and moisture.

- All repairs should be carried out by a qualied technician

only.

- Connect the unit to an earthed mains outlet (220-

240Vac/50Hz) protected by a 10-16A fuse.

- During a thunderstorm or if e unit will not be used for a th

longer period of time, unplug it from the mains. The rule

is: Unplug it from the mains when not in use.

- If the unit has not been used for a longer period of time,

condensation may occur. Let the unit reach room

temperature ore you switch it on. bef

- Never use the unit in humid rooms or outdoors.

- To prevent accidents in companies, you must follow the

applicable guide lines and follow the instructions.

- Do not repeatedly switch the xture on and o. This

shortens the life time.

- Keep the unit out of the reach of children. Do not leave

the unit unattended.

- Do not use cleaning sprays to clean switches. The

residues of these sprays cause deposits of dust and

grease. In case of malfunction, always seek advice from

a specialist.

- Do not force the controls.

- is unit is with speaker inside which can cause Th

magnetic eld. Keep this unit at least 60cm away from

computer or TV.

- If this product have a built-in lead-acid rechargeable

battery. Please recharge the battery every 3 months if

you e not going to use the product for a long period of ar

time. Otherwise the battery may be permanently

damaged.

- If the battery is damaged please replace with same

specications battery. And dispose the damaged battery

environment friendly.

- If the unit has fallen, always have it checked by a

qualied technician before you switch the unit on again.

- Do not use chemicals to clean the unit. They damage the

varnish. Only clean the unit with a dry cloth.

- Keep away from electronic equipment that may cause

interferenc e.

- Only use original spares for repairs, otherwise serious

damage and/or dangerous radiation may occur.

- Switch the unit o prior to unplugging it from the mains

and/or other equipment. Unplug all leads and cables

prior to moving the unit.

- Make sure tha he mains lead cannot be damaged when t t

people walk on it. Check the mains lead before every use

for damages and faults!

- The mains voltage is 220-240Vac/50Hz. Check if power

outlet match. If you travel, make sure that the mains

voltage of the country is suitable for this unit.

- Keep the original packing material so that you can

transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sucient

magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should

read and adhere to.

The unit has been certied CE. It is prohibited to make any changes to the unit. They would validate the CE certicate and in

their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/ °F 41 and

35 95°C/ °F .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your

dealer about the way to proceed. The specications are typical. The actual values can slightly change from one unit to the other.

Specications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid

your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings

contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety

recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box on receipt. Check the contents to ensure that all parts are present and have been up

received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from

s pping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be hi

returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The

arising condensation water might damage your device. Leave the device switched o until it has reached room temperature.

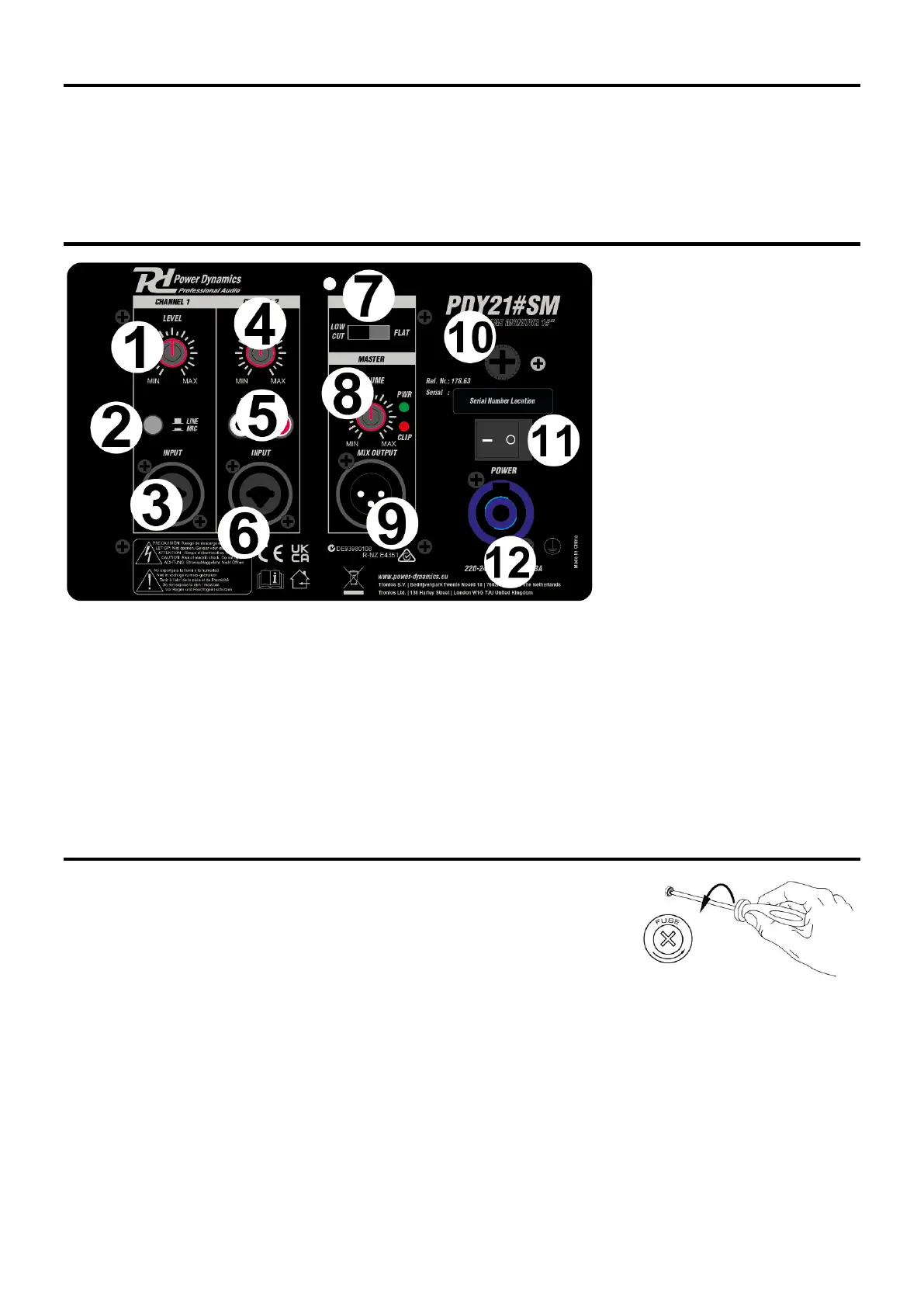

CONNECTIONS

1. CHANNEL 1 LUME LEVEL:VO Rotate to adjust the volume level of channel 1.

2. MIC / LINE SWITCH: Press to switch between line- and microphone input.

3. CHANNEL 1 INPUT: Combo jack input, suitable for both XLR and 6.3mm jack.

4. CHANNEL 2 VOLUME LEVEL: Rotate to adjust the volume level of channel 2.

5. RCA INPUT: RCA line signal input sockets.

6. CHANNEL 2 INPUT: Combo jack input, suitable for both XLR and 6.3mm jack.

7. LOW CUT / FLAT SWITCH: Switch to lter out the low frequencies (low cut) or keep the full frequency range (at).

8. MASTER VOLUME LEVEL: Rotate to adjust the master volume level.

9. MIX OUTPUT: XLR output socket for mix output signal.

10. FUSE HOLDER: Screw-type fuse holder.

11. POWER SWITCH : Switch to turn e devi O or OFF.th ce N

12. POWER CONNECTOR: Socket for plugging in the supplied power cord.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a tting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housin g.

Specyfikacje produktu

Marka:	Power Dynamics
Kategoria:	głośnik
Model:	PDY212SM
Kolor produktu:	Czarny
Rodzaj zasilania:	Prąd przemienny
Częstotliwość wejściowa AC:	50 Hz
Napięcie wejściowe AC:	220-240 V
Wysokość produktu:	505 mm
Szerokość produktu:	340 mm
Głębokość produktu:	455 mm
Waga produktu:	17200 g
Ilość na paczkę:	1 szt.
Rekomendowane użycie:	Scena
Technologia łączności:	Przewodowa
Moc wyjściowa (RMS):	350 W
Kanały wyjścia audio:	- kan.
Wejście XLR:	Tak
Klasa wzmacniacza:	D
Zasięg częstotliwości:	60 - 20000 Hz
Rozmieszczenie głośników:	Podłoga
Głośnik wysokotonowy:	Tak
Głośnik niskotonowy:	Tak
Wzmacniacz:	Wbudowany
Typ głośnika:	2-drożny
Rodzaj magnesu:	Ferryt
6,35 mm (1/4 cala) wejście:	1
Średnica głośnika wysokotonowego:	1 "
Średnica głośnika niskotonowego (imperial):	12 "
Złącza audio RCA:	1
Maksymalny poziom natężenia dźwięku:	128 dB
