Congratulations on the purchase of your
Porter&Charles
appliance.
We are sure it will provide many years of great cooking experience.
You may nd that it has dierent features and characteristics to your last
appliance.
It is essential you read this operation manual thoroughly to fully
understand all of the various functions and operations. Experiment with
your cooking and take advantage of the features your new appliance oers.
This manual should be retained for future reference. Should ownership of
the appliance be transferred, please ensure that the manual is also passed
onto the new owner.
Contents
A - Installation check and warnings Page 3 -7
B - Cooker Measurement Page 8
C - Electrical Requirements Page 9
D- Using the appliance for the rst time Page 10 - 11
E- Accessories Page 12
F- Electronic Programmer Operation Page 13 - 15
G- Gas Cooktop Control Panel Page 16
H- Gas Cooktop Control Functions Page 17
I- Ceramic Cooktop Control Panel Page 18
L- Ceramic Cooktop Functions Page 19
M- Oven Functions & Control Panel Page 20 26
N- Cleaning and maintenance Page 26 - 31
P- Trouble shooting guide - Electrical wiring Page 32 - 34
Q- Warranty Page 35
3
A - Installation instructions check and warnings
IMPORTANT:
Please ensure that the cut out measurement, venting and wiring is as specied in the
relevant section B of this manual.
A licensed electrician with relevant qualications must perform electrical work when installing or
servicing the appliance. The supply cable and fuse rating must be suitable for the appliance. You
must never repair or replace any part of the appliance unless specifically recommended in the
operation manual.
Ventilation opening must not be covered or obstructed in any way.
VENTILATION
The room containing this cooker should have an air supply in accordance with local regulations.
- All rooms require an open window, or equivalent and some rooms will require a
permanent vent as well.
- For room areas up to 5 m
2
an air vent of 100 cm
2
is required.
- For room areas between 5 m
2
and 100 cm
2
an air vent of 50 cm
2
is required.
- If the room is greater than 5 m
2
and has a door that opens directly to the outside, then no
air vent is required.
- If there are other fuel burning appliances in the same room local regulations should be
consulted to determine the air vent requirements.
DISCHARGE OF FUEL GASES
Cooking appliances must always discharge theue
gases into special hoods (g.1-C), which must be
connected to chimneys,ue pipes or have direct
access to the outside. If it is not possible to connect
a hood, an electric fan can be tted to a window or
a wall (g.1-E), which must be turned on when the
cooker is on, as long as ventilation standards are
Fig.1
4
RECOMMENDED VENTILATION HEIGHT
- for ceramic cooktop model min. 24” above range
- for gas cooktop model min. 30” above range
When ranges are installed in close proximity to vinyl nish cabinets,
those materials should be able to withstand temperature up to 75°C centigrade.
Alternatively, heat insulating barriers should be installed to avoid any
deterioration to the finish.
The equipment must not be installed near inammable materials, such as curtains, cloths etc.
Pay particular attention to the position of the electric cable and gas pipe: they must
not touch any hot parts of the oven
The manufacturer will not accept responsibility for damages to cabinetry where
manufacturer installation guidelines were not adhered to.
CONVERTING THE GAS-SUPPLY TO THE HOB BURNERS
Burners: auxiliary, semi-rapid, rapid, triple crown, griddle burner.
These burners are all tted with injectors designed to create a primary input of air gauged for
each type of gas. This means that the air regulator does not have to be regulated. Proceed as
follows in order to convert from one type of gas to another: remove the grids, covers, holed flame
diuser and the burner supports (g. 7); replace the holed injectors as indicated in 7/C according
to the type of gas used (see table 1); put the burner supports, ame diusers, covers and grids
back in position; regulate the minimum output following the instructions in paragraph 1.7.

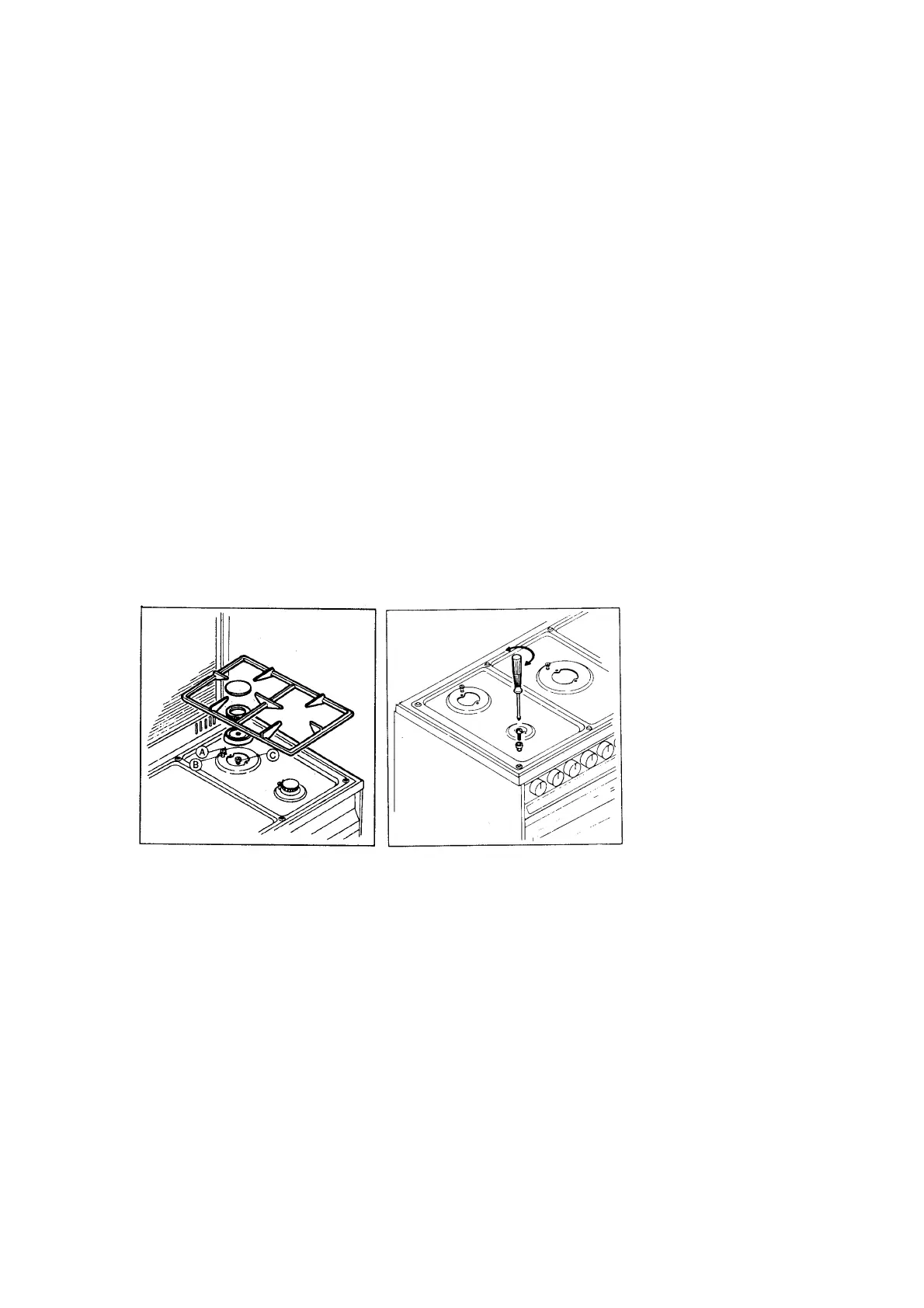

Fig.7 7/C
