Congratulations on the purchase of your
Porter&Charles
appliance.
We are sure it will provide many years of great cooking experience.
You may nd that it has dierent features and characteristics to your last
appliance.
It is essential you read this operation manual thoroughly to fully
understand all of the various functions and operations. Experiment with
your cooking and take advantage of the features your new appliance oers.
This manual should be retained for future reference. Should ownership of
the appliance be transferred, please ensure that the manual is also passed
onto the new owner.
Contents
A - Installation check and warnings Page 3 - 7
B - Range Measurements Page 8 - 11
C - Electrical Requirements Page 12
D- Using the appliance for the rst time Page 13 - 14
E- Accessories Page 14- 15
F- Electronic Programmer Operation Page 16 - 18
G- Gas Cooktop Control Panel Page 19
H- Gas Cooktop Control Functions Page 20
I- Ceramic Cooktop Control Panel Page 21 - 22
L- Ceramic Cooktop Functions Page 23
M- Oven Functions & Control Panel Page 24 - 30
N- Cleaning and maintenance Page 31 - 35
P- Trouble shooting guide Page 35
Wiring diagram Page 36-41
Q- Warranty Page 42
3
A - Installation instructions check and warnings
WARNING
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING
During use the appliance becomes hot. Care should be taken to avoid touching heating elements
inside the oven.
IMPORTANT:
Please ensure that the cut out measurement, venting and wiring is as specied in the
relevant section B of this manual.
A licensed electrician with relevant qualications must perform electrical work when installing or
servicing the appliance. The supply cable and fuse rating must be suitable for the appliance. You
must never repair or replace any part of the appliance unless specifically recommended in the
operation manual.
Ventilation opening must not be covered or obstructed in any way.
VENTILATION
The room containing this range should have an air supply in accordance with local regulations.
- All rooms require an open window, or equivalent and some rooms will require a
permanent vent also.
- For room areas up to 5m
2
an air vent of 100cm
2
is required.
- For room areas between 5m
2
and 100cm
2
an air vent of 50cm
2
is required.
- If the room is greater than 5m
2
and has a door that opens directly to the outside, then no
air vent is required.
- If there are other fuel burning appliances in the same room, check your local regulations
to determine the air vent requirements.
4

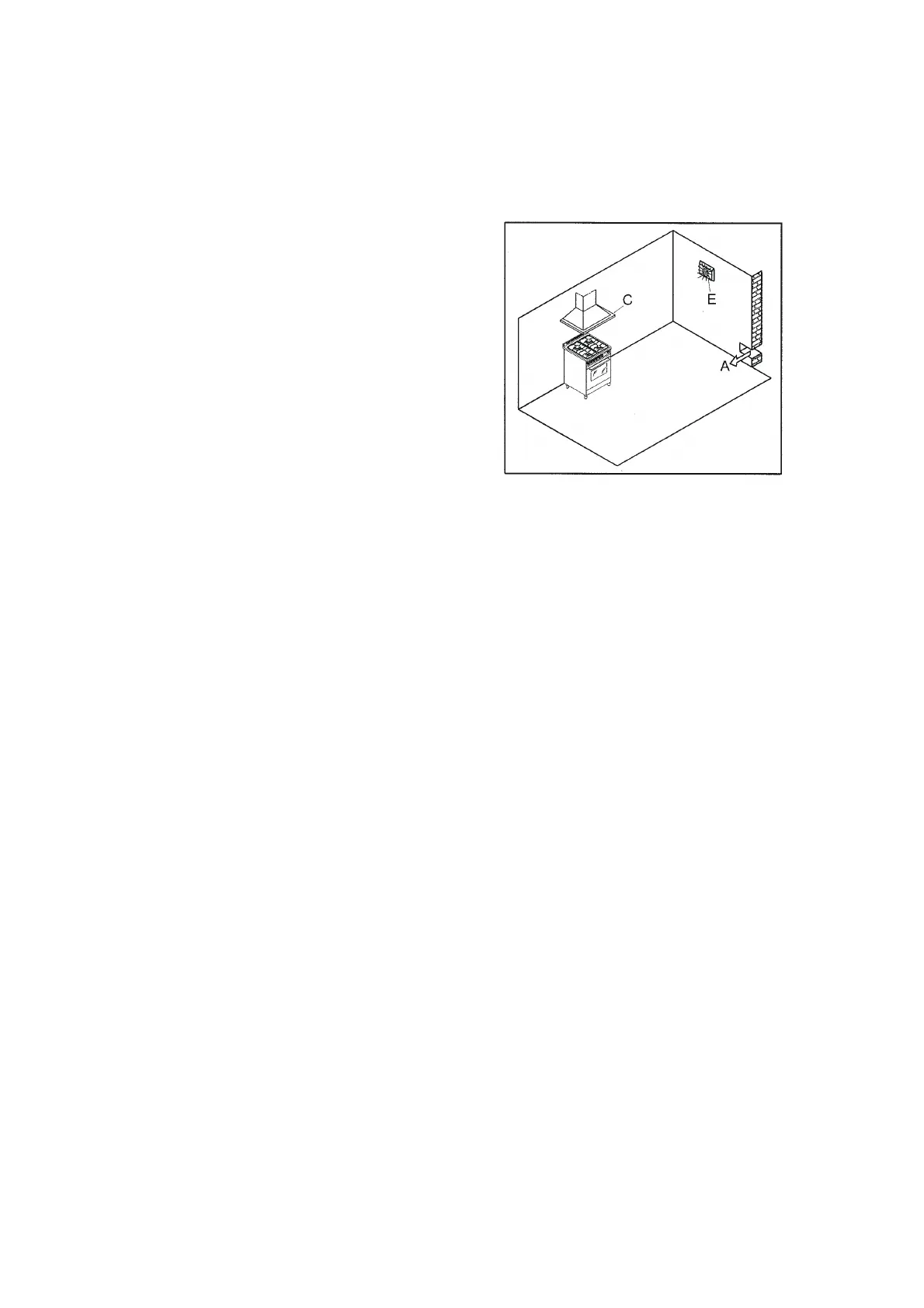

DISCHARGE OF FUEL GASES
Cooking appliances must always discharge the ue
gases into special hoods (g.1-C), which must be
connected to chimneys, ue pipes or have direct
access to the outside. If it is not possible to connect
a hood, an electric fan can be tted to a window or
a wall (g.1-E), which must be turned on when the
cooker is on, as long as ventilation standards are
Fig.1
RECOMMENDED VENTILATION HEIGHT
- for ceramic cooktop model min. 60cm (24”) above range
- for gas cooktop model min. 76cm (30”) above range
When ranges are installed in close proximity to vinyl nish cabinets, those materials should be
able to withstand temperatures up to 75°C.
Alternatively, heat insulating barriers should be installed to avoid any deterioration to the
nish.
The equipment must not be installed near inammable materials, such as curtains, cloths, etc.
Pay particular attention to the position of the electric cable and gas pipe: they must
not touch any hot parts of the oven.
The manufacturer will not accept responsibility for damages to cabinetry where
manufacturer’s installation guidelines were not adhered to.
CONVERTING TO LPG
Burners: auxiliary, semi-rapid, rapid, wok burner.
These burners are all tted with injectors designed to create a primary input of air gauged for
each type of gas.
Proceed as follows in order to convert from one type of gas to another:
- remove the grids, covers, ame diuser and the burner supports (g. 7);
- replace the injectors as indicated in 7/C according to the type of gas used (see table 1);
- put the burner supports, flame diusers, covers and grids back in position;
- regulate the minimum output following the instructions in paragraph 1.7.
NOTE: Regulator needs to be set for the gas being used.
