1. RELEASE BUTTON
Press the REL button to release the front control panel from the unit chassis,
then pull it up a little to remove from the unit chassis.
2.POWER ON/OFF & MUTE
When the unit is power off, the unit comes to on by pressing any button except
the EJECT and the RELEASE button.
When the unit is power on, press and hold the power button for more than 0.5
seconds, the unit goes into power off mode.
When the unit is power on, press the power to switch the MUTE state on/off.
3. CD SLOT
4. LCD Display
5.EJECT KEY
In the power on state, the loaded disc can be ejected by pressing the EJ key.
6&7. TUNE, SEEK, TRACK, SKIP UP / DOWN BUTTONS
a) During RADIO mode:
Press the >>| or |<< button briefly to manual tune up/down for the desired radio
station frequency step by step.
Press and hold the >>| or |<< button for longer0.5seconds ,to automatically turn
up/down for the radio station frequency of strongsignal.
SPECIFICATION
GENERAL
Supply Voltage DC 12 V. Negative Ground
Current Consumption Max.10A
Power Output 4 X 60W
Number of channels 2 STEREO channels.
Unit Dimensions 178[W] X 165[D] X 50[H] mm
7 X 6.5 X 1.97 inch
FM SECTION
Frequency range 87.5MHz -108MHz (Eur)
87.5MHz - 107.9MHz (USA)
Effective sensitivity 3uV.
I.F Frequency 10.7MHz.
AM SECTION
Frequency range 522KHz - 1620KHz (Eur)
522KHz - 1710KHz (USA)
Effective sensitivity 40dB.
I.F Frequency 450KHz
RCA LINE OUT
Output 1000mV @ CD MAX.
CD PLAYER
System MP3 Audio System.
Suitable CDs MP3, CD,CD-R,CD-RW Disc
Frequency characteristics 20Hz-100Hz < 5dB
\
10KHz-20KHz < 5dB.
\
S/N Ratio to CD 50dB [1KHz]
21
23
CONNECTOR A
1.
2.
3.
4. CONSTANT +12VDC
5. Auto Antenna B+
6.
7. ACC+12VDC
8. GROUND
CONNECTOR B
1. Rear Right Speaker (+)
2. Rear Right Speaker (-)
3. Front Right Speaker (+)
4. Front Right Speaker (-)
5. Front Left Speaker (+)
6. Front Left Speaker (-)
7. Rear Left Speaker (+)
8. Rear Left Speaker (-)
ISO SOCKET SKETCH
FUSE 10 A
22
Page 9 Page 2
p y g
Press the |<< button briefly to play the previous track if the playing time is
less than 2 seconds.
Press the >>| or |<< button and hold to skip forwards or backwards,
to resume normal playback.
8.SEL(MENU) BUTTON AND VOLUME UP ( + )/ DN ( - ) KONB
a) Press the SEL button briefly, it is activated as selecting each mode o
-> VOLUME ->BASS ->TREBLE -> BALANCE -> FADER ->
When selecting a desired audio mode, rotate the VOL knob to adjust
audio effect.
In each mode, the waiting time is about 5 seconds, and the time waitin
is over, it returns to the last display mode of tuner or CD mode.
The control mode of E.VOL is operated with following numeric display
- VOL: (MIN)00, 01,......46, 47(MAX).
- BASS/TRE: -07, -06,...,00,...+06,+07
- BAL: L ....................I..................R
- FAD: F................ ....I..................R
b) When pressed longer 2 seconds, it is activated as cyclical mode of fo
functions for user’s selection.
->TA(ON/OFF) -> AF(ON/OFF) -> TA (ALARM/SEEK) ->PI (SOUND
->RETURN (LONG/SHORT)->MASK(DPI/ALL) ->BEEP (ON/OFF)
-> USER SET(FLAT/CLASSIC/ROCK/POP)->SUBW• •ON/OFF)
->VOL(LAST/DEFA) -> EUROPE/AMERICA ->MONO/STEREO
(only for FM mode)->LOUD(ON/OFF) ->LOCAL/DX(only for FM mo
,
->CLK(ON/OFF) ->CLK(12/24)mode->CLK00 00(you can adjust H
MINUTE by rotating the VOL knob).
After selecting the desired mode, rotate the VOL knob to select one s
item of the desired mode.
1) TA [TRAFFIC ANNOUNCEMENT]
When TA mode is on(TA is displayed on LCD), it will begin to seek TA
and TA SEEK will be displayed on LCD for a while.
When traffic announcement is transmitted:
(1)If the unit is in USB or disc mode, it will switch to radio mode tempo
Temporarily switch over to an EON linked station when EON detects
announcement on that other program, and TP will be displayed on L
(2)If volume level is below 20, volume level is raised to 20, and returns
previous mode and volume level when the traffic announcement is o
(3)If volume is adjusted during traffic announcement, only the traffic
announcement volume is valid
* TA interruption function:
The current traffic announcement is cancelled by pressing this key. B
TA mode will not be off.
* When TA is on, SEEK, (SCAN), AUTO MEMORY function can be rece
saved only when traffic program identification code has been receive

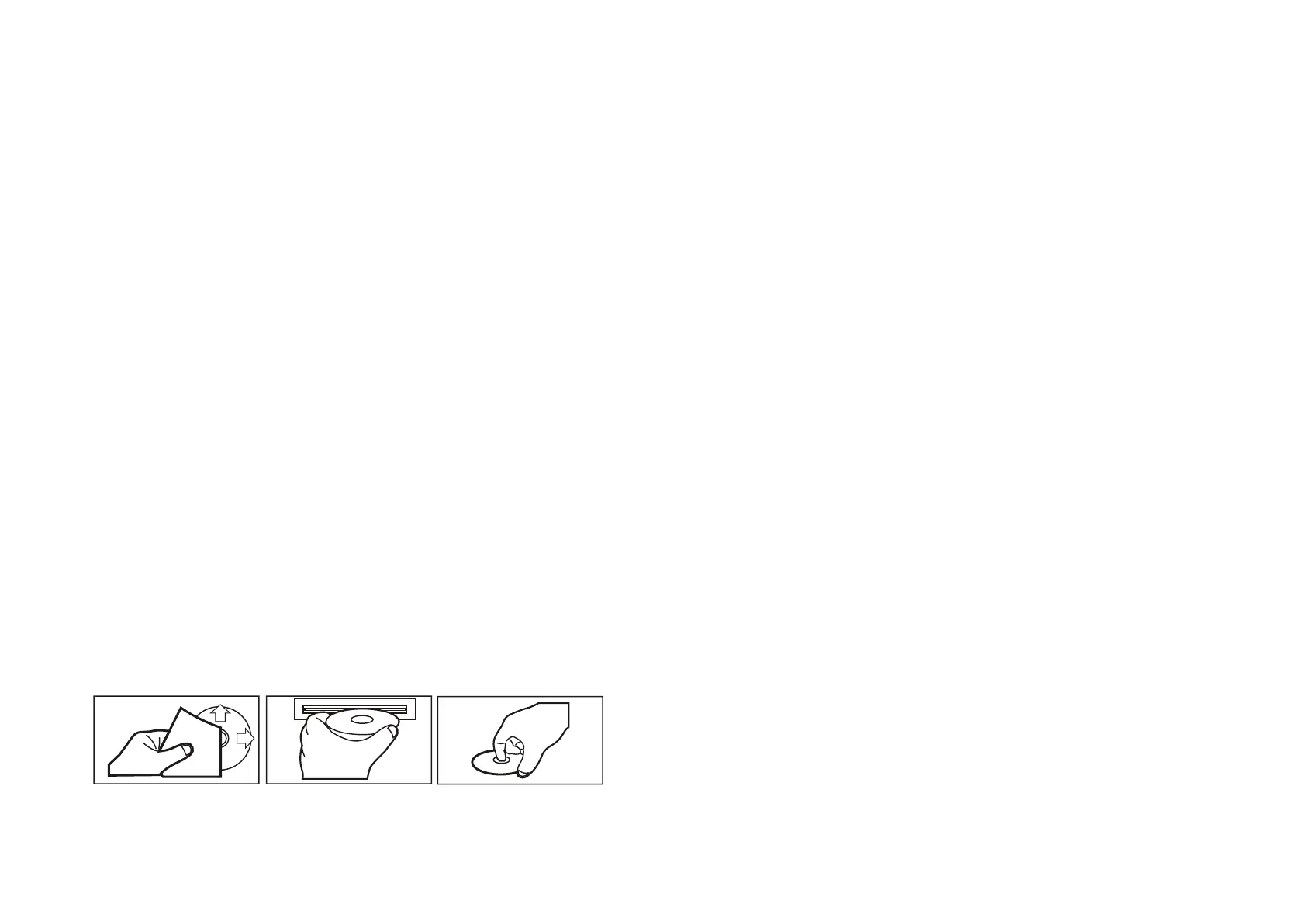

1. To keep the disc clean:
Before playing a disc, wipe it off with a clean, dust-free cleaning cloth.
Wipe the disc outwards from the disc center.
2. When one has already been inserted. Doing so may damage the unit
Do not attach any sticker or adhesive tape on the disc.
Handle the disc by its edge to keep the disc clean and do not touch the surface.
. Insert a disc
with labeled surface up, or it will damage the unit.
3. Do not expose the disc to direct sunlight or nearby heat sources such as heating
vents, caliduct which can cause the disc to warp.
Do not leave disc in a car if it is parked in direct sunlight as that will lead to a
considerable rise in the temperature inside the car.
4. Do not use any secondhand or rented disc, usually, there is glue on the surface of
those discs, it will stop the unit working and damage it.
5. Always store the disc in its case for protection. Scratched up discs will produce poor
sound performance and cause CD player to skip.
6. In raining day or wet area, the moisture may form on the disc or the optical parts,
the playback may not be possible. If moisture forms on the disc, wipe it off with a
soft cloth.
If moisture forms on the optical parts of the unit, allow the unit to sit for about one
hour with power on.
7. Do not use solvents such as benzine or thinners. Commercially available cleaners
or anti-static spray will damage the unit.
CD-R/W discs. In some cases, particularly when recorded on older CD burners,
some CD-R and CD-R/W discs may not play. Also, whenever you are recording
a CD for playback in this receiver, it is recommended that you record at 24x or
slower speed for CD-R and 4x or slower for CD-R/W to achieve higher signal
quality and better playback performance.

Specyfikacje produktu

Marka: Planet Audio
Kategoria: Radia samochodowe
Model: P380UA
