Strona 1/132

Operating Instructions

Functional Manual

FULL HD LCD Display For business use

Model No. TH-65SF2U

65-inch model

TH-65SF2E

65-inch model

TH-55SF2U

55-inch model

TH-55SF2E

55-inch model

TH-49SF2U

49-inch model

TH-49SF2E

49-inch model

TH-43SF2U

43-inch model

TH-43SF2E

43-inch model

English Please read these instructions before operating your set

and retain them for future reference.

* This manual is common to all the models regardless of suffixes of the

model number.

U : for US, Canada and Mexico

E : for EU and CIS

DPQP1157ZC

English

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that

you will have many years of enjoyment from your new LCD

Display.

To obtain maximum benefit from your set, please read these

Instructions before making any adjustments, and retain them

for future reference.

Retain your purchase receipt also, and note down the model

number and serial number of your set in the space provided

on the rear cover of these instructions.

Visit our Panasonic Web Site http://panasonic.com

Table of Contents

Before use

● Illustrations and screens in this Operating Instructions

are images for illustration purposes, and may be

different from the actual ones.

● Descriptive illustrations in this Operating Instructions

are created mainly based on the 65-inch model.

Important Safety Instructions 4 ..........................

FCC STATEMENT 5 ..............................................

Important Safety Notice 6 ...................................

Safety Precautions 8 ...........................................

Precautions for use ........................................ 11

Accessories 13 ....................................................

Accessories Supply 13 ··········································

Remote Control Batteries 14 ··································

Kensington security 14 .......................................

Connections 15 ....................................................

AC cord connection and fixing / Cable fixing 15 ··········

Video equipment connection 17 ······························

Before connecting 18 ············································

HDMI 1 and HDMI 2 terminals connection 18 ·············

DVI-D IN / DVI-D OUT terminal connection 19 ···········

PC IN terminal connection 21 ·································

AV IN terminal connection 22 ··································

DIGITAL LINK terminal connection 22 ······················

* DIGITAL LINK is for TH-65SF2E only.

SERIAL IN / SERIAL OUT terminal connection 23 ·······

IR IN/IR OUT terminal connection 25 ·······················

AUDIO OUT terminal connection 26 ·························

USB terminal connection 26 ···································

Identifying Controls 28 ........................................

Main unit 28 ························································

Remote Control Transmitter ······························· 29

Basic Controls 30 ................................................

Selecting the input signal 31 ···································

RECALL························································· 32

Volume Adjustment ·········································· 32

Sound mute On / Off 33 ·········································

OFF TIMER ···················································· 33

ASPECT Controls 34 ...........................................

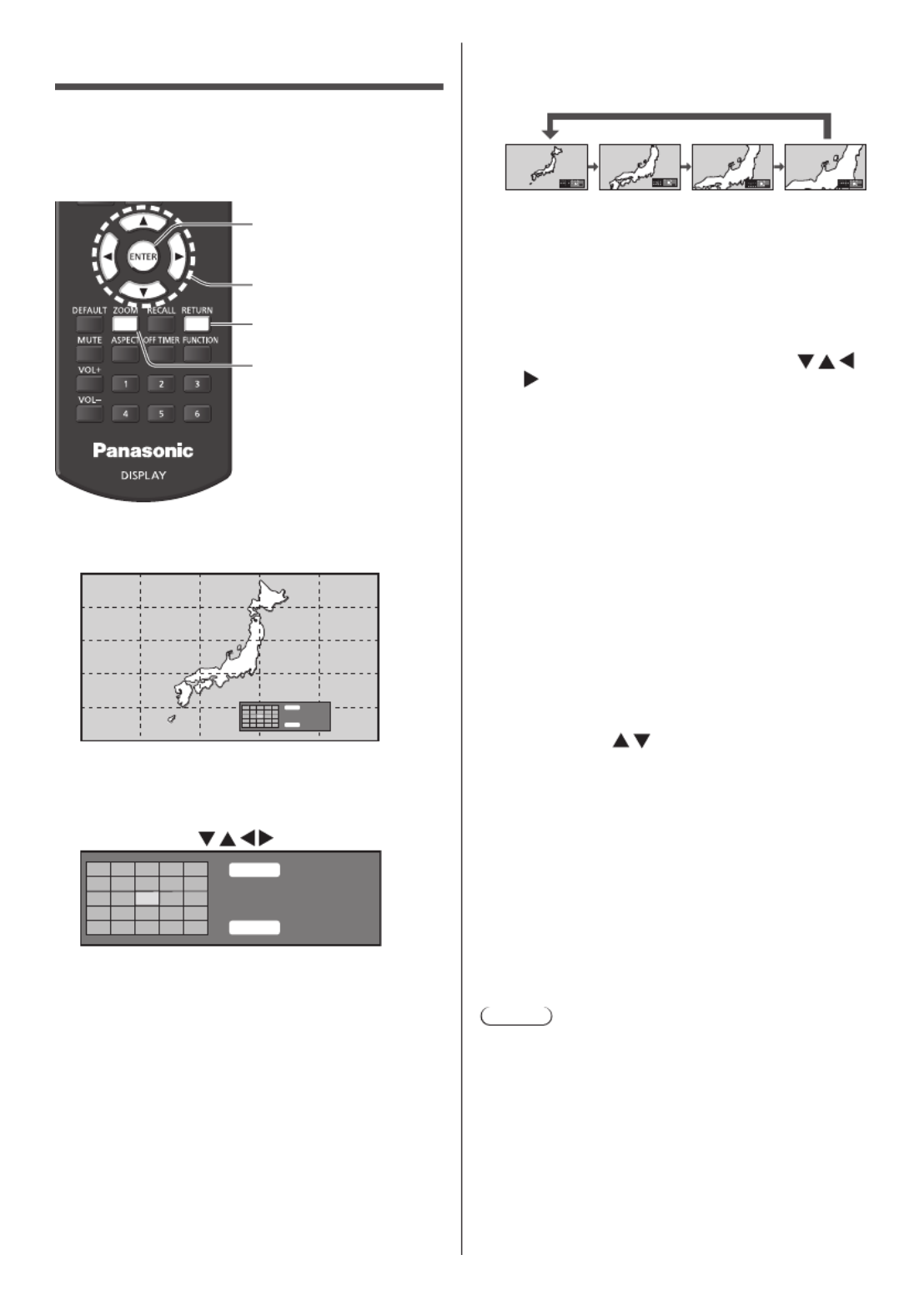

Digital ZOOM 35 ...................................................

English

On-Screen Menu Displays 36 .............................

Adjusting Position 38 ..........................................

Auto setup 38 ······················································

Sound Adjustment ..........................................40

Picture Adjustments ....................................... 41

Picture Profiles 44 ...............................................

Saving profiles 45 ················································

Loading profiles 45 ···············································

Editing profiles 46 ················································

Setup menu 47 .....................................................

Signal 47 ····························································

Screensaver (For preventing image retention)········ 50

Input label 51 ······················································

Power management settings 51 ······························

HDMI-CEC settings 53 ··········································

Image settings 54 ·················································

Wobbling 55 ························································

No activity power off 55 ·········································

OSD language 55 ················································

Multi display settings 56 ········································

Set up timer 57 ····················································

Date and time 57 ·················································

Network settings 59 ··············································

USB media player settings 62 ·································

Memory viewer settings 63 ·····································

Function button settings 64 ····································

Display orientation 66 ···········································

Image rotation 66 ·················································

OSD position 66 ··················································

Menu display duration 66 ·······································

Menu transparency 66 ··········································

Options Adjustments ..................................... 67

Using Network Function 77 ................................

Necessary environment for computers to be connected

··· 77

Example of network connection 77 ··························

Command control 79 ············································

Control Command via LAN 79 ································

PJLink protocol 83 ················································

Multi Monitoring & Control Software 84 ·····················

Video Wall Manager 84 ·········································

Content Management Software 84 ···························

Connecting with LAN 85 .....................................

Computer operation 85 ··········································

Using Web Browser Control 85 ..........................

Before Using Web Browser Control 85 ·····················

Access from Web Browser 86 ·································

Operating with Web Browser 86 ······························

Using Web Browser Control 93 ·······························

USB media player 95 ...........................................

Function description 95 ·········································

Preparation 96 ·····················································

Playing back the files 98 ········································

Network environment (Multi Media Player only) 100 ····

Starting / ending Media Player 101 ··························

Resume Play function 101 ·····································

Playlist edit function· 102 ·······································

Schedule playback function using “Content

Management Software” 103 ···································

Memory viewer..............................................107

Preparation 107 ···················································

Displaying the “Memory viewer” screen 109 ··············

Playing the pictures ·········································110

Playing the video / music ··································111

About HDMI-CEC function ........................... 112

Connection ····················································112

Setting ··························································112

Interlocking devices ·········································112

Operating a device (using the remote control of this

unit) ·····························································113

Data Cloning ................................................. 114

Copying data to other display via LAN ·················114

Copying the display data to the USB memory ·······116

Copying the USB memory data to the display ·······117

USB memory network settings ................... 118

Saving the LAN setting file to the USB memory device ····

118

Copying the USB memory data to the display ·······118

ID Remote Control Function ........................ 119

Setting the remote control’s ID number ················119

Cancelling the setting of remote control’s ID number

(ID “0”) ··························································119

Entering characters 120 ......................................

Preset Signals 121 ...............................................

Shipping condition 123 .......................................

Troubleshooting 124 ...........................................

Specifications 128 ...............................................

Software License 131 ..........................................

English

WARNING

WARNING: To reduce the risk of electric shock,

do not remove cover or back.

No user-serviceable parts inside. Refer servicing

to qualified service personnel.

The lightning flash with arrow-head within a

triangle is intended to tell the user that parts

inside the product are a risk of electric shock

to persons.

The exclamation point within a triangle

is intended to tell the user that important

operating and servicing instructions are in the

papers with the appliance.

WARNING :

To prevent damage which may result in fire or

shock hazard, do not expose this apparatus to

rain or moisture.

Do not place containers with water (flower vase,

cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING :

1) To prevent electric shock, do not remove cover. No

user serviceable parts inside. Refer servicing to

qualified service personnel.

2) Do not remove the grounding pin on the power

plug. This apparatus is equipped with a three pin

grounding-type power plug. This plug will only fit

a grounding-type power outlet. This is a safety

feature. If you are unable to insert the plug into the

outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

(

65-inch model

only)

Important Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The

wide blade or the third prong are provided for your

safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the

obsolete outlet. ( 65-inch model only)

10) Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the

apparatus.

11) Only use attachments / accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart / apparatus combination

to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin

on the AC cord power plug is securely connected.

(65-inch model only)

English

Important Safety

Notice

WARNING

1) To prevent damage which may result in fire or

shock hazard, do not expose this appliance to

dripping or splashing.

Do not place containers with water (flower vase,

cups, cosmetics, etc.) above the set. (including on

shelves above, etc.)

No naked flame sources, such as lighted candles,

should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No

user serviceable parts inside. Refer servicing to

qualified service personnel.

3) Do not remove the earthing pin on the power

plug. This apparatus is equipped with a three pin

earthing-type power plug. This plug will only fit an

earthing-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet,

contact an electrician.

Do not defeat the purpose of the earthing plug.

(65-inch model only)

4) To prevent electric shock, ensure the earthing pin

on the AC cord power plug is securely connected.

(

65-inch model

only)

CAUTION

This appliance is intended for use in environments

which are relatively free of electromagnetic fields.

Using this appliance near sources of strong

electromagnetic fields or where electrical noise may

overlap with the input signals could cause the picture

and sound to wobble or cause interference such as

noise to appear.

To avoid the possibility of harm to this appliance, keep

it away from sources of strong electromagnetic fields.

WARNING:

This equipment is compliant with Class A of CISPR32.

In a residential environment this equipment may

cause radio interference.

IMPORTANT INFORMATION

If a display is not positioned in a sufficiently stable

location, it can be potentially hazardous due to falling.

Many injuries, particularly to children, can be avoided

by taking simple precautions such as:

•Using cabinets or stands recommended by the

manufacturer of the display.

•Only using furniture that can safely support the

display.

•Ensuring the display is not overhanging the edge

of the supporting furniture.

•Not placing the display on tall furniture (for

example, cupboards or bookcases) without

anchoring both the furniture and the display to a

suitable support.

•Not standing the displays on cloth or other

materials placed between the display and

supporting furniture.

•Educating children about the dangers of climbing

on furniture to reach the display or its controls.

English

65-inch model

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE

FOLLOWING TEXT CAREFULLY.

This display is supplied with a moulded three pin

mains plug for your safety and convenience. A 10

amp fuse is fitted in this plug. Shall the fuse need to

be replaced, please ensure that the replacement fuse

has a rating of 10 amps and that it is approved by

ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on

the body of the fuse.

If the plug contains a removable fuse cover, you must

ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used

until a replacement cover is obtained.

A replacement fuse cover can be purchased from

your local Panasonic dealer.

Do not cut off the mains plug.

Do not use any other type of mains lead except the

one supplied with this display.

The supplied mains lead and moulded plug are

designed to be used with this display to avoid

interference and for your safety.

If the socket outlet in your home is not suitable, get it

changed by a qualified electrician.

If the plug or mains lead becomes damaged,

purchase a replacement from an authorized dealer.

WARNING : — THIS DISPLAY MUST BE EARTHED

How to replace the fuse.

Open the fuse compartment with a screwdriver and

replace the fuse.

55-inch model

49-inch model

43-inch model

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE

FOLLOWING TEXT CAREFULLY.

This display is supplied with a moulded three pin

mains plug for your safety and convenience. A 5 amp

fuse is fitted in this plug. Shall the fuse need to be

replaced, please ensure that the replacement fuse

has a rating of 5 amps and that it is approved by

ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on

the body of the fuse.

If the plug contains a removable fuse cover, you must

ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used

until a replacement cover is obtained.

A replacement fuse cover can be purchased from

your local Panasonic dealer.

Do not cut off the mains plug.

Do not use any other type of mains lead except the

one supplied with this display.

The supplied mains lead and moulded plug are

designed to be used with this display to avoid

interference and for your safety.

If the socket outlet in your home is not suitable, get it

changed by a qualified electrician.

If the plug or mains lead becomes damaged,

purchase a replacement from an authorized dealer.

How to replace the fuse.

Open the fuse compartment with a screwdriver and

replace the fuse.

English

Safety Precautions

WARNING

■Setup

This LCD Display is for use only with the following

optional accessories.

Use with any other type of optional accessories may

cause instability which could result in the possibility

of injury.

Securely install the pedestal, an optional accessory. Ask

an authorized dealer for installation.

•Pedestal

65-inch model 55-inch model

TY-ST55PE9

49-inch model 43-inch model

TY-ST43PE9

•Digital Interface Box

ET-YFB100

•DIGITAL LINK Switcher

ET-YFB200

•Early Warning Software

ET-SWA100 series*1

•Video Wall Manager

TY-VUK10*2

*1: Suffix of the part number may differ depending on

the license type.

*2: Supports Ver1.7 or later.

Note

● The part number of the optional accessories are

subject to change without notice.

When installing the pedestal, read the operating

instructions supplied with it carefully and install properly.

Also, always use the overturn prevention accessories.

We are not responsible for any product damage, etc.

caused by failures in the installation environment for

the pedestal or wall-hanging bracket even during the

warranty period.

Small parts can present choking hazard if accidentally

swallowed. Keep small parts away from young children.

Discard unneeded small parts and other objects,

including packaging materials and plastic bags/sheets to

prevent them from being played with by young children,

creating the potential risk of suffocation.

Do not place the Display on sloped or unstable

surfaces, and ensure that the Display does not hang

over the edge of the base.

•The Display may fall off or tip over.

Install this unit at a location with minimal vibration

and which can support the weight of the unit.

•Dropping or falling of the unit may cause injury or

malfunction.

Do not place any objects on top of the Display.

Transport only in upright position!

•Transporting the unit with its liquid crystal panel

facing upright or downward may cause damage to the

internal circuitry.

Ventilation should not be impeded by covering

the ventilation openings with items such as

newspapers, table cloths and curtains.

For sufficient ventilation, see page .11

Caution - For use only with UL Listed Wall Mount

Bracket with minimum weight/load 29.8 (65.7 lbs).

When installing the Display vertically, be sure that

the Power Indicator comes to the upper side.

Power indicator

•Heat is generated and it may cause fire or damage to

the Display.

Cautions for Wall or Pedestal Installation

•The installation should be performed by an installation

professional. Installing the Display incorrectly may

lead to an accident that results in death or serious

injury. Use the optional Pedestal. (see page 8)

•When installing on a wall, a wall hanging bracket that

conforms to VESA standards must be used.

65-inch model

55-inch model

49-inch model

43-inch model

VESA 400 × 400

(see page )11

•Before installation, be sure to check if the mounting

location has enough strength to support the weight

of the LCD display and the wall hanging bracket for

anti drop.

•If you terminate the use of the Display on the Wall or

Pedestal, ask a professional to remove the Display as

soon as possible.

•When mounting the Display on the wall, prevent the

mounting screws and power cable from contacting

metal objects inside the wall. An electric shock may

occur if they contact metal objects inside the wall.

Do not place the display where it may be affected by

salt or corrosive gas.

•Doing so may cause the display to fall due to

corrosion. Also, the unit may malfunction.

Do not install the product to a place where the

product is exposed to direct sunlight.

•If the unit is exposed to direct sunlight even indoors,

the temperature rise of the liquid crystal panel may

cause malfunction.

English

CAUTION

If problems or malfunction occur, stop using

immediately.

■If problems occur, unplug the power supply

plug.

•Smoke or an abnormal odour come out from the unit.

•No picture appears or no sound is heard,

occasionally.

•Liquid such as water or foreign objects got inside the

unit.

•The unit has deformed or broken parts.

If you continue to use the unit in this condition, it

could result in fire or electric shock.

•Turn the power off immediately, unplug the power

supply plug from the wall outlet, and then contact the

dealer for repairs.

•To cut off the power supply to this Display completely,

you need to unplug the power supply plug from the

wall outlet.

•Repairing the unit yourself is dangerous, and shall

never be done.

•To enable to unplug the power supply plug

immediately, use the wall outlet which you can reach

easily.

■Do not touch the unit directly by hand when

it is damaged.

Electric shock could occur.

■When using the LCD Display

At least 2 people are required to carry or unpack

this unit.

•If this is not observed, the unit may drop, resulting in

injury.

Be sure to disconnect all cables and overturn

prevention accessories before moving the Display.

•If the Display is moved while some of the cables are

still connected, the cables may become damaged,

and fire or electric shock could result.

Disconnect the power supply plug from the wall

socket as a safety precaution before carrying out

any cleaning.

•Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it

becoming dusty.

•If dust built up on the power cord plug, the resultant

humidity can damage the insulation, which could

result in fire. Pull the power cord plug out from the

wall outlet and wipe the mains lead with a dry cloth.

Do not step on, or hang from the display or the

Pedestal.

•They might tip over, or might be broken and it may

result in injury. Pay special attention to the children.

Do not reverse the polarity (+ and -) of the battery

when inserting.

•Mishandling the battery may cause its explosion

or leakage, resulting in fire, injury or damage to

surrounding properties.

•Insert the battery correctly as instructed. (see page

14)

Do not use batteries with the outer cover peeling

away or removed.

(The outer cover is attached to the battery for safety.

It must not be removed. Doing so may cause short

circuits.)

•Mishandling the batteries may cause the batteries

to short circuit, resulting in fire, injury or damage to

surrounding properties.

Remove the batteries from the remote control

transmitter when not using for a long period of time.

•The battery may leak, heat, ignite or burst, resulting in

fire or damage to surrounding properties.

Do not burn or breakup batteries.

•Batteries must not be exposed to excessive heat such

as sunshine, fire or the like.

Do not turn the Display upside down.

Do not position the unit with its liquid crystal panel

facing upright.

English

Precautions for use

Cautions when installing

Do not set up the Display outdoors.

• The Display is designed for indoor use.

Install this unit at a location which can support the

weight of the unit.

• Use the installation bracket that conforms to VESA

standards

Environmental temperature to use this unit

• When using the unit where it is below 1 400 m (4 593

ft) above sea level: 0 °C to 40 °C (32 °F to 104 °F)

• When using the unit at high altitudes (1 400 m (4 593

ft) and higher and below 2 800 m (9 186 ft) above sea

level): 0 °C to 35 °C (32 °F to 95 °F)

Do not install the unit where it is 2 800 m (9 186 ft)

and higher above sea level.

• Failure to do so may shorten the life of the internal

parts and result in malfunctions.

We are not responsible for any product damage, etc.

caused by failures in the installation environment

even during the warranty period.

Required space for ventilation

• When using the pedestal, leave a space of 10 cm

(3 ”) or more at the top, left and right, and 5 cm 15/16

(1 ”) or more at the rear, and also keep the space 31/32

between the bottom of the display and the floor

surface.

If using some other setting-up method (wall-hanging,

etc.), follow the manual of it. (If there is no specific

indication of installation dimension in the installation

manual, leave a space of 10 cm (3 15/16”) or more at

the top, bottom, left and right, and 5 cm (1 ”) or 31/32

more at the rear.)

Minimum distance:

aba: 10 cm

(3 15/16”)

b: 5 cm

(1 31/32”)

• Operation of this unit is guaranteed up to an ambient

temperature of 40 °C (104 °F). When installing the

unit in a case or chassis, be sure to provide adequate

ventilation with a cooling fan or ventilation hole so

that the surrounding temperature (inside the case or

chassis) including the temperature of the front surface

of the liquid crystal panel can be kept at 40 °C

(104 °F) or less.

About the screws used when using a wall hanging

bracket that conforms to VESA standards

65-inch model 55-inch model

49-inch model 43-inch model

Screw pitch for

installation Depth of

screw hole Screw

(quantity)

400 mm × 400 mm 10 mm M6 (4)

Be careful of the movable structure of the power

indicator and remote control sensor.

• As factory default, the power indicator and remote

control sensor are stored in the main unit. For normal

use, pull out the remote control sensor from the edge

side of the main unit by operating the lever on the

rear panel. Depending on the setup condition such as

when using the multi display, store the remote control

sensor in the main unit. (see page 28)

Do not grab the liquid crystal panel.

• Do not forcibly press the liquid crystal panel, or push

it with a pointed object. Applying a strong force to

the liquid crystal panel will cause unevenness of the

screen display, resulting in malfunction.

Depending on the temperature or humidity

conditions, uneven brightness may be observed.

This is not a malfunction.

• This unevenness will disappear while applying current

continuously. If not, consult the distributor.

Notes on Using Wired LAN

When setting up the Display at a place, where

electric statistic occurs often, take a sufficient

antistatic measure before start using.

• When the Display is used at a location, where static

electricity occurs often, such as on a carpet, a wired

LAN or DIGITAL LINK communication is disconnected

more often. In that case, remove static electricity

and the noise source that may cause problems with

an antistatic mat, and re-connect the wired LAN or

DIGITAL LINK.

• In rare cases, the LAN connection is disabled due

to static electricity or noise. In that case, turn off the

power of the Display and the connected devices once

and then re-turn on the power.

The Display may not work properly due to strong

radio wave from the broadcast station or the radio.

• If there is any facility or equipment, which outputs

strong radio wave, near the installation location, set

up the Display at a location sufficiently far from the

source of the radio wave. Or, wrap the LAN cable

connected to the DIGITAL LINK / LAN terminal by

using a piece of metal foil or a metal pipe, of which is

grounded at both ends.

English

Request Regarding Security

When using this product, take safety measures

against the following incidents.

• Personal information being leaked via this product

• Unauthorized operation of this product by a malicious

third party

• Interfering or stopping of this product by a malicious

third party

Take sufficient security measures. (see page 86, 87)

• Set a password for the LAN control and restrict the

users who can log in.

• Make your password difficult to guess as much as

possible.

• Change your password periodically.

• Panasonic Corporation or its affiliate companies will

never ask for your password directly. Do not divulge

your password in case you receive such inquiries.

• The connecting network must be secured by a

firewall, etc.

• When disposing the product, initialize the data before

disposing. [Shipping] (see page 123)

Cleaning and maintenance

First, remove the mains plug from the mains socket.

Gently wipe the surface of the liquid crystal panel or

cabinet by using a soft cloth to remove dirt.

• To remove stubborn dirt or fingerprints on the surface

of the liquid crystal panel, dampen a cloth with diluted

neutral detergent (1 part detergent to 100 parts

water), wring out the cloth firmly, and then wipe away

the dirt. Finally, wipe away all the moisture with a dry

cloth.

• If water droplets get inside the unit, operating

problems may result.

Note

●The surface of the liquid crystal panel is specially

treated. Do not use a hard cloth or rub the surface

too hard, otherwise this may cause scratches on the

surface.

Usage of a chemical cloth

• Do not use a chemical cloth for the liquid crystal panel

surface.

• Follow the instructions for the chemical cloth to use it

for the cabinet.

Avoid contact with volatile substances such as

insect sprays, solvents and thinner.

• This may degrade surface quality or cause peeling of

the paint. Furthermore, do not leave it in contact with

a rubber or PVC substance for a long time.

Disposal

When disposing the product, ask your local

authority or dealer about the correct methods of

disposal.

English

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instructions

(CD-ROM × 1)

Remote Control Transmitter

× 1

●DPVF1615ZA

4-pole mini plug conversion

cable × 1

●DPVF1652ZA

Batteries for the Remote

Control Transmitter × 2

(AAA/R03/LR03 type)

65-inch model

Clamper × 3

●DPVF1056ZA

55-inch model

49-inch model

43-inch model

Clamper (large) × 2

●DPVF1654ZA

55-inch model 49-inch model 43-inch model

Clamper (small) × 1

●DPVF1653ZA

Power supply cord

TH-65SF2U

(Approx. 2 m)

●1JP155AF1U

TH-55SF2U

TH-49SF2U

TH-43SF2U

(Approx. 1.8 m)

●TZSH03042

TH-65SF2E

●2JP155AF1W

●3JP155AF1W

TH-55SF2E

TH-49SF2E

TH-43SF2E

(Approx. 1.8 m)

●TZSH03039

●TZSH03040

Attention

●Store small parts in an appropriate manner, and keep

them away from young children.

●The part numbers of accessories are subject to

change without notice. (The actual part number may

differ from the ones shown above.)

●In case you lost accessories, please purchase them

from your dealer. (Available from the customer

service)

●Dispose the packaging materials appropriately after

taking out the items.

English

Remote Control Batteries

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity (+ and -).

AAA/R03/LR03 type

3. Replace the cover.

Helpful Hint

●For frequent remote control users, replace old

batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation of the batteries can cause battery

leakage and corrosion that will damage the remote

control transmitter.

Disposal of batteries should be in an environment-

friendly manner.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always

use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with

“Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble,

heat or burn used batteries.

5. Battery replacement is necessary when remote

control acts sporadically or stops operating the

Display set.

6. Do not burn or breakup batteries.

7. Batteries must not be exposed to excessive heat such

as sunshine, fire or the like.

Kensington security

The security slot of this unit is compatible with the

Kensington security slot.

65-inch model

55-inch model

49-inch model

43-inch model

English

Connections

AC cord connection and fixing /

Cable fixing

65-inch model

Back of the unit

AC cord fixing

AC cord (supplied)

Plug the connector into the display unit.

Plug the connector until it clicks.

Note

●Make sure that the connector is locked on both the

left and right sides.

Unplug the AC cord

Unplug the connector pressing the two knobs.

Note

●When disconnecting the AC cord, be absolutely sure

to disconnect the AC cord plug at the socket outlet

first.

●The supplied AC cord is for this unit exclusive use. Do

not use this for other purposes.

Cable fixing

Note

●3 clampers are supplied with this unit. Fix the cables

at 3 locations using the holes for clampers as shown

below.

If you need more clampers, purchase them from your

dealer. (Available from the customer service)

1. Attach the clamper

Keep pushing both side

snaps and pull out the

clamper.

hole

Insert the clamper in a

hole.

To remove from

the unit:

snaps

2. Bundle the cables

Keep pushing the knob

and pull out the tip.

hooks

Set the tip in the hooks

and tighten.

To loosen:

knob

English

Class ll equipment

55-inch model

49-inch model

43-inch model

Back of the unit

Insert the AC cord all the way until fully seated to

the back side of the unit.

AC cord

(supplied)

Insert the plug until the lines inside are not visible.

Note

●When disconnecting the AC cord, be absolutely sure

to disconnect the AC cord plug at the socket outlet

first.

●The supplied AC cord is for this unit exclusive use.

Do not use this for other purposes.

Cable fixing

Note

●3 clampers (large: 2, small: 1) are supplied with this

unit. Fix the cables using clampers (Fixation type)

appropriate for each cable as shown below.

If you need more clampers, purchase them from your

dealer. (Available from the customer service)

Attaching positions of the clampers

1 2

1 For AC cord: clamper (small)

2 For signal cable: clamper (large) × 2

1. Attach the clamper

Note

●Wipe off dirt, such as dust, water and oil on the

attachment surface, and affix the clamper on the

attachment surface by pushing it firmly.

●Once the clamper is affixed, it cannot be reused. Be

sure to confirm the attaching position before affixing

it.

Attachment

surface

Remove the tape at the back, and affix the clamper on

the flat surface.

2. Bundle the cables

Pass the tip of the band to the hooks. Then pull and

hook it on the knob.

hooks

knob

To loosen:

Remove the band from the knob, and pull out the band

tip.

English

Video equipment connection

DIGITAL LINK

* *1 2

*1: TH-65SF2E

*2: TH-65SF2U, TH-55SF2U, TH-49SF2U, TH-43SF2U, TH-55SF2E, TH-49SF2E, TH-43SF2E

1 IR IN, IR OUT: Infrared Signal Input / Output

Terminal

Use this when operating more

than one display with one remote

control.

(see page 25)

2 SERIAL IN,

SERIAL OUT: SERIAL Input / Output Terminal

Control the Display by connecting

to PC.

(see page 23)

3 AUDIO OUT: Analogue Audio Output

Terminal

Connect to audio equipment with

analogue audio input terminal.

(see page 26)

4 AV IN: Composite Video / Audio Input

Terminal

Connect to video equipment with

Composite signal output.

Audio input is shared by AV IN,

DVI-D IN and PC IN.

(see page 22)

5 USB: USB Terminal

Connect the USB memory to use

“USB media player” or “Memory

viewer”. Also, this can be used to

supply power of up to 5V/1A to an

external device when the picture

is displayed.

(see page 26)

6 DVI-D IN,

DVI-D OUT: DVI-D Input / Output Terminal

Connect to video equipment

with DVI-D output. Also, when

displaying the picture by daisy

chaining multiple displays,

connect to the other display

(DVI-D OUT).

The DVI-D output function is

enabled only for the DVI input.

Note this is not output if the

HDMI or DIGITAL LINK input is

selected.

(see page 19)

7 AV IN

(HDMI 1,

HDMI 2):

HDMI Input Terminal

Connect to video equipment such

as VCR or DVD player, etc.

(see page 18)

8 DIGITAL LINK /

LAN: DIGITAL LINK / LAN Terminal

Control the Display by connecting

to Network. Alternatively, connect

to a device that sends video and

audio signals via the DIGITAL

LINK terminal.

(see page 22, 77)

9 PC IN: PC Input Terminal

Connect to video terminal of PC,

video equipment with “YP B RP /

YC C ” or “RGB” output.B R

(see page 21)

10 LAN: LAN Terminal

Control the Display by connecting

to Network.

(see page 77)

English

HDMI 1 and HDMI 2 terminals

connection

Note

●Video equipment and HDMI cable shown are not

supplied with this unit.

●Some HDMI equipment may not be able to display

picture.

●This Display does not support VIERA LINK.

●For audio, it is also possible to use AV IN terminal

input. (For [Audio input select] function, see page 71.)

HDMI cable (commercially available)

Video Cassette Recorder

DVD Player

Before connecting

●Before connecting cables, carefully read the operating

instructions for the external device to be connected.

●Turn off the power of all devices before connecting

cables.

●Take note of the following points before connecting

the cables. Failure to do so may result in

malfunctions.

• When connecting a cable to the unit or a device

connected to the unit itself, touch any nearby

metallic objects to eliminate static electricity from

your body before performing work.

• Do not use unnecessarily long cables to connect

a device to the unit or to the unit body. The

longer the cable, the more susceptible to noise it

becomes. Since using a cable while it is wound

makes it act like an antenna, it is more susceptible

to noise.

• When connecting cables, insert them straight into

the connecting terminal of the connecting device

so that the ground is connected first.

●Acquire any cable necessary to connect the external

device to the system that is neither supplied with the

device nor available as an option.

●If the outer shape of the plug of a connection cable is

large, it may come in contact with the periphery such

as a back cover or the plug of an adjacent connection

cable. Use a connection cable with the suitable plug

size for the terminal alignment.

●When connecting the LAN cable with plug cover, be

aware that the cover may come in contact with the

back cover and it may be difficult to disconnect.

●If video signals from video equipment contain too

much jitter, the images on the screen may wobble.

In this case, a time base corrector (TBC) must be

connected.

●When the sync signals output from PC or video

equipment are disturbed, for example, when changing

settings of video output, the colour of the video may

be disturbed temporarily.

●The unit accepts Composite video signals, YC B RC /

YP P signals (PC IN), analogue RGB signals (PC B R

IN) and digital signals.

●Some PC models are not compatible with the unit.

●Use cable compensator when you connect devices to

the unit using long cables. Otherwise the image may

not display properly.

●Refer to “Preset Signals” (see page 121) for the types

of video signals that can be displayed with the unit.

English

Pin assignments and signal names for HDMI

Terminal

Pin No. Signal name

T.M.D.S Data2+

T.M.D.S Data2 Shield

T.M.D.S Data2-

T.M.D.S Data1+

T.M.D.S Data1 Shield

T.M.D.S Data1-

T.M.D.S Data0+

T.M.D.S Data0 Shield

T.M.D.S Data0-

T.M.D.S Clock+

T.M.D.S Clock Shield

T.M.D.S Clock-

CEC

SCL

SDA

DDC/CEC Ground

+5V DC

Hot Plug Detect

DVI-D IN / DVI-D OUT terminal

connection

Note

●Video equipment and cables shown are not supplied

with this unit.

●Use the DVI-D cable complying with the DVI

standard. Image deterioration may occur depending

on the length or the quality of the cable.

●DVI-D IN terminal is for Single Link only.

●Audio input is shared with AV IN terminal.

DVI-D video cable (Within 5 m) (commercially

available)

Stereo mini plug (M3) cable (commercially available)

PC with DVI-D video out

English

Daisy chain connection

It is possible to daisy chain multiple displays when

displaying the picture on multi screen, etc.

First display

Second display

Third display

Note

●It is possible to daisy chain up to 10 displays.

However, the number of connectable displays may be

limited depending on the cables, signals, the devices

used, etc.

●When inputting HDCP signal, it is possible to daisy

chain up to 8 displays.

●The DVI-D output function is enabled only for the

DVI-D input.

This is not output if the HDMI or DIGITAL LINK input

is selected. When using the daisy-chain connection

method, all the displays should be in the state where

the picture is displayed via DVI-D IN.

Pin assignments and signal names for DVI-D

Input/Output

Pin No. Signal Name

T.M.D.S. data 2-

T.M.D.S. data 2+

T.M.D.S. data 2 shield

DDC clock

DDC data

T.M.D.S. data 1-

T.M.D.S. data 1+

T.M.D.S. data 1 shield

+5 V DC

GND (Ground)

Hot plug detect

T.M.D.S. data 0-

T.M.D.S. data 0+

T.M.D.S. data 0 shield

T.M.D.S. clock shield

T.M.D.S. clock+

T.M.D.S. clock-

English

PC IN terminal connection

Connect a cable

which matches

the audio output

terminal on the

computer.

(commercially

available)

(Female)

(Male)

Mini D-sub 15p cable (commercially available)

Conversion adapter (if necessary) (commercially

available)

Stereo mini plug (M3) cable (commercially available)

The type of computer signal that can be connected

●With regard to the typical PC input signals that

are described in “Preset Signals” (see page 121),

adjustment values such as for the standard picture

positions and sizes have already been stored in this

unit.

(Computer signals which can be input are those with

a horizontal scanning frequency of 30 to 110 kHz and

vertical scanning frequency of 48 to 120 Hz.)

●The display resolution is a maximum of 1 440 x 1 080

dots when the aspect mode is set to [4:3], and 1 920

x 1 080 dots when the aspect mode is set to [16:9].

If the display resolution exceeds these maximums, it

may not be possible to show fine detail with sufficient

clarity.

●In [ENGLISH(US)] OSD language, [16:9] is displayed

as [FULL].

Note

●The PC IN terminal is DDC2B-compatible. If the

computer being connected is not DDC2B-compatible,

you will need to make setting changes to the

computer at the time of connection.

●When connecting a computer equipped with a

D-sub15 pin terminal or a Mac, use a commercially

sold conversion adapter as necessary.

* There is no need to use an adapter for computers

with DOS/V compatible Mini D-sub 15P terminal.

●Additional computer, cables and conversion adapter

shown are not supplied with this set.

●Do not set the horizontal and vertical scanning

frequencies for PC signals which are above or below

the specified frequency range.

●Component Input is possible with the pin 1, 2, 3 of the

Mini D-sub 15P Connector.

●Change the [Component/RGB-in select] setting in

the [Signal] menu to [Component] (when Component

signal connection) or [RGB] (when RGB signal

connection). (see page 47)

●Audio input is shared with AV IN terminal.

Pin assignments and signal names for PC Input

Terminal (Mini D-sub 15P)

678

15 14 13 12 11

Pin No. Signal Name

R (P /C )R R

G (Y)

B (P /C )B B

NC (not connected)

GND (Ground)

+5 V DC

GND (Ground)

NC (not connected)

SDA

HD/SYNC

SCL

English

AV IN terminal connection

Note

● Video equipment and connection cables are not

supplied with this unit.

Yellow

White

Red

4-pole mini plug conversion cable (supplied)

Audio video pin cable (commercially available)

Video Cassette Recorder

DVD Player

Wiring specifications for 4-pole mini plug

Note

● Use a 4-pole mini plug (M3) (supplied) with the

following wiring specifications for the AV IN terminal of

this unit. If the wiring of a plug is different, audio and

video are not correctly input.

1234

Audio L (White)

Audio R (Red)

GND (Ground)

Video (Yellow)

DIGITAL LINK terminal connection

* DIGITAL LINK is for TH-65SF2E only.

Twisted pair cable transmitters such as the Panasonic

Digital Interface Box (ET-YFB100G) or the DIGITAL

LINK Switcher (ET-YFB200G) use twisted pair cables

to transmit inputted video and audio signals, and

these digital signals can be input to the Display via the

DIGITAL LINK terminal.

DIGITAL LINK

Analogue signal is output as

Digital signal.

PC to control the unit

Example: Panasonic ET-YFB100G

Video Cassette Recorder

DVD Player

English

Note

●Video equipment and connection cables are not

supplied with this unit.

●When connecting with DIGITAL LINK, be sure to

configure each of the [Network settings] settings. (see

page 59)

For the cautions for DIGITAL LINK setting and

connection, refer to “DIGITAL LINK Terminal

connection” and “Precautions for use while

connecting with a twisted pair cable transmitter”. (see

page 78)

●Corresponding signal for DIGITAL LINK input is the

same as that of HDMI input. (see page 121)

●For audio, it is also possible to use AV IN terminal

input. (For [Audio input select] function, see page 71.)

SERIAL IN / SERIAL OUT terminal

connection

The SERIAL terminal conforms to the RS-232C interface

specification, so that the Display can be controlled by a

computer which is connected to this terminal.

Note

●Additional computer and cables shown are not

supplied with this set.

D-sub 9p

(Female)

(Male)

RS-232C Straight cable (commercially available)

Note

●Use the RS-232C straight cable to connect the

computer to the Display.

English

Pin assignments and signal names for SERIAL

Terminal

6789

1 3 4 52

Pin No. Signal Name

NC (not connected)

RXD

TXD

Non use

GND (Ground)

Non use

RTS Shorted in this set

CTS

NC (not connected)

These signal names are those of computer

specifications.

Communication parameters

Signal level: RS-232C compliant

Synchronization method: Asynchronous

Baud rate: 9600 bps

Parity: None

Character length: 8 bits

Stop bit: 1 bit

Flow control: None

Basic format for control data

The transmission of control data from the computer

starts with a STX signal, followed by the command, the

parameters, and lastly an ETX signal in that order. If

there are no parameters, then the parameter signal does

not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start

(02h)

3-character command

(3 bytes)

Colon

Parameter(s)

End

(03h)

Command

Command Parameter Control details

PON None Power ON

POF None Power OFF

AVL *** Volume000‒100

AMT 0 Audio MUTE OFF

1 Audio MUTE ON

IMS None Input select (toggle)

HM1 HDMI 1 input

(HDMI1)

HM2 HDMI 2 input

(HDMI2)

DL1 DIGITAL LINK input

(DIGITAL LINK)

DV1 DVI-D IN input

(DVI-D)

PC1 PC IN input (PC)

VD1 AV IN input (VIDEO)

UD1 USB input (USB)

MV1

“Memory viewer”

input

(MEMORY VIEWER)

DAM None Screen mode select

(toggle)

ZOOM Zoom1

FULL 16:9

NORM 4:3

ZOM2 Zoom2

Note

●If multiple commands are transmitted, be sure to wait

for the response for the first command to come from

this unit before sending the next command.

●If an incorrect command is sent by mistake, this

unit will send an “ER401” command back to the

computer.

●When sending a command which does not require

parameter, a colon (:) is not needed.

●Consult your local Panasonic dealer for detail

instructions on command usage.

For more details, visit the following web site.

https://panasonic.net/cns/prodisplays/

English

It is possible to daisy chain multiple displays, and

then control the specific display with PC.

First display

Second display

Third display

Note

●When daisy chaining, set [Options] - [Serial daisy

chain position]. (see page 74)

●When daisy chaining, use a straight cable which pin

No. to are hard wired.

IR IN/IR OUT terminal connection

Connect the mini plug (M3) cable from the IR OUT

terminal of the first display to the IR IN terminal of the

second display.

The infrared signal of the first display is sent to the

second display.

In this case, the IR (infrared ray reception on the remote

control sensor) on the second display does not operate.

Repeating the above connections enables the daisy

chain connection.

Note

●Connection cables are not supplied with this unit.

●Daisy chain connection is possible only between the

displays of the same series.

Stereo mini plug (M3) cable (commercially available)

First display

Second display

Third display

English

AUDIO OUT terminal connection

Note

●Audio equipment and the cable shown are not

supplied with this set.

line-in

Stereo mini

plug (M3)

Stereo audio cable (commercially available)

Audio equipment

Note

●To output sound from AUDIO OUT terminal of the

unit, be sure to set [Output select] in the [Sound]

menu to [AUDIO OUT]. (see page 40)

USB terminal connection

Connect the USB memory (commercially available) to

use “USB media player” or “Memory viewer”. (see page

95, 107)

Also, power is supplied when a separately sold stick PC,

etc. are connected.

Note

●A stick PC and connection cables are not supplied

with this unit.

Stick PC

USB cable (commercially available)

HDMI extension cable (commercially available)

Pin assignments and signal names for USB Terminal

1 3 42

Pin No. Signal name

+5 V DC

DATA -

DATA +

GND (Ground)

English

Power of up to 5V/1A can be supplied to an external

device when the picture is displayed.

●If the electric current exceeding the power supplying

capability is applied, the output is blocked, and the

following message is displayed.

[USB DC5V OUT overload. Please remove cable or

equipment, then turn the display off/on.]

In this case, remove the equipment and then turn the

power off/on using the remote control, etc.

Note

●If the direct connection to this unit is not possible due

to the size of a stick PC, etc. use a commercially sold

extension cable.

●Depending on the type of a USB memory device,

it may come in contact with the periphery such

as a back cover, and cannot be attached. Use a

commercially sold extension cable, or use a small

type of a USB memory device connectable to this

unit.

●When connecting the USB memory device, confirm

the orientation of the plug to prevent damage to the

terminal.

●When removing the USB memory device, note the

following.

• When the access indicator of the connected USB

memory device is blinking, it shows the display is

loading the data. Do not remove the USB memory

device while blinking.

• Depending on the USB memory device, the access

indicator may remain blinking even when it is not

being accessed, or the device is not equipped

with an access indicator function, etc. In this case,

remove the USB memory device after confirming

the following or .

Switch the input to an input other than [USB]

and [MEMORY VIEWER], and confirm that the

functions that access USB memory device are

finished. The functions are, read user image

function (see page 54), playlist edit function (see

page 102), data cloning function (see page ), 114

etc.

Turn the unit off.

• Do not frequently repeat connecting/disconnecting

the USB memory device. Wait at least 5 seconds

after connection, and then remove the USB

memory device. Before reconnection, wait at least

5 seconds. A certain length of time is required

so that the display can recognise that the USB

memory device is switched for connection or

disconnection.

• If the power of this unit is turned off or the USB

memory device is removed accidentally while

accessing data, the data may not be accessed

next time the USB memory device is used.

In such a case, turn the power of the main unit off

and on.

English

Identifying Controls

Main unit

● Slide the lever on the rear panel to eject the power

indicator and remote control sensor.

To store them, slide the same lever, or directly

push in the bottom surface of the remote control

sensor.

Note

● For normal use, pull out the power indicator and

remote control sensor from the edge side of the

main unit by operating the lever on the rear panel.

Depending on the setup condition such as when

using the multi display, store them in the main unit.

1 Power Indicator / Remote control sensor

The Power Indicator will light.

When the power of the unit is ON (Main Power On

/ Off button: ON)

● Picture is displayed: Green

● Power OFF (standby) with remote control:

•When [Network control] is set to [ ]: RedOff

•When [Network control] is set to [On]: Orange

(Red/Green)

About [Network control] settings, see page 59.

● Power OFF with “Power management” function:

Orange (Red/Green)

About “Power management” function, see page 51.

When the power of the unit is OFF (Main Power

On / Off button: OFF): No light

Note

● Even if the display unit is turned off with the power

indicator off, some of the circuits are in power-on

status.

● When the power indicator is orange, power

consumption during standby is generally larger than

that of when the power indicator is red.

INPUT

ENTER

43-inch model

49-inch model

55-inch model

65-inch model

1 External Input Terminal

Connects to video equipment, PC, etc. (see page 17)

2 <Main Power On / Off button>

Turns the power On / Off.

3 <INPUT (Unit)>

Selects the connected device. (see page 31)

4 <MENU (Unit)>

Displays the menu screen. (see page 36)

5 <+ (Unit)> / <- (Unit)>

Adjusts the volume. (see page 32)

On the main screen, switches settings or adjusts

settings level. (see page 36)

6 < (Unit)> / < (Unit)>

Selects the setting item on menu screen. (see page

36)

7 <ENTER (Unit)>

Configures the item on menu screen. (see page 36)

Switches aspect mode. (see page 34)

8 Built-in speakers

65-inch model

Sound is output backward and upward.

55-inch model

49-inch model

43-inch model

Sound is output backward.

Note

● To output sound from the built-in speakers of the

unit, be sure to set [Output select] in the [Sound]

menu to [SPEAKERS]. (see page 40)

English

Connect the AC cord plug to the

Display.

(see page 15)

2Connect the plug to the socket outlet.

Note

● Main plug types vary between countries. The

power plug shown at left may, therefore, not be the

type fitted to your set.

● When disconnecting the AC cord, be absolutely

sure to disconnect the AC cord plug at the socket

outlet first.

● The settings may not be saved if the power plug is

disconnected immediately after changing settings

with on-screen menu. Disconnect the power plug

after a enough period of time. Or, disconnect the

power plug after turning the power off with the

remote control, RS-232C control or LAN control.

3Press the <Main Power On / Off

button> on the unit to turn the set on:

Power-On.

● Power Indicator: Green (Picture is displayed.)

● When the power of the unit is ON, remote control

operation is possible.

■To turn the power ON/OFF with the remote

control

Press the <Standby (ON/OFF) button> to turn the

Display on.

● Power Indicator: Green (Picture is displayed.)

Press the <Standby (ON/OFF) button> to turn the

Display off.

● Power Indicator: Red (standby)

Press the <Main Power On / Off button> on the unit to

turn the unit off, when the power of the unit is turned

on or in standby mode.

Note

● During operation of the “Power management” function

(see page 51), the power indicator turns orange in the

power off state.

● After the power plug is disconnected, the power

indicator may remain lit for a while. This is not a

malfunction.

Basic Controls

Remote Control Sensor /

Power Indicator

Main Power On / Off button

(Back of the unit)

AC socket outlet

AC cord (supplied)

Operate pointing the remote control directly at

the unit’s Remote Control Sensor.

Note

● For normal use, pull out the remote control sensor

from the edge side of the main unit by operating the

lever on the rear panel. (see page 28)

● Do not put an obstacle between the remote control

sensor of the main unit and the remote control.

● Operate the remote control in front of the remote

control sensor or from the area where the sensor can

be seen.

● When directly aiming the remote control at the remote

control sensor of the main unit, the distance from

the front of remote control sensor should be approx.

7 m or less. Depending on the angle, the operation

distance may be shorter.

● Do not subject the remote control sensor of the main

unit to the direct sunlight or strong fluorescent light.

English

■When the Unit is turned on for the first time

Following screen will be displayed.

1Select the language with and

press <ENTER>.

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

OSD language

2For vertical installation, select

[Portrait] with and press

<ENTER>.

Display orientation

Landscape

Portrait

Note

● Once the items are set, the screens won’t be

displayed when switching on the unit next time.

Each item can be reset in the following menus.

[OSD language] (see page 55)

[Display orientation] (see page 66)

■Power ON message

The following message may be displayed when turning

the unit power ON:

No activity power off Precautions

’No activity power off’ is enabled.

When [No activity power off] in the [Setup] menu is set to

[Enable], a warning message is displayed every time the

power is turned ON. (see page 55)

“Power management” Information

Last turn off due to ’Power management’.

When “Power management” is functioned, an

information message is displayed every time the power

is turned ON. (see page 51)

These message displays can be set with the following

menu:

● [Options] menu

Power on message(No activity power off)

(see page 75)

Power on message(Power management)

(see page 75)

Selecting the input signal

Select the signals input to the unit.

Press <INPUT> or <INPUT (Unit)>.

INPUT

ENTER

Unit

Switches input every time the buttons are pressed.

16:9

[HDMI1 HDMI2 DIGITAL LINK DVI-D] → [ ] → [ ] → [ ] →

[PC VIDEO USB MEMORY VIEWER]] → [ ] → [ ] → [

* DIGITAL LINK is for TH-65SF2E only.

[HDMI1]:

HDMI 1 terminal, HDMI input

[HDMI2]:

HDMI 2 terminal, HDMI input

[DIGITAL LINK]:

DIGITAL LINK / LAN terminal, DIGITAL LINK input

[DVI-D]:

DVI-D IN terminal, DVI-D input

[PC]:

PC IN terminal, PC input

[VIDEO]:

AV IN terminal, composite video input

[USB]:

USB terminal, USB input

[MEMORY VIEWER]:

USB terminal, “Memory viewer” input

English

Note

● Displays the signal name as set in [Input label]. (see

page 51)

● Input will not be switched unless [Input lock] is set to

[ ]. (see page 72)Off

● Image retention (image lag) may occur on the LCD

liquid crystal panel when a still picture is kept on

the panel for an extended period. To prevent such

a problem, using the screensaver and wobbling is

recommended. (see page 50, 55)

RECALL

It is possible to check the setting status of input label,

picture mode, etc.

Press <RECALL>.

Current setting status will be displayed.

10:00

HDMI1

16:9

AV IN

Memory name: MEMORY2

Schedule play mode

Off timer 90 min

Backup mode OK

1Input label

2Aspect mode (see page 34)

3Backup input change (see page 70, 71)

4Audio input (see page 71)

5Profile name (see page 46)

6[Schedule play mode] (see page 103)

7Off timer remaining time (see page 33)

8Clock / Mute (see page 33, 75)

● When there is no video signal to the selected input,

[No signal] is displayed for about 30 seconds at the

end.

● When a USB memory is not connected to the USB

terminal at the time of switching to the USB input, [No

external media] is displayed for about 30 seconds.

Even when a USB memory is connected, if it does not

contain any playable file, [No play file] is displayed at

all times.

● When [No signal image settings] - [Display setting] is

set to [On] (see page 54), the message [No signal] /

[No external media] / [No play file] are not displayed.

Instead, the image set in [No signal image settings]

will be displayed.

● To display the clock, set [Date and time] and then set

[Clock display] to [On]. (see page 57, 75)

Volume Adjustment

Press <VOL +> <VOL -> or <+ (Unit)> <- (Unit)> to

adjust volume.

INPUT

ENTER

Unit

Volume (SPEAKERS)

● The current sound volume level is memorised even if

the power is turned off.

● When [Maximum VOL function] is set to [On], the

volume can only be adjusted to the maximum point

you set, and the displayed value turns red when it

reached its maximum. (see page 72)

● When [Initial VOL function] is set to [On], the volume

will be at the set level when the display is turned on.

(see page 72)

English

Sound mute On / Off

It is useful when you want to mute the sound temporarily,

for example, when answering the phone or door.

Press <MUTE>.

● appears on the screen and the sound is muted.

Press again to reactivate the sound.

●It is also reactivated when the power is turned on / off

or the volume level is changed.

●While MUTE is active, is displayed as a reminder

after operation.

●When the image set in [No signal image settings]

(see page 54) is displayed, is not displayed after

operation.

●In [ENGLISH(US)] OSD language, is displayed as

[MUTE].

OFF TIMER

The Display can be preset to switch to stand-by after a

fixed period. (30 min, 60 min, 90 min)

The setting switches each time <OFF TIMER> is

pressed.

●[0 min 30 min 60 min 90 min] ]→[ ]→[ ]→[

→[0 min] (Cancel)

●When three minutes remain, the remaining time will

flash (Red). After that, it switches to stand-by.

●To see the Off timer remaining time, press

<RECALL>.

●The Off timer is cancelled if a power interruption

occurs. When the power is turned on later on, it will

be in stand-by condition.

●When the image set in [No signal image settings] (see

page 54) is displayed, remaining time is not displayed

even when the timer expires in 3 minutes. Instead,

the image is displayed until the power is turned off.

Press <RECALL> to check the remaining time.

English

ASPECT Controls

Press <ASPECT> or <ENTER (Unit)> repeatedly to

move through the aspect options:

INPUT

ENTER

Unit

[4:3 Zoom1 Zoom2 16:9]]→[ ]→[ ]→[

Note

●The aspect mode is memorised separately for each

input terminal.

●When input from USB or MEMORY VIEWER, the

aspect mode is fixed to [16:9].

■List of Aspect Modes

Aspect mode Description

16:9

Picture Enlarged

screen

Pictures are displayed filling the

screen.

4:3

Pictures are displayed in the 4:3

area. Pictures with a 4:3 aspect ratio

are displayed as is. PC signals are

enlarged or reduced to be displayed

in the 4:3 area. Side panels are

displayed both at the right and left

edges of the screen.

Pictures with a 4:3 aspect ratio in

16:9 signals are displayed with their

original aspect ratio. The left and right

edges of the pictures are masked by

side panels.

Aspect mode Description

Zoom1 Letterbox pictures with a 16:9 aspect

ratio are enlarged vertically to fill the

screen. The top and bottom edges of

the pictures are cut off.

Zoom2 Letterbox pictures with a 16:9 aspect

ratio are enlarged vertically and

horizontally to fill the screen. The top

and bottom edges as well as the left

and right edges of the pictures are

cut off.

Note

●Be aware that if you put the display in a public place

for commercial purposes or a public showing and

then use the aspect mode select function to shrink

or expand the picture, you may be violating the

or alter the copyrighted materials of other people for

commercial purposes without the prior permission of

the copyright holder.

●In [ENGLISH(US)] OSD language, [16:9] is displayed

as [FULL].

English

Digital ZOOM

Select the screen areas (25 areas) to zoom in, and

zoom in the selected image areas ×2, ×3 or ×4.

(Use the remote control. The main unit’s buttons cannot

be used for operation.)

Enter

Select

Exit

Digital Zoom

1Set the digital zoom mode.

Press <ZOOM>.

×1

Exit

RETURN

ENTER

The screen aspect is set to [16:9], and the digital

zoom operation guide is displayed.

2Select the image areas to zoom in.

Select pressing .

×1

Exit

RETURN

ENTER

Digital Zoom operation guide

Switch the zoom ratio for the screen

areas.

Switches every time <ENTER> is pressed.

×1 ×2 ×3 ×4

×1

Exit

×2

Exit

×3

Exit

×4

Exit

●If no operation is performed for the period set for

[Menu display duration] (see page 66)(5‒180

seconds) when the zoom ratio for the screen is

“×1”, the unit exits the zoom mode.

●If no operation is performed for approx. 3 seconds

when the zoom ratio for the screen is “×2”,

“×3” or “×4”, the digital zoom operation guide

display disappears. Pressing any of the

buttons displays the guide again.

4Exit the digital zoom mode.

Press <RETURN> to exit the mode.

The screen returns to the previous state just before

entering the digital zoom mode, and the digital zoom

operation guide display disappears.

●Press any of the following buttons to exit the

mode. Then, the operation of the pressed button

is performed.

Remote Control:

<ASPECT> < > <FUNCTION> OFF TIMER

Unit:

<- (Unit)> <ENTER (Unit)>

●When the screen saver timer starts up, the digital

zoom mode finishes.

●When the power is turned OFF, a force-quit is

performed.

•When the power is turned OFF by pressing the

<Standby (ON/OFF) button>.

•When the display is turned OFF at the <Main

Power On / Off button>

•When the power is turned OFF by the off-timer

•When the power is turned OFF by [No signal

power off] or “Power management”.

Note

●In the following cases, the digital zoom mode is not

available.

•When [Multi display setting] is [On]

•When the screen saver is in operation

•When USB input or MEMORY VIEWER input is

selected.

●The zoomed image is rougher than the original

image.

●For multi display use, use the functions in [Multi

display settings]. (see page 56)

English

On-Screen Menu

Displays

1Display the menu screen.

Remote Control

Press to select.

Unit

INPUT

MENU Press for several times.

Each time the button is pressed, the menu screen

will switch.

NormalViewing→[ ]→[ ]→[Picture Setup Position]

→[Sound]

2Select the item.

Press to select.

ENTER

Press to select.

(Example: [Picture] menu)


Default Default

Picture mode Standard

2.2

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma

Memory save

Memory load

Memory edit

HighEnhance level

6500KColour temperature

Dynamic contrast

Colour enhancement

Off

Refine enhancer

6-segment colour management

Gradation smoother

Off

To display the submenu, press <ENTER>.

Set.

Press to set.

4Exit from the menu.

Press.

Press <RETURN> to return to the previous screen.

Alternatively, press the button selected in step 1 to

exit from the menu.

INPUT

MENU Press for several times.

Note

●When changing the settings of the display, picture or

sound disturbance may occur temporarily. This is not

a malfunction.

English

Menu display list

● Menu that cannot be adjusted is greyed out.

Adjustable menu changes depending on signal, input

and menu setting.

[Position] menu

(see page 38 39)‒

Position

Default Default

Auto setup

H-position

H-size

V-position

V-size

Clock phase

Dot clock

1:1 pixel mode Off

[Sound] menu

(see page 40)

Sound

Default Default

Output select SPEAKERS

Normal

Off

Balance

Sound mode

Bass

Treble

Surround

[Picture] menu

(see page 41 46)‒

Refine enhancer

6-segment colour management

Gradation smoother

Off


Default Default

Picture mode Standard

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma 2.2

Colour temperature 6500K

Colour enhancement

Dynamic contrast

Memory save

Memory load

Memory edit

Off

Enhance level High

[Setup] menu

(see page 47 66)‒

1/2

Setup

Screensaver

Signal

Input label

Power management settings

Wobbling

No activity power off

OSD language

Off

Disable

English(UK)

Image settings

HDMI-CEC settings

2/2

Setup

Set up timer

Multi display settings

Date and time

Network settings

USB media player settings

Memory viewer settings

Display orientation

OSD position

Menu display duration

Menu transparency

Landscape

Right

60 sec

Function button settings

Image rotation Off

English

Adjusting Position

1Press <POSITION> to display the

[Position] menu.

Position

Default Default

Auto setup

H-position

H-size

V-position

V-size

Clock phase

Dot clock

1:1 pixel mode Off

2Select the item to adjust with .

● Unadjustable items are greyed out.

Adjustable items differ depending on the signal,

input and the display mode.

3Adjust with .

4Press <POSITION> to exit from adjust

mode.

■To return to the previous screen

Press <RETURN>.

■To reset to defaults

When [Default] is selected, pressing <ENTER> resets

the adjustment values of all the displayed menus to

default.

When adjusting each item, pressing <DEFAULT>

resets the adjustment value of the item to default.

Note

● Settings for [Position] are memorised separately for

each input signal.

● With MEMORY VIEWER input, each item in the

[Position] menu cannot be adjusted.

Setting [Position] when the display is installed

vertically

When adjusting, please note that even when the

display is installed vertically, setting directions of

position / size are the same as that of horizontal

installation.

Auto setup

When inputting a PC signal, [H-position] / [V-position],

[H-size] / [V-size], [Clock phase] and [Dot clock] are

automatically corrected.

This setting is enabled under the following

condition:

● When inputting an analogue signal (PC).

While displaying the picture of the corresponding

signal, select [Auto setup] and press <ENTER>.

Using Remote Control

Press <AUTO SETUP>.

When Auto Setup does not work, [Invalid] is

displayed.

Note

● When the dot clock frequency of a PC signal is 162

MHz or higher, [Clock phase] and [Dot clock] cannot

be automatically corrected.

● Auto Setup may not work when a cropped or dark

image is input. In such case, switch to a bright image

with borders and other objects are clearly shown, and

then try auto setup again.

● Depending on the signal, out of alignment may occur

after Auto Setup. Carry out fine tuning for the position/

size as required.

● If Auto Setup cannot set properly for XGA signal

(1024 x 768, 1280 x 768, 1366 x 768), pre-selecting

the individual signal in [XGA mode] (see page 48)

may result in correct Auto Setup.

● Accurate auto setup is not possible when a signal

such as additional information is superimposed out

of valid image period or when intervals between

synchronizing signal and image signal are short.

Also, accurate auto setup is not possible when image

signals with tri level synchronizing signal added, or

when some SYNC ON G signals are input.

● When the [PC auto setting] is set to [On] in the

[Options] menu (see page 73), automatic position

adjustment starts under the following conditions:

•When the display power is turned ON.

•When the input signal is switched.

● If Auto Setup does not work well, select [Default],

press <ENTER>, and then adjust the position/size

manually.

English

1 Set [6-segment colour

management] to [On], and then

press <ENTER>.

6-segment colour management

2.2

6500K

Gamma

Colour temperature

Dynamic contrast

2 Set each item on detail settings

screen.

6-segment colour management

Select colour Red

Hue

Saturation

Value

Reset

[Select colour]

Select the colour to adjust with .

[Hue]

Adjusts colour balance.

- 511 to + 511

[Saturation]

Adjusts gradations of colour.

- 127 to + 127

[Value]

Adjusts brightness of colour.

- 127 to + 127

[Reset]

Resets to defaults. Select [ ] with Yes

and press <ENTER>.

●In [ENGLISH(US)] OSD language, [Hue] is

displayed as [TINT].

[Dynamic

contrast]

Automatically adjusts the contrast by

determining the changes in the use

of colours for images that constantly

change, such as motion pictures.

No effect ↔ Large effect

[Colour

enhancement]

Displays images by emphasising

colours.

[Off], [Low], [Mid], [High]

(Small effect to Large effect)

[Refine

enhancer]

Enhances the sense of resolution by

correcting fuzzy outlines of pictures

resulted from resizing, etc.

[Off], [Low], [Mid], [High]

(Small effect to Large effect)

[Gradation

smoother]

Extracts and eliminates noise

components from the input video

signals, and then displays noiseless

pictures.

[Off], [On]

English

Saving profiles

Follow these steps to save picture adjustment values as

profiles.

1Specify the picture quality in the

[Picture] menu.

(see page 41 43) ‒

2In the [Picture] menu, select [Memory

save] with and press <ENTER>.

Memory save

Memory load

Memory edit

3Select a profile name for saving the

picture adjustment values with

and press <ENTER>.

1. [ ]

2. [ ]

3. [ ]

MEMORY1

MEMORY2

MEMORY3

4. [ ] MEMORY4

5. [ ] MEMORY5

6. [ ] MEMORY6

Memory save

●[*] appears for a profile in which the picture

adjustments have already been saved.

4Select [Ok] with and press

<ENTER>.

Memory save

Save the adjusted value in ”MEMORY1”

Ok Cancel

5Enter a profile name with .

●Entering characters (see page 120)

MEMORY1█

1 2 3 4 5 6 7 8 9

a/A/@

b c d e f g h i j

k l m n o p q r s t

u v w x y z – _.

OkCancelAll deleteDelete

When you finished entering the profile

name, select [Ok] with and

press <ENTER>.

MY MEMORY1█

1 2 3 4 5 6 7 8 9

a b c d e f g h i j

k l m n o p q r s t

u v w x y z – _.

a/A/@ OkCancelAll deleteDelete

●To cancel saving the profile, select [Cancel].

Loading profiles

Load profiles and apply the picture adjustment values to

the display as follows.

1In the [Picture] menu, select [Memory

load] with and press <ENTER>.

Memory save

Memory load

Memory edit

2Select the profile to load with and

press <ENTER>.

1. [ ]

2. [ ]

3. [ ]

MEMORY1

MEMORY2

MEMORY3

Memory load

Loading profiles using numeric buttons on the

remote control.

Eachnumericbutton<1>‒<6>isallocatedfor

loading [MEMORY1] to [MEMORY6].

[Function button settings] (see page 64)

1Press any of <1> ‒ <6>.

2Select [Ok] with and press

<ENTER>.

Memory load

Load from “MEMORY2”

Ok Cancel

English

When profile is being loaded, profile name is

displayed.

16:9

Memory name: MEMORY2

Note

●Loaded profiles are stored in memory according

to the selected input terminal.

Editing profiles

Delete or rename profiles as follows.

■Deleting profiles

1In the [Picture] menu, select [Memory

edit] with and press <ENTER>.

Memory save

Memory load

Memory edit

2Select [Memory delete] with and

press <ENTER>.

Memory edit

Memory delete

Memory name change

3Select the profile to delete with

and press <ENTER>.

1. [ ]

2. [ ]

3. [ ]

MEMORY1

MEMORY2

MEMORY3

Memory delete

All delete

●To delete all profiles, select [All delete].

4Select [Ok] with and press

<ENTER>.

Memory delete

Delete the ”MEMORY1” data

Ok Cancel

■Renaming profiles

1In the [Picture] menu, select [Memory

edit] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select [Memory name change] with

and press <ENTER>.

Memory edit

Memory delete

Memory name change

3Select the profile to rename with

and press <ENTER>.

1. [ ]

2. [ ]

3. [ ]

MEMORY1

MEMORY2

MEMORY3

Memory name change

4Enter a name for the profile with

●Entering characters (see page 120)

1 2 3 4 5 6 7 8 9

a b c d e f g h i j

k l m n o p q r s t

u v w x y z – _.

MEMORY1 █

a/A/@ OkCancelAll deleteDelete

5When you finished entering the profile

name, select [Ok] with and

press <ENTER>.

a/A/@ OkCancelAll deleteDelete

●To cancel renaming the profile, select [Cancel].

English

■ [Component/RGB-in select]

This menu is displayed at PC signal input.

Select to match the signals from the source

connected to PC IN terminal.

[Component] YP B R B RP /YC C signals

[RGB] RGB signals

■ [YUV/RGB-in select]

This menu is displayed at HDMI 1, HDMI 2, DIGITAL

LINK and DVI-D IN inputs.

Select to match the signals from the source

connected to each terminal.

[YUV] YUV signals

[RGB] RGB signals

Note

●Set for each input terminal (HDMI 1, HDMI 2,

DIGITAL LINK, DVI-D IN).

■ [Sync]

This menu is displayed at PC IN input.

Setting RGB/PC sync signal

[Auto]:

The H and V sync or synchronized signal is

automatically selected. When both of them have

sync signal, H and V sync will be selected.

When displaying CS signal, connect to HD input

terminal.

[on G]:

Uses a synchronized signal on the Video G

signal, which is input from the G connector.

[HV sync]:

Uses a synchronized signal on the Video HD/VD

signal, which is input from the HD/VD connector.

Setting Component sync signal

[Auto]:

The H and V sync or synchronized signal is

automatically selected. When both of them have

sync signal, H and V sync will be selected.

When displaying CS signal, connect to HD input

terminal.

[ ]:on Y

Uses a synchronized signal on the Video Y

signal, which is input from the Y connector.

[HV sync]:

Uses a synchronized signal on the Video HD/VD

signal, which is input from the HD/VD connector.

■ [Cinema reality]

Faithfully reproduces videos shot with cinema films.

Set this to [ ] normally.Off

Note

●In [ENGLISH(US)] OSD language, [Cinema reality]

is displayed as [3:2 PULLDOWN].

●If [Cinema reality] is set to [On], videos including

movies shot at 24 frames per second are

reproduced more naturally.

●If the video is unnatural with [On] set, set it to [ ].Off

■ [Noise reduction]

Reduces picture noise.

[Off]:

Disables Noise Reduction.

[Min], [Mid], [Max]:

Sets strength of Noise Reduction.

[Auto]:

Noise reduction will be automatically selected from

[Min], [Mid] or [Max].

■ [MPEG noise reduction]

Reduces block noise and mosquito noise on MPEG

videos.

[Off]:

Disables Noise Reduction.

[Min], [Mid], [Max]:

Sets strength of Noise Reduction.

■ [XGA mode]

This menu is displayed at PC IN input.

This unit supports XGA signals (1024 x 768, 1280 x

768, 1366 x 768) having different aspect ratios and

sampling rates.

[Auto]:

Automatically detects the signal.

Switch the setting to suit the input signal for better

display depends on the angle of view or display

resolution condition.

Note

●After making this setting, be sure to make each

adjustment (such as [Auto setup]) on the [Position]

menu as necessary. (see page 38)

■ [Signal range]

This menu is displayed at HDMI1, HDMI2, DIGITAL

LINK and DVI-D IN inputs. Switches the dynamic

range to match the signals from the source connected

to each terminal.

[Video(16-235)]:

If the input signal is the video range

Example: HDMI terminal output for DVD player

[Full(0-255)]:

If the input signal is full range

Example: HDMI terminal output for personal

computer

[Auto]:

Switches the dynamic range automatically between

[Video(16-235)] and [Full(0-255)] according to the

input signal.

Note

●[Auto] can be selected when HDMI or DIGITAL

LINK signal is input.

English

■ [Input level]

This menu is displayed at PC IN and AV IN inputs.

Adjustment of parts which are extremely bright and

hard to see.

-16 ‒ +16:

(Levellow)‒(Levelhigh)

■ [ ]3D Y/C filter

Set this if the video looks unnatural at AV IN input. Set

this to [On] normally.

Note

●Depending on the signalling system, this setting

may be less effective or may not be effective at all.

■ [Colour system]

Sets the colour system according to the signal

method at AV IN input. Set this to [Auto] normally.

This automatically detects the input signal format.

[Auto], [ ], [SECAM], [NTSC], [NTSC4.43], PAL

[PAL-M], [PAL-N]:

Set this to [Auto] when viewing PAL-60 videos.

When images are unstable

When the system is set to [Auto], images become

unstable in rare case under the condition that the

input signals are at low level or have many noises.

In this case, set the system so it conforms with the

input signal format.

■ [Dynamic backlight control]

Improves picture contrast and alleviates whiteness

by controlling the back light when signals with the low

average brightness level (APL) are input.

[On]:

The function is enabled.

[Off]:

The function is disabled.

Note

●When this function is operating, the on-screen

brightness becomes lower.

●If the [Dynamic backlight control] setting is different

for each input, the on-screen brightness may change

by switching input.

●Depending on the displayed image, the screen may

flicker. If this annoys you, set [Dynamic backlight

control] to [ ].Off

■ [Frame creation]

( 65-inch model only)

Improves motion picture quality. Select [ ] when the Off

motion picture looks unnatural.

[Off]:

[Frame creation] is disabled.

[On]:

[Frame creation] is enabled.

Note

●[Frame creation] is a function for 65-inch models.

This function is not available for 55/49/43-inch

models.

■ Input signal display

Displays the frequency and the type of the current

input signal.

60.00 Hz

74.18 MHz

1080/60i

33.72 kHzH-freq.

V-freq.

Dot clock freq.

Signal format

Display range:

Horizontal(15kHz‒135kHz)

Vertical(24Hz‒120Hz)

The dot clock frequency is displayed when Digital and

PC signal are input.

English

Screensaver

(For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for

any length of time.

If the display must remain on, a Screensaver should be

used.

[Screensaver] - submenu screen

Screensaver

Start

10:00

Mode Off

SUNDAY

2017/01/01

■ Screensaver settings

Screensaver operation

When the Screensaver is operating, the following 5

patterns are displayed full screen for 5 seconds each,

and it will be repeated.

Black → Dark grey → Grey → Light grey → White →

Light grey → Grey → Dark grey

To start Screensaver now

Select [On] in [Mode].

Select [Start] and press <ENTER>.

●The Screensaver will be activated.

Screensaver

Start

10:00

Mode On

SUNDAY

2017/01/01

Note

●If the following buttons are pressed while the

screen saver is operating, the screen saver is

cancelled.

Remote control: <RETURN>

Main unit: <MENU (Unit)> <INPUT (Unit)>

<+ (Unit)> <- (Unit)>

●When the display is turned off, the Screensaver will

be deactivated.

To set interval of Screensaver

Select [Interval] in [Mode].

Set [Periodic time].

●Press to change the time by 15 minutes.

●In [ENGLISH(US)] OSD language, [Periodic

time] is displayed as [SHOW DURATION].

Set [Operating time].

●Press once to change the time by 1 minute.

Keep pressing down to change the time by 15

minutes.

●In [ENGLISH(US)] OSD language, [Operating

time] is displayed as [SAVER DURATION].

Periodic time

Deactivated. Operating time

Screensaver

Start

Mode Interval

Periodic time

Operating time

0:00

SUNDAY

2017/01/01 10:00

Note

●It is not possible to set the duration of [Operating

time] longer than that of [Periodic time].

To set start and finish time of Screensaver

Select [Time designation] in [Mode].

Set [Start time] and [Finish time].

●Press once to change the time by 1 minute.

Keep pressing down to change the time by 15

minutes.

●In [ENGLISH(US)] OSD language, [Time

designation] is displayed as [TIME OF DAY].

Screensaver

Start

10:00

Mode Time designation

Start time

Finish time

0:00

SUNDAY

2017/01/01

Note

●When the current time is displayed as [- -], set

[Date and time] before setting [Start time] and

[Finish time]. (see page 57)

To turn the power off after Screensaver

Select [Standby after SCR saver] in [Mode].

Set [Screensaver duration].

●Press once to change the time by 1 minute.

Keep pressing down to change the time by 15

minutes.

Select [Start] and press <ENTER>.

●Screensaver will be activated and the power will

be turned off (standby) at the time set.

Screensaver

Start

10:00

Mode

Standby after SCR saver

Screensaver duration 0:00

SUNDAY

2017/01/01

Note

●[Screensaver duration] can be set from 0:00 to

23:59.

When this is set to [0:00], [Standby after SCR

saver] will not be activated.

English

Input label

This function can change the label of the Input signal to

be displayed.

[Input label] - submenu screen

HDMI1

HDMI2

DVI-D

VIDEO

DVI-D

HDMI2

HDMI1

VIDEO

DIGITAL LINK DIGITAL LINK

Input label

[HDMI1] [HDMI1] / [DVD1] / [DVD2] /

[DVD3] / [Blu-ray1] / [Blu-ray2] /

[Blu-ray3] / [CATV] / [VCR] /

[STB] / (Skip)

[HDMI2] [HDMI2] / [DVD1] / [DVD2] /

[DVD3] / [Blu-ray1] / [Blu-ray2] /

[Blu-ray3] / [CATV] / [VCR] /

[STB] / (Skip)

[DIGITAL LINK] [DIGITAL LINK] / [DVD1] /

[DVD2] / [DVD3] / [Blu-ray1] /

[Blu-ray2] / [Blu-ray3] / [CATV] /

[VCR] / [STB] / (Skip)

[DVI-D] [DVI-D] / [DVD1] / [DVD2] /

[DVD3] / [Blu-ray1] / [Blu-ray2] /

[Blu-ray3] / [CATV] / [VCR] /

[STB] / (Skip)

[PC] [PC] / [DVD1] / [DVD2] /

[DVD3] / [Blu-ray1] / [Blu-ray2] /

[Blu-ray3] / [CATV] / [VCR] /

[STB] / (Skip)

[VIDEO] [VIDEO] / [DVD1] / [DVD2] /

[DVD3] / [Blu-ray1] / [Blu-ray2] /

[Blu-ray3] / [CATV] / [VCR] /

[STB] / (Skip)

(Skip): When <INPUT> is pressed, the input will be

skipped.

Power management settings

Set each item to reduce power consumption.

This function works only for the input terminal that is

currently selected.

[Power management settings] - submenu screen

Power management settings

Power management mode

No signal power off

HDMI1 power management

DIGITAL LINK power management

PC power management

DVI-D power management

Power save

Custom

Off

Disable

Off

HDMI2 power management Off

Extended standby mode

Off

■ [Power management mode]: [On]

The following fixed values are set to the menu of

power consumption reduction. Individual setting is not

available.

[No signal power off]: [Enable]

[HDMI1 power management]: [On]

[HDMI2 power management]: [On]

[DIGITAL LINK power management]: [On]

[DVI-D power management]: [On]

[PC power management]: [On]

[Power save]: [On]

■ [Power management mode]: [Custom]

The menu of the power consumption reduction is

individually set. This setting is enabled when [Power

management mode] is set to [Custom].

[No signal power off]

When this is set to [Enable], the power supply of the

unit goes off automatically (standby) when there is no

operation or sync signal for about 10 minutes.

Note

●When set to the USB input, the unit determines no

signal is present if the USB memory is not connected

to the USB terminal, or the connected USB memory

does not contain any playable file.

●This function operates regardless of the [On] / [ ] Off

settings of [No signal image settings].

●This function may not operate depending on the video

output devices.

[HDMI1 power management]

When this function is set to [On], it operates under

the following conditions to turn the power on or off

automatically.

When no pictures (sync signal) are detected for

60 seconds or so at HDMI1 input:

Power is turned off (standby); the power indicator

lights up orange.

When pictures (sync signal) are subsequently

detected at HDMI1 input:

Power is turned on; the power indicator lights up

green.

Note

●This function may not operate depending on the

video output devices.

English

[HDMI2 power management]

When this function is set to [On], it operates under

the following conditions to turn the power on or off

automatically.

When no pictures (sync signal) are detected for

60 seconds or so at HDMI2 input:

Power is turned off (standby); the power indicator

lights up orange.

When pictures (sync signal) are subsequently

detected at HDMI2 input:

Power is turned on; the power indicator lights up

green.

Note

●This function may not operate depending on the

video output devices.

[DIGITAL LINK power management]

When this function is set to [On], it operates under

the following conditions to turn the power on or off

automatically.

When no pictures (sync signal) are detected for

60 seconds or so at DIGITAL LINK input:

Power is turned off (standby); the power indicator

lights up orange.

When pictures (sync signal) are subsequently

detected at DIGITAL LINK input:

Power is turned on; the power indicator lights up

green.

Note

●This function may not operate depending on the

video output devices.

[DVI-D power management]

When this function is set to [On], it operates under

the following conditions to turn the power on or off

automatically.

When no pictures (sync signal) are detected for

60 seconds or so at DVI-D input:

Power is turned off (standby); the power indicator

lights up orange.

When pictures (sync signal) are subsequently

detected at DVI-D input:

Power is turned on; the power indicator lights up

green.

Note

●This function may not operate depending on the video

output devices.

[PC power management] (DPMS function)

When this function is set to [On], it operates under

the following conditions to turn the power on or off

automatically.

When no pictures (HD/VD sync signals) are

detected for 60 seconds or so at PC input:

Power is turned off (standby); the power indicator

lights up orange.

When pictures (HD/VD sync signals) are

subsequently detected at PC input:

Power is turned on; the power indicator lights up

green.

Note

●This function is effective when [Sync] in [Signal] is set

to [Auto] or [HV sync] and [Component/RGB-in select]

are set to [RGB]. (see page 47)

●This function may not operate depending on the video

output devices.

[Power save]

This function adjusts the brightness of the backlight to

reduce power consumption.

[Off]:

This function does not operate.

[On]:

Backlight brightness is reduced.

[Extended standby mode]

Sets the operation in standby mode by the “Power

management” function for the input terminal for which

the “Power management” function is set to [On].

[On]:

If a video signal (synchronized signal) is detected

at any of the input terminals for which the “Power

management” function is set to [On], the power

is turned “ON”, and the input is switched to the

detected input.

[Off]:

If a video signal (synchronized signal) is detected

at the input terminal with which the standby mode

is entered, the power is turned “ON” with the input.

Note

●If [Input search] is set to items other than [ ], the Off

[Input search] function is prioritised. (The “Power

management” function does not operate for each

terminal.) (For details of [Input search] function, see

page 68.)

●If [Failover/Failback] is set to items other than [ ], Off

the [Failover/Failback] function is prioritised. (The

“Power management” function does not operate for

each terminal.) (For details of [Failover/Failback]

function, see page 69.)

English

HDMI-CEC settings

Set for HDMI-CEC function.

For details of HDMI-CEC function, refer to “About

HDMI-CEC function”. (see page )112

[HDMI-CEC settings] - submenu screen

HDMI-CEC settings

HDMI-CEC control Enable

Disable

HDMI2 ----

----

HDMI-CEC operation

MENU code

HDMI1

Display→Device

Disable

Device→Display

Link function

■ [HDMI-CEC control]

Enables/Disables the HDMI-CEC function.

[Disable]: Disables HDMI-CEC control.

[Enable]: Enables HDMI-CEC control.

Note

●Set to [Enable] to operate HDMI-CEC compatible

device with remote control of the unit.

■ [HDMI1]

Displays the device to operate when HDMI-CEC

compatible device is connected to HDMI 1 terminal.

The control subject can be changed with .

Note

●When there is no connected device, [----] will be

displayed.

■ [HDMI2]

Displays the device to operate when HDMI-CEC

compatible device is connected to HDMI 2 terminal.

The control subject can be changed with .

Note

●When there is no connected device, [----] will be

displayed.

■ [HDMI-CEC operation]

Displays the operation screen of the HDMI-CEC

compatible device.

Press <RETURN> to hide the operation screen.

■ [MENU code]

Changes the code to assign for the [MENU] operation

on the HDMI-CEC operation screen.

Adjust the code to that of the connected HDMI-CEC

compatible device.

■ [ ]Display → Device

Enables/Disables this unit to perform interlocking

control of the HDMI-CEC compatible device.

[Disable]:

Disables this unit to perform interlocking control of the

HDMI-CEC compatible device.

Even if the power status of this unit changes, the

power status of the device will not be affected.

[Power off]:

Turning this unit off (standby) turns off (standby) all

the devices connected to the HDMI 1 and HDMI 2

terminals. The power-on operation is not interlocked.

[Power on / off]:

The device turns on/off (standby) in conjunction with

the power-on/off (standby) operation of this unit.

Note

●For details of operation, refer to “About HDMI-CEC

function”. (see page )112

■ [ ]Device → Display

Enables/Disables the HDMI-CEC compatible device

to perform interlocking control of this unit.

[Disable]:

Disables the HDMI-CEC compatible device to perform

interlocking control of this unit.

Even if the power status of the device changes, the

power status of this unit will not be affected.

[Power on]:

Turning on the device turns on this unit, and the input

(HDMI1/HDMI2) is switched to that of the device.

[Power on / off]:

The power status of this unit interlocks with the

power-on/off operation of the device.

Note

●For details of operation, refer to “About HDMI-CEC

function”. (see page )112

●Input will not be switched when [Options] - [Input lock]

is set.

English

Image settings

Sets the image displayed on the screen when the

power is turned on or no signal is input.

[Image settings] - submenu screen

Image settings

Startup image settings

No signal image settings

[Startup image settings]:

Sets the image displayed when the power is turned on.

[No signal image settings]:

Sets the image displayed when there is no signal at the

selected input terminal.

Conditions of the image that can be set in [Read

user image]

●Image size: 1 920 x 1 080 only

●jpg files / bmp files (except for the ones that cannot

be played back with USB media player (see page 96))

●jpg files (Applies only to a no-signal image of

3.5 MB or less in file size.)

File and folder names are displayed on the file list with

conditions as below.

‒Ifafileorfolderisplaceddirectlyundertheroot

directory of the USB device.

●Up to 246 characters of file name (including the

extension) are properly displayed.

Note that the file list may disappear due to the display

time of the on-screen menu before the entire display

of file names completely appears.

●Up to 244 characters of folder name are properly

displayed.

• If the folder is placed hierarchically, the number of

characters displayed decreases by the number of

characters for the file path (folder information).

‒OnlythefileswithfilenamesdescribedwithASCII

characters excluding control code are displayed.

Note

●[Picture] cannot be adjusted when setting the startup

image.

●Only [Backlight] and [Colour temperature] can be

adjusted when setting the no-signal image.

●Images displayed for the startup image and no-signal

image may slightly differ from images confirmed on

the computer.

■ [Startup image settings] /

[No signal image settings]

Operate [No signal image settings] in the same way

as [Startup image settings].

[Startup image settings] - submenu screen

Startup image settings

Display setting

User image

Image select

Clear user image

Read user image

[Display setting]

Sets the image display when the power is turned on.

[Off]: The function does not operate.

[On]: Enables the function.

Note

●When no-signal image is displayed, the screen

position moves at certain intervals and images are

displayed to alleviate burn-in on the LCD panel.

●Shifts the display position regardless of the setting of

[Wobbling] (see page 55).

●When this function is operating, part of the screen

may appear to be missing.

[Image select]

Select the image to display.

[Default image]: Panasonic logo (blue background)

[User image]: Image registered by the user

Note

●Only when [Default image] is displayed, the logo

automatically rotates when displayed, according

to the [Display orientation] (see page 66) setting

([Landscape] / [Portrait]).

●When [User image] is selected, the image does not

rotate according to the [Display orientation] setting.

Prepare an image of 1 920 x 1 080 aspect ratio

compatible with the installation direction.

●[Default image] of [No signal image settings] is the

Panasonic logo (black background).

[Read user image]

[Read user image] - submenu screen

Read user image

g_sample

0_folder_sample

usb/picture/

Select a no signal image.

z_sample







English

Note

●Set the input to something other than [USB] or

[MEMORY VIEWER], and read the image.

●One user image can be registered for [Startup image

settings] and [No signal image settings] respectively.

●Do not turn the power off while reading the user

image.

●The selected image is previewed on the [Read user

image] submenu screen.

●When USB memory device is not connected to the

USB terminal, [Read user image] is greyed out and

cannot be selected.

●If starting to read the image while creating the

preview image, an access error will occur, and the

image may not be recognized as a image file.

Confirm the preview image display, and then start

reading process.

●The displayed file names are restricted as follows.

• Applicable extension: jpg, jpe, jpeg or bmp

• The file name is not “.jpg”, “.jpe”, “.jpeg”, or “.bmp”

which start with dot (.).

●Depending on the OS setting, folders or files in the

USB memory invisible on your computer may be

displayed on this unit.

[Clear user image]

Clears the image registered in [Read user image].

[Startup image settings] - submenu screen

Startup image settings

Display setting

User image

Image select

Clear user image

Read user image

Note

●When there is no [User image] that have been read,

[Clear user image] is greyed out and cannot be

selected.

●When [Image select] is set to [User image],

performing [Clear user image] will change the setting

of [Image select] to [Default image].

Wobbling

Automatically shifts the display image (therefore

unnoticeable to the eye) to prevent image retention of

sharper contour of image.

Setting this to [On] moves the screen position at certain

intervals and displays the images.

Note

●If [Multi display setting] is set to [On], this function

does not operate. (see page 56)

●When this function is operating, part of the screen

may appear to be missing.

No activity power off

When this function is set to [Enable], the power is turned

off (standby) automatically when there is no operation of

the Display for 4 hours.

Starting from 3 minutes before the turn off, the

remaining time will be displayed.

No activity power off

Press any key to abort.

3 min

When the power is turned off due to this function, a

message [Last turn off due to ’No activity power off’.]

is displayed next time the power is turned on.

When the image set in [No signal image settings] (see

page 54) is displayed, remaining time is not displayed

even when the power is going to be turned off in 3

minutes. Instead, the image is displayed until the

power is turned off.

Note

●While the screensaver is running, this function is

disabled.

OSD language

Select your preferred language.

Selectable languages

English(UK)

Deutsch

Français

Italiano

Español

ENGLISH(US)

中文 : Chinese

日本語 : Japanese

Русский : Russian

English

Multi display settings

1 to 10 displays can be aligned in horizontal direction

and vertical direction respectively, and those displays

are regarded as one group. The enlarged image is

shown on the combined display.

[Multi display settings]- submenu screen

Multi display settings

Multi display setting

Horizontal scale

Bezel H adjustment

Vertical scale

Bezel V adjustment

Location

Off

Note

●The settings are memorised separately for each

input terminal.

●When the multi display is set to [ ], adjust to the Off

same angle of view for [Position] (see page 38).

Then, set the multi display to [On]. Again, make

fine adjustment of the angle of view for [Position].

●The [Position] menu can be adjusted in the multi

display status.

●For USB input, [Horizontal scale] and [Vertical

scale] can be set only with the following

combinations.

1 × 2, 1 × 3, 1 × 4, 2 × 1, 2 × 2, 3 × 1, 4 × 1

■ [Multi display setting]

[Off]:

The display is not divided when enlarged.

[On]:

The display is divided when enlarged.

When [On] is set, the display aspect is [16:9].

■ [Horizontal scale]

Set the horizontal scale in the multi display.

1 to 10

■ [Vertical scale]

Set the vertical scale in the multi display.

1 to 10

Example:

[Horizontal scale] [5] and [Vertical scale] [5] is set in

the multi display

■ [Bezel H adjustment] / [Bezel V adjustment]

Adjust the area of image hidden in the joint

horizontally and vertically respectively.

0 ‒ 100

Display example

Setting value: 0

Displays the entire image including the joint area.

(Suitable when displaying character information

on PC.)

Setting value: 100

Does not display the image of the joint area.

(Suitable when displaying motion pictures.)

■ [Location]

Assign the multi display position.

Example:

[Horizontal scale] [10], [Vertical scale] [10]

A1 A2

....

B1 B2

.... ....

....

J1 J2 J9

I1 I2 I9

A10

B10

....

I10

J10

Select from A1 to J10.

●The displayed content for setting changes

according to the settings for the [Horizontal scale]

and [Vertical scale].

●By setting [Multi display setting] to [ ], it is Off

possible to check the location on the screen while

the setting menu is displayed.

English

Set up timer

Sets the program to turn the power on with the specified

time and video input, or to turn the power off at the

specified time. Up to 20 programmes can be set.

Note

●When the current time is displayed as [- -], set [Date

and time] before setting [Set up timer]. (see page 57)

●When multiple programs are set at the same time,

the program with the smallest program number is

enabled.

●If [Power mode] is set to [Power on], executing the

program at power-on will switch to the input set for

[Input].

[Set up timer] - submenu screen

Setting Example

Program 1, Every Monday, 12:00,

Power On, Input: HDMI1

12:00

Set up timer

Program

Timer function

Power on

HDMI1

Day

Time

Power mode

Input

MONDAY

10:00

SUNDAY

2017/01/01

1Set the program number.

2To execute the program, set to [On].

The program is disabled when [ ] is set.Off

3Set the day.

The program is executed every day when

[Everyday] is set.

4Set the power On/Off.

5Set the time.

Pressing once changes time 1 minute.

Pressing continuously changes time by 15

minutes.

6Set the input.

Date and time

Set date and time. ([- -] shows no programme is set.)

[Date and time] - submenu screen

Date and time

Set

SUNDAY

10:00

2017/01/01

Year 2017

Month

Day

Hour

Minute

Synchronize display Off

Parent or child setting Child

Synchronize display setting

NTP synchronization Off

Time zone (GMT + 00:00)

NTP status

■ Set date and time

Select [Year / Month / Day / Hour / Minute].

Set the selected item.

Date and time

Set

SUNDAY

10:002017/01/01

Year 2017

Month

Day

Hour

Minute

Select [Set] and press <ENTER>.

99:992015/01/01

Date and time

Set

SUNDAY

18:002017/02/05

Year 2017

Month

Day

Hour

Minute

Note

●If the present date and time are not set, the time

settings for [Set up timer], [Screensaver], etc. cannot

be made.

●The present date and time setting is reset in the

following case.

When the main unit is left unattended for 7 days or

longer after the main unit is turned off with the <Main

Power On / Off button>, the power plug is removed,

or power failure has occurred, etc.

●Date and time cannot be set when [Year / Month /

Day / Hour / Minute] are set to [- -].

●The upper limit of date and time that can be set is,

Year 2035, Month 12, Day 31, Hour 23 and Minute

59.

English

■[Synchronize display setting]

Synchronizes the time of all the displays connected on

the network.

Note

● This function does not operate if the displays to

synchronize the time are not connected via a LAN.

● This function operates only when the devices

connected via a LAN are connected with different IP

addresses.

● The time synchronization operates only in power-on

state or in schedule standby state.

● Normal operation is achieved only when the display

synchronization function is enabled among the units.

If other devices are connected on the same network,

operation may not be normal.

[Synchronize display]:

Enables/Disables display synchronization function.

[Parent or child setting]:

Set this unit to [Parent] or [Child] for display

synchronization.

Operates when [Synchronize display] is [On].

[Parent]:

Set the time as a source of synchronization.

[Child]:

Synchronizes with the time of the parent.

Note

● When [Synchronize display] is [On], and [Parent or

child setting] is [Child], date and time cannot be set.

● When [Synchronize display] is [On], and [Parent or

child setting] is [Child], [NTP synchronization] off-

operation is performed.

● If two or more displays with [Parent] set are present

on one network, display synchronization does not

operate properly.

● Time is not synchronized if no displays with [Parent]

set is present on one network.

● Time is not synchronized if the time is not set for the

display with [Parent] set on the network.

● Depending on the network environment,

synchronization may be largely lost.

● Synchronization is not possible if a router is placed

between displays.

● Synchronization is not possible via a wireless LAN.

■[NTP status]

Displays the current [NTP synchronization] and [Time

zone] (see page 90) settings.

Note

● When [NTP synchronization] is set to [On], and if

[Synchronize display] and [Parent or child setting]

are set to [On] and [Child] respectively, [NTP

synchronization] shows [--], and the off-operation is

performed.

● When [NTP synchronization] is [On], date and time

cannot be set.

● The settings for [NTP synchronization] and [Time

zone] cannot be changed with this menu. Change

the settings with WEB browser. (see page 90)

● [NTP synchronization] operates only in power-on

state or in schedule standby state.

English

Network settings

Set when networking with a computer.

[Network settings] submenu will be displayed.

Network settings

Serial control

SF2-000

Off

SERIAL IN

Off

Display name

DIGITAL LINK status

DIGITAL LINK menu

Network status

LAN setup

AMX D. D.

Extron XTP

Crestron Connected™

Reset

OffAuto display name

Permit

USB memory network settings

DIGITAL LINK mode

Auto

Network control

Off

■[Serial control]

(TH-65SF2E only)

Selects the RS232-C control terminal.

[SERIAL IN]:

Controls using the SERIAL IN terminal of the

display.

[DIGITAL LINK]:

Controls via the optional device that supports

DIGITAL LINK output (ET-YFB100G, ET-

YFB200G) and the DIGITAL LINK / LAN terminal.

■[Network control]

Set when controlling with the unit’s LAN terminal.

[On]:

Controls via LAN using the LAN terminal of the

Display. The power indicator lights orange when

the power is turned off with the remote control

(standby).

[Off]:

Invalidates control with LAN terminal.

(In this case, the power consumption of Standby

condition (when the power is turned off with the

remote control) will be slightly reduced.)

Note

● When using the LAN control function which is

described in “Using Network Function” (see page

77 94), set this function to [On].‒

● Even if the setting is set to [ ], the Web browser Off

control screens that do not control this unit

(display information [Status], detailed settings

[Detailed set up] and password change [Change

password]) operate.

■[Auto display name]

Sets whether to change the display name

automatically.

[On]:

Changes the display name automatically in

accordance with the set point of the display ID.

[Off]:

The display name is not changed automatically.

■[Display name]

The name of the Display that is shown on the network

can be changed.

Note

● The name can be changed only when [Auto display

name] is set to [ ].Off

● Display ID is not reset to default with [Network

settings] - [Reset].

■[LAN setup]

Detailed network settings for the LAN established via

the LAN terminal of the Display can be configured.

Select [LAN setup] with and press <ENTER>.

192.168. 0. 8

255.255.255. 0

192.168. 0. 1

1024

12:34:56:78:9A:BC

LAN setup

Save

DHCP Off

IP address

Subnet mask

Gateway

Port

MAC address

[DHCP], [IP address], [Subnet mask], [Gateway]

Press to set [On] / [Off] of [DHCP].

When [ ] is selected, IP address and other settings Off

can be set manually.

[DHCP]:

(DHCP client function)

[On]:

Obtains an IP address automatically when a

DHCP server exists in the network the Display is

going to be connected.

[Off]:

When a DHCP server does not exist in the

network the Display is going to be connected,

set [IP address], [Subnet mask] and [Gateway]

manually.

[IP address]:

(IP address display and setting)

Enter an IP address when DHCP server is not

used.

[Subnet mask]:

(Subnet mask display and setting)

Enter a Subnet mask when DHCP server is not

used.

English

[Gateway]:

(Gateway address display and setting)

Enter a gateway address when DHCP server is not

used.

Note

● When [DHCP] is set to [On], the IP address, etc. will

be displayed in grey.

Entering numbers

192.168.000.008

IP address

1. Select the address and press <ENTER>.

2. Select digits with .

3. Change numbers with .

4. Press <ENTER>.

You can cancel the change by pressing

<RETURN>.

Select [Save] and press <ENTER>.

Save the current network Setup.

Note

● To use a DHCP server, make sure the DHCP

server is started.

● Contact your network administrator for details on

[IP address], [Subnet mask] and [Gateway].

● Shipping condition

[DHCP]: Off

[IP address]: 192.168.0.8

[Subnet mask]: 255.255.255.0

[Gateway]: 192.168.0.1

[Port]

Set the port number used for command control.

Select [Port] and press <ENTER> to set the number.

● Theavailablesettingrangeis1024‒65535.

● Entering numbers (see page 60)

Note

● When the PJLink protocol is used, the port setting is

not necessary.

[MAC address]

Displays the MAC address of this unit.

■[Network status]

Checks the current Network settings status.

192. 168. 0. 1

255. 255. 255. 0

192. 168. 0. 8

12:34:56:78:9A:BC

Network status

DHCP

IP address

Subnet mask

Gateway

MAC address

Off

■[DIGITAL LINK mode]

(TH-65SF2E only)

Switches communication method of DIGITAL LINK

terminal.

[Auto]:

Communication method is selected automatically.

HDMI, LAN, serial communication are possible.

Ethernet connection is possible.

[DIGITAL LINK]:

HDMI, LAN, serial communication are possible via a

twisted pair cable transmitter.

[Ethernet]:

LAN communication is possible via the LAN terminal

of the display.

[Long reach]:

Communication method is fixed to Long reach.

Modes allowing communication

: Valid

― : Invalid

Settings

Communication validity


transmission Ethernet RS-

232C

100 m 150 m

Auto

For

DIGITAL

LINK

―

For Long

reach ―

For

Ethernet ― ― ―

DIGITAL LINK ―

Long reach ―

Ethernet ― ― ―

Note

●When connected with the [Long reach]

communication method, the maximum

transmission distance is 150 m. In this case, this

unit can receive the signals of up to 1080/60p

(148.5 MHz).

●If the communication method of the twisted

pair cable transmitter is set to [Long reach], set

[DIGITAL LINK mode] to [Auto]. Then, connection

is enabled with the [Long reach] communication

method.

When connecting with the separately sold DIGITAL

LINK Switcher (ET-YFB200G) with the [Long

reach] communication method, set [DIGITAL LINK

mode] to [Long reach].

●Even if [DIGITAL LINK mode] is set to [Long

reach], when the twisted pair cable transmitter

does not support the communication method of

[Long reach], it will not be connected properly.

English

■DIGITAL LINK status

(TH-65SF2E only)

Display the DIGITAL LINK connection environment.

Select [DIGITAL LINK status] with and press

<ENTER>.

-YY dB

-XX dB

DIGITAL LINK status

LINK status

HDMI status

Signal quality

Min

Max

No link

No HDMI

[LINK status]:

1 of the followings will be displayed.

[No link]:

No LAN connection, etc.

[DIGITAL LINK]:

Connected to the DIGITAL LINK device by LAN.

[Long reach]:

Communication method is set to [Long reach] and

is connected to the DIGITAL LINK device by LAN.

[Ethernet]:

The PC is connected to the DIGITAL LINK / LAN

terminal of this product and is LAN connected.

[HDMI status]:

Displays the connection status of the HDMI format.

1 of the followings will be displayed.

[No HDMI]:

DIGITAL LINK not connected

[HDMI on]:

DIGITAL LINK connected

[HDCP on]:

HDCP supported on DIGITAL LINK

[Signal quality]:

It is the quantified minimum and maximum numbers

of errors that have occurred. The display colours are

red, yellow, or green, depending on the number.

Signal quality Display

Colours

Reception

Status

-12dB or below Green Good

-11 to -8dB Yellow Bad

-7dB or above Red Terrible

● The number is represented by yellow or red if

the LAN cable is disconnected or the cable is not

shielded.

● This signal quality shows figures between the

twisted pair cable transmitter that is connected and

the display.

■DIGITAL LINK menu

(TH-65SF2E only)

Displays the setting menu of Digital Interface Box.

Select [DIGITAL LINK menu] with and press

<ENTER>.

Note

● This function can only be selected when the

Panasonic device that supports DIGITAL LINK output

(ET-YFB100G, ET-YFB200G) is connected to a

DIGITAL LINK / LAN terminal and its power is on.

● For details, refer to the manuals of the devices that

support DIGITAL LINK output.

■[AMX D. D.]

Set whether to allow the Display to be detected by AMX

Device Discovery.

[On]:

Enables detection by AMX Device Discovery.

[Off]:

Disables detection by AMX Device Discovery.

● For more details, visit the following web site.

http://www.amx.com/

■[Crestron Connected™]

When this function is set to [On], the Display can

be monitored or controlled via the network using

equipment and application software of Crestron

Electronics, Inc.

This Display supports the following application software

from Crestron Electronics, Inc.

•RoomView® Express

•Fusion RV®

•RoomView® Server Edition

[Crestron Connected™] is a function to connect to

a system developed by Crestron Electronics, Inc.

which manages and controls multiple system devices

connected to the network.

● For details of “Crestron Connected™”, refer to the

Crestron Electronics, Inc. web site (Provided only in

English).

http://www.crestron.com/

For the download of “RoomView

® Express”, refer to

the Crestron Electronics, Inc. web site (Provided only

in English).

http://www.crestron.com/getroomview

■[Extron XTP]

(TH-65SF2E only)

Set to [On] when connecting XTP Transmitter made by

Extron to DIGITAL LINK terminal.

● For more details on Extron, visit the following web

site.

http://www.extron.com

English

■[USB memory network settings]

Sets whether to permit the network setting using the

USB memory device. (see page )118

[Permit]:

Permits USB memory network settings.

[Prohibit]:

Prohibits USB memory network settings.

Note

● This function is set to [Permit] as factory default.

● Once the network setting is done with USB memory

device, this function is set to [Prohibit].

■[Reset]

You can reset the network setting to the factory default

of the Display.

Select [ ] with Yes and press <ENTER>.

Network settings

Reset

Yes No

Note

● The settings for [NTP synchronization], NTP server

and [Time zone] will be reset to the factory default.

USB media player settings

Set for “USB media player”.

For details of the function, refer to “USB media player”

(see page 95).

[USB media player settings] - submenu screen

USB media player settings

USB media player

Scenario file check

No scenario file

Slide show duration

Enable

10 sec

Schedule play function Enable

Video playback mode Standard

Schedule play function default setting

Play mode Individual play

Current setting Individual play

Playlist edit

Resume play On

Codec information

■[USB media player]

Set to enable or disable the USB media player

function.

■[Schedule play function]

Enables/Disables the schedule playback function

using “Content Management Software”.

Note

● When [Schedule play function] is set to [Enable],

if both the scenario file of the existing “USB media

player” and the schedule file of this function are

present, the [Schedule play function] operation takes

priority.

● [USB media player] cannot be changed during the

schedule playback mode.

■[Video playback mode]

Sets the video playback mode.

If image disturbance occurs at the switching timing

of motion picture files during playback in [Standard]

mode, switch to [Adjust] mode.

[Standard]: Plays without a black image at the joint

between video files.

[Adjust]: Plays with a black image (approx. 2

seconds) inserted at the joint between

video files.

Note

● When using the Multi Media Player, a black screen is

displayed for a certain period of time at the switching

timing of motion picture files regardless of the [Video

playback mode] settings.

● The display may be disturbed at the switching timing

of files during playback in [Standard] mode.

● When the schedule playback is proceeding using

“Content Management Software”, [Video playback

mode] can be switched both in single mode and multi

mode.

■[Resume play]

Set resume play off/on.

■[Playlist edit]

Creates / Edits the scenario file (scenario.dat).

For details of [Playlist edit], refer to “Playlist edit

function” (see page 102).

■[Scenario file check]

Execute the contents check of the USB memory

which is connected to the USB terminal. If any error

is detected, the error code and file name will be

displayed.

For details of the error codes, refer to “USB memory

contents check”. (see page 100)

Select [Scenario file check] with and press

<ENTER>.

Available

Scenario file check

English

Note

● When the schedule playback is proceeding using

“Content Management Software”, [Scenario file

check] is disabled.

■[Codec information]

Displays the codec information of a motion picture/still

picture file being played on the USB media player.

The file is analysed on execution, and the codec

information is displayed after the completion of the

analysis.

Note

● The file analysis takes time in proportion to the

number of files in the USB memory device.

● A black screen appears during analysis because

playback is stopped.

● Incompatible with the schedule play mode.

■[Slide show duration]

Select the displaying duration for still images.

[10 sec sec]] ‒ [600

Note

● When the schedule playback is proceeding using

“Content Management Software, [Slide show

duration] is disabled.

■Play mode

Specifies the playback mode operating with

[Schedule play function]. To apply this setting to the

schedule playback operation, restart this unit.

Also, if the playback mode is specified for the

schedule data of “Content Management Software”

during the schedule playback, it takes priority.

[Individual play]:

Plays in the individual playback mode.

Content is played only on one display.

[Synchronize play]:

Plays in the synchronized playback mode.

Content is played on multiple displays in

synchronization.

Note approx. 5 seconds of preparation time are

added in switching content to synchronize the

playback timing.

Note

● The synchronized playback operates properly only

when [Date and time] - [Synchronize display] is set to

[On] and the time is synchronized.

● [Current setting] shows [Play mode] when the

schedule playback is performed by this unit.

Memory viewer settings

Set for “Memory viewer”.

For details of the function, refer to “Memory viewer” (see

page 107).

[Memory viewer settings] - submenu screen

Memory viewer settings

Memory viewer

Video

Enable

Content select

Picture duration

Auto display content info

Sort order

Sort type

Auto display operation guide

ThumbnailView

Play method

Ascending

File name

None

10 sec

■[Memory viewer]

Enables/Disables “Memory viewer”.

■[View]

Sets the display format of the content in the USB

memory device to the thumbnail display or the list

display.

■[Content select]

Sets the type of content to display.

[Picture]:

Displays still picture files only.

[Video]:

Displays motion picture files only.

[Music]:

Displays music files only.

[All]:

Displays all the files including still pictures, motion

pictures and music files.

[Picture / Video]:

Displays picture files and video files.

[Picture / Music]:

Displays picture files and music files.

[Video / Music]:

Displays video files and music files.

■[Sort type]

Sets the order of content in combination with [Sort

order].

■[Sort order]

Sets the order of content in combination with [Sort

type].

English

■[Play method]

Sets the playback method of content.

[None]:

Automatically returns to the content display screen

when the playback of the selected file has finished.

[Single]:

Plays the selected file repeatedly.

[All]:

Plays the content displayed on the content display

screen repeatedly in displayed order.

[Random]:

Plays the content displayed on the content display

screen at random.

[Select]:

Plays the selected files in the sorting order shown on

the content display screen.

[Program]:

Plays the selected file in selected order.

■[Picture duration]

Sets the display time of still picture files.

10 sec to 600 sec

■[Auto display content info]

When this is set to [On], the content information

is automatically displayed at the beginning of the

content playback, and the information is automatically

erased after a certain period of time.

■[Auto display operation guide]

When this is set to [On], the operation guide is

automatically displayed at the beginning of the

content playback, and the information is automatically

erased after a certain period of time.

The playback control (see page 109) is performed

only while the operation guide is being displayed. If it

is not displayed, the unit shows the operation guide

without performing the playback control.

When this is set to [ ], the operation guide is not Off

displayed at the beginning of the content playback.

The playback control is performed regardless of

Show/Hide of the operation guide.

Note

●When [Play method] is set to [Single], playback

information and operation guide are automatically

displayed only at the beginning of the first playback

of content.

●When [Play method] is [Select] or [Program], up to 99

files can be selected.

●This menu will be greyed out and cannot be set while

content is being played.

Function button settings

Assigns specific functions to the numeric buttons (<1>

to <6>). The buttons can be used as shortcut keys by

assigning frequently used operations.

1Switch [Function group] with .

[Function button settings] - submenu screen

DVI-D

DIGITAL LINK

HDMI1

USB

Function button settings

Function group

Function button 1

Function button 2

Function button 3

Function button 4

Function button 5

Function button 6 MEMORY VIEWER

Function button guide

Input Input

↓

Memory load

↓

Shortcut

2Select the numeric button with

and set the function to assign with

■Functions assignable to the numeric

buttons

[Input] (Direct input select)

Input can be selected with single-touch operation.

[HDMI1] / [HDMI2] / [DIGITAL LINK] / [DVI-D] /

[PC] / [VIDEO] / [USB] / [MEMORY VIEWER]

[Memory load]

Memory can be loaded with single-touch operation.

Refer to “Memory load”. (see page 45)

[MEMORY1] to [MEMORY6]

●[MEMORY1] to [MEMORY6] load functions are

already assigned to <1> to <6> respectively.

These settings cannot be changed.

English

[Shortcut]

[Signal], [Screensaver], [Set up timer], [Power

management settings], [Network settings],

[Multi display settings]

● Pressing the numeric button displays the menu

screen. Pressing the button again exits the

menu screen.

[AV mute]

● Pressing the numeric button mutes the audio

and pictures.

To cancel, press any button on the remote

control except the <Standby (ON/OFF) button>.

[Digital zoom]

● Switches to [Digital zoom] mode by pressing

numeric buttons. (see page 35)

[Display ID / Display name]

● Pressing the numeric button enlarges [Display

ID] and [Display name].

[HDMI-CEC operation]

● Press the numeric buttons to display the

operation screen of the HDMI-CEC compatible

device.

[Playlist edit]

● Pressing the numeric button displays [Playlist

edit] screen. (see page 102)

Shipping condition

The following functions are assigned to the numeric

buttons as factory default.

TH-65SF2E

[Input] [Memory

load] [Shortcut]

1HDMI1 MEMORY1 [Signal]

2DIGITAL LINK MEMORY2 [Screensaver]

3DVI-D MEMORY3 [Set up timer]

4PC MEMORY4 [Network

settings]

5USB MEMORY5 [AV mute]

6MEMORY

VIEWER MEMORY6 [HDMI-CEC

operation]

TH-65SF2U, TH-55SF2U, TH-49SF2U, TH-43SF2U,

TH-55SF2E, TH-49SF2E, TH-43SF2E

[Input] [Memory

load] [Shortcut]

1HDMI1 MEMORY1 [Signal]

2HDMI2 MEMORY2 [Screensaver]

3DVI-D MEMORY3 [Set up timer]

4PC MEMORY4 [Network

settings]

5USB MEMORY5 [AV mute]

6MEMORY

VIEWER MEMORY6 [HDMI-CEC

operation]

■[Function button guide]

Sets the function display when numeric buttons are

pressed. Set this for each function group.

[On]:

Displays the function list for the numeric buttons.

[Off]:

Does not display the function list. Operation starts

when numeric buttons are pressed.

Note

● When <FUNCTION> is pressed, [Function button

guide] will be displayed regardless of the [On] / [ ] Off

settings.

■To use shortcut (numeric buttons)

1Press <FUNCTION> or <1> ‒ <6>.

[Function button guide] will be displayed.

[Function button guide]: When [ ] is set, pressing Off

the numeric button starts operation.

Example: Input

HDMI1

HDMI2

DIGITAL LINK

DVI-D

USB

Input

2Press <FUNCTION> to switch function

group.

Example: Memory load

MEMORY1

MEMORY2

MEMORY3

MEMORY4

MEMORY5

MEMORY6

Memory load

3Press <1> ‒ <6>.

The function for the pressed button starts to operate.

Example: When <2> is pressed.

Memory load

Load from “MEMORY2”

Ok Cancel

English

Display orientation

Sets the on-screen display orientation in the portrait

setting.

[Landscape]:

On-screen display angle is for horizontal

installation.

[Portrait]:

The on-screen display rotates clockwise by 90

degrees for easy view in the portrait setting.

Power indicator

18:00

Note

● In the portrait setting, the power indicator shall come

to the upper side.

Image rotation

Sets the picture rotation in the portrait setting.

[Off]:

Pictures are not rotated.

[180 degrees]:

Pictures are rotated 180 degrees.

Note

● This function does not operate when [Display

orientation] is [Landscape].

OSD position

Sets the display position of the on-screen menu.

Each time or is pressed, the display position of the

on-screen menu changes.

Display example:

18:00

Left

Centre

18:00

Menu display duration

Sets the display duration time for the on-screen menu.

[5 sec 180 sec]] ‒ [

Menu transparency

Sets the transparency rate of the on-screen display

background.

0 ‒ 100

English

Options Adjustments

This unit offers special functions conveniently used

according to the installation location and application.

■Remote control

1Press <SETUP>.

[Setup] menu screen will be displayed.

2Select [OSD language] with

and press <ENTER> for more than 3

seconds.

Following screen will be displayed.

Options

Display software information

USB data cloning

Software licenses

LAN data cloning

Shipping

3Select [Options] with and press

<ENTER>.

[Options] menu screen will be displayed.

1/3

Options

Input search

Failover/Failback

Audio input select

Onscreen display

Initial VOL level

Initial input

Maximum VOL level

Input lock

Button lock

Controller user level

PC auto setting

Off

Initial VOL function Off

Maximum VOL function Off

2/3

---

Options

Off-timer function

Initial startup

Display ID

Controller ID function

Serial ID function

Serial response(Normal)

Information timing

Off

Enable

Last memory

Off

Serial response(ID all) Off

Serial daisy chain position

LAN control protocol Protocol 2

3/3Options

Power on screen delay

Clock display

Power on message(No activity power off)

Power on message(Power management)

POWER button lock Off

Off

Note

● [POWER button lock] function is only for

TH-65SF2U, TH-55SF2U, TH-49SF2U and

TH-43SF2U.

4Select the item to set with .

For [Input search], [Failover/Failback], [Audio input

select] and [Information timing], the submenu screen

will be displayed when you press <ENTER>.

(see page 68, 74)

5Set with .

6Press <SETUP> to exit from [Options]

menu.

■Unit

1Press <MENU (Unit)> for several times

and display the [Setup] menu.

2Select [OSD language] with ,

and then press and hold <ENTER

(Unit)> for more than 5 seconds.

3Select [Options] with and press

<ENTER (Unit)>.

[Options] menu screen will be displayed.

4Select the item to set with .

For [Input search], [Failover/Failback], [Audio input

select] and [Information timing], the submenu screen

will be displayed when you press <ENTER>.

(see page 68, 74)

5Set with <- (Unit)> or <+ (Unit)>.

6Press <MENU (Unit)> for several

times to exit from [Options] menu.

Note

● Press <RETURN> to return to the previous menu.

● The serial number and the software version of this

unit are displayed when [Display software information]

is selected in step 3.

● The software License is displayed when [Software

licenses] is selected in step 3.

English

[Backup input change]

Displays whether or not operating conditions for the

Backup Input function are met.

[Inactive]:

Indicates that the conditions are not met, and

inactivates the Backup Input function.

[Active]:

Indicates that the conditions are met, and activates

the Backup Input function.

[Main input]

Displays the (main) input set by switching input.

[Current input]

Displays whether the input currently in use for viewing

is the (main) input set by switching input or the

backup one.

Setting conditions

The following table describes restrictions (available

combinations) on each setting item.

Main

HDMI1

HDMI2

DIGITAL

LINK

DVI-D

VIDEO USB

Backup

HDMI1

HDMI2

DIGITAL

LINK

DVI-D

○× ×

VIDEO × × ×

USB × × ×

○:SelectableforbothPrimaryandSecondary.

×: Not selectable for neither Primary nor Secondary.

Recall display

Pressing <RECALL> displays any of the followings.

●When the main input is being used for viewing and

the operating conditions for the Backup Input function

are met.

HDMI1

16:9

Main input

Backup OK

●When the backup input, enabled by the operation of

the Backup Input function, is being used for viewing.

HDMI1

16:9

Backup Input

DVI

When the conditions for the Backup Input function

are met, the following screen is displayed.

Main input

Backup OK

■[Input change mode]: [Normal]

Switches to the backup input if an interruption of

video occurs.

Note

●When an analogue (PC or VIDEO) input is being

used for viewing, you cannot set an analogue (PC or

VIDEO) input as a backup input.

●Any analogue (PC or VIDEO) input cannot be set as

[Primary backup input] or [Secondary backup input].

●This function will start operating once a video signal is

detected by both the input in use for viewing and the

backup input and the [Backup input change] item is

displayed as [Active].

[Primary backup input]

Sets the first priority backup input.

(None) / [HDMI1] / [HDMI2] / [DIGITAL LINK] /

[DVI-D] / [PC] / [VIDEO] / [USB]

The input that is of the same type as the one in use

for viewing will be greyed out.

When an analogue (PC or VIDEO) input is being

used for viewing, you cannot set an analogue (PC or

VIDEO) input as a backup input.

Any analogue (PC or VIDEO) input cannot be set as

[Primary backup input] or [Secondary backup input].

[Secondary backup input]

Sets the second priority backup input.

(None) / [HDMI1] / [HDMI2] / [DIGITAL LINK] /

[DVI-D] / [PC] / [VIDEO] / [USB]

The input that is of the same type as the one in use

for viewing will be greyed out.

When an analogue (PC or VIDEO) input is being

used for viewing, you cannot set an analogue (PC or

VIDEO) input as a backup input.

Any analogue (PC or VIDEO) input cannot be set as

[Primary backup input] or [Secondary backup input].

[Auto switch back mode]

Sets whether or not to automatically return to the

former (main) input when the former input video

initially viewed is restored while viewing the video

of the backup input enabled by the operation of the

Backup Input function.

[Disable]:

Unreturned

[Enable]:

Returned

English

[Backup input change]

Displays whether or not operating conditions for the

Backup Input function are met.

[Inactive]:

Indicates that the conditions are not met, and

inactivates the Backup Input function.

[Active]:

Indicates that the conditions are met, and activates

the Backup Input function.

[Main input]

Displays the (main) input set by switching input.

[Current input]

Displays whether the input currently in use for viewing

is the (main) input set by switching input or the

backup one.

Setting conditions

The following table describes restrictions (available

combinations) on each setting item.

Main

HDMI1

HDMI2

DIGITAL

LINK

DVI-D

VIDEO USB

Backup

HDMI1

HDMI2

DIGITAL

LINK

DVI-D

○ ○ ○

VIDEO ×

USB ×○ ○

○:SelectableforbothPrimaryandSecondary.

: Selectable for either Primary or Secondary.

×: Not selectable for neither Primary nor Secondary.

Recall display

Pressing <RECALL> displays any of the followings.

●When the main input is being used for viewing and

the operating conditions for the Backup Input function

are met.

HDMI1

16:9

Backup mode OK

●When the backup input, enabled by the operation of

the Backup Input function, is being used for viewing.

HDMI1

16:9

Primary backup input

When the conditions for the Backup Input function

are met, the following screen is displayed.

Backup mode OK

Note

●This menu will be greyed out and cannot be set under

the following condition.

•[Input search] is set to the item other than [ ]. Off

(see page 68)

●When set to the USB input, the unit determines video

signals are interrupted by judging the USB memory is

not connected to the USB terminal.

●This function may not operate correctly depending on

the image playback device.

Audio input select

Set up the sound when a video input is selected.

1Select the video input with .

Set the audio input with .

HDMI1

HDMI2

DIGITAL LINK

DVI-D

VIDEO AV IN

AV IN

DIGITAL LINK

HDMI2

HDMI1

Audio input select

●The illustration above shows the factory settings.

Video input Audio input

HDMI1 HDMI1 / AV IN / No audio

HDMI2 HDMI2 / AV IN / No audio

DIGITAL LINK DIGITAL LINK / AV IN /

No audio

DVI-D / PC /

VIDEO AV IN / No audio

No audio: No audio input (Mute)

When the setting for the audio input has been

changed from the factory settings, the audio input

is displayed as below.

HDMI1

16:9

AV IN

English

Onscreen display

Set to display / hide the following Onscreen display.

● Power on display

● Input signal switch display

● No signal display

● No external media display (at USB input)

● MUTE display after displaying the menu screen

● Off timer remaining time display when 3 minutes

remaining

[On]:

Displays the Onscreen display.

[Off]:

Hides the Onscreen display.

Initial input

Adjusts the input signal when the unit is turned on.

[Off] / [HDMI1] / [HDMI2] / [DIGITAL LINK] /

[DVI-D] / [PC] / [VIDEO] / [USB] / [MEMORY

VIEWER]

Note

This menu is available only when [Input lock] is [ ]. Off

(see page 72)

Initial VOL function

Enables/Disables [Initial VOL function] when the unit is

turned on.

[Off]:

It will be the sound volume level which had been

set before the power of the unit was turned off.

[On]:

It will be the sound volume level set for [Initial VOL

level].

Initial VOL level

Sets the sound volume when [Initial VOL function] is

enabled.

Note

● Outputs with the set volume when [Initial VOL

function] is [On].

● When [Maximum VOL function] is [On], the volume

cannot be set to the level higher than the level set for

[Maximum VOL level].

Maximum VOL function

Enables/Disables [Maximum VOL function].

[Off]:

The sound volume level can be set up to 100

(maximum).

[On]:

The volume cannot be set to the level higher than

the level set for [Maximum VOL level].

Maximum VOL level

Sets the sound volume when [Maximum VOL function]

is enabled.

Note

● Outputs with the set volume when [Maximum VOL

level] in [On] state is selected on the menu.

● When the [Maximum VOL function] is switched from

[ ] to [On], if the [Maximum VOL level] is set lower Off

than the [Initial VOL level], the [Initial VOL level]

automatically becomes the same as the [Maximum

VOL level].

Input lock

Locks the input switch operation.

[Off] / [HDMI1] / [HDMI2] / [DIGITAL LINK] / [DVI-D]

/ [PC] / [VIDEO] / [USB] / [MEMORY VIEWER]

Note

● Input switch can be used when this is set to [ ].Off

Button lock

Limits operation of the buttons on the unit.

[Off]:

All the buttons on main unit can be used.

[On]:

All button operations except for the <Main Power

On / Off button> are disabled.

[MENU & ENTER]:

Locks <MENU (Unit)> and <ENTER (Unit)>

buttons.

■To set [Button lock]

Set with the buttons on the unit.

[Off]:

Press <+ (Unit)> for 4 times.

Press <INPUT (Unit)> for 4 times.

Press <- (Unit)> for 4 times.

Press <ENTER (Unit)>.

[On]:

Press <- (Unit)> for 4 times.

Press <ENTER (Unit)> for 4 times.

Press <+ (Unit)> for 4 times.

Press <ENTER (Unit)>.

[MENU & ENTER]:

Press <ENTER (Unit)> for 4 times.

Press <+ (Unit)> for 4 times.

Press <INPUT (Unit)> for 4 times.

Press <ENTER (Unit)>.

Note

● About how to reset the settings to defaults:

“Initialization” (see page 76)

English

Serial response(Normal)

Sets whether to send the response command to normal

commands without ID.

[Off]:

Does not respond. (Including the inquiry command)

[On]:

Responds.

Serial response(ID all)

Sets whether to respond to the command or not, when

serial command of ID No “0” is received.

[Off]:

Does not respond.

[On]:

Responds.

Serial daisy chain position

Set the first and last terminals in the chain when the

SERIAL IN/OUT terminal of this unit is connected using

a daisy chain scheme.

[---]:

When controlling this unit alone with serial control,

or connecting at a position other than the first and

last terminals in a daisy chain

[ ]:Top

When connecting at the first terminal in a daisy

chain

[End]:

When connecting at the last terminal in a daisy

chain

LAN control protocol

Select the LAN control protocol.

[Protocol 1]:

Control with the Panasonic Display sequence.

[Protocol 2]:

Control with the sequence that is compatible with

Panasonic Projector.

Note

●For PJLink and WEB browser control, the operation is

possible regardless of the setting.

●When operating the “Early Warning Software” or

“Multi Monitoring & Control Software”, select [Protocol

2].

Information timing

Set up the informing manner for no signal or

temperature rising.

During RS-232C controls:

Warning or error message sent from the display

automatically.

During LAN controls:

Acquire the warning or error message from the

display.

1Select the item with .

Select the set point with .

Information timing

No signal warning

No signal warning timing

Temperature warning

No signal error

No signal error timing

5min

10min

[No signal warning]

When set to [On], the display sends out the no signal

warning.

[No signal warning timing]

Set up the detecting time for no signal warning.

(Range:01‒60,Interval:1minute)

[No signal error]

When set to [On], the display sends out the no signal

error.

[No signal error timing]

Set up the detecting time for no signal error.

(Range:01‒90,Interval:1minute)

●

The warning of [No signal warning] and the error of

[No signal error] are not sent when the no signal state

is detected through any of the following functions:

[ ], No signal power off], [HDMI1 power management

[HDMI2 power management], [DIGITAL LINK

power management], [DVI-D power management],

[PC power management] (see page 51)

Setting Example:

●If there is no signal when [PC IN] is input, [PC

power management] is activated first and the

Display enters the standby mode.

[No signal warning timing]: 5 minutes

[No signal error timing]: 10 minutes

[PC power management]: [On] (60 seconds)

Note

●The [No signal error timing] cannot be set shorter

than [No signal warning timing].

●Even when a USB memory is connected, if there

is no playable file, the unit determines no signal is

present.

[Temperature warning]

When set to [On], the display sends out the warning

message.

English

Power on screen delay

You can set the power-on delay time of the displays to

reduce the power load, when you press <Main Power

On / Off button> to turn on the multiple displays that are

set together.

Set each display’s setting individually.

[Off]:

The display will be turned on at the same time as

<Main Power On / Off button> is pressed.

[Auto]:

Sets the delay time automatically according to the

number set for [Display ID].

The delay time is determined by multiplying

[Display ID] × 0.3 seconds.

Example:

When [Display ID]is3→0.9seconds

1 ‒ 30:

Set the power-on delay time (second).

After pressing <Main Power On / Off button>,

the display will be powered on with time delay

depending on this setting.

Note

●While this function is working, the power indicator is

blinking green.

●This function also works when the power recovers

from failure or after plugging off and in again the

power cord.

Clock display

Sets to display / hide the clock.

[Off]:

Hides the clock.

[On]:

Displays the clock.

Note

●The clock is displayed at the lower left of the screen

when <RECALL> button is pressed.

Display duration is approx. 5 seconds.

●When current date and time is not set, the clock is

not displayed even when [Clock display] is [On]. (see

page 57)

Power on message(No activity power

off)

Sets to show/hide [No activity power off] precautions

when the power is turned on.

[On]:

The warning precautions are shown when the

power is turned on.

[Off]:

The warning precautions are not shown when the

power is turned on.

Note

●This setting is enabled only when [No activity power

off] is [Enable] (see page 55).

Power on message(Power

management)

Sets to show/hide an information message that tells

the power has been turned off by “Power management”

function when the power is turned on.

[On]:

The information is shown when the power is turned

on.

[Off]:

The information is not shown when the power is

turned on.

Note

●This setting is enabled only when “Power

management” function is [On] (see page 51).

POWER button lock

Sets the lock setting for the display <Main Power On /

Off button>.

[On]:

<Main Power On / Off button> operation is

disabled.

[Off]:

<Main Power On / Off button> operation is

enabled.

Note

●This function is only for TH-65SF2U, TH-55SF2U,

TH-49SF2U and TH-43SF2U.

English

Initialization

When both main unit buttons and remote control buttons

are disabled due to the [Button lock], [Controller user

level] and [Controller ID function] settings, set all the

values [ ] so that all the buttons are enabled again.Off

Press <- (Unit)> together with <RETURN>

and hold for more than 5 seconds.

[Shipping] is displayed and the lock is released when

it disappears.

Shipping

YES NO

● Settings for [Button lock], [Controller user level]

and [Controller ID function] will be back to [ ].Off

English

Using Network

Function

This unit has a network function and you can control the

Display connected to the network using your computer.

Necessary environment for

computers to be connected

First of all, confirm your computer whether it has a wired

LAN.

Before connecting the Display to the computer, be sure

to check the following settings.

Check 1: About LAN cable

●Connect the cable properly.

●Use LAN cable that is compatible with category 5 or

above.

Check 2: Wired LAN settings

Computer with a built-in wired LAN function

●Switch on the wired LAN.

Computer without a built-in wired LAN function

●Check that your wired LAN adapter is recognized

properly and it is switched on.

●Install the wired LAN adapter driver beforehand.

For details on how to install the driver, refer to the

instructions accompanying the wired LAN adapter.

■ About Web Browser

Web Browser is necessary to use WEB control.

●Compatible OS:

Windows, Mac OS

●Compatible Web Browser:

Internet Explorer 7.0 / 8.0 / 9.0 / 10.0 / 11.0

(Windows)

Safari 4.x / 5.x / 6.x (Mac OS)

Example of network connection

Note

●To use the network function, set each item in

[Network settings] and make sure to set [Network

control] to [On].

(see page 59)

When it is set to [On], power indicator lights orange

under the condition of power “Off” with remote control

(stand-by state).

■ LAN Terminal connection

DIGITAL LINK

* *1 2

*1: TH-65SF2E

*2: TH-65SF2U, TH-55SF2U, TH-49SF2U, TH-43SF2U,

TH-55SF2E, TH-49SF2E, TH-43SF2E

Display (Back of the unit)

DIGITAL LINK / LAN Terminal

LAN cable (commercially available)

Hub or broadband router

Note

●For LAN cable, use shielded cable, otherwise picture

noise may be caused.

●Make sure the broadband router or hub supports

100BASE-TX.

●Touching the LAN Terminal with a statically charged

hand (body) may cause damage to the device due to

its discharge.

Do not touch the LAN Terminal or the metal part of

the LAN cable.

●For instructions on connection, consult your network

administrator.
