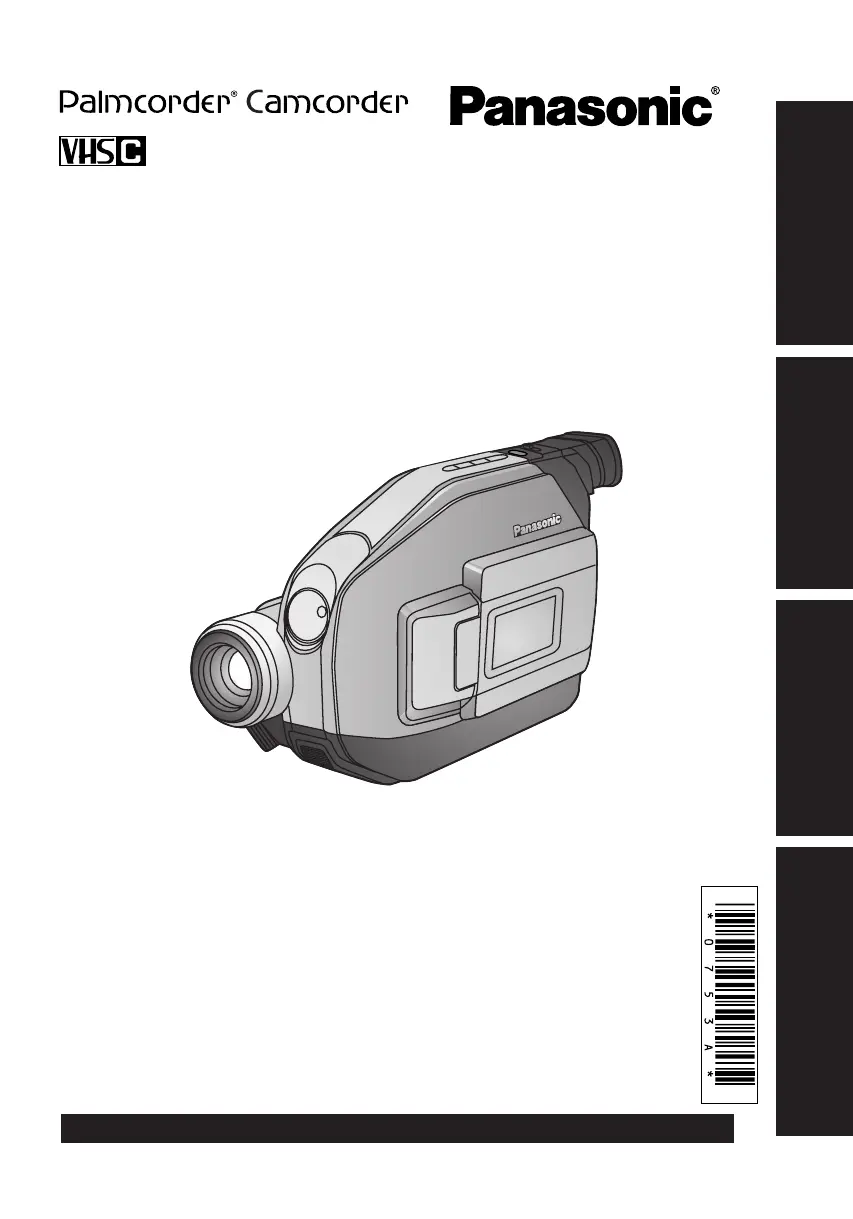

Basic Operation Special Features For Your Information
Getting Started
Camcorder
Operating Instructions
Please read these instructions carefully before attempting
to operate this product. Please save this manual.
Models No.
LSQT0753 A
PV-L354
PV-L454
For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
2
For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
Things You Should Know
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring
you years of enjoyment. Please take time
to fill in the information to the right.
The serial number is on the tag located on
the underside of your Camcorder. Be sure
to retain this manual as your convenient
Camcorder information source.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
These accessories are provided in order to set up or use your Camcorder.
Unpack your Camcorder
1 pc. Lens Cap (LSKM0937)
with Lens Cap Strap
(LSGQ0049) (page 13)
This operating instruction book is designed for use with models PV-L354 PV-L454and .
Features may vary, so please read carefully.
Differences between models
8.4 mm (0.33 inch)
Liquid Crystal Color Electronic Viewfinder
Model Number Battery Pack
PV-L354
PV-L454
LSSB0011/LSSB0014
Nickel Metal Hydride Battery
/Nickel Cadmium Battery
Digital Zoom
maximum
700x
750x
8.4 mm (0.33 inch)
Electronic Viewfinder
Viewfinder
1 pc. CR2025 Clock Battery
(installed in Camcorder)
(page 36)
1 pc. Shoulder Strap
(LSFC0012) (page 13)
1 pc. AC Adaptor (PV-A20)
with DC Power Cable
(page 11)
PV-BP18/LSSB0008
Nickel Cadmium Battery
(PV-BP18/LSSB0008)
(pages 10, 11)
(PV-L454 only)
1 pc. Battery Pack
(LSSB0011/LSSB0014)
(pages 10, 11)
(PV-L354 only )
1 pc. Audio/Video Cable
(LSJA0368) (pages 22, 23)
3
Getting Started
Things You Should Know
Safety Precautions
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
Your Compact VHS Camcorder is designed to record and play back in Standard Play (SP)
and Super Long Play (SLP) modes. You can also play a Compact VHS Camcorder
recording on your VHS VCR using the optional VHS PlayPak.
This Camcorder is equipped with the System to provide excellent video pictures, and isHQ
compatible with standard VHS equipment.
It is recommended that only cassette tapes that have been tested and inspected for use in
VCR machines with the and/or mark be used.
This symbol warns the user that
uninsulated voltage within the unit may
have sufficient magnitude to cause
electric shock. Therefore, it is dangerous
to make any kind of contact with any
inside part of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.
The above markings are located on the appliance’s bottom cover.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with Part 15 and part 18 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when operated in a residential environment.
If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, use the equipment in another location
and/or utilize an electrical outlet different from that used by the receiver.
If necessary, consult the dealer or an experienced radio/TV technician for help. You may
find the booklet, ‘Something About Interference’ available from FCC local regional offices
helpful.
This product may cause interference to radio equipment and should not be installed near
maritime safety communications equipment or other critical navigation or communication
equipment operating between 0.45-30 MHz.
FCC Warning : Any unauthorized changes or modifications to this equipment would
void the users authority to operate.
