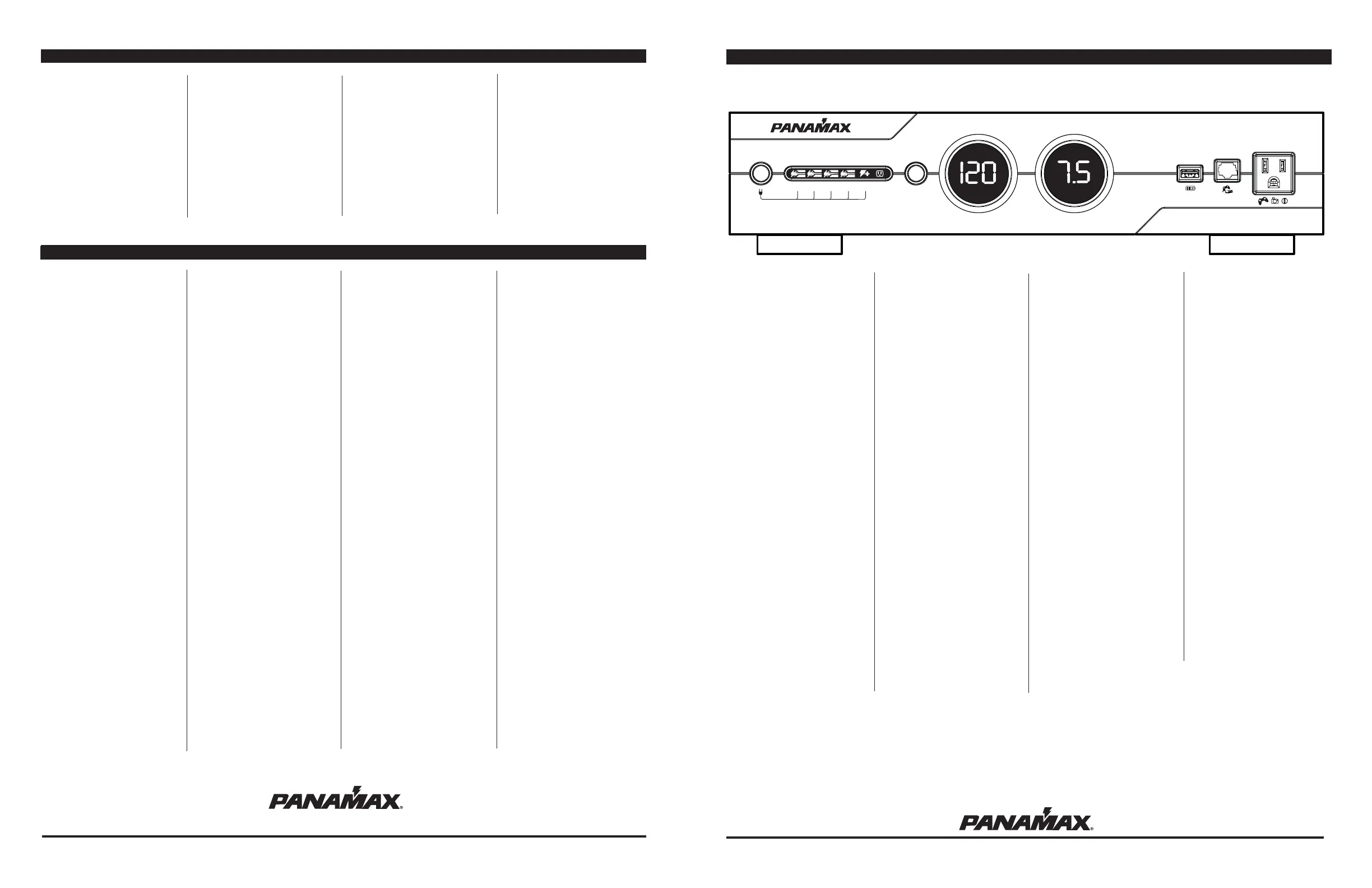

MAX® 5300-PM

LOOKING FOR CRYSTAL CLEAR PICTURE AND SOUND?

MAX 5300-PM®

www.panamax.com

Level 4 Power Cleaning and Filtration eliminates

common symptoms of contaminated power (including

loss of detail, pops, hisses, hums and visual artifacts)

and allows your A/V equipment to perform up to its full

capability.

Panamax’s patent pending AVM™ circuitry continuously

monitors the incoming power as displayed on the digital

voltmeter. In case of an undervoltage or an overvoltage, a

ashing red lightning bolt will be displayed in the voltmeter,

and power to the connected equipment is automatically

turned o if either of these conditions is detected. When

voltage returns to a safe level, power to the equipment is

automatically reconnected.

The M5300-PM is designed to provide noise isolation

between 5 isolated outlet banks (including 1 bank with 2

high current outlets) so that any noise created by an A/V

component cannot contaminate the power going to equip-

ment plugged into another outlet bank.

Improves Picture and Sound Quality

Monitors Incoming Line Voltage and Provides a

Visual Indication of Power Level

Reduces Cross-Contamination Between Components

• 11 Outlets

4 Always On, 5 Switched, 2 Switched High

Current.

• High Current Outlets

2 outlets for equipment with high power

demands (Amps/Subwoofers).

• 5 Isolated Outlet Banks

Isolating outlet banks from one another

prevents noise contamination between

components.

• Gaming LAN Port

Easy access to LAN port on front panel.

Perfect for online gaming.

• Power Sequencing

Guards against blown fuses and potentially

damaging speaker thump by automatically

powering outlets on and o in sequence

• 12 Volt Trigger

Allows source equipment to activate or

deactivate the outlets on the M5300-PM

• Clean Power Level 4

Improves picture and sound quality by

eliminating noise across the entire AC

bandwidth. 40% more ecient at eliminating

noise than Clean Power Level 3.

• USB Charger

Convenience charger for mp3 players, cell

phones, and other small electronics

• AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/un-

der voltages by disconnecting the power and

reconnecting it when safe power returns

HOME THEATER POWER MANAGEMENT

MAX® 5300-PM BACK PANEL FEATURES

MAX® 5300-PM SPECIFICATIONS

UPC’S, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING

General________________________________________________________________

Dimensions .....................................17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet)

Weight ........................................................................................................................30 lbs.

AC Power_______________________________________________________________

Line Voltage ........................................................................................................120V, 60Hz

Total Current Capacity ....................................................................................................15 A

UL1449 Suppression Rating ..........................................................................................330V

Protection Modes ............................................................................................L-N, L-G, N-G

Initial Clamping Level ...........................................................................200V Peak, 141 RMS

Energy Dissipation ..............................................................................................2350 Joules

Peak Impulse Current ...................................................................................... 72,000 Amps

Catastrophic Surge Circuit ...............................................................................................Yes

Thermal Fusing ................................................................................................................Yes

Over-voltage shuto ...................................................................................142 VAC ± 8 VAC

Under-voltage shuto ...................................................................................90 VAC ± 2 VAC

EMI/RFI Noise Filtration___________________________________________________

Banks 1, 2, 3, 4 .............................................................................. 80 db, 100 KHz – 2 MHz

Bank 5, High Current Outlets ......................................................... 60 db, 100 KHz – 2 MHz

DC Trigger Input__________________________________________________________

Jacks......................................................................................... 3.5mm (1/8”) mono mini-plug

Voltage and Polarity........................................................................3 - 24V DC, bidirectional

Current Requirement....................................................................4.6 mA @3V, 58 mA @24V

DC Trigger Output________________________________________________________

Pass through............................................................................................................no delay

Positive = Tip, Negative = Ring

Design and specications subject to change without notice due to product improvement.

LAN Circuits_____________________________________________________________

Clamping Level............................................................................................................... 50V

Connectors................................................................................................................... RJ-45

Wires Protected:....................................................................................................... 8-Wires

USB Circuit_____________________________________________________________

Jacks......................................................................................................................... USB-A

Power Delivery......................................................................................... 500 mA @ 5 VDC

Telco Circuit____________________________________________________________

Fuseless/Auto-resetting..................................................................................................Yes

Clamping Level.............................................................................................................260V

Capacitance....................................................................................................30pf (approx.)

Suppression Modes..........................................................................Metallic & Longitudinal

Wires Protected.......................................................................................2-Wire, Pins 4 & 5

Connectors..................................................................................................................RJ-11

Cable and Satellite Circuits________________________________________________

HD 1080 i/p Ready.........................................................................................................Yes

Shielded..........................................................................................................................Yes

Clamping Level...............................................................................................................75V

Frequency Range....................................................................................... 0 MHz - 2.2 GHz

Insertion Loss........................................................................................................... < 0.5 dB

Connections.....................................................................................Female “F”, Gold Plated

Bidirectional....................................................................................................................Yes

MODEL M5300-PM MASTER CARTONUNIT CARTON

Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC

17” x 12.75” x 3.5” 30 lbs 23.75” x 18.5” x 10” 33.5 Lbs 0 50616 00816 7 1 Same as 33.5 Lbs 5 00 50616 00816 2

4.1” H with feet Unit Carton

1690 Corporate Circle, Petaluma, CA. 94954 800-472-5555 or 707-283-5900 Fax 707-283-5901 www.panamax.com

1. 15A Main Circuit

Breaker:

Automatically opens

when the current load

is greater than 15

Amps. Push to reset.

4. Outlet Banks 1 and 2

Each bank features two always-on outlets with

linear ltration technology (LiFT). Power will

only be turned o under a fault condition. (See

specications for over-voltage and under-voltage

thresholds). LiFT EMI/RFI noise ltration is

provided by a two-stage balanced Pi lter which

also provides noise isolation from all other

outlet banks.

5. Universal Coaxial

Connectors

3 pairs of bidirectional

protection circuits optimized for

satellite, cable, and antenna

TV signal lines.

3. Outlet Banks 3 and 4

Each bank features two switched outlets with linear

ltration technology (LiFT) controlled by the front

panel Power Button or the DC Trigger input. Banks

3 & 4 will turn on immediately and turn o after a

10 second delay. LiFT EMI/RFI noise ltration is

provided by a two-stage balanced Pi lter which

also provides noise isolation from all other outlet

banks.

2. Outlet Bank 5

Two switched, high-current outlets controlled by

the front panel Power Button or the DC Trigger in-

put. Bank 5 has a 5 second turn on delay and turns

o immediately upon shutdown. The High Current

outlets provide power from a low impedance noise

ltration circuit that does not limit the current to

your equipment. Its output is noise-isolated from all

other outlet banks.

6. Main Power Cord 10ft.

Must be plugged into a

properly wired & grounded

3-wire outlet.

8. Bank 1 & 2 Indicator

Light

Normally ON, is lit when

there is power present

on the Bank 1 and 2

receptacles.

11. LAN Jacks

Protection circuits for 10/100 baseT Ethernet

lines. For the LAN 2 protected jacks, the incom-

ing LAN line MUST be plugged into the LINE

jack and the patch cord to the equipment MUST

be plugged into the EQUIP jack. For the LAN 1

protected jacks the incoming LAN line must be

plugged into the LINE jack and the equipment

must be plugged into the gaming jack on the

front panel. 8 wire protection, 50V clamping.

10. Voltage Sense Trigger

Input

3.5mm (1/8”) mono mini-plug.

Connect to a remote trigger

device that uses a DC output

to trigger a startup/shutdown

sequence.

7. Ground Lug:

Provides a common

grounding point for

equipment with separate

ground leads.

12. Phone Jacks

Protection circuits for standard

telephone or pay-per-view lines.

Phone circuit is autoresetting.

Incoming phone cord MUST be

plugged into the LINE jack. Patch

cords to the equipment (satellite

receiver, digital video recorder,

telephone, etc.) MUST be plugged

into the EQUIP jacks.

9. Voltage Sense Trigger

Output

3.5mm (1/8”) Mini-Plug jack.

Connecting a trigger wire to

the Voltage Sense Output jack

will allow the input signal to

pass through the M5300-PM to

control the startup/shutdown of

an additional device.

Specyfikacje produktu

Marka:	Panamax
Kategoria:	Niesklasyfikowane
Model:	M5300-PM
Kolor produktu:	Czarny
Wbudowany wyłącznik:	Tak
Typ ekranu:	LCD
Ilość portów Ethernet LAN (RJ-45):	3
Maksymalne natężenie prądu:	15 A
liczba portów RJ-11:	2
Typ montażu:	Poziome
Pojemność stelaża:	2U
Ilość gniazd sieciowych:	101 x gniazdo sieciowe
Typy wyjść AC:	Typu B
Wartość nominalna napięcia wejściowego:	120 V
Funkcje ochrony zasilania:	Zabezpieczenie przed zbyt niskim napięciem
Typy PDU:	Zarządzany
Sterowanie ujścia:	Turn off, Turn on
