www.panamax.com

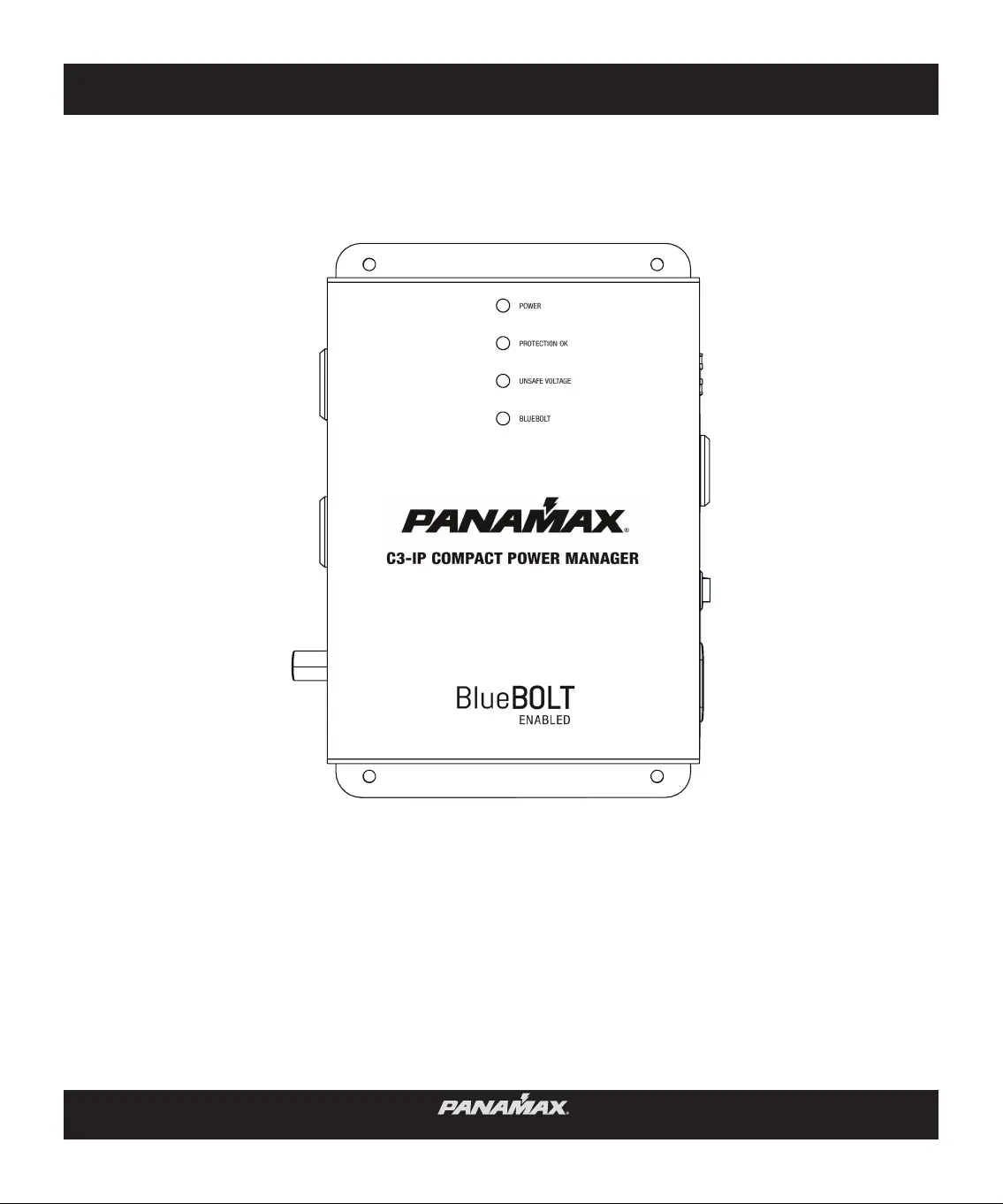

C3-IP Compact IP Power Management

C3-IP

A BlueBOLT® Enabled Compact Power Manager with 3 Outlets

Quick Start Guide

C3-IP Quick Start Guide

www.panamax.com

Contents

Custom Install Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Features ..........................................................................3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Mounting..........................................................................4

BlueBolt...........................................................................4

Product Features....................................................................5

Advanced Operations.................................................................6

C3-IP Advanced Operation ..........................................................6

Status .........................................................................6

Password Protection .................................................................7

Password requirements: ............................................................7

Troubleshooting.....................................................................8

General Use:.....................................................................8

BlueBOLT/Network connectivity:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

C3-IP Specications..................................................................9

Technologies .......................................................................10

Protect-or-Disconnect..............................................................10

Standard Level RFI/EMI Filtration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Over/Under voltage load disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Power Sequencing ................................................................10

IP Monitor and Control .............................................................10

Warranty information.................................................................11

Caution! Warranty Limitation for Internet Purchasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Limited three Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

What is Covered?.................................................................11

Limitations .....................................................................11

How do I Obtain Warranty Service? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FCC NOTICE.....................................................................11

Tech Support.......................................................................12

www.panamax.com

Note: You can nd the C3-IP manual on the product page at under the tab.www.panamax.com Resource

Congratulations on your purchase of the Panamax

® C3-IP BlueBOLT

® enabled compact power manager. The C3-IP is a full featured power conditioner providing protection

and ltration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the C3-IP allows remote reboot of 3 individually controlled outlet

as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditional reboot and much more.

Important: You will need the C3-IP’s unique MAC Address and Challenge Key (provided on the 2 labels attached to the cover of this guide, as well as on a label on t

bottom of the product) to register the unit for control and monitoring at www.mybluebolt.com. One is permanently adhered and the other is removable for your conv

• Protect-or-Disconnect surge protection

• Standard EMI/RFI Filtration

• Over/Under voltage load disconnect

• Power Sequencing

• IP Monitor & Control - BlueBOLT™ enabled for IP control and monitoring

• 3 individually controlled outlets

• Ground lug to attach Panamax signal-line protection modules

• Compact design with integrated brackets for wall mounting

• 0.5m IEC power cord

• 12A Capacity with circuit breaker

• 3 year limited product warranty

• With the provided power cord, C3-IP must be installed within close proximity of a mains socket outlet

CUSTOM INSTALL POWER MANAGEMENT

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. WARNING: Do not use this apparatus near water. To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

6. CAUTION - Could Contain Always On Receptacles (depending on BlueBOLT programming). To reduce risk of shock - Disconnect C3-IP from power source before servicing any equipm

connected to C3-IP.

7. Clean only with dry cloth.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatuses that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades, with one wider than the other. A grounding type plug has two blades and a th

grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete ou

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has bee

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. Where the power cord is used as the main disconnect device, the disconnect device shall remain readily accessible.

14. This device must be connected to a main socket outlet with a protective earthing (ground) connection.

15. With the provided power cord, C3-IP must be installed within close proximity to the mains socket outlet.

IMPORTANT SAFETY INSTRUCTIONS

FEATURES
